LTP8800-4A
新規設計に推奨200A DC/DC μModule Regulator with PMBus Interface
- 製品モデル
- 1
- 1Ku当たりの価格
- 最低価格:$132.50
製品の詳細
- High Efficiency at High Frequency
- Up to 90.5% Efficiency at 550kHz, 54VIN to 0.8VOUT
- PMBus-Compliant I2C Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Internal EEPROM Fault Log Record
- Digitally Programmable Control Loop
- Program Voltage, Current Limits, Soft-Start/Soft-Stop, Frequency, Synchronization and Phasing, Power-Good, Warnings and Faults
- Wide Input Voltage Range: 45V to 65V
- Output Voltage Range: 0.5V to 1.1V
- ±0.5% Maximum DC Output Error with Differential Remote Voltage Sense
- ±3% Current Readback Accuracy
- Parallel and Current Share Multiple μModule ICs
- 22mm × 24mm × 22mm Surface-Mount Package
The LTP™8800-4A is a 200A step-down μModule® regulator that provides microprocessor core voltage from 54V power distribution architecture. LTP8800-4A features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTP8800-4A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. LTP8800-4A high level of integration minimizes component count and design time and maximizes flexibility and power density. The LTP8800-4A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses. The LTP8800-4A is available in a 22mm × 24mm × 22mm surface mounted open frame package.
Applications
- High Current Distributed Power Systems
- Servers, Network, and Storage Equipment
- Intelligent Energy Efficient Power Regulation
ドキュメント
データシート 1
ユーザ・ガイド 1
技術記事 1
ビデオ 1
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
LTP8800-4AIPV#PBF | PCA Package 22-Lead (22mm × 24mm × 22mm) |
これは最新改訂バージョンのデータシートです。
ツールおよびシミュレーション
LTspice
下記製品はLTspiceで使用することが出来ます。:
- LTP8800-1A
- LTP8800-2
- LTP8800-4A
LTpowerPlay®
LTpowerPlay® は、旧リニアテクノロジーのデジタル・パワー・マネージメント(PSM)製品をサポートする強力なWindowsベースの開発環境です。
ツールを開く
LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。

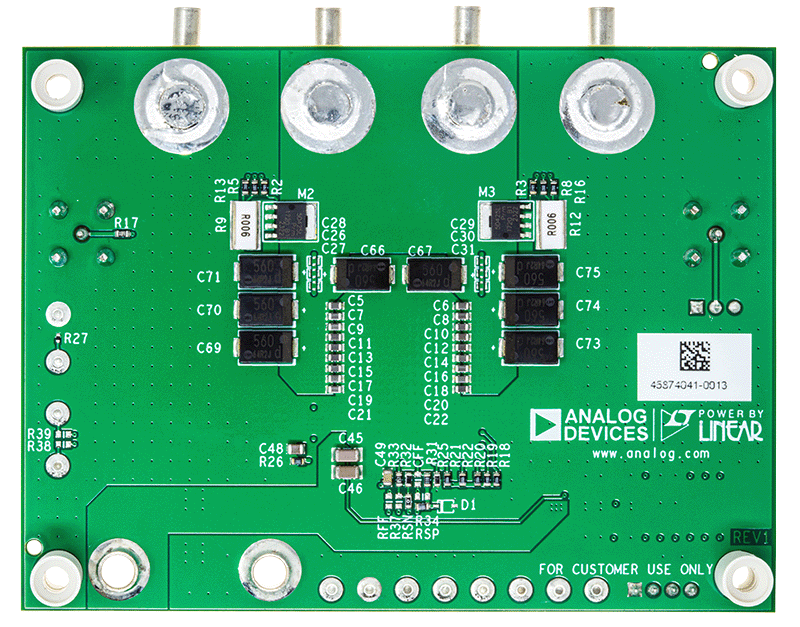

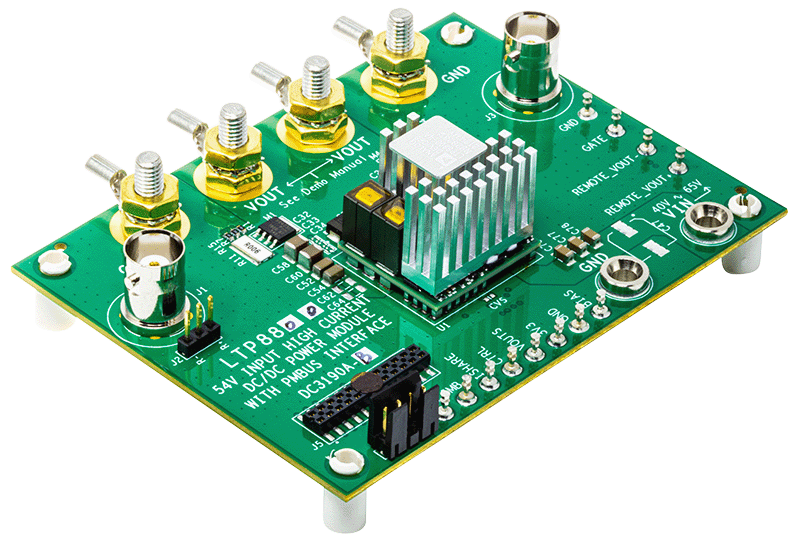

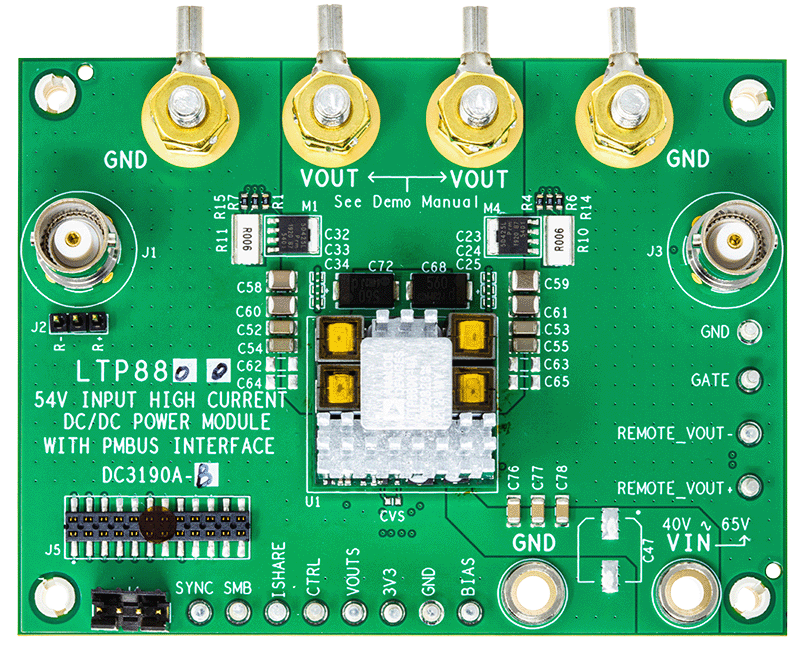

評価用キット
