製品概要

機能と利点

  • 1.6V to 5.5V Input Voltage Range
  • 0.62V to 5.5V Output Voltage Range
  • Internal Soft-Start
  • Selectable 1.7MHz or 2.6MHz Constant Frequency Operation
  • Internal Oscillator Can Be Synchronized to an External Clock, 1MHz to 3MHz Range
  • High Efficiency: Up to 95%
  • 65μA Quiescent Current, Burst Mode® Operation
  • 600mA Output Current (VIN = 1.8V, VOUT = 1.2V)
  • 750mA Peak Inductor Current
  • No Schottky Diode Required
  • Low Dropout Operation: 100% Duty Cycle
  • 0.612V Reference Voltage
  • Stable with Ceramic Capacitors
  • Shutdown Mode Draws <1μA Supply Current
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Overtemperature Protection
  • Available in a Low Profile (0.75mm)

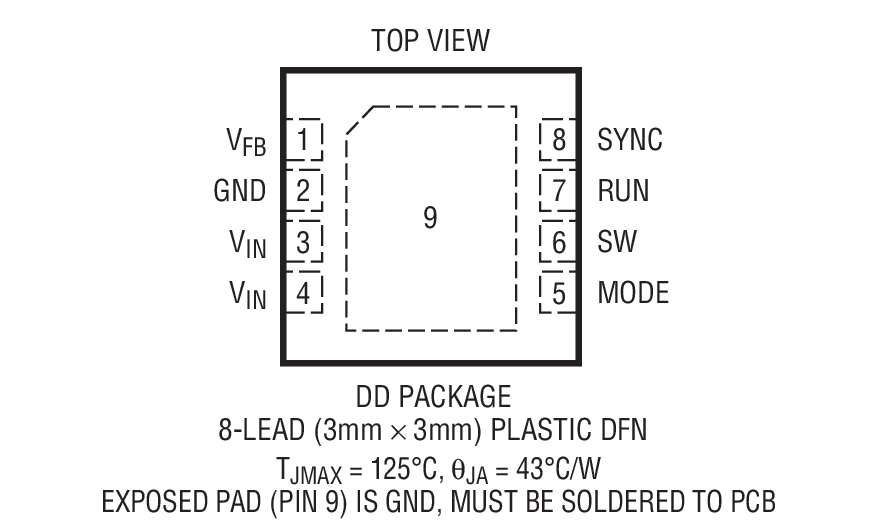

  • 8-Lead (3mm × 3mm) DFN Package

製品概要

The LTC3409A is a high efficiency, monolithic synchronous buck regulator using a constant frequency, current mode architecture. The LTC3409A improves upon the LTC3409’s light load regulation in Burst Mode operation. The output voltage is adjusted via an external resistor divider.

Fixed switching frequencies of 1.7MHz and 2.6MHz are supported. Alternatively, an internal PLL will synchronize to an external clock in the frequency range of 1MHz to 3MHz. This range of switching frequencies allows the use of small surface mount inductors and capacitors, including ceramics.

 Supply current during Burst Mode operation is only 65μA dropping to <1μA in shutdown. The 1.6V to 5.5V input voltage range makes the LTC3409A ideally suited for single cell Li-Ion, Li-Metal and 2-cell alkaline, NiCd or NiMH battery-powered applications. 100% duty cycle capability provides low dropout operation, extending battery life in portable systems. Burst Mode operation can be user-enabled, increasing efficiency at light loads, further extending battery life.

The internal synchronous switch increases efficiency and eliminates the need for an external Schottky diode. Internal soft-start offers controlled output voltage rise time at startup without the need for external components.


VREF Tolerance
LTC3409 VREF Tolerance
LTC3409A ±3%

Applications

  • Cellular Phones
  • Digital Cameras
  • MP3 Players

製品ライフサイクル icon-recommended 製造中

この製品ファミリーの1つ以上の型番が生産/供給中です。新規の設計に適していますが、より新しい代替製品を提供している場合があります。

ツールおよびシミュレーション

LTspice

LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。



LTspice

下記製品はLTspiceで使用することが出来ます。:

LTC3409

LTpowerCAD

LTpowerCAD®は、電力段のデバイスの選択、詳細な電力効率の提供、ループのボーデ線図の安定性および負荷過渡応答解析の敏速な表示などを行うと共に、シミュレーション用にLTspiceにエクスポートできる電源設計プログラムです。

LTPowerCAD

次のデバイス用の設計ツールがLTpowerCADでご使用になれます。

LTC3409

おすすめ製品

LTC3409A コンパニオン製品

推奨 Suggested Oscillator

推奨 関連製品

設計リソース

アナログ・デバイセズでは、最高レベルの品質と信頼性を備えた製品を提供することに最大の力を常に注いでいます。これを実現するため、製品およびプロセスの設計のあらゆる観点で品質と信頼性のチェックを行っています。そして、それは、製造工程においても同様です。アナログ・デバイセズは常に、出荷製品の「ゼロ・ディフェクト」を目指しています。詳細についてはアナログ・デバイセズの品質および信頼性プログラム/認定証をご覧ください。

製品番号 材料宣誓書(MD) 信頼性データ ピン/パッケージ図 CADシンボル、フットプリント & 3Dモデル
LTC3409AEDD#PBF 材料宣誓書(MD) 信頼性データ 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3409AEDD#TRPBF 材料宣誓書(MD) 信頼性データ 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3409AIDD#PBF 材料宣誓書(MD) 信頼性データ 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
LTC3409AIDD#TRPBF 材料宣誓書(MD) 信頼性データ 8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)
ウェハ・ファブリケーション・データ R415 Reliability Data
