DS2154

強化型E1シングルチップトランシーバ

データシート (Rev. 2)

Viewing:

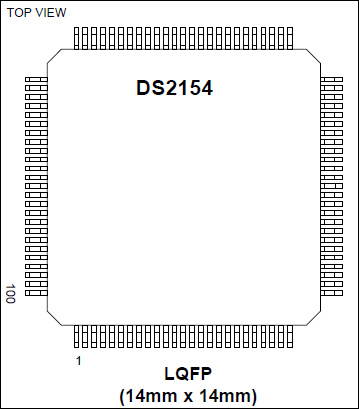

製品情報

Complete E1(CEPT) PCV-30/ISDN-PRI transceiver
Long- and short-haul line eterface for clock/data recovery and waveshaping
32-bit or 128-bit crystalless jitter attenuator
Generates line buildouts for both 120Ω and 75Ω lines
Frames to FAS, CAS, and CRC4 formats
Dual elastic buffers connect to asynchronous backplanes up to 8.192MHz
8-bit parallel control port can be used directly
Parallel port can also be muxed or nonmuxed to bus
Extracts/inserts CAS signaling
Detects/generates remote and AIS alarms
Progammable output clocks for Fractional E1, H0, and H12
Independent transmit/receive functions
Full access to both Si and Sa bits aligned with CRC multiframe
Four testing loopbacks
Large error counter for bipolar and code, CRC4 code/word, FAS, and E-bits
Pin-compatible with DS2152 T1 Transceiver
Operating ranges:
- 5V, low-power CMOS
- 0°C to +70°C (DS2154L)
- -40°C to +85°C (DS2154LN)

ドキュメント

データシート 2

DS2154: Enhanced E1 Single Chip Transceiver Data Sheet (Rev.2) 01/23/2006
- DS2154: Errata Sheet

DS2154: 強化型E1シングルチップトランシーバ Data Sheet 01/01/1900
- DS2154: Errata Sheet

信頼性データ 1

DS2154 Reliability Data 01/12/2023

アプリケーション・ノート 3

T1/E1 Network Interface Design 11/27/2001

Using RCLK in a BITS/SSU Application 02/04/2002

DS21Q4x, DS215x, and DS21x5y Test Registers 03/29/2001

デザイン・ノート 21

DS2154 - レビジョンA2からD1への移行 09/07/2005

Elastic Store Operation 06/28/2004

Telecom Application Notes Index 08/10/2001

Provision Your DS2152 or DS2154 Hardware Design for the Next Generation Devices 03/29/2001

T1/E1 Framer Initialization and Programming 08/10/2001

General Network Interface Design Criteria for the DS2153 and DS2154 10/12/2001

DS2153 Programming, ETS 300-011 Remote Alarm Generation 05/15/2001

DS2151, DS2153 Device Identification 10/15/2001

DS2152, DS2154 Clock Map 05/16/2001

DS21354/DS21554 vs. DS2154 Single Chip Transceivers 08/10/2001

Converting the DS2152/DS2154 Demo Kits 05/15/2001

DS2152, DS2154 Interfacing to the IGT ALL1 SAR (WAC-021-C) 05/08/2001

DS2152, DS2154 Interfacing to the Siemens PXB4220 05/08/2001

DS2151, DS2152, DS2153, DS2154 Dallas Single Chip Transceiver Crystal Selection Guide 06/20/2002

DS2152, DS2154, DS21x5Y, and DS2155 Interfacing to the MC68360 (QUICC32) 08/13/2002

DS2151, DS2152, DS2153, DS2154 T1/E1 Line Monitor 05/08/2001

DS2153, DS2154 Selectable 120 and 75Ω E1 Interface 05/08/2001

Interfacing to the Fractional T1 and E1 05/04/2001

Legacy T1/E1 8MHz Backplane Operation 05/29/2001

Tech Brief 7: DS2152 and DS2154 8MHz System Clock Operation 04/05/2001

Power-Fault Protection Layout 06/06/2003

技術記事 3

E1 Operation of Dallas Semiconductor Framers and SCTs 09/10/2002

DS2154L vs. DS2153Q 09/30/2002

T1/E1 and T3/E3 Transformer Selection Guide 10/15/2001
