DS2152, DS2154 Clock Map

要約

Application note 354 provides a logical diagram of the clock map of the Analog DS2154 and DS2152 single chip transceivers (SCTs).

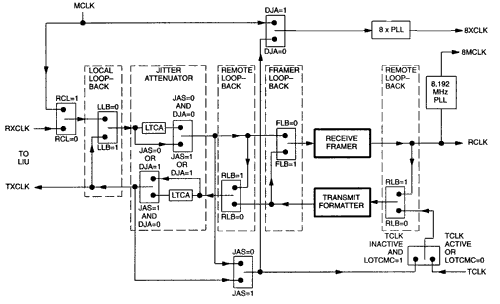

Figure 1 logically describes the clock map of the DS2152 and DS2154 Single Chip Transceivers. Although there is only one Jitter Attenuator, which can be placed in the receive or transmit path, two are shown for simplification and clarity.

Figure 1. Clock map.

Figure 1. Clock map.

Notes

The PAYLOAD loopback switch is not included on the DS2154.

LTCA = Long Term Clock Average
RLB = Remote LoopBack JAS = Jitter Attenuator Select
FLB = Framer LoopBack DJA = Disable Jitter Attenuator
PLB = Payload LoopBack RCL = Receive Carrier Loss
LLB = Local Loopback LOTCMC = Loss Of Transmit Clock Mux Control
RXCLK = Recovered clock from LIU
TXCLK = Transmit rate clock for LIU
