EVAL-ADuMQSEBZは、16ピンのワイドボディSOICおよびQSOPパッケージを採用した大部分のiCoupler^®及びisoPower(R)のアイソレーション製品と共に使用することができます。この評価用ボードは、電源、グラウンド、I/Oピンの共通パッド位置をサポートしています。
対応しているiCoupler^®製品

• ADuM130x
• ADuM131x
• ADuM140x
• ADuM141x
• ADuM1510
• ADuM240x
• ADuM330x
• ADuM340x
• ADuM344x
• ADuM440x
• ADuM5000
• ADuM520x
• ADuM540x
• ADuM6000
• ADuM620x
• ADuM640x
• ADuM744x
• ADuM7510

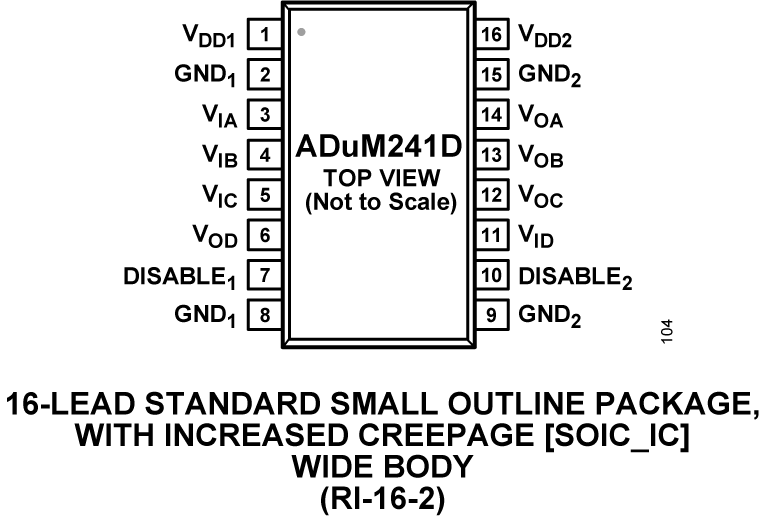

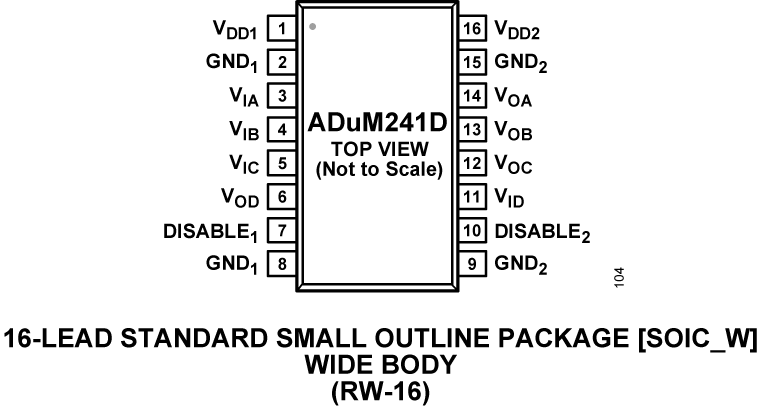

The EVAL-3CH4CHSOICEBZ evaluation board supports triple- and quad-channel standard data isolators in 16-lead SOIC packages. The evaluation board provides a JEDEC standard 16-lead SOIC_N and SOIC_W pad layout and routing appropriate for the evaluation of supported devices. The evaluation board provides a connection to power supplies by screw terminals and includes optimal bypass capacitors. Signal channel routing supports signal distribution, loopback, and provides positions for loads referenced to the VDD1/VDD2 and GND1/GND2 planes. Signal sources can be conducted to the board through header pins or edge-mounted SMA connectors; SMA connectors must be ordered separately.

Positions for through-hole 0.2 inch headers compatible with active probes are provided on the printed circuit board (PCB); probe header pins must be ordered separately. The board follows PCB design practices for 4-layer boards, including a full power and ground plane on each side of the isolation barrier. No other EMI or noise mitigation design features are included on the board. In cases of very high speed operation or when ultralow emissions are required, refer to the AN-1109 application note for additional board layout techniques.

Full specifications for the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.
