ADMV1355

新規設計に推奨

17.7GHz to 55GHz, Wideband, Microwave Upconverter

利用上の注意

本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」(リビジョン0)で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」(Rev.J)と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ・デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。

Viewing:

製品情報

  • Wideband RF output frequency range: 17.7GHz to 55GHz
  • Integrated RF chain features
    • Tunable sideband rejection filters
    • Gain control DSAs
  • Integrated LO chain features
    • Input frequency range: 8.85GHz to 27.5GHz
    • Internal 2× multiplier
    • Tunable LO harmonic rejection filter
    • I/Q phase correction
  • Three frequency translation modes
    • Baseband I/Q differential input: DC to 12GHz
    • IF hybrid input: 8GHz to 12GHz
    • Complex IF input: 1GHz to 12GHz
  • Programmable features
    • Sideband rejection optimization
    • LO carrier feedthrough calibration
  • Simple SPI: 3-wire or 4-wire
  • General-purpose logic outputs for integration with other chips in a system
  • LUT logic inputs for fast frequency hopping applications
  • 120-ball, 6mm × 6.5mm, CSP_BGA package

The ADMV1355 is a highly integrated microwave upconverter optimized for wideband radio designs operating in the 17.7GHz to 55GHz RF range. Provides a compact alternative to traditional multichip solutions, significantly reducing system size, weight, and power consumption.

The integrated local oscillator (LO) signal chain accepts LO input signals in the 8.85GHz to 27.5GHz range. In the LO signal chain, there are internal amplifiers, a 2× frequency multiplier, programmable harmonic-reject filter, and phase-adjust circuitry that generates the necessary 17.7GHz to 55GHz signal to drive the inphase/quadrature (I/Q) mixer.

The ADMV1355 offers three frequency translation mixer modes: IF hybrid input, complex IF input, and baseband I/Q differential input. The IF hybrid input mode utilizes one intermediate frequency (IF) input signal in the 8GHz to 12GHz range, which then passes through an on-chip 90° IF hybrid. The IF hybrid coupler produces the necessary quadrature signals for the mixer. The complex IF input mode utilizes two quadrature IF input signals in the 1GHz to 12GHz range. The baseband I/Q differential input mode utilizes differential baseband I/Q input signals from DC to 12GHz.

Immediately following the mixer are two, switch-selectable RF output driver signal chains. The low band signal chain operates from 17.7GHz to 34GHz, and the high band signal chain operates from 30GHz to 55GHz. Each signal chain has multiple stages of signal level control and harmonic filtering.

Please see the Data Sheet for the full description.

For information regarding commercial space low (CSL) or commercial space high (CSH) qualified versions of the ADMV1355, contact space@analog.com

APPLICATIONS

  • Satellite payload1 and ground stations (SATCOM)
  • Wideband radar and electronic warfare systems (EW)
  • Instrumentation and automatic test equipment (ATE)
  • Millimeter-wave 5G and 6G testers

ADMV1355
17.7GHz to 55GHz, Wideband, Microwave Upconverter
ADMV1355 Functional Block Diagram ADMV1355 Pin Configuration ADMV1355 Chip Illustration
myAnalogに追加

myAnalogの製品セクション(通知受け取り)、既存/新規プロジェクトに製品を追加する。

新規プロジェクトを作成
質問する
サポート

アナログ・デバイセズのサポート・ページはアナログ・デバイセズへのあらゆるご質問にお答えするワンストップ・ポータルです。


ドキュメント

データシート 1

ユーザ・ガイド 1

秘密保持契約(NDA)をリクエスト

For information regarding commercial space low (CSL) or commercial space high (CSH) qualified versions of the ADMV1355, contact space@analog.com

さらに詳しく
myAnalogに追加

myAnalogのリソース・セクション、既存/新規プロジェクトにメディアを追加する。

新規プロジェクトを作成

ソフトウェア・リソース

必要なソフトウェア/ドライバが見つかりませんか?

ドライバ/ソフトウェアをリクエスト

ツールおよびシミュレーション

LTspice

LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。




評価用キット

eval board
EVAL-ADMV1355

Evaluating the ADMV1355 17.7GHz to 55GHz, Wideband, Microwave Upconverter

機能と利点

製品詳細

The ADMV1355-EVALZ is available for evaluating the ADMV1355 wideband microwave up-converter. The ADMV1355-EVALZ incorporates the ADMV1355 chip, as well as a power regulator and an interface to the EVAL-SDP-CS1Z (SDP-S) system demonstration platform (SDP) controller board to allow simple and efficient evaluation. The power regulator allows the ADMV1355 to be powered by a 5V USB-C adapter or by using a 5V external power supply.

The ADMV1355 is a highly integrated wideband, microwave up-converter for wideband radio designs operating in the 17.7GHz to 55GHz frequency range. The chip can be programmed using a 4‑wire serial peripheral interface (SPI). The SDP-S controller board allows the user to interface with the ADMV1355 SPI through the ACE Software.

For full details on the ADMV1355, see the ADMV1355 data sheet, which must be consulted in conjunction with this user guide when using the ADMV1355-EVALZ.

EVAL-ADMV1355
Evaluating the ADMV1355 17.7GHz to 55GHz, Wideband, Microwave Upconverter

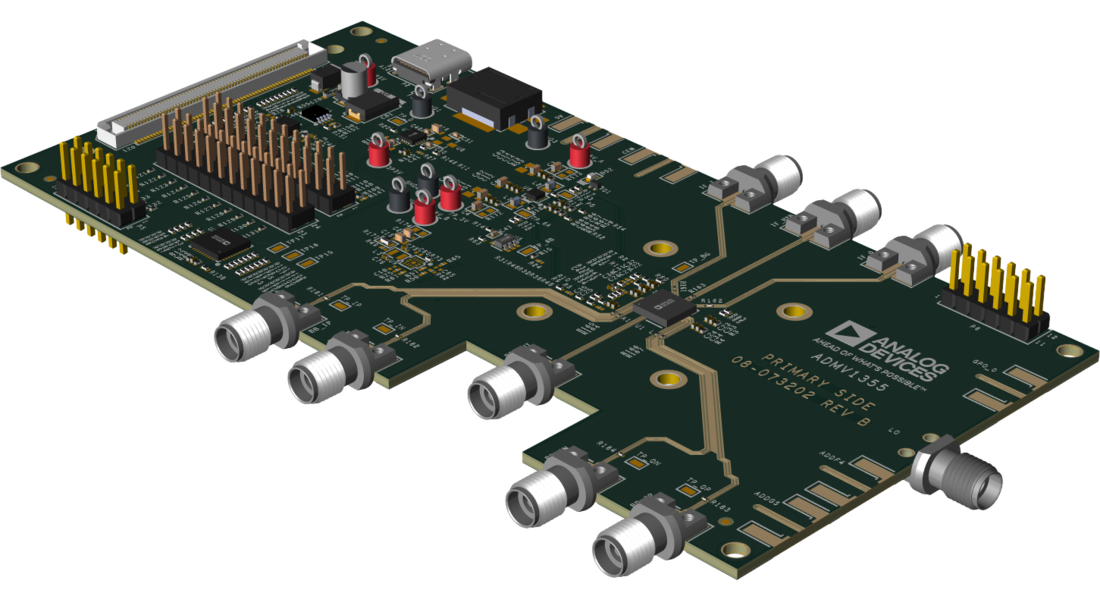

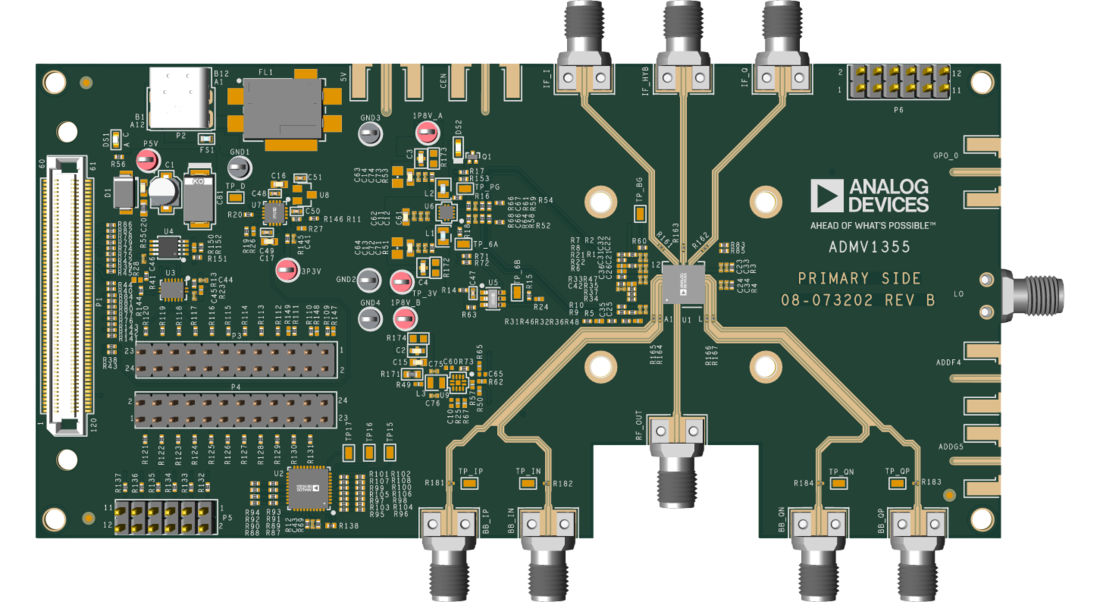

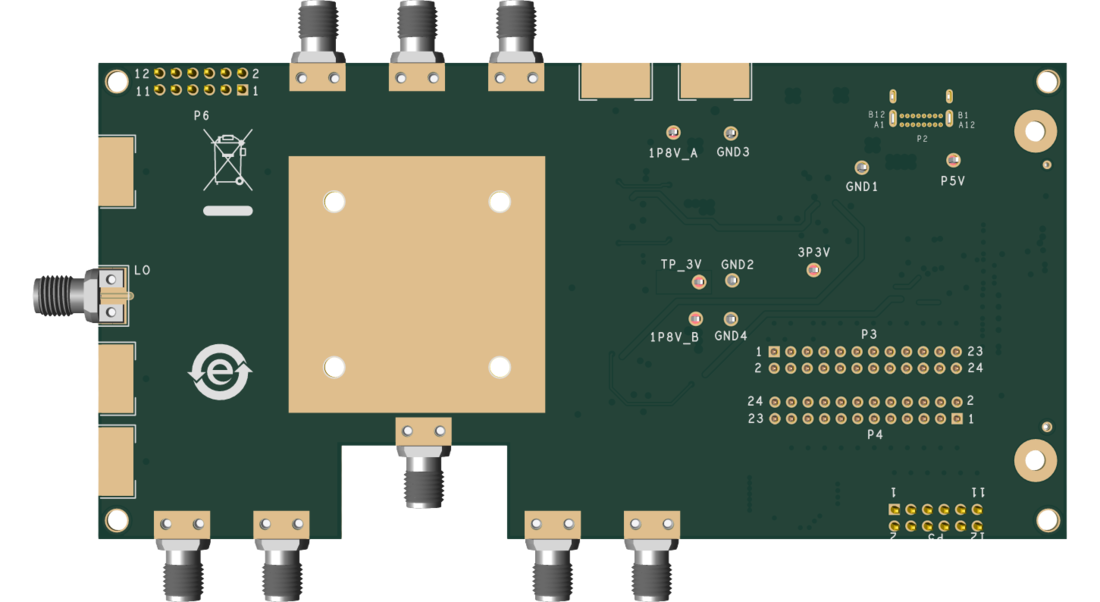

EVAL-ADMV1355 Evaluation Board Angle View EVAL-ADMV1355 Evaluation Board Top View EVAL-ADMV1355 Evaluation Board Bottom View
