Features
- Board supply voltage: +24V and +48V DC options
- Standard PCI Express sockets for Slot Type Modules
- CAN, RS485, USB-C Interfaces
- Motor Connectors and GPIO headers for each stepper/BLDC motor driver slot
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

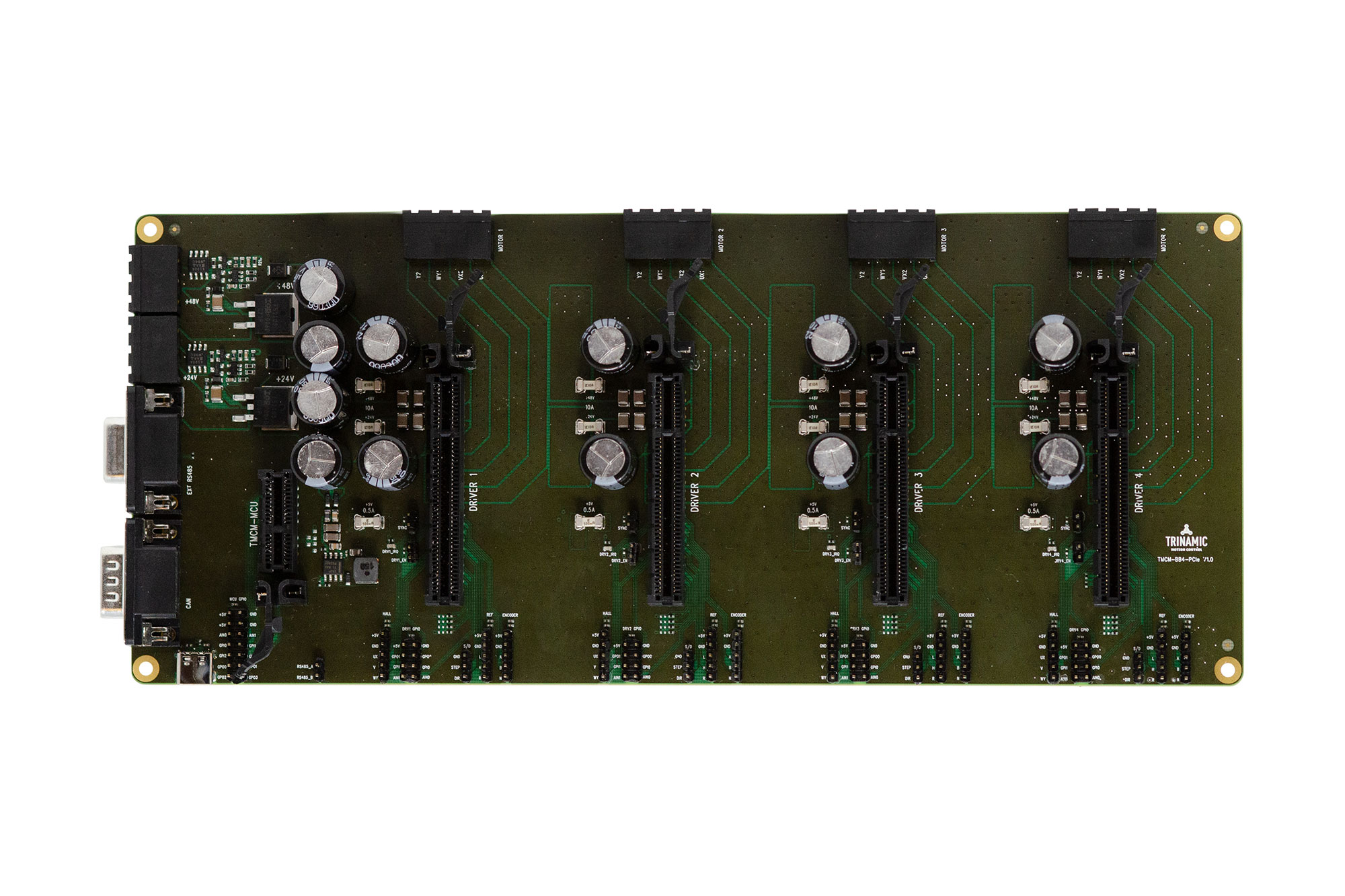

The TMCM-BB1 and TMCM-BB4 are BaseBoards for Trinamic’s Slot Type Modules. TMCM-BB1 is a single-axis board and provides access to one MCU Module and one Driver Module. TMCM-BB4 is a 4-axis board and provides access to 4 + 1 modules slots. The single 36-pin PCI socket is available for the TMCM-0930 module, the main MCU (ARM Cortex-M4) module for the whole system. Other (four) 98-pin PCI socket is accessible for Slot Type motor driver Modules, available as stepper (TMCM-1230; TMCM-1231) or BLDC (TMCM-1637; TMCM-1638) versions. This BaseBoard comes with communication interface options like CAN; RS485 and USB-C, plus separate GPIO headers for both insertable modules.
