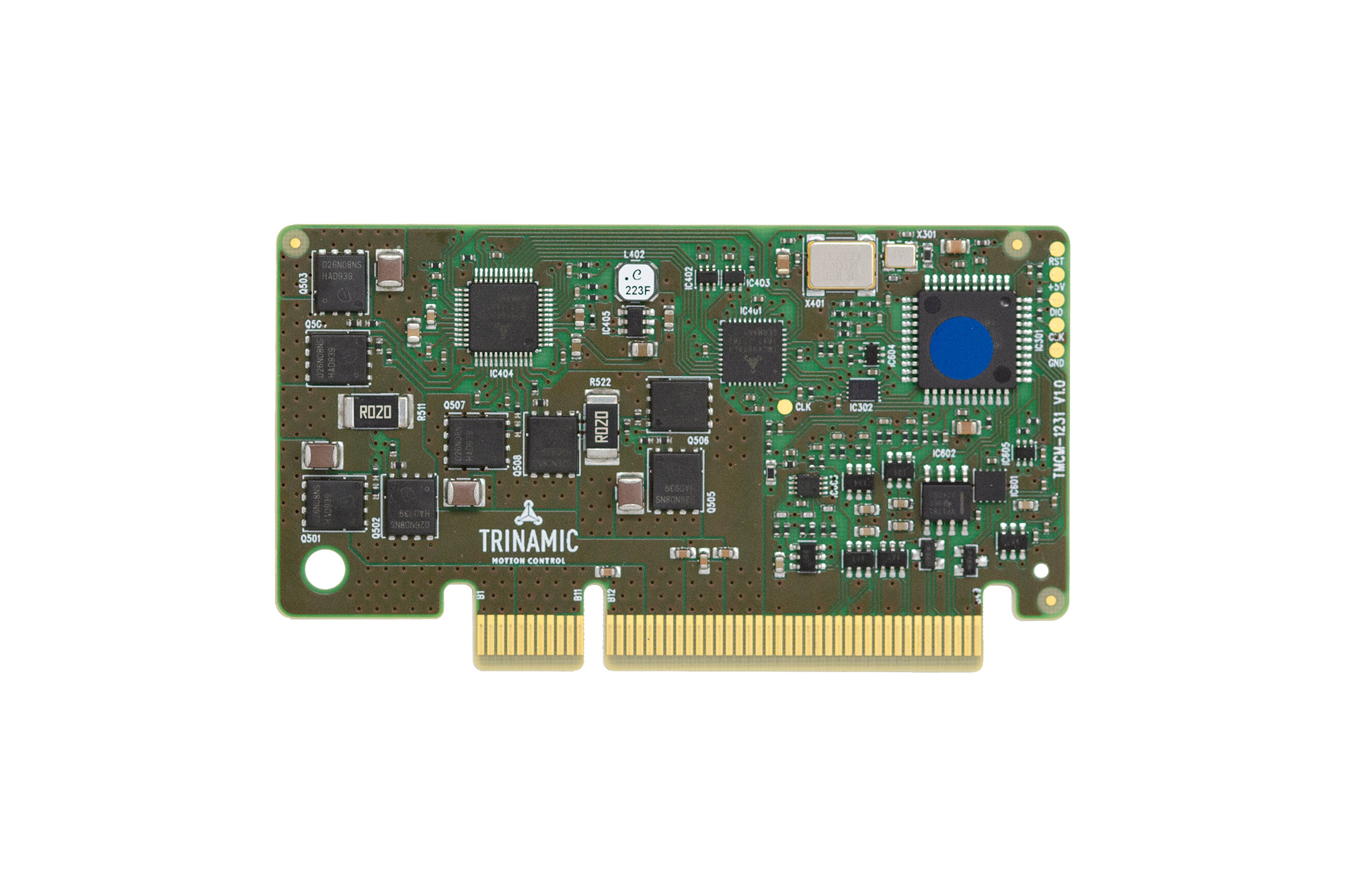

TMCM-1231
Plug-In stepper motor controller/driver module 10 to 52V, 6.5A, 256 µSteps, SixPoint ramp controller with CAN, RS485 and S/D Interface, StallGuard, CoolStep, StealthChop
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single axis controller/driver for 2-phase bipolar stepper motor
- Trapezoid, SixPoint™ and S-shaped ramps
- +10 to 48V DC motor supply voltage
- Up to 6.5A RMS motor current
- RS485 and CAN interface
- Single-ended ABN encoder interface
- Step/direction inputs
- Stop switch and home switch inputs
- General purpose inputs and outputs
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The TMCM-1231 is a single axis controller/driver module for 2-phase bipolar stepper motors. The module can either be used with TMCL firmware supporting standalone operation as well as direct mode control using TMCL™ commands or with CANopen firmware supporting control using the CANopen protocol. Both firmware versions make extensive use of the ADI Trinamic TMC4361 motion controller and TMC5160 motor driver. Dynamic current control, and quiet, smooth and efficient operation are combined with StealthChop™, DcStep™, StallGuard2™ and CoolStep™ features.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
Technical Details
| TMCM-1231-TMCL | TMCM-1231-CANopen | |
| Status | Active | Active |
| Axes | 1 | 1 |
| Motor Supply | 10 to 52V | 10 to 52V |
| Phase Current, RMS | 6.5A | 6.5A |
| Microsteps | 1 to 256 | 1 to 256 |
| a/b/n incremental | ✓ | ✓ |
| CAN | ✓ | ✓ |
| RS485 | ✓ | ✓ |
| Step/Dir | ✓ | ✓ |
| GPIO | ✓ | ✓ |
| TMCL™ | ✓ | |
| CANopen | ✓ | |
| Advanced S-Shaped | ✓ | ✓ |
| SixPoint™ | ✓ | ✓ |
| Trapezoidal | ✓ | ✓ |
| DcStep™ | ✓ | ✓ |
| ChopSync™ | ✓ | ✓ |
| CoolStep™ | ✓ | ✓ |
| Passive Braking | ✓ | ✓ |
| Short Detection | ✓ | ✓ |
| SpreadCycle™ | ✓ | ✓ |
| Stall Detection | ✓ | ✓ |
| StallGuard2™ | ✓ | ✓ |
| StealthChop2™ | ✓ | ✓ |
| Width | 45mm | 45mm |
| Length | 80mm | 80mm |
| Height | 7mm | 7mm |
