TMC5072

Dual silent stepper motor cDriver 5 to 20V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Two 2-phase stepper motors
  • Drive Capability up to 2x 1.1A coil current (2x 1.5A peak)
  • Parallel Option for one motor at 2.2A (3A peak)
  • Motion Controller with SixPoint™ ramp
  • Voltage Range 4.75 to 26V DC
  • SPI & Single Wire UART with special bus ring option
  • Dual Encoder Interface and 2x Ref.-Switch input per axis
  • Highest Resolution up to 256 microsteps per full step
  • StealthChop™ for extremely quiet operation and smooth motion
  • SpreadCycle™ highly dynamic motor control chopper
  • DCStep™ load dependent speed control
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ current control for energy savings up to 75%
  • Passive Braking and freewheeling mode
  • Full Protection & Diagnostics
  • Compact Size 7x7mm2 QFN48 package
Additional Details
show more Icon

The TMC5072 cDriver™ is an integrated motor driver and motion controller solution for CCTV cameras, pumps and other automated equipment applications. The device has two integrated SixPoint™ ramp controllers, microstepping indexers, the sensorless stall detection technology StallGuard2™ and the completely noiseless current control mode StealthChop™ and is intended to drive two bipolar stepper motor. The output driver blocks consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC5072 is capable of driving up to 1.5A of current from each output (with proper heatsinking). TMC5072 is designed for a supply voltage of 5 to 28V. For high reliability requirements an Encoder interface provides feedback over the system status. The device provides a SPI interface for configuration and diagnostics and a step and direction interface.

APPLICATIONS:

  • CCTV, Security
  • Office Automation
  • Antenna Positioning
  • Heliostat Controller
  • Battery powered applications
  • ATM, Cash recycler, POS
  • Lab Automation
  • Liquid Handling
  • Medical
  • Printer and Scanner
  • Pumps and Valves

Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
TMC5072-LA
  • HTML
  • HTML
TMC5072-LA-T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

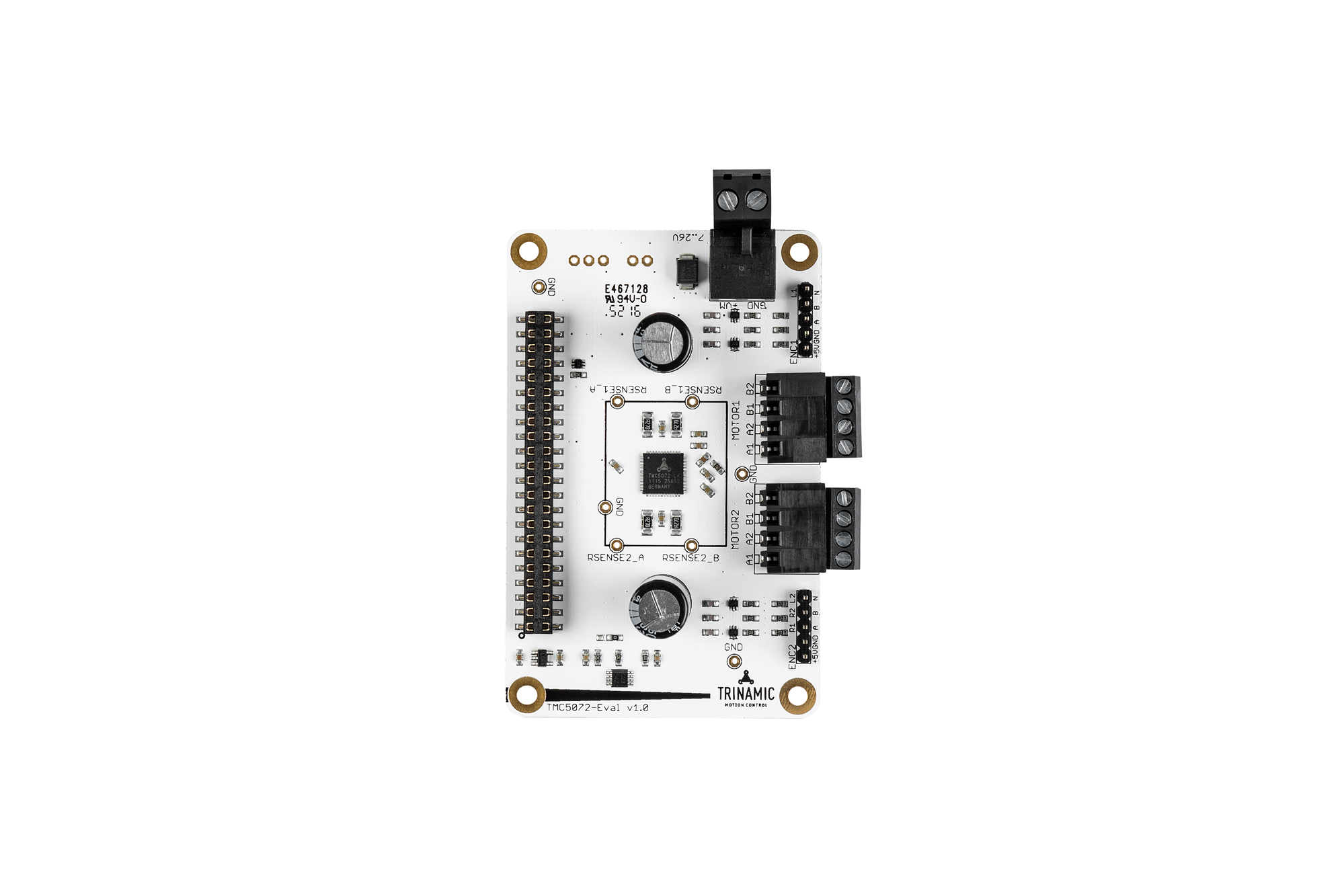

TMC5072-EVAL

Evaluation Board for TMC5072

zoom

TMC5072-EVAL

Evaluation Board for TMC5072

Evaluation Board for TMC5072

Features and Benefits

  • StallGuard2™
  • SpreadCycle™
  • StealthChop™
  • Short Detection
  • Microstep Table
  • DcStep™
  • 2 Motors
  • Motion Controller
  • Position Mode
  • Velocity Mode
  • SixPoint™ Ramp
  • ABN Encoder Interface
  • 2x1.1A RMS, 24V

Product Detail

The TMC5072-EVAL allows you to explore all functions of the TMC5072-LA.

The TMC5072-EVAL-KIT is a set of one MCU board Landungsbruecke, an Eselsbruecke bridge board and one TMC5072-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC5072 are accessible with probes on the Eselsbruecke bridge board. To simplify the transfer to your own processor platform the MCU board can be disconnected.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

reference details image

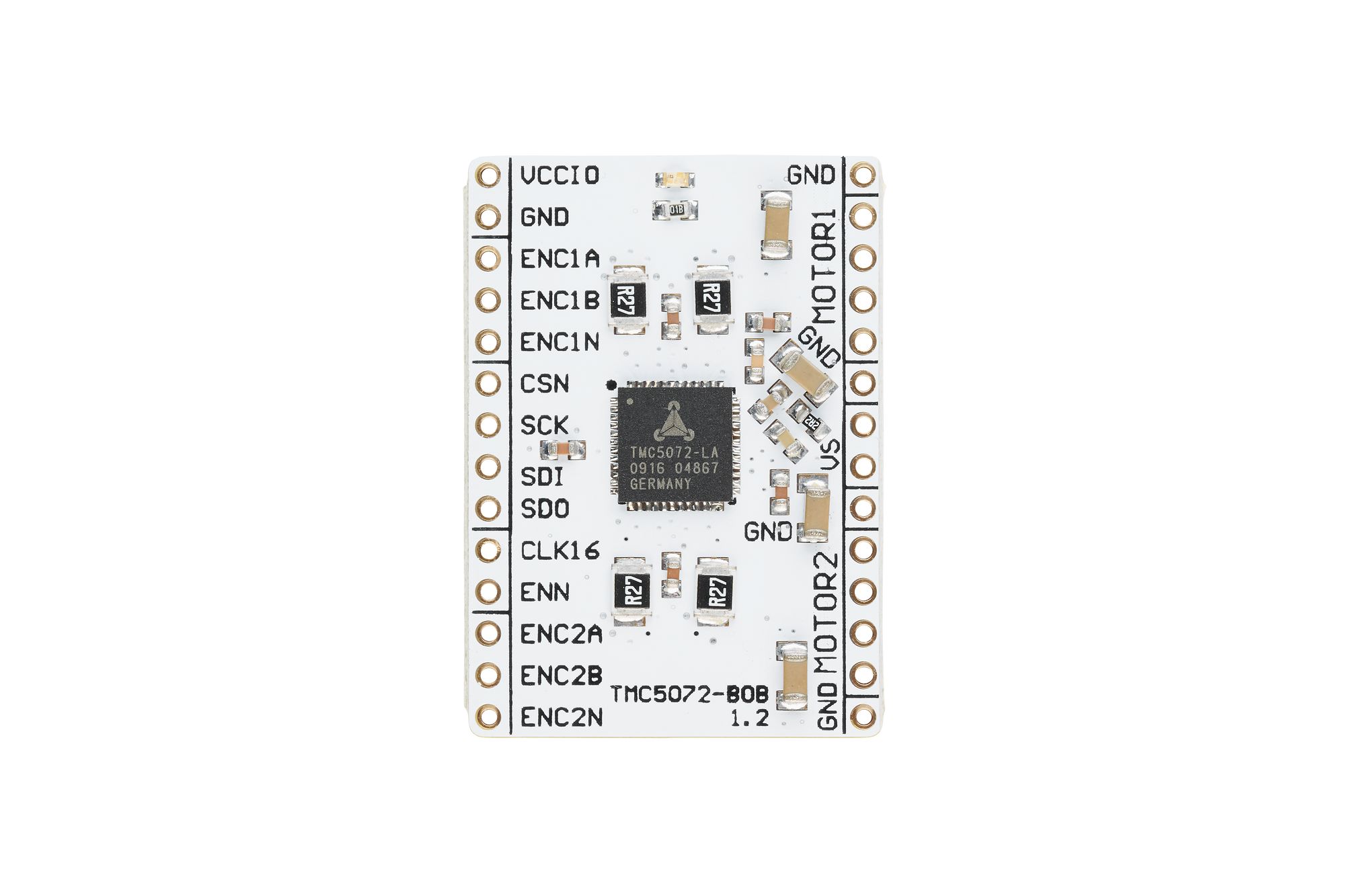

TMC5072-BOB

Evaluation Board for TMC5072

zoom

TMC5072-BOB

Evaluation Board for TMC5072

Evaluation Board for TMC5072

Features and Benefits

  • 2 Motors
  • Motion Controller
  • Position Mode
  • Velocity Mode
  • SixPoint™ Ramp
  • ABN Encoder Interface
  • 1 to 256 Microsteps
  • 2x1.1A RMS, 26V

Product Detail

The TMC5072 breakout board is a development board with the dedicated TMC5072-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
