TMC5072-BOB
Evaluation Board for TMC5072
Top
Overview
Features and Benefits
- 2 Motors
- Motion Controller
- Position Mode
- Velocity Mode
- SixPoint™ Ramp
- ABN Encoder Interface
- 1 to 256 Microsteps
- 2x1.1A RMS, 26V
Product Details

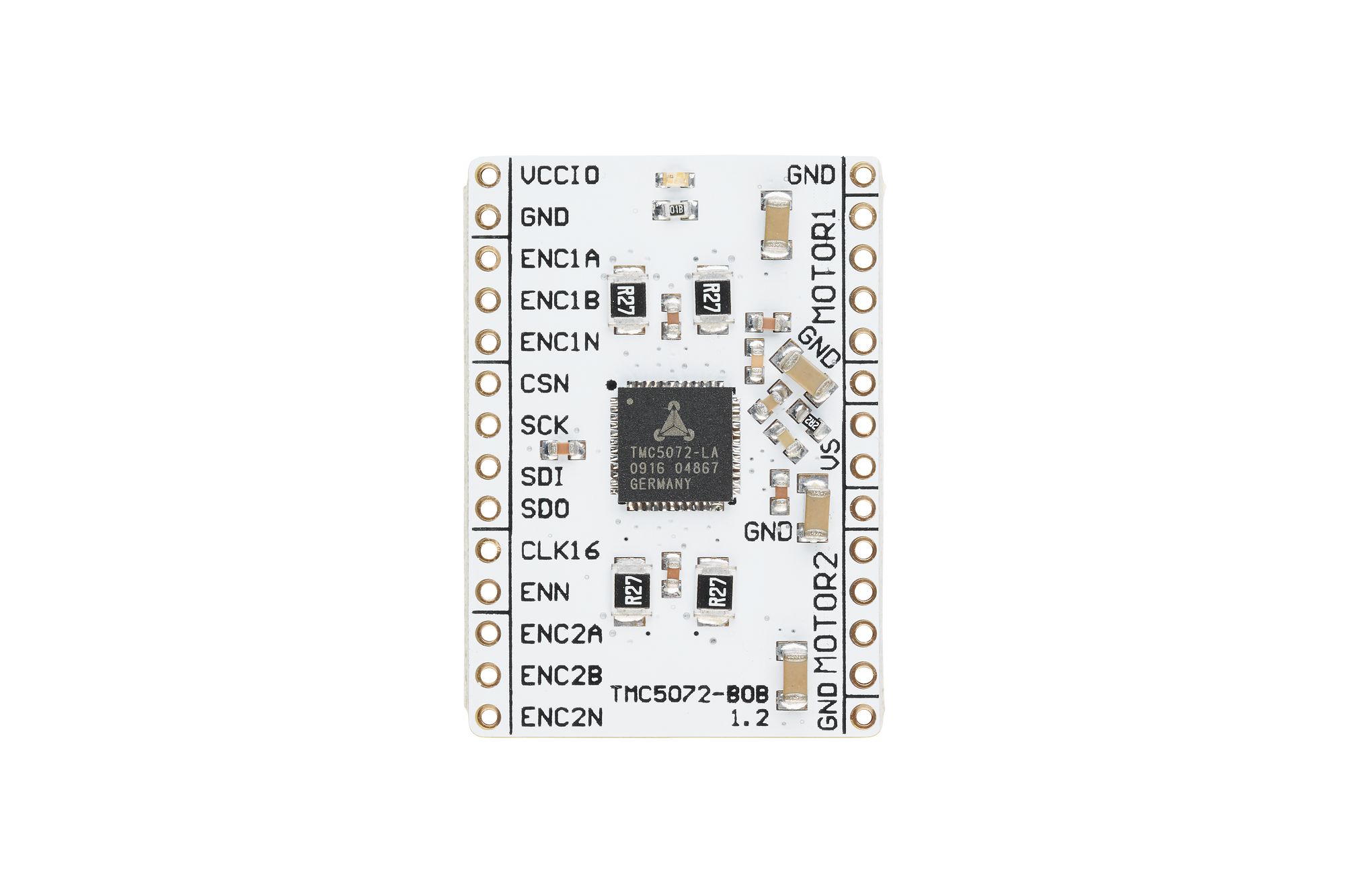

The TMC5072 breakout board is a development board with the dedicated TMC5072-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Applicable Parts
Documentation & Resources
-
TMC5072 Data Sheet (Rev. 1.26)2/22/2023PDF2M
-
Tmc5072 Bob Fabrication Data - Design Files (Rev. 1.2)6/4/2019ZIP150K
-
Tmc5072 Bob Layout Data - Design Files (Rev. 1.2)6/4/2019ZIP2M
-
Tmc5072 Bob Cad Files - Design Files (Rev. 1.2)6/4/2019ZIP6M
-
Bom Tmc5072 Bob - Design Files (Rev. 1.2)6/4/2019XLS26K
