TMC2240

36V 2ARMS+ Smart Integrated Stepper Driver with S/D and SPI

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $2.78
Features
  • Voltage Range 4.5V to 36V DC
  • Low RDS(ON) (HS + LS): 230mΩ Typical (TA = 25°C)
  • Current Ratings per H-Bridge (Typical at 25°C):
    • IMAX = 5.0A (Bridge Peak Current)
    • IRMS = 2.1ARMS (3A Sine Wave Peak)
  • Fully Integrated Lossless Current Sensing
  • Step/Direction (S/D) Interface with MicroPlyer™ Step Interpolation
  • SPI and Single Wire UART
  • Incremental Encoder Interface
  • Highest Resolution 256 Microsteps per Full Step
  • Flexible Wave Table and Phase Shift to Match Motor
  • StealthChop2™ Silent Motor Operation
  • SpreadCycle™ Highly Dynamic Motor Control Chopper
  • Jerk-Free Combination of StealthChop2™ and SpreadCycle™
  • StallGuard2™ and StallGuard4™ Sensorless Motor Load Detection
  • CoolStep™ Current Control for Energy Savings up to 75%
  • Passive Braking and Freewheeling Mode
  • Motor Phase and Chip Temperature Measurement
  • General-Purpose Analog Input
  • Full Protection and Diagnostics
  • Overvoltage Protection Output
  • Compact 5mm x 5mm TQFN32 package or 9.7mm x 4.4mm TSSOP38
Additional Details
show more Icon

The TMC2240 is a smart high-performance stepper motor driver IC with serial communication interfaces (SPI, UART) and extensive diagnosis capabilities. It combines industries’ most advanced stepper motor driver based on the 256-usteps built-in indexer and two fully integrated 36V, 3.0A (max) H-Bridges plus non-dissipative Integrated Current Sensing (ICS).

TMC2240 features abundant diagnostics and protections such as short protection / OCP, thermal shutdown, under voltage lockout. During thermal shutdown and under voltage lockout events the driver is disabled. Furthermore, TMC2240 provides functions to measure the driver temperature, estimate the motor temperature, and measure one external analog input.

APPLICATIONS

  • Textile, Sewing Machines, Knitting Machines
  • Lab and Factory Automation
  • 3D Printers, ID Printers/Card Printers
  • Liquid Handling, Medical Applications
  • Office Automation and Paper Handling
  • POS, Massage Chairs
  • ATM, Cash Recycler, Bill Validators, Cash Machines
  • CCTV, Security
  • Pumps and Valve Control
  • Heliostat and Antenna Positioning

Technical Details

  TMC2240ATJ+ TMC2240AUU+
Status Active Active
Axes 1 1
Motor Supply 4.5 to 36V 4.5 to 36
Microsteps 1 to 256 1 to 256
a/b/n incremental
SPI
Step/Dir
Direct Phase Control
Temperature Sensor
Single Wire UART
MicroPlyer
CoolStep
Passive Braking
SpreadCycle
StallGuard2
StealthChop2
StallGuard4
Phase Current, RMS 2.1A 2.1A

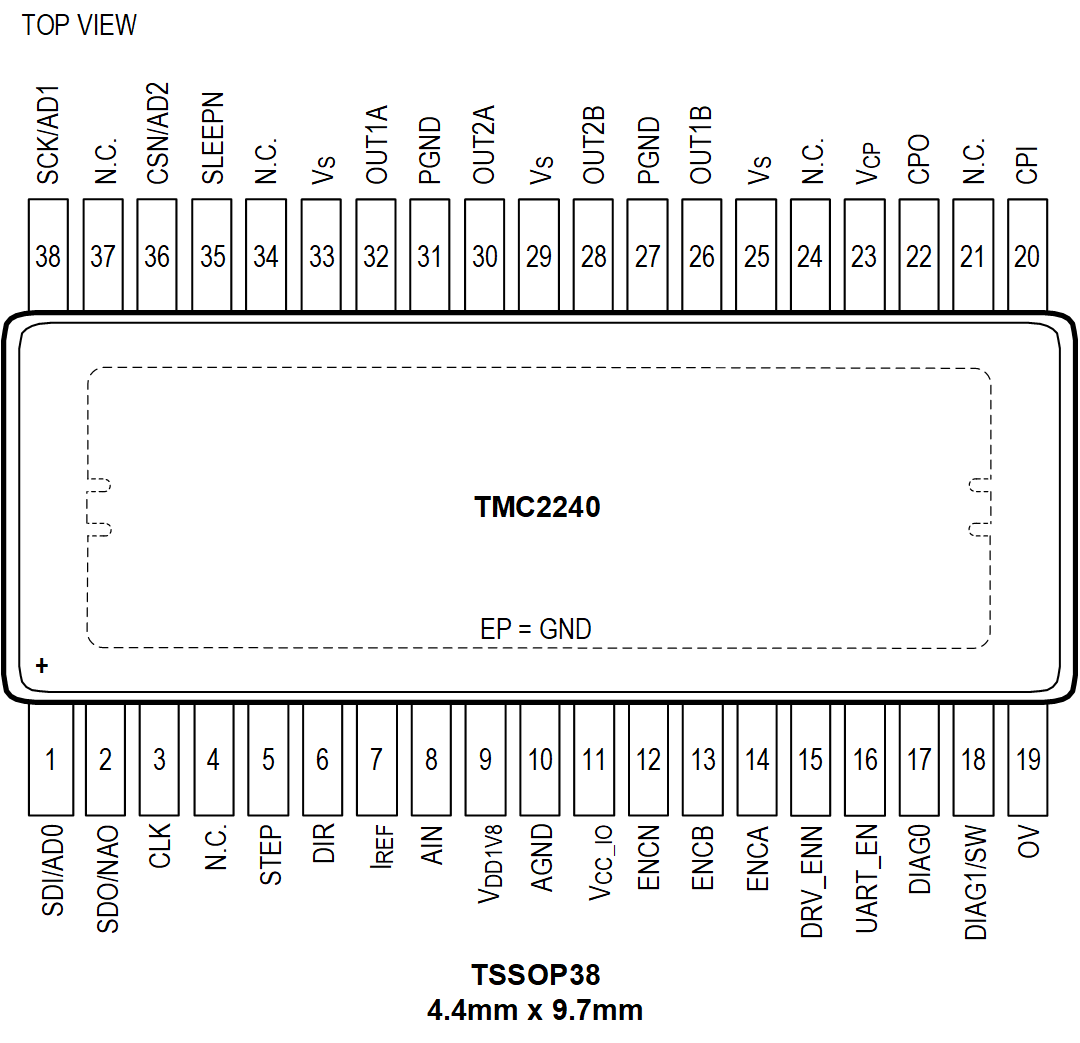

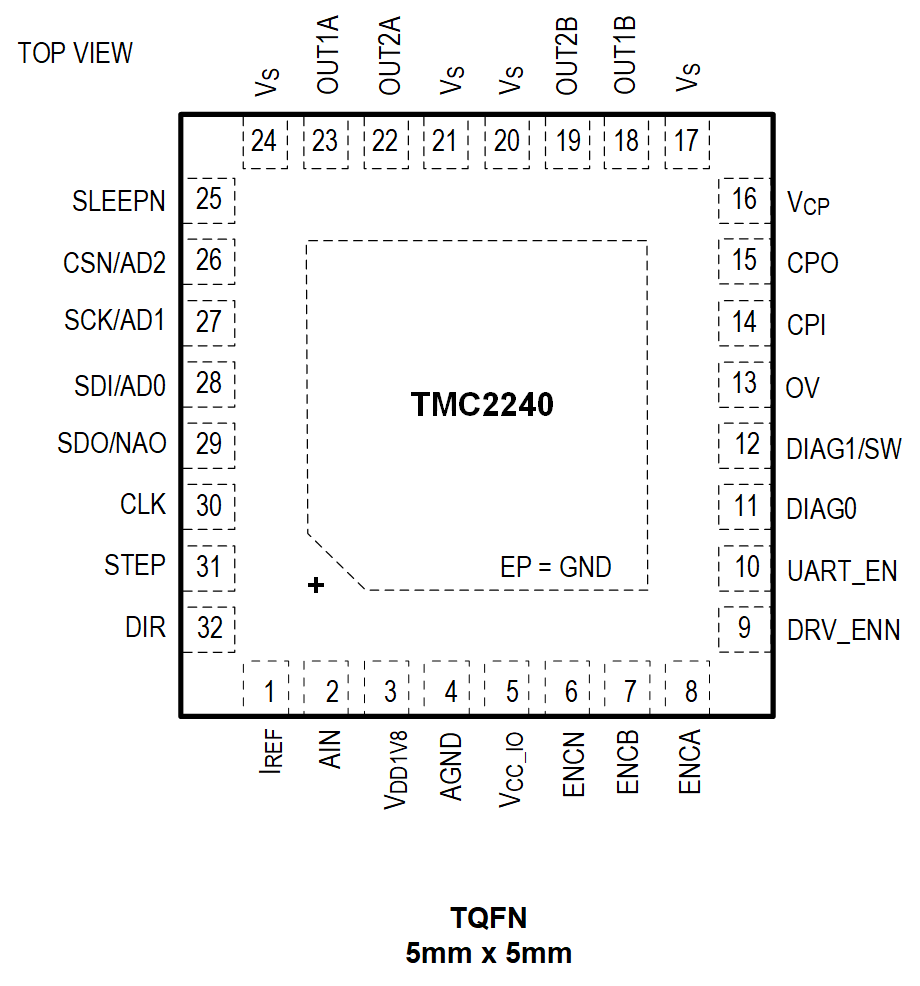

Package TQFN32 (5x5) TSSOP38 (9.7x4.4)
Part Models 4
1ku List Price Starting From $2.78

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
TMC2240ATJ+
  • HTML
  • HTML
TMC2240ATJ+T
  • HTML
  • HTML
TMC2240AUU+
  • HTML
  • HTML
TMC2240AUU+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

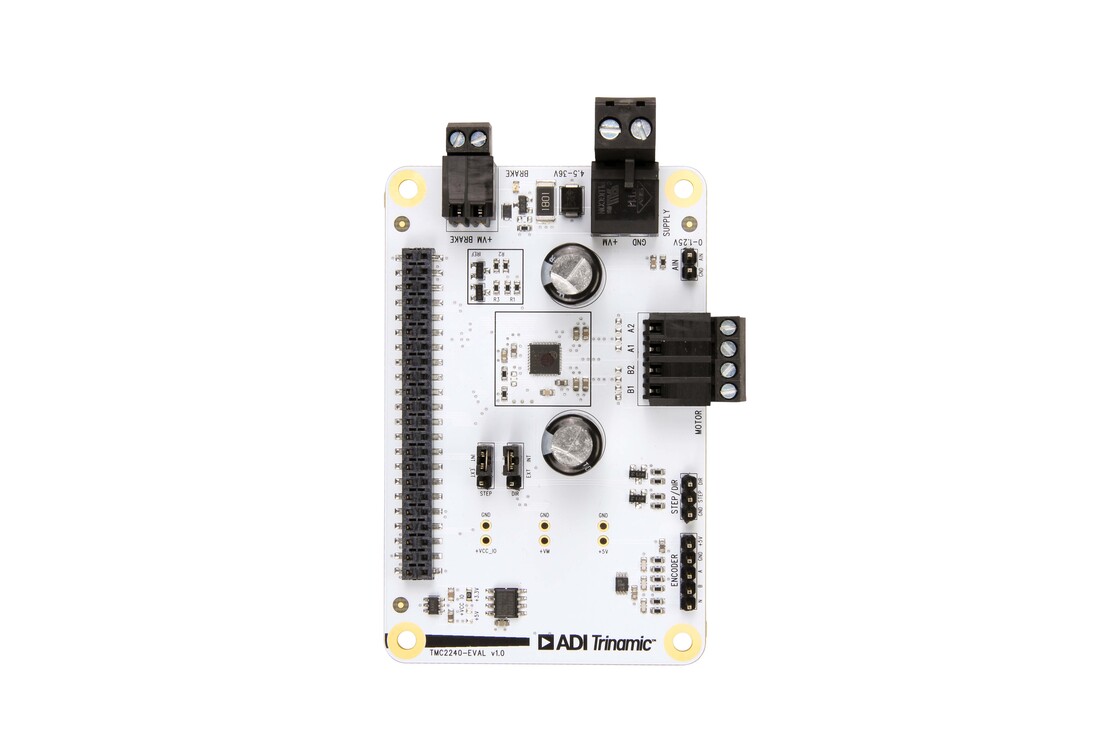

TMC2240-EVAL

Evaluation Board for TMC2240

zoom

TMC2240-EVAL

Evaluation Board for TMC2240

Evaluation Board for TMC2240

Features and Benefits

  • 2-phase stepper motor up to 2.0A coil current (3.0A peak)
  • Supply Voltage 4.5 to 36V DC
  • SPI and Single Wire UART
  • 1 to 256 microsteps
  • Step/Dir interface
  • Incremental Encoder interface
  • Flexible wave table and phase shift to match motor
  • StealthChop2 silent PWM mode
  • StallGuard4 sensorless motor load detection
  • 2.1A RMS, 36V

Product Detail

The TMC2240-EVAL allows you to explore all functions of the TMC2240.

The TMC2240-EVAL-KIT is a set of one MCU board Landungsbruecke, one Eselsbruecke and one TMC2240-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2240 are accessible with probes on the bridge board. TMC2240-EVAL can be used with or without the Landungsbruecke MCU board.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.

More about the TMCL-IDE

reference details image

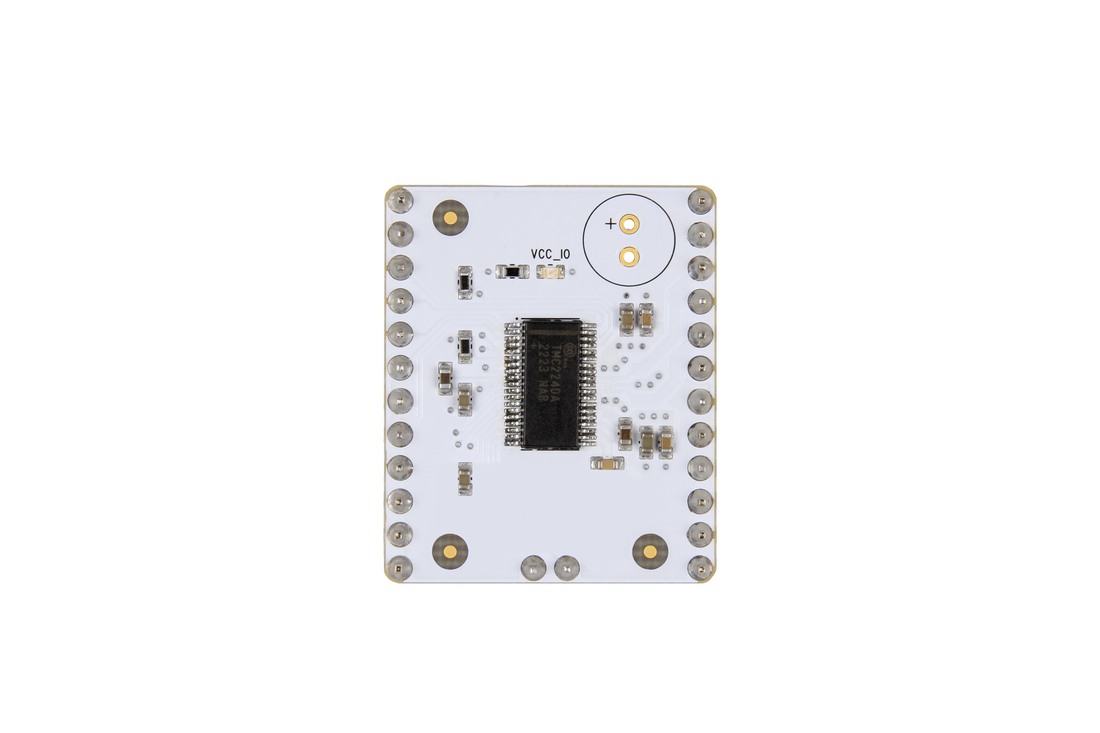

TMC2240-BOB

Evaluation Board for TMC2240

zoom

TMC2240-BOB

Evaluation Board for TMC2240

Evaluation Board for TMC2240

Features and Benefits

  • CoolStep™
  • Passive Braking
  • SpreadCycle™
  • StallGuard2™
  • StallGuard4™
  • StealthChop2™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 2ARMS, 36V

Product Detail

The TMC2240 breakout board is a development board with the dedicated TMC2240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
