Overview
Features and Benefits
- CoolStep™
- Passive Braking
- SpreadCycle™
- StallGuard2™
- StallGuard4™
- StealthChop2™
- MicroPlyer™
- 1 to 256 Microsteps
- 2ARMS, 36V
Product Details

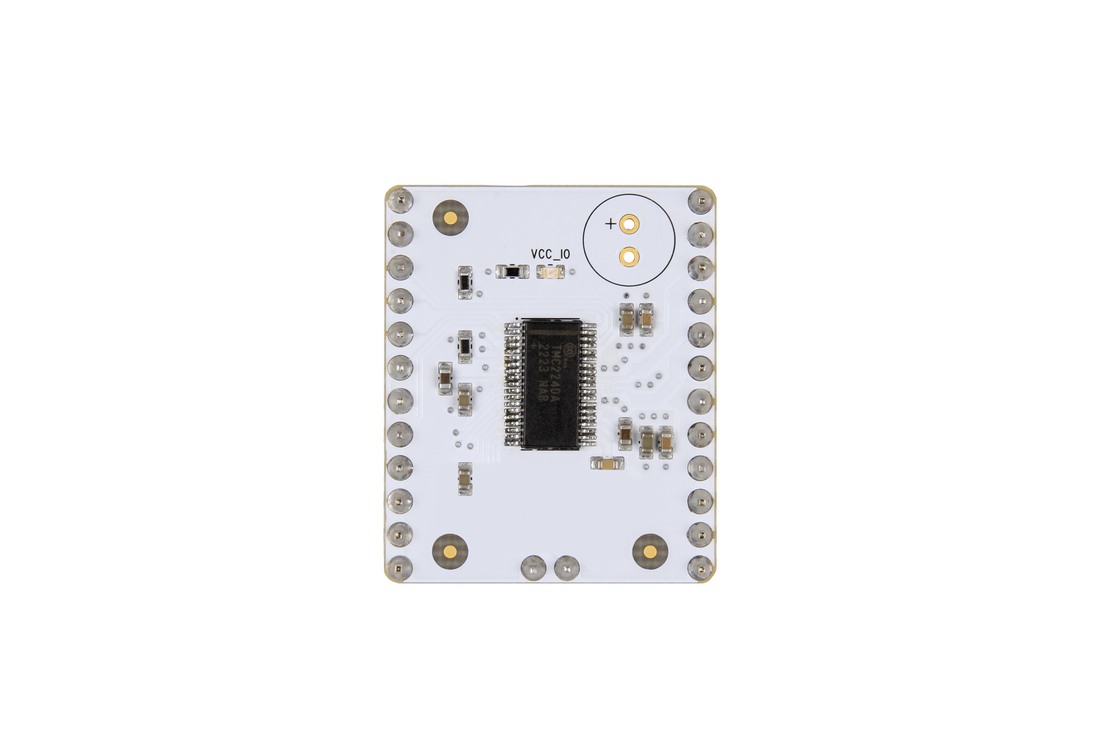

The TMC2240 breakout board is a development board with the dedicated TMC2240AUU+ IC. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Applicable Parts
Documentation & Resources
-
V10 - Design Files2/8/2023ZIP797K
