Features and Benefits
- 2-phase stepper motors up to 2A coil current (peak)
- STEP/DIR Interface with 4, 8, 16 or 32 microstep pin setting
- Smooth Running 256 microsteps by MicroPlyer™ interpolation
- StealthChop2™ silent motor operation
- SpreadCycle™ highly dynamic motor control chopper
- Pin Selection for chopper scheme
- Voltage Range 4.75 to 36V DC
- Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
- Automatic Standby current reduction (option)
- Internal Sense Resistor option (no sense resistors required)
- Passive Braking and Freewheeling
- Single Wire UART & OTP for advanced configuration options
- Integrated Pulse Generator for standalone motion
- Full Protection & Diagnostics
- HTSSOP package for best thermal resistance

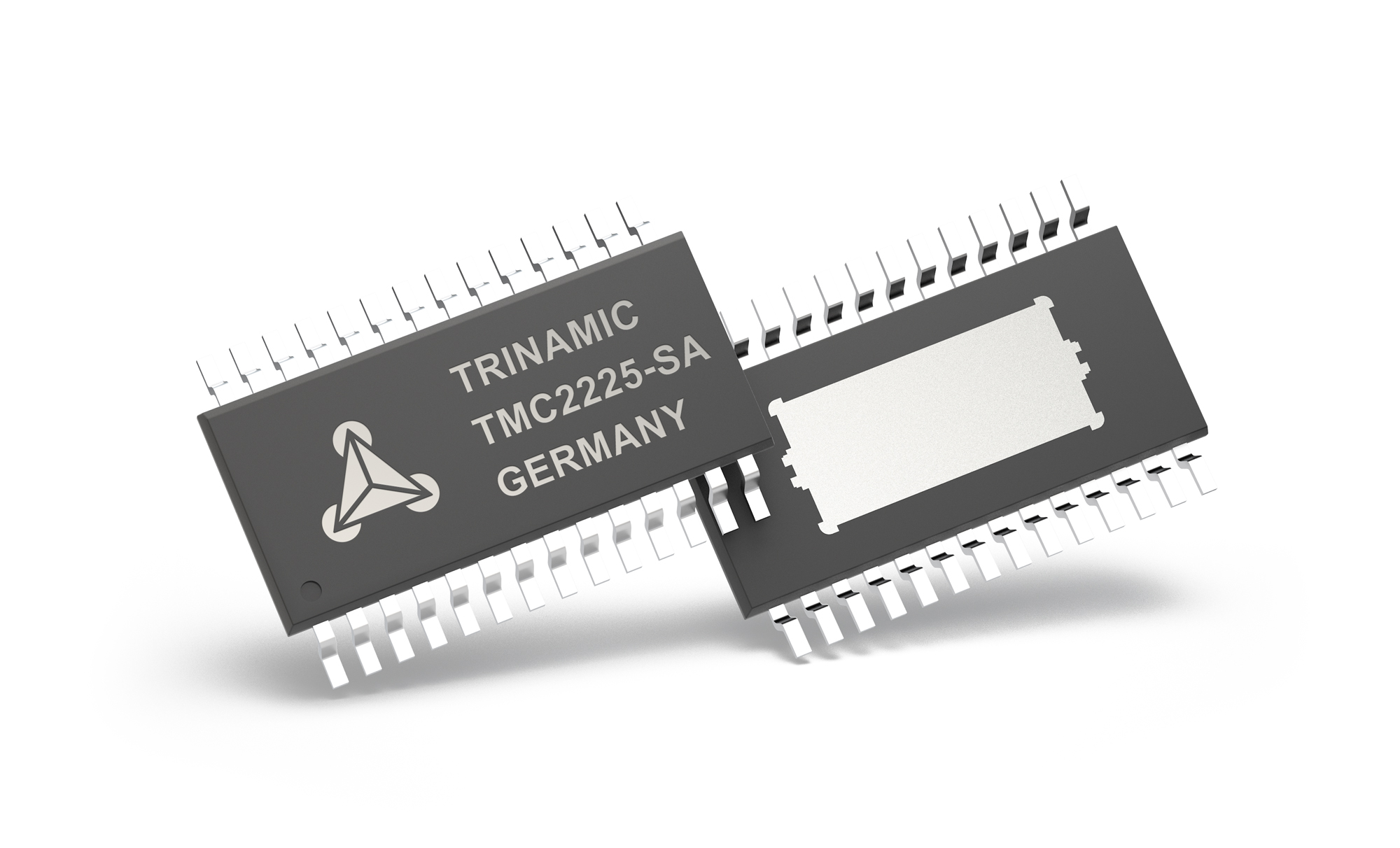

The TMC2225 provides an integrated motor driver solution for 3D-printing, cameras, scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2225 is capable of driving up to 2A (peak) of current from each output (with proper heatsinking). TMC2225 is designed for a supply voltage of 4.75 to 36V. The device has a step and direction interface and can be configured with digital pins.
- Compatible Design Upgrade
- 3D Printers
- Printers, POS
- Office and home automation
- Textile, Sewing Machines
- CCTV, Security
- ATM, Cash recycler
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)

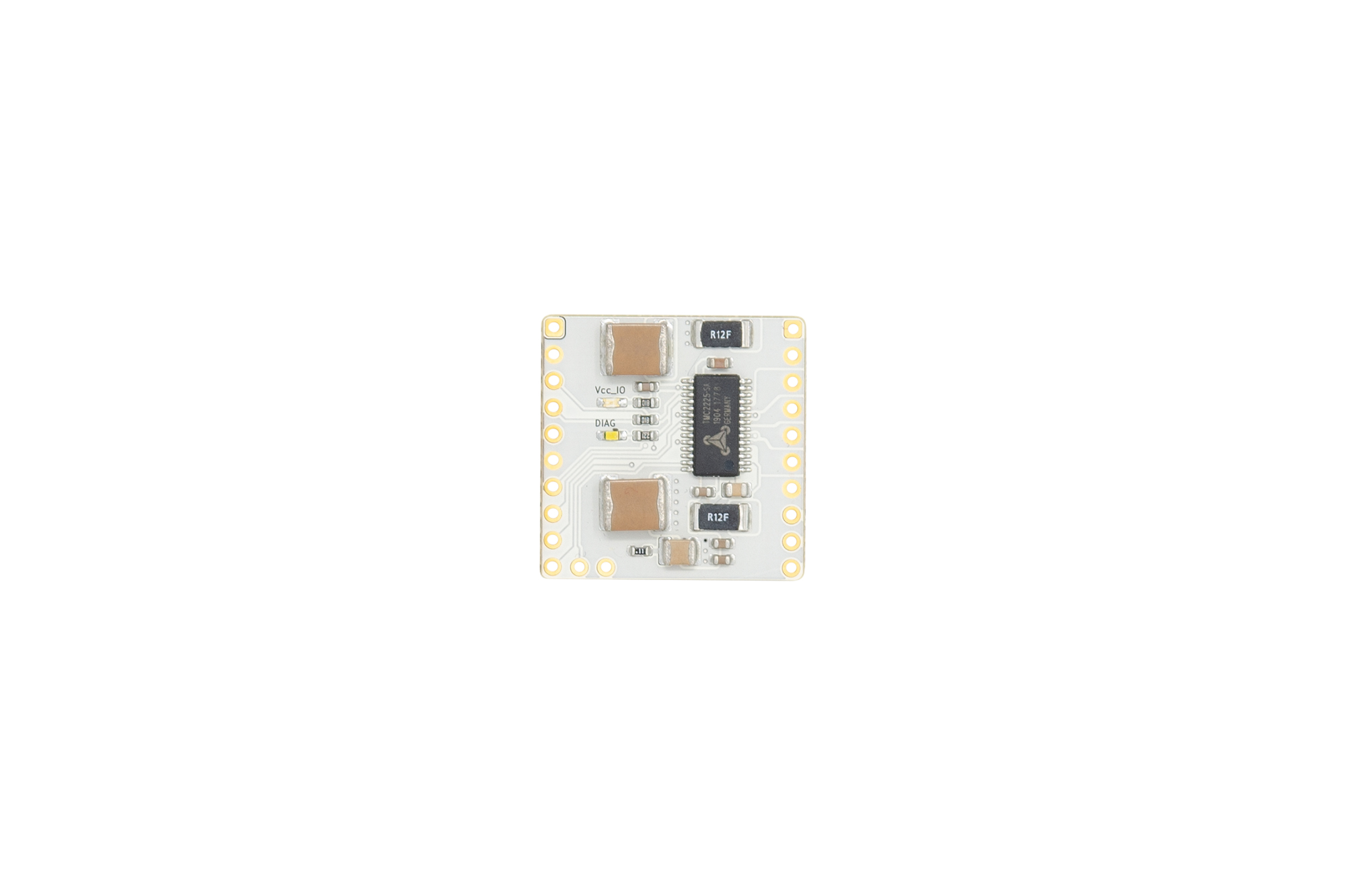

The TMC2225 breakout board is a development board with the dedicated TMC2225-SA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
Features & Benefits
- TMC2225-SA stepper motor driver
- Supply voltage 5-28V
- Iphase up to 1.4ARMS
- Quiet operation with StealthChop™
- Configuration and extended diagnostics via UART
- Control via Step&Dir interface
- Board width 1.0", board height 1.0"
- 2x10 pin 0.1" header rows for pins/connectors
- 1 to 256 Microsteps
- 1.4A RMS, 28V

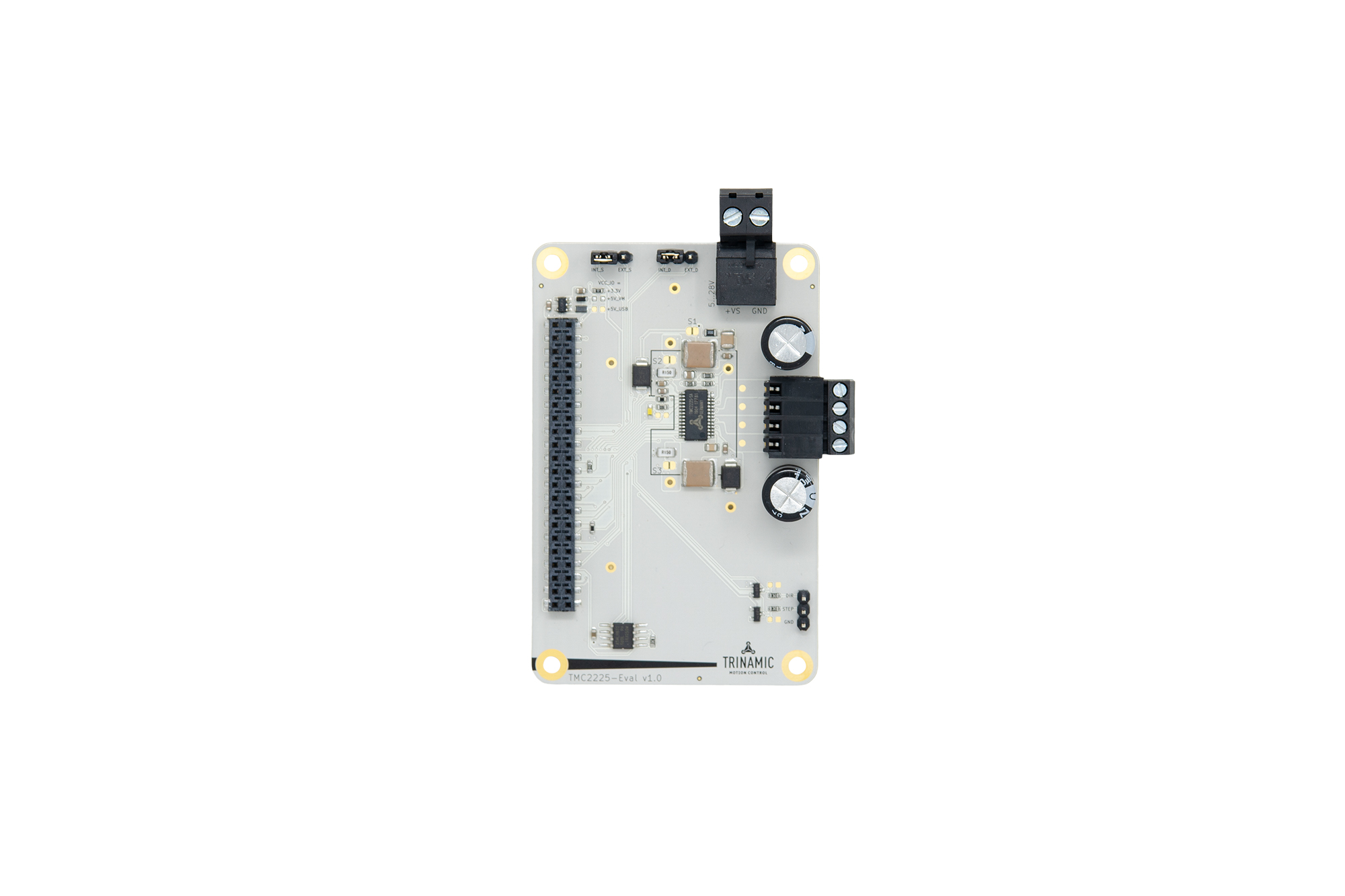

The TMC2225-EVAL allows you to explore all functions of the TMC2225-SA.
The TMC2225-EVAL-KIT is a set of MCU board Landungsbruecke, one Eselsbruecke bridge board and one TMC2225-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC2225 are accessible with probes on the bridge board. TMC2225-EVAL can be used with or without the Landungsbrücke MCU board.
Tools & Simulations
TMC2225 Companion Parts
Recommended Related Parts
