RH1086M

PRODUCTION

0.5A Low Dropout Positive Adjustable Regulator

Data Sheet (Rev. G) Product Selection Table

Part Models: 4
1ku List Price: Starting From $420.83

Viewing:

Overview

MIL-PRF-38535 Class V Compliant Version – 5962R89981

Absolute Maximum Ratings

Operating Junction Temperature Range:

Control Section: –55°C to 150°C
Power Transistor: –55°C to 200°C

Power Dissipation: Internally Limited
Input-to-Output Voltage Differential: 25V
Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

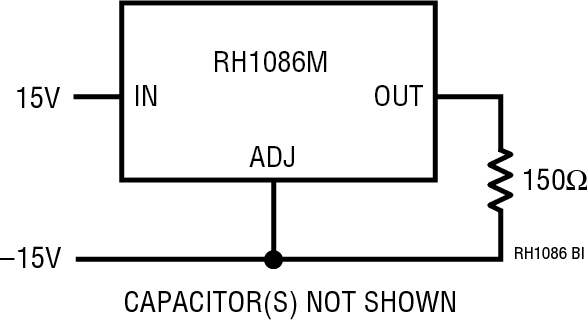

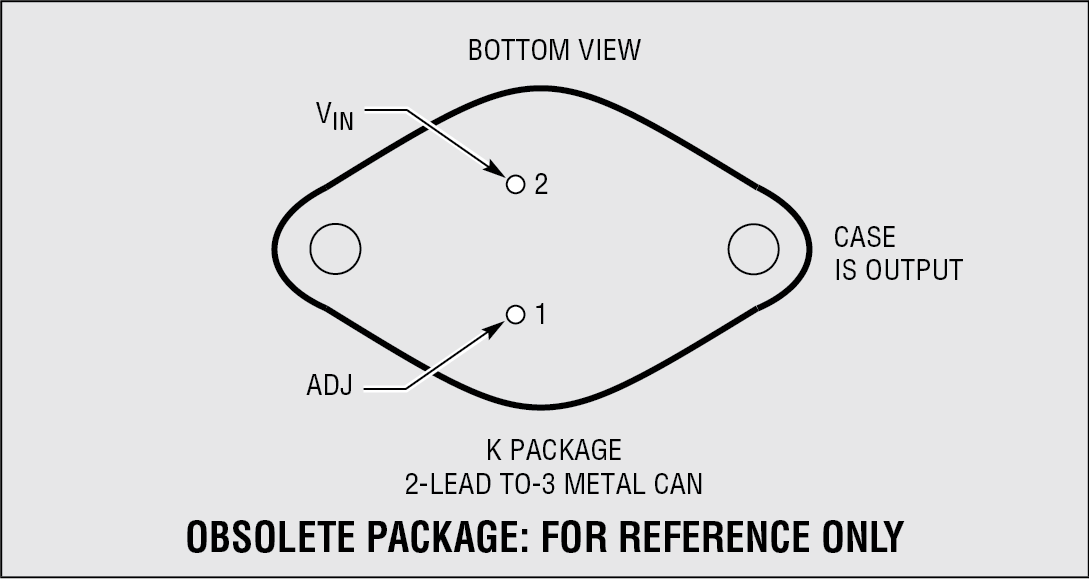

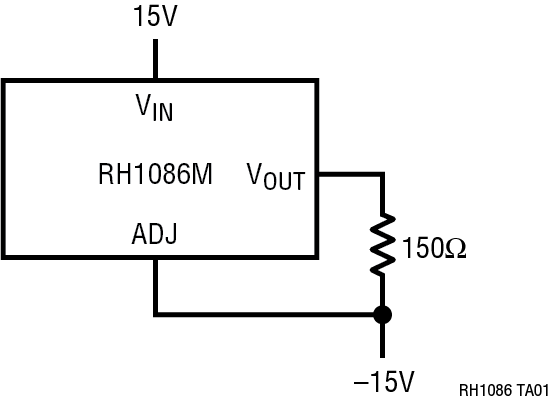

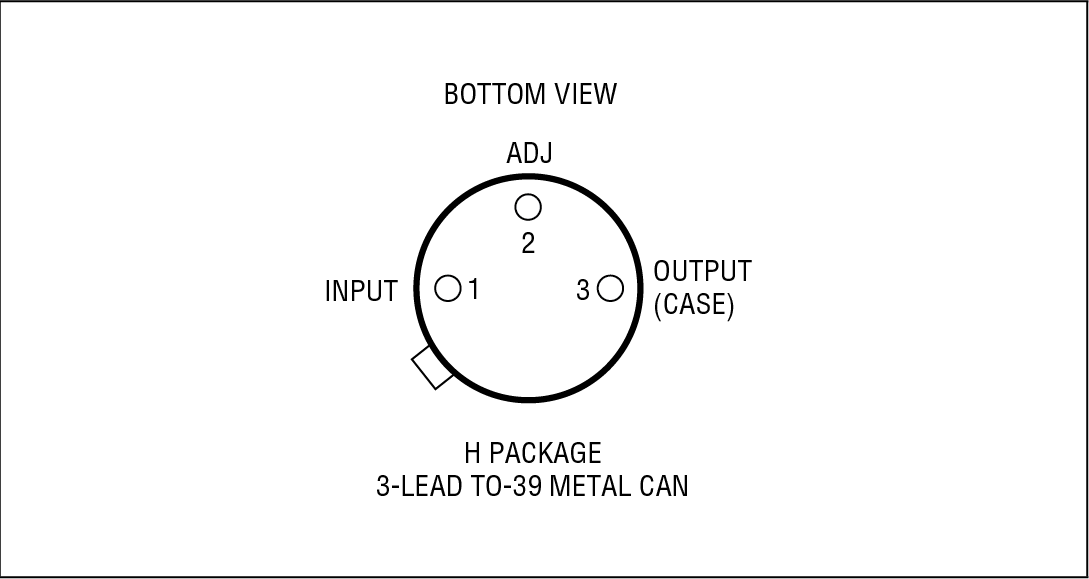

The RH1086M positive adjustable regulator is designed to provide 0.5A for the H package and 1.5A for the K package with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V inputoutput differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the output voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

The RH1086M is pin compatible with older 3-terminal regulators. A 10μF output capacitor is required on this new device. However, this is usually included in most regulator designs.

The wafer lots are processed to Analog Devices’ in-house Class S flow-to-yield circuits usable in stringent military applications.

Applications

100% Thermal Limit Burn-In

Third Party Vendor Availability

We partner with third party vendors who assemble and test packaged products with RH Dice inside.

For MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.


Part Number	Description	SMD
MSK5970RH	1.5A Positive Adjustable LDO	5962-09211
MSK5970RHL	1.5A Positive Adjustable LDO	5962-09211
VRG8657	1A Dual Positive Adjustable LDO, Thru Hole	5962-09201
VRG8658	1A Dual Positive Adjustable LDO, Surf Mount	5962-09201
VRG8651	1A/3A Dual Pos/Neg Adj. LDO, Thru Hole	5962-09201
VRG8652	1A/3A Dual Pos/Neg Adj. LDO, Thru Hole	5962-09201
VRG8662	1A Positive Adjustable Regulator	5962-09207

Part Models: 4
1ku List Price: Starting From $420.83

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
5962R8998102VYA	3-Lead TO-39	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH1086BHKDICE	CHIPS OR DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH1086BKKDICE	DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

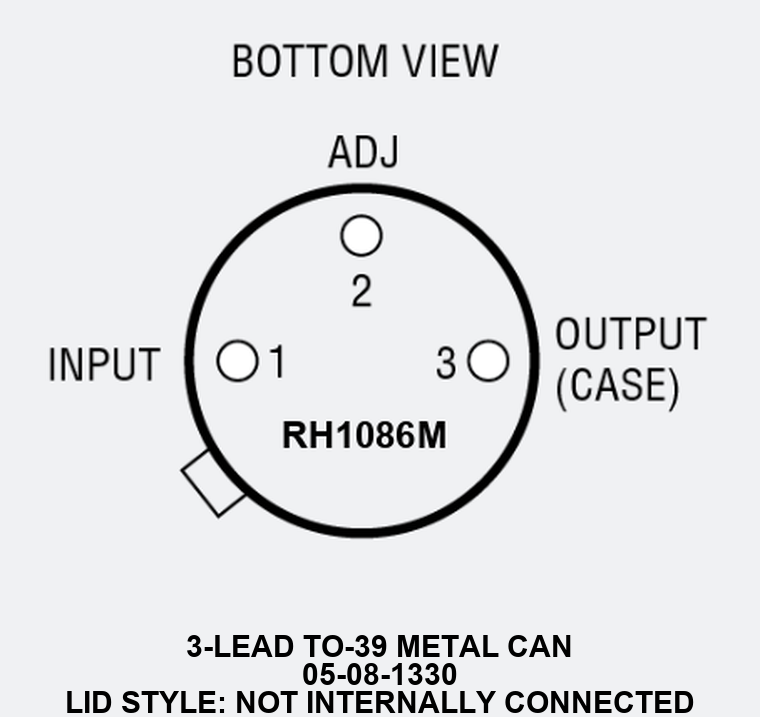

RH1086MH	3-Lead TO-39	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
5962R8998102VYA	PRODUCTION
RH1086BHKDICE	Obsolete
RH1086BKKDICE
RH1086MH
Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
5962R8998102VYA	PRODUCTION
RH1086BKKDICE
RH1086MH
Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH1086BHKDICE	Obsolete
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH1086BKKDICE
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1086MH
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH1086MH
Dec 19, 2025 - 25_0094 Obsolescence of Select Aerospace Products
		PDN25_0094_Form Material_Report
RH1086BHKDICE	Obsolete	PDN25_0094_Form Material_Report
Jun 15, 2026 - 26_0043 Obsolescence Notification for Select Aerospace Products
		PDN26_0043_Form Material_Report
RH1086MH		PDN26_0043_Form Material_Report

This is the most up-to-date revision of the Data Sheet.
