MAX9260

Gigabit Multimedia Serial Link with Spread Spectrum and Full-Duplex Control Channel

Show More showmore-icon

Single-Link Serializer/Deserializer Chipset with Integrated Control Channel Is Ideal for Digital Video Applications

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.4)
Documentation View All Documentation
IBIS Model MAX9260 IBIS Model Rev 1.1 Download 199.98KB IBIS Model MAX9260 IBIS Model Rev 1.2 Download 349.22KB
Part Models 4
1ku List Price Starting From $7.47
Features
  • Ideal for Digital Video Applications
    • Up to XGA (1280 x 768) or Dual-View WVGA (2 x 854 x 480) Panels with 18- or 24-Bit Color
    • Pre/Deemphasis Allows 15m Cable at Full Speed Up to 192kHz, 32-Bit Sample I2S
  • Multiple Data Rates for System Flexibility
    • Up to 3.12Gbps Serial-Bit Rate
    • 6.25MHz to 104MHz Pixel Clock
    • Up to 1Mbps UART/UART-to-I2C Control Channel
  • Reduces EMI and Shielding Requirements
    • Serial Output Programmable for 100mV to 400mV
    • Programmable Spread Spectrum Reduces EMI
    • Bypasses Input PLL for Jitter Attenuation
  • Peripheral Features for System Verification
    • Built-In Serial Link PRBS BER Tester
    • Interrupt Transmission from Deserializer to Serializer
    • Meets AEC-Q100 Requirements
      • -40°C to +105°C Operating Temperature Range
      • ±10kV Contact and 25kV Air ISO 10605 and
      • ±10kV IEC 61000-4-2 ESD Protection
Additional Details
show more Icon

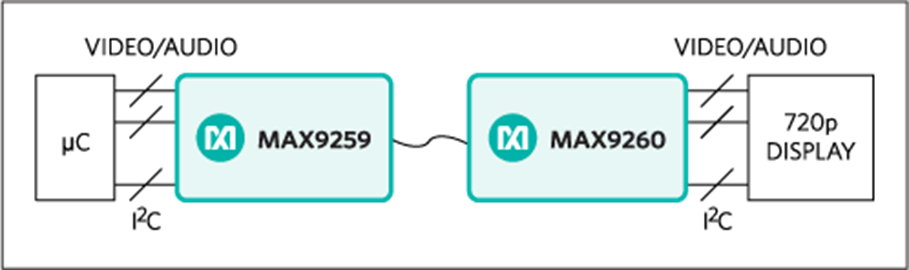

The MAX9259 serializer pairs with the MAX9260 deserializer for joint transmission of high-speed video, audio, and control data.

The MAX9259/MAX9260 operate up to 3.125Gbps for a 15m shielded twisted-pair (STP) cable. This serial link supports display panels from QVGA (320 x 240) up to XGA (1280 x 768), or dual-view WVGA (2 x 854 x 480).

The embedded audio channel supports I2S up to 32 bits per sample and at a 192kHz sample rate. The embedded control channel forms a full-duplex, differential 100kbps to 1Mbps UART link between the serializer and deserializer. The host electronic control unit (ECU) or microcontroller (µC) resides either on the MAX9259 or on the MAX9260. In addition, the control channel enables ECU/µC control of peripherals in the remote side of the serial link through I2C/UART.

Preemphasis and channel equalization extend the link length and enhance the link reliability. Spread spectrum is available to reduce EMI on the serial and parallel output data signals. The differential link complies with the ISO 10605 and IEC 61000-4-2 ESD-protection standards.

The core supplies for the MAX9259/MAX9260 are 1.8V and 3.3V, respectively. Both devices use an I/O supply from 1.8V to 3.3V. These devices are available in a 64-pin TQFP package (10mm x 10mm) and a 56-pin TQFN/QFND package (8mm x 8mm x 0.75mm) with an exposed pad. Electrical performance is guaranteed over the -40°C to +105°C automotive temperature range.

Applications

  • Automotive Navigation, Infotainment, and Image-Sensing Systems
  • High-Speed Serial-Data Transmission for Display
  • High-Speed Serial-Data Transmission for Image Sensing
Show More Arrow image
file View Data Sheet (Rev.4)
Documentation View All Documentation
IBIS Model MAX9260 IBIS Model Rev 1.1 Download 199.98KB IBIS Model MAX9260 IBIS Model Rev 1.2 Download 349.22KB
Part Models 4
1ku List Price Starting From $7.47
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX9260

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Design Note
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 11/26/2014
English

MAX9259-MAX9260: Gigabit Multimedia Serial Link with Spread Spectrum and Full-Duplex Control Channel Data Sheet (Rev.4)

Open PDF File

redirect
1.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
MAX9260 Reliability Data redirect icon

33.89K

download

Download PDF

Design Note

5

PDF Vector

HTML

UPDATED 06/20/2011
English
Access 16-Bit I2C Peripheral Register Addresses Through the GMSL SerDes Remote-Side I2C Interface redirect icon

PDF Vector

HTML

UPDATED 03/01/2012
Chinese
通过SerDes远端I²C接口访问16位I²C外设寄存器地址 redirect icon

PDF Vector

HTML

UPDATED 03/28/2011
English
Proper Power-Supply Jumper Settings for Evaluating the MAX9259/MAX9260 SerDes Chipset redirect icon

PDF Vector

HTML

UPDATED 07/24/2011
Chinese
合理设置电源跳线，评估MAX9259/MAX9260 SerDes芯片组 redirect icon

PDF Vector

HTML

UPDATED 03/28/2011
Japanese
MAX9259/MAX9260のSerDesチップセットを評価するための適切な電源ジャンパ設定 redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 06/06/2011
English
Using 2.5Gbps SerDes with Built-In Bit-Error Rate Test Circuitry Makes Measuring Link Quality Easy redirect icon

PDF Vector

HTML

UPDATED 11/21/2011
Japanese
ビットエラーレートテスト回路内蔵、2.5Gbpsサーデスを使用したリンク品質測定の簡略化 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 5
show more Icon

Data Sheet 1

MAX9259-MAX9260: Gigabit Multimedia Serial Link with Spread Spectrum and Full-Duplex Control Channel Data Sheet (Rev.4)

Reliability Data 1

MAX9260 Reliability Data

Application Note 1

Using 2.5Gbps SerDes with Built-In Bit-Error Rate Test Circuitry Makes Measuring Link Quality Easy

Design Note 2

Access 16-Bit I2C Peripheral Register Addresses Through the GMSL SerDes Remote-Side I2C Interface
Proper Power-Supply Jumper Settings for Evaluating the MAX9259/MAX9260 SerDes Chipset

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX9260GCB+ 64-TQFP_EP-10X10X1.0 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX9260GCB+T 64-TQFP_EP-10X10X1.0 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX9260GCB/V+ 64-TQFP_EP-10X10X1.0 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX9260GCB/V+T 64-TQFP_EP-10X10X1.0 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 26, 2016

- 1589A

ASSEMBLY

MAX9260GCB+

PRODUCTION

pdf

pcn_1589a

external-icon

Jul 2, 2015

- 1548

TEST

MAX9260GCB+

PRODUCTION

MAX9260GCB/V+

PRODUCTION

MAX9260GCB/V+T

PRODUCTION

pdf

pcn_1548

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 26, 2016

- 1589A

arrow down

ASSEMBLY

MAX9260GCB+

PRODUCTION

pdf

pcn_1589a

external-icon
Jul 2, 2015

- 1548

arrow down

TEST

MAX9260GCB+

PRODUCTION

MAX9260GCB/V+

PRODUCTION

MAX9260GCB/V+T

PRODUCTION

pdf

pcn_1548

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Data Path Management4
MAX9217
popup image
Cart

PRODUCTION

27-Bit, 3MHz-to-35MHz DC-Balanced LVDS Serializer

MAX9213
popup image
Cart

PRODUCTION

Programmable DC-Balanced 21-Bit Serializers

MAX9218
popup image
Cart

PRODUCTION

27-Bit, 7MHz-to-35MHz DC-Balanced LVDS Deserializer

MAX9250
popup image
Cart

PRODUCTION

27-Bit, 5MHz to 42MHz DC-Balanced LVDS Deserializers

Selector Muxes and DeMuxes1
MAX9209
popup image
Cart

Obsolete

Programmable DC-Balanced 21-Bit Serializers

Evaluation Kit

Evaluation Kits 2

MAX9260EVKIT

Evaluation Kit for the MAX9260

zoom

MAX9260EVKIT

Evaluation Kit for the MAX9260

download icon

Download

 print icon

Print
MAX9260EVKIT
Evaluation Kit for the MAX9260

Features and Benefits

  • Drives 29-Bit Parallel Video and I²S Audio
  • On-Board I²S Audio DAC (MAX9850)
  • On-Board Class D Audio Power Amplifier (MAX9701)
  • Windows 2000-, Windows XP-, and Windows Vista (32-Bit)-Compatible Software
  • USB-PC Connection (Cable Included)
  • USB Powered
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX9260 evaluation kit (EV kit) provides a proven design to evaluate the MAX9260 gigabit multimedia serial link (GMSL) with spread spectrum and full-duplex control channel. The EV kit also includes Windows® 2000-, Windows XP® -, and Windows Vista®-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9260.

The MAX9260 EV kit comes with a MAX9260GCB/V+ installed.

For complete GMSL evaluation, order both the MAX9260 EV kit and its companion board, the MAX9259 EV kit, or the MAX9249 EV kit.

Applications

  • Automotive Navigation, Infotainment, and Image-Sensing Systems
  • High-Speed Serial-Data Transmission for Display
  • High-Speed Serial-Data Transmission for Image Sensing

MAX9259EVKIT

Evaluation Kit for the MAX9259

zoom

MAX9259EVKIT

Evaluation Kit for the MAX9259

download icon

Download

 print icon

Print
MAX9259EVKIT
Evaluation Kit for the MAX9259

Features and Benefits

  • Accepts 29-Bit Parallel Video and I²S Audio
  • On-Board S/PDIF-to-I²S Audio Converter
  • Windows 2000-, Windows XP-, and Windows Vista (32-Bit)-Compatible Software
  • USB-PC Connection (Cable Included)
  • USB Powered
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX9259 evaluation kit (EV kit) provides a proven design to evaluate the MAX9259 gigabit multimedia serial link (GMSL) with spread spectrum and full-duplex control channel. The EV kit also includes Windows® 2000, Windows XP®-, and Windows Vista®-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the MAX9259. The MAX9259 EV kit comes with a MAX9259GCB/V+ installed.

For complete GMSL evaluation, order both the MAX9259 EV kit and its companion board, the MAX9260 EV kit.

Applications

  • Automotive Navigation, Infotainment, and Image-Sensing Systems
  • High-Speed Serial-Data Transmission for Display
  • High-Speed Serial-Data Transmission for Image Sensing
