MAX8212

Microprocessor Voltage Monitors with Programmable Voltage Detection

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.6)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $2.51
Features
  • µP Power-Fail Warning
  • Improved 2nd Source for ICL8211/ICL8212
  • Low-Power CMOS Design
  • 5µA Quiescent Current
  • On-Board Hysteresis Output
  • ±40mV Threshold Accuracy (±3.5%)
  • 2.0V to 16.5V Supply-Voltage Range
  • Define Output Current Limit (MAX8211)
  • High Output Current Capability (MAX8212)
Additional Details
show more Icon

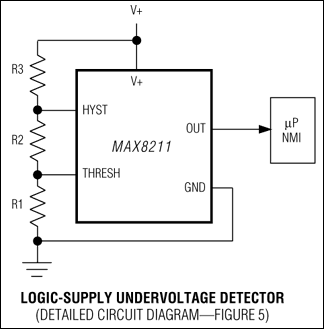

Maxim's MAX8211 and MAX8212 are CMOS micropower voltage detectors that warn microprocessors (µPs) of power failures. Each contains a comparator, a 1.15V bandgap reference, and an open-drain n-channel output driver. Two external resistors are used in conjunction with the internal reference to set the trip voltage to the desired level. A hysteresis output is also included, allowing the user to apply positive feedback for noise-free output switching.

The MAX8211 provides a 7mA current-limited output sink whenever the voltage applied to the threshold pin is less than the 1.15V internal reference. In the MAX8212, a voltage greater than 1.15V at the threshold pin turns the output stage on (no current limit).

The CMOS MAX8211/MAX8212 are plug-in replacements for the bipolar ICL8211/ICL8212 in applications where the maximum supply voltage is less than 16.5V. They offer several performance advantages, including reduced supply current, a more tightly controlled bandgap reference, and more available current from the hysteresis output.

Applications

  • µP Voltage Monitoring
  • Battery-Backup Switching
  • Low-Battery Detection
  • Overvoltage Detection
  • Power-Supply Fault Monitoring
  • Undervoltage Detection
Show More Arrow image
file View Data Sheet (Rev.6)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $2.51
