Overview

Features and Benefits

  • ±1.25% Precision Voltage Threshold
  • SOT143 Package
  • Low Cost
  • < 5µA Typical Supply Current
  • Open-Drain Output (MAX836)
    Push-Pull Output (MAX837)

Product Details

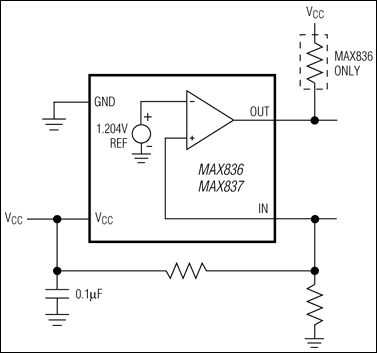

The MAX836/MAX837 micropower voltage monitors contain a 1.204V precision bandgap reference and a comparator in a SOT143 package. The MAX836 has an open-drain, N-channel output driver, while the MAX837 has a push-pull output driver. Two external resistors set the trip threshold voltage.

Applications

  • Battery-Powered Systems
  • Load Switching
  • Precision Battery Monitoring
  • Threshold Detectors

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Product Recommendations

MAX837 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX837EUS+ Material Declaration Reliability Data 4-SOT_23-N/A
MAX837EUS+T Material Declaration Reliability Data 4-SOT_23-N/A
