MAX77651

Ultra-Low Power PMIC with 3-Output SIMO and Power Path Charger for Small Li+

Show More showmore-icon

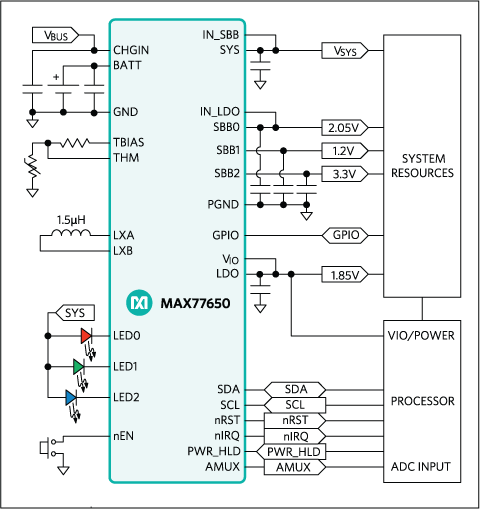

Highly-Integrated Battery Charging and Power Solution for Low-Power, Size-Constrained Applications

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.7)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.61
Features
  • Highly Integrated
    • Smart Power Selector™ Li+/Li-Poly Charger
    • 3 Output, Single-Inductor Multiple-Output (SIMO) Buck-Boost Regulator
    • 150mA LDO
    • 3-Channel Current Sink Driver
    • Analog MUX Output for Power Monitoring
  • Low Power
    • 0.3µA Shutdown Current
    • 5.6µA Operating Current (3 SIMO Channels + LDO)
  • Charger Optimized for Small Battery Size
    • Programmable Fast-Charge Current from 7.5mA to 300mA
    • Programmable Battery Regulation Voltage from 3.6V to 4.6V
    • Programmable Termination Current from 0.375mA to 45mA
    • JEITA Battery Temperature Monitors Adjust Charge Current and Battery Regulation Voltage for Safe Charging
  • Flexible and Configurable
    • I2C Compatible Interface and GPIO
    • Factory OTP Options Available
  • Small Size
    • 2.75mm × 2.15mm × 0.7mm WLP Package
    • 30-Bump, 0.4mm-Pitch WLP, 6x5 Array
    • Small Total Solution Size (19.2mm2)
Additional Details
show more Icon

The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).

The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.

Applications

  • Bluetooth Headphones/Hearables
  • Fitness, Health, and Activity Monitors
  • Internet of Things (IoT)
  • Portable Devices
Show More Arrow image
file View Data Sheet (Rev.7)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.61
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX77651

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • User Guide
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 10/11/2018
English

MAX77650-MAX77651: Ultra-Low Power PMIC with 3-Output SIMO and Power Path Charger for Small Li+ Data Sheet (Rev.7)

Open PDF File

redirect
2.00M
download

Download PDF

Design Note

2

PDF Vector

PDF

UPDATED 10/06/2023
English
Design Note 57: Can You Hear Me Now? Extend the Life of Your Hearable Device redirect icon

365.40K

download

Download PDF

PDF Vector

HTML

UPDATED 11/12/2018
English
How to Get Longer Battery Life for Wearables with a SIMO Power Converter Architecture redirect icon

User Guide

1

PDF Vector

PDF

UPDATED 06/23/2017
English
UG-6428: MAX77650/MAX77651 Programmer's Guide redirect icon

693.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Analog Dialogue 1

Simplifying TWS Earbud Designs with 1-Wire Connectivity

Video

3

Thumbnail Image

Video

2022-10-04

03:34

Increase Battery Life and Efficiency with PMICs at Less Than Half the Size

Learn More
Thumbnail Image

Video

2022-10-04

02:06

How to Program the MAX7360 Key Switch Controller using the Arduino IDE

Learn More

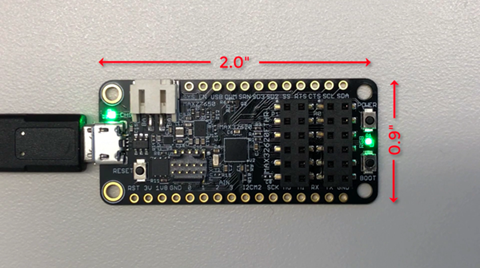

Thumbnail Image

Video

2022-10-04

05:33

Introducing the MAX32620FTHR Prototyping Platform

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX77651AEWV+ Wafer-Level Package 5x6 Bump, Full Array external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX77651AEWV+T Wafer-Level Package 5x6 Bump, Full Array external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX77651BEWVA+ Wafer-Level Package 5x6 Bump, Full Array external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX77651BEWVA+T Wafer-Level Package 5x6 Bump, Full Array external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 8, 2018

- 1784

WAFER FAB

MAX77651AEWV+

PRODUCTION

MAX77651AEWV+T

PRODUCTION

pdf

pcn_1784

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 8, 2018

- 1784

arrow down

WAFER FAB

MAX77651AEWV+

PRODUCTION

MAX77651AEWV+T

PRODUCTION

pdf

pcn_1784

external-icon
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Battery Fuel Gauge and Coulomb Counter1
MAX17055
popup image
Cart

PRODUCTION

7µA 1-Cell Fuel Gauge with ModelGauge m5 EZ

PMIC (DC/DC, PowerPath, and Battery Charger)1
MAX77650
popup image
Cart

PRODUCTION

Ultra-Low Power PMIC with 3-Output SIMO and Power Path Charger for Small Li+

USB Power Manager (PowerPath, Battery Charger)1
MAX77734
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Ultra-Low Power Tiny PMIC with Power Path Charger for Small Li+ and 150mA LDO

Evaluation Kit

Evaluation Kits 3

reference details image

MAX32620FTHR

Evaluation Kit for the MAX32620/MAX77650/MAX17055

zoom

MAX32620FTHR

Evaluation Kit for the MAX32620/MAX77650/MAX17055

download icon

Download

 print icon

Print
MAX32620FTHR
Evaluation Kit for the MAX32620/MAX77650/MAX17055

Features and Benefits

  • Convenient Development Platform
    • 0.9in x 2.0in DIP Form Factor
      • Breadboard Compatible
      • Feather Wing Compatible
    • Pmod-Compatible Sockets
      • Supports SPI, UART, I2C, and GPIO
      • Accessible from Both Sides of Board
    • Integrated Battery Management
      • Single-Cell Li+ Charger
      • Fuel Gauge
    • User Interface Peripherals
      • Two RGB LEDs
      • Two Pushbuttons
  • MAX32620 Microcontroller Features
    • 96MHz Arm Cortex-M4 Microcontroller with FPU
    • 2048KB Flash
    • 256KB SRAM
    • Full-Speed USB
    • SPI, I2C, UART, and 1-Wire
    • 4-Channel 10-Bit ADC
    • 49 Dual Voltage GPIO
    • 3.9mm x 4.1mm, 81-Bump WLP
  • MAX77650 Ultra-Low Power PMIC Features
    • Smart Power Selector Charger
      • Supports Li+/Li-Poly Batteries
      • 7.5mA to 300mA Charge Current
    • Single Inductor Multiple Output (SIMO) Buck-Boost Regulator
      • 3 Outputs from a Single Inductor
    • 150mA LDO Regulator
    • I2C Configurable
    • 2.75mm x 2.15mm, 30-Bump WLP
  • MAX17055 Fuel Gauge Features
    • ModelGauge m5 EZ
      • Eliminates Battery Characterization
      • Eliminates Coulomb Counter Drift
    • 7µA Operating Current
    • 1.4mm x 1.5mm, 9-Bump WLP
Buy Now View Details

Product Detail

The MAX32620FTHR board is a rapid development platform designed to help engineers quickly implement battery-optimized solutions with the MAX32620 Arm® Cortex®-M4 microcontroller with FPU. The board also includes the MAX77650 ultra-low power PMIC and MAX17055 fuel gauge to provide efficient power conversion and battery management with minimal board space. The form factor is a small 0.9in x 2.0in dual-row header footprint that is compatible with breadboards and off-theshelf peripheral expansion boards. In addition to the dualrow headers, there are also two 12-pin Pmod™-compatible socket connectors for more expansion options. Also on board are common user-interface peripherals including two RGB indicator LEDs and two pushbuttons. These provide a power-optimized flexible platform for quick proofs-of-concept and early software development to enhance time to market.

Applications

  • Fitness Monitors
  • Portable Medical Devices
  • Sensor Hub
  • Sport Watches
  • Wearable Medical Patches
reference details image

MAX77650EVKIT

Evaluation Kit for the MAX77650/MAX77651

zoom

MAX77650EVKIT

Evaluation Kit for the MAX77650/MAX77651

download icon

Download

 print icon

Print
MAX77650EVKIT
Evaluation Kit for the MAX77650/MAX77651

Features and Benefits

  • Easy to Use
  • GUI Drives I2C Interface
  • On-Board Ammeter
  • On-Board Thermistor
  • On-Key Options
  • RGB LED Cluster
  • Assembled and Fully Tested
  • Emulates System Loading
  • On-Board Electronic Loads
  • Electronic Loads have steady-state, transient, and random modes
  • Demonstrates End-to-End Analog Multiplexer Implementation
  • On-Board ADC
  • Evaluates Both Push-Button and Slider-Switch On-Key Options
Buy Now View Details

Product Detail

The MAX77650/MAX77651 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77650/MAX77651. The EV kit allows for easy evaluation of the various MAX77650/MAX77651 features, including the SIMO buck-boost regulator, linear regulator, analog multiplexer, smart battery charger, on/off controller, and I2C interface.

The MAX77650 and MAX77651 EV kits are identical aside from the device (U1), silkscreen, and two resistive dividers at the SIMO outputs (see the MAX77650/MAX77651 EV Kit Differences section). The MAX77650/MAX77651 devices themselves have different output voltage ranges for the SIMO buck-boost regulator. Consult the device data sheet for more information.

Windows®-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77650/MAX77651.

Applications

  • Bluetooth Headphones/Hearables
  • Fitness, Health, and Activity Monitors
  • Internet of Things (IoT)
  • Portable Devices

Resources

pdf icon

PDF

UG-6428: MAX77650/MAX77651 Programmer's Guide Download

693.00K

pdf icon

ZIP

MAX77650EVKIT Board Layout - Design Files Download

4.62M

pdf icon

PDF

MAX77650EVKIT Schematic Download

261.68K

pdf icon

PDF

MAX77650EVKIT BOM Download

169.04K

pdf icon

ZIP

MAX77650EVKIT ODB File - Design Files Download

4.01 M

Show More Arrow image
reference details image

MAX77651EVKIT

Evaluation Kit for the MAX77650/MAX77651

zoom

MAX77651EVKIT

Evaluation Kit for the MAX77650/MAX77651

download icon

Download

 print icon

Print
MAX77651EVKIT
Evaluation Kit for the MAX77650/MAX77651

Features and Benefits

  • Easy to Use
  • GUI Drives I2C Interface
  • On-Board Ammeter
  • On-Board Thermistor
  • On-Key Options
  • RGB LED Cluster
  • Assembled and Fully Tested
  • Emulates System Loading
  • On-Board Electronic Loads
  • Electronic Loads have steady-state, transient, and random modes
  • Demonstrates End-to-End Analog Multiplexer Implementation
  • On-Board ADC
  • Evaluates Both Push-Button and Slider-Switch On-Key Options
Buy Now View Details

Product Detail

The MAX77650/MAX77651 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the MAX77650/MAX77651. The EV kit allows for easy evaluation of the various MAX77650/MAX77651 features, including the SIMO buck-boost regulator, linear regulator, analog multiplexer, smart battery charger, on/off controller, and I2C interface.

The MAX77650 and MAX77651 EV kits are identical aside from the device (U1), silkscreen, and two resistive dividers at the SIMO outputs (see the MAX77650/MAX77651 EV Kit Differences section). The MAX77650/MAX77651 devices themselves have different output voltage ranges for the SIMO buck-boost regulator. Consult the device data sheet for more information.

Windows®-based software provides a user-friendly graphical interface as well as a detailed register-based interface to exercise the features of the MAX77650/MAX77651.

Applications

  • Bluetooth Headphones/Hearables
  • Fitness, Health, and Activity Monitors
  • Internet of Things (IoT)
  • Portable Devices

Resources

pdf icon

PDF

UG-6428: MAX77650/MAX77651 Programmer's Guide Download

693.00K

pdf icon

ZIP

MAX77651EVKIT Board Layout - Design Files Download

5.32M

pdf icon

PDF

MAX77651EVKIT Schematic Download

261.50K

pdf icon

PDF

MAX77651EVKIT BOM Download

180.35K

pdf icon

ZIP

MAX77651EVKIT ODB File - Design Files Download

5.33 M

Show More Arrow image

Evaluation Kits3

evaluation kit item images

MAX32620FTHR

Evaluation Kit for the MAX32620/MAX77650/MAX17055
evaluation kit item images

MAX77650EVKIT

Evaluation Kit for the MAX77650/MAX77651
evaluation kit item images

MAX77651EVKIT

Evaluation Kit for the MAX77650/MAX77651
Reference Designs

Reference Designs 1

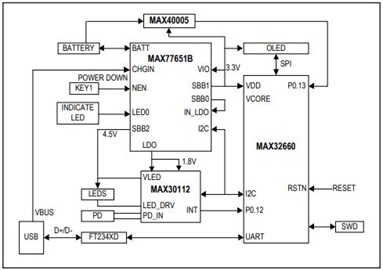

MAXREFDES1207 Block Diagram

MAXREFDES1207

Heart-Rate Monitor Wrist Band Using the MAX77651B

zoomopens a dialog

MAXREFDES1207

Heart-Rate Monitor Wrist Band Using the MAX77651B

download icon

Download

 print icon

Print
MAXREFDES1207
Heart-Rate Monitor Wrist Band Using the MAX77651B

Features and Benefits

Description

The MAXREFDES1207 is a reference design for wearable application based on a total Analog Devices solution which includes the MAX32660, MAX30112, MAX77651B, and MAX40005. This solution demonstrates how a small size, low cost, low power, high accuracy heart-rate (HR) monitor can be easily implemented. This design can monitor heart rate using two green LEDs.

The MAX30112 is an optimized pulse-oximeter and heartrate AFE for wearable health. It has a high-resolution, optical readout signal-processing channel with built-in ambient light cancellation as well as high-current LED driver DACs to form a complete optical readout signal chain. With external LED(s) and photodiode(s), the MAX30112 offers the lowest power, highest performance heart-rate detection solution for wrist applications. The MAX77651B provides highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. The device features a SIMO buckboost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA). The MAX32660 is an ultra-low-power, cost-effective, highly- integrated microcontroller unit (MCU) designed for battery- powered devices and wireless sensors. It combines a flexible and versatile power management unit with the powerful Arm® Cortex®-M4 with floating point unit (FPU). The MAX40005 is a tiny, single comparator which is ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. The design also contains an FTDI FT234 USB-to-serial UART interface.

View Detailed Reference Design external link

Part Used 4

MAX32660 reference design link

MAX30112 reference design link

MAX77651 reference design link

MAX40005 reference design link

Design & Integration Tools

pdf icon

ZIP

Download Design Files link icon

2.83 M

Reference Designs1

MAXREFDES1207 Block Diagram

MAXREFDES1207

Heart-Rate Monitor Wrist Band Using the MAX77651B

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Reference Designs
Latest Discussions
