MAX4265
Ultra-Low-Distortion, Single-Supply, 300MHz Op Amps with Enable
Lowest-Distortion Single +5V 300MHz ADC Drivers
Top
Overview
Features and Benefits
- Operates from +4.5V to +8.0V
- Superior SFDR with 100Ω Load
- -90dBc (fC = 5MHz)
- -59dBc (fC = 100MHz)
- 35dBm IP3 (fC = 20MHz)
- 8nV/
Voltage Noise Density
- 100MHz 0.1dB Gain Flatness (MAX4268)
- 900V/µs Slew Rate
- ±45mA Output Driving Capability
- Disable Mode Places Outputs in High-Impedance State
Product Details
The MAX4265–MAX4270 ultra-low distortion, voltage-feed-back op amps are capable of driving a 100Ω load while maintaining ultra-low distortion over a wide bandwidth. They offer superior spurious-free dynamic range (SFDR) performance: -90dBc at 5MHz and -59dBc at 100MHz (MAX4269). Additionally, input voltage noise density is 8nV/ while operating from a single +4.5V to +8.0V supply or from dual ±2.25V to ±4.0V supplies. These features make the MAX4265–MAX4270 ideal for use in high-performance communications and signal-processing applications that require low distortion and wide bandwidth.
The MAX4265 single and MAX4268 dual amplifiers are unity-gain stable. The MAX4266 single and MAX4269 dual amplifiers are compensated for a minimum stable gain of +2V/V, while the MAX4267 single and MAX4270 dual amplifiers are compensated for a minimum stable gain of +5V/V.

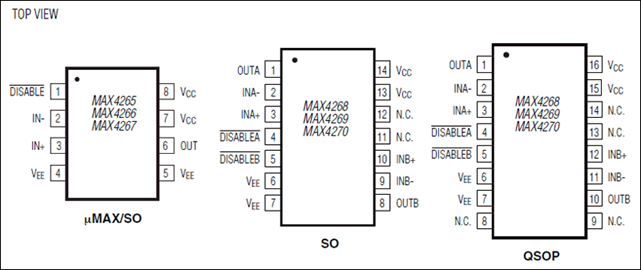

For additional power savings, these amplifiers feature a low-power disable mode that reduces supply current and places the outputs in a high-impedance state. The MAX4265/MAX4266/MAX4267 are available in a space-saving 8-pin µMAX® package, and the MAX4268/MAX4269/MAX4270 are available in a 16-pin QSOP package.
Applications
- Base-Station Amplifiers
- High-Frequency ADC Drivers
- High-Frequency Signal Processing
- High-Speed DAC Buffers
- IF Amplifiers
- RF Telecom Applications
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
