MAX40201
Dual-Channel, 0V to 76V Current-Sense Amplifier
Best Current Sense Amp Combination of Wide Voltage Range, Tiny Size and High Precision
Top
Overview
Features and Benefits
- 0V to 76V Input Common Mode
- Low 12µV (max) Input Offset Voltage
- Low 0.1% (max) Gain Error
- Gain Options
- G = 25V/V (MAX40201T)
- G = 50V/V (MAX40201F)
- G = 100V/V (MAX40201H)
- G = 200V/V (MAX40201W)

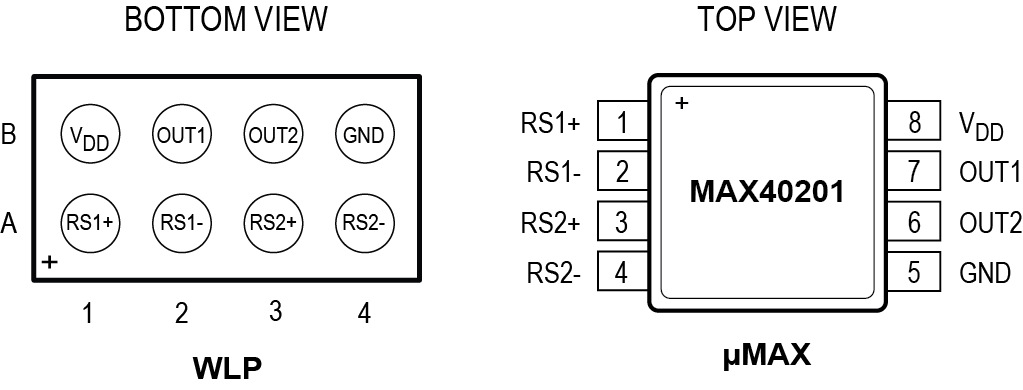

- 1.3mm x 2mm 8-Bump WLP and 8-Pin μMAX Packages

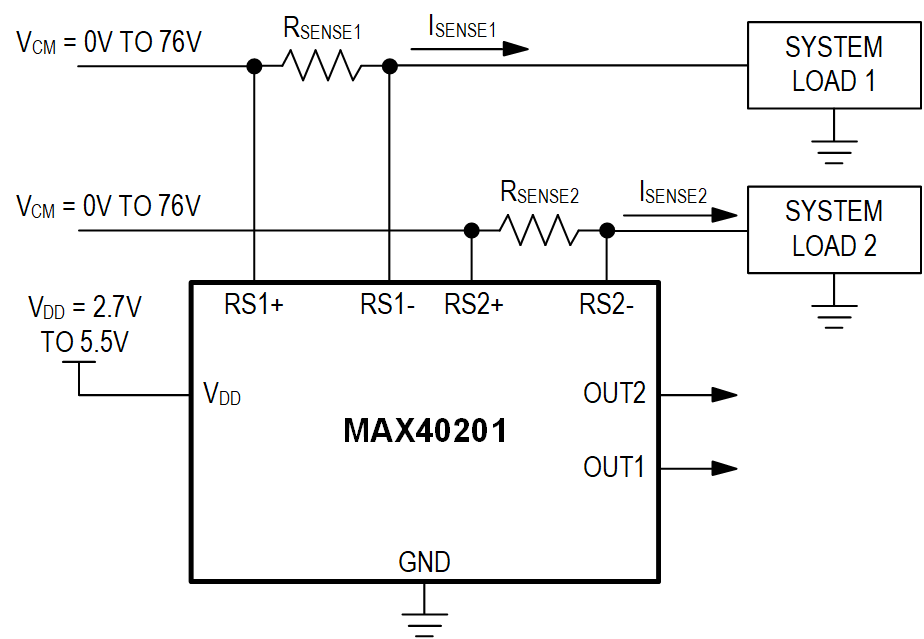

Product Details

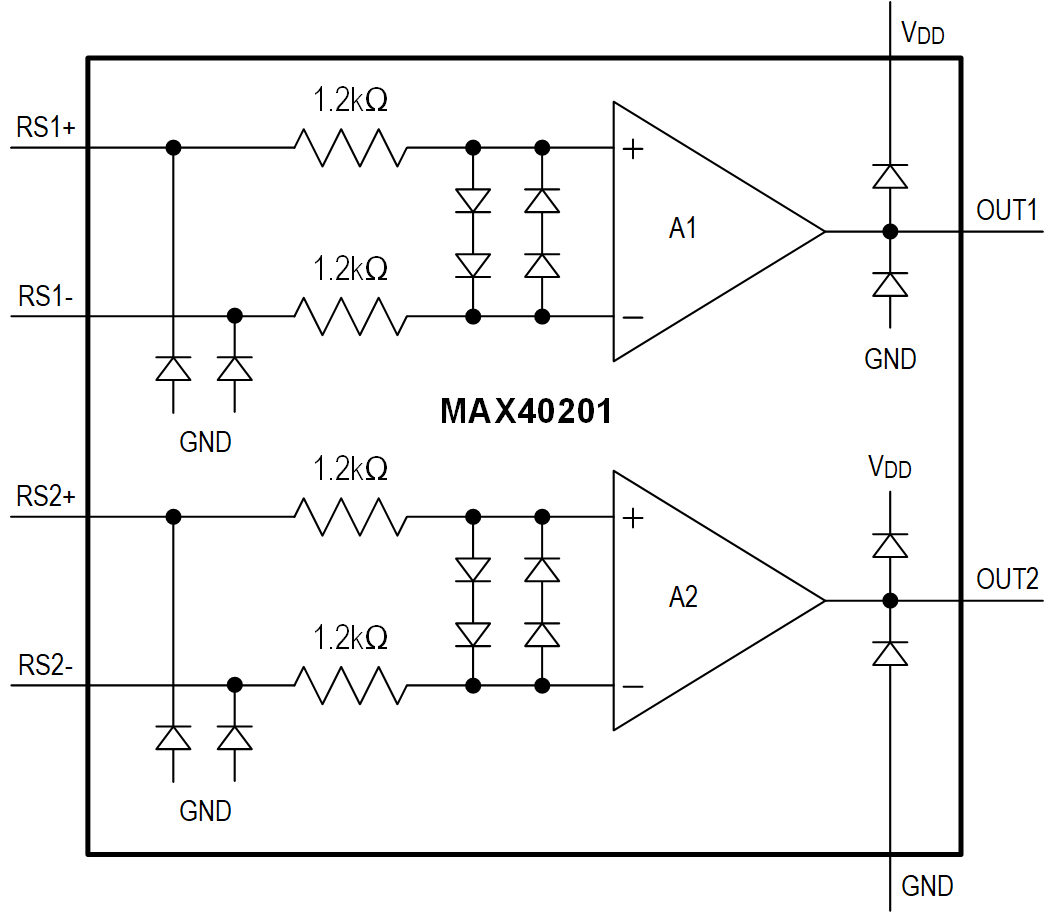

The MAX40201 dual-channel, high-side, current-sense amplifier has VOS of less than 12µV (max) and gain error of less than 0.1% (max). The outputs of the MAX40201 are voltage outputs capable of swinging to a few tens of millivolts of the VDD rail and ground.
The MAX40201 features an input common-mode voltage range from 0V to 76V with 80kHz of small-signal bandwidth, which makes it ideal for interfacing with a SAR ADC for multichannel multiplexed data acquisition systems.
The MAX40201 operates over the -40°C to +125°C temperature range. The MAX40201 is offered in 8-bump wafer-level package (WLP) and 8-pin μMAX® package.
Applications
- Base Stations and Communication Equipment
- Industrial Control and Automation
- Power Management Systems
- Server Backplanes
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

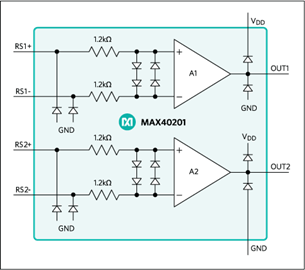

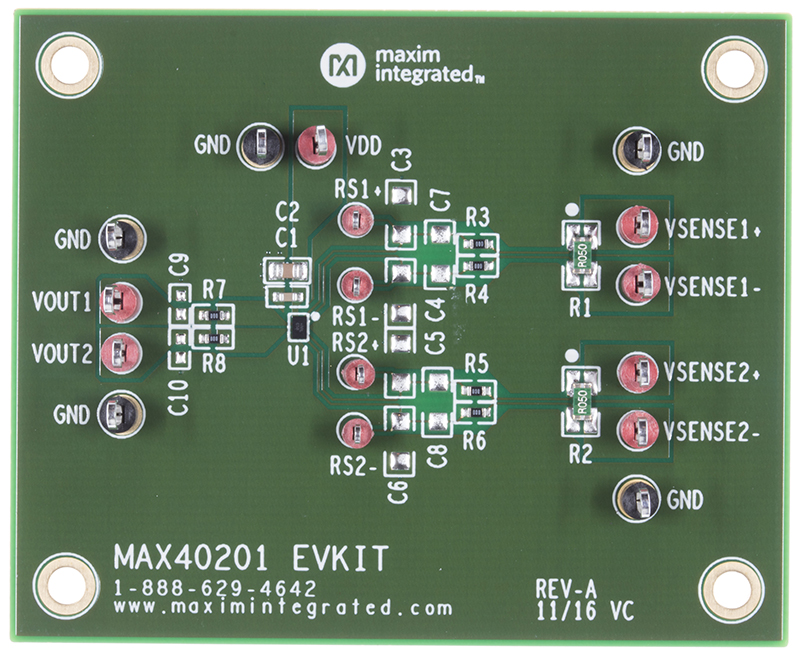

Evaluation Kits (1)
