MAX40010

PRODUCTION

76V Precision, High-Voltage, Current-Sense Amplifier

Unique Combination of High-Accuracy and High-Voltage Operation at 76V

Data Sheet (Rev. 5) Product Selection Table

Part Models: 10
1ku List Price: Starting From $1.27

Viewing:

Overview

Input Common Mode +2.7V to +76V
Ultra-Tiny 1mm x 1.5mm 6-bump WLP and SOT23 Packages
Low 12µV (max) Input Offset Voltage
Low 0.1%(max) Gain Error
Available Gain Options:
- G = 12.5V/V: MAX40010L
- G = 20V/V: MAX40010T
- G = 50V/V: MAX40010F
- G = 100V/V: MAX40010H

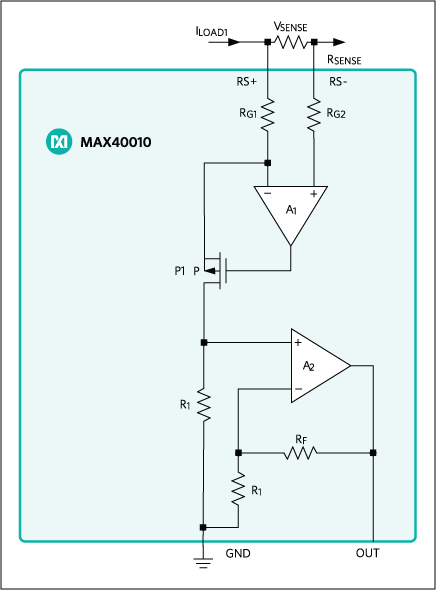

The MAX40010 single-channel high-side precision current- sense amplifier with an input common-mode voltage range from 2.7V to 76V, making it ideal for communications, automotive, data centers and other systems where high-voltage current monitoring is critical. The MAX40010 offer accuracy specifications of less than 12µV (max) Input Offset voltage and less than 0.1% (max) gain error. By offering precision offset and gain error specifications, the MAX40010 makes it possible to sense very small sense/shunt resistors, further improving system efficiencies and power dissipation through the sense element.

The MAX40010 features 80kHz of small signal bandwidth and four unique gain options (12.5V/V, 20V/V, 50V/V, and 100V/V). The device’s current sense inputs have EMIR filters to reject RF found in communications equipment.

The MAX40010 operates over the -40°C to + 125°C temperature range and is offered in a 6-bump, 1mm x 1.5mm wafer-lever package (WLP) with 0.5mm pitch and a SOT23 U6SN+1 package.

Applications

Automotive Sensing
Base-Stations and Communication Equipment
Energy Management
Server Backplanes/Data Centers
Solar Panel Monitoring

Part Models: 10
1ku List Price: Starting From $1.27

Documentation

Data Sheet 1

MAX40010: 76V Precision, High-Voltage, Current-Sense Amplifier Data Sheet (Rev.5) 08/03/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX40010FAUT+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010FAUT+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010HAUT+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010HAUT+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010LAUT+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010LAUT+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010LAWT+	6-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010LAWT+T	6-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010TAUT+	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX40010TAUT+T	Small-Outline Transistor Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 1, 2021 - 2209 ASSEMBLY
		pcn_2209
MAX40010FAUT+	PRODUCTION
MAX40010FAUT+T	PRODUCTION
MAX40010HAUT+	PRODUCTION
MAX40010HAUT+T	PRODUCTION
MAX40010LAUT+	PRODUCTION
MAX40010LAUT+T	PRODUCTION
MAX40010TAUT+	PRODUCTION
MAX40010TAUT+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Current Sense Amplifiers 1
MAX44285	PRODUCTION	Dual-Channel, High-Precision, High-Voltage, Current-Sense Amplifier

Tools & Simulations

SPICE Model 1

MAX40010 SPICE Macro Model

Evaluation Kits

Evaluation Kit for the MAX40010

Buy Now View Details

Features and Benefits

Precision, Real-Time Current Monitoring
+2.7V to +76V Input Common-Mode Range
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX40010 evaluation kit (EV kit) provides a proven design to evaluate the MAX40010 dual-channel, highprecision, high-voltage, current-sense amplifier. This EV kit demonstrates the MAX40010 in a 5-PIN SOT-23 package.

The EV kit PCB comes with a MAX40010TAWT+ installed, which is the 20V/V gain version. Other gain options are available. Contact the factory for the pin-compatible MAX40010LAWT+ (G = 12.5V/V), MAX40010FAWT+ (G = 50V/V), and MAX40010HAWT+ (G = 100V/V).
