MAX32625

Ultra-Low-Power Arm Cortex-M4 with FPU-Based Microcontroller (MCU) with 512KB Flash and 160KB SRAM

DARWIN Generation U MCUs Are Perfect for Engineers Who Are Serious About Power and Performance

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High-Efficiency Microcontroller for Wearable Devices
- Internal Oscillator Operates Up to 96MHz
- Low Power 4MHz Oscillator System Clock Option for Always-On Monitoring Applications
- 512KB Flash Memory (256KB "L" Version)
- 160KB SRAM (128KB "L" Version)
- 8KB Instruction Cache
- 1.2V Core Supply Voltage
- 1.8V to 3.3V I/O
- Optional 3.3V ±5% USB Supply Voltage
- Wide Operating Temperature: -30°C to +85°C
Power Management Maximizes Uptime for Battery Applications
- 106µA/MHz Active Current Executing from Cache
- 49µA/MHz Active Current Executing from Flash
- Wakeup to 96MHz Clock or 4MHz Clock
- 600nA Low Power Mode (LP0) Current with RTC Enabled
- 2.56µW Ultra-Low Power Data Retention Sleep Mode (LP1) with Fast 5μs Wakeup on 96MHz Clock Source
- 27µA/MHz Low Power Mode (LP2) Current
Optimal Peripheral Mix Provides Platform Scalability
- SPI Execute in Place (SPIX) Engine for Memory Expansion with Minimal Footprint
- Three SPI Masters, One SPI Slave
- Three UARTs
- Up to Two I²C Masters, One I²C Slave
- 1-Wire Master
- Full-Speed USB 2.0 Device with Internal Transceiver
- Sixteen Pulse Train (PWM) Engines
- Six 32-Bit Timers and 3 Watchdog Timers
- Up to 40 General-Purpose I/O Pins
- 10-Bit Delta-Sigma ADC Operating at 7.8ksps
- AES -128, -192, -256
- RTC Calibration Output
Secure Valuable IP and Data with Robust Internal Hardware Security (MAX32626 Only)
- Trust Protection Unit (TPU) Provides ECDSA and Modular Arithmetic Acceleration Support
- True Random Number Generator
- Secure Boot Loader

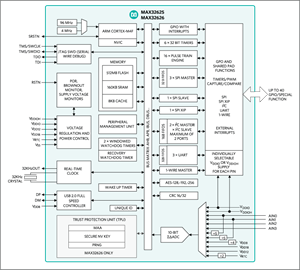

Product Details

DARWIN is a new breed of low-power microcontrollers built to thrive in the rapidly evolving Internet of Things (IoT). They are smart, with the biggest memories in their class and a massively scalable memory architecture. They run forever, thanks to wearable-grade power technology. They are also tough enough to withstand the most advanced cyberattacks. DARWIN microcontrollers are designed to run any application imaginable—in places where you wouldn’t dream of sending other microcontrollers.

Generation U microcontrollers are perfect for wearables and IoT applications that cannot afford to compromise power or performance. The MAX32625/MAX32626 feature an Arm^® Cortex^®-M4 with FPU CPU that delivers high-efficiency signal processing, ultra-low power consumption and ease of use.

Flexible power modes, an intelligent PMU, and dynamic clock and power gating optimize performance and power consumption for each application. Internal oscillators run at 96MHz for high-performance or 4MHz to maximize battery life in applications requiring always-on monitoring.

Multiple SPI, UART, I²C, 1-Wire® master, and USB interfaces are provided. The four-input, 10-bit ADC with selectable references can monitor external sensors.

All versions provide a hardware AES engine. The MAX32626 provides a secure trust protection unit (TPU) with a modular arithmetic accelerator (MAA) for fast ECDSA, a hardware PRNG entropy generator, and a secure boot loader. The MAX32625L provides a reduced 256kB of flash memory and 128kB of SRAM.

MAX32625 User's Guide

Maxim Low Power ARM Micro Toolchain (Mac)

Maxim Low Power ARM Micro Toolchain (Windows)

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Product Categories

Processors and Microcontrollers
- Microcontrollers
- Ultra Low Power Microcontrollers

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (7)

MAX32625NEXPAQ

MAX32625 Development Board for Nexpaq System

MAX32625-EVKIT

Evaluation Kit for the MAX32625 and MAX32626

MAX32625MBED

MAX32625MBED ARM mbed Enabled Development Platform for the MAX32625

MAX32625LORAKIT

Starter Kit for LoRaWAN Module Using DARWIN’s Ultra-Low Power Microcontroller

MAX32625PICO

Evaluation Kit for the MAX32625/MAX14750

MAX32626-EVKIT

Evaluation Kit for the MAX32625 and MAX32626

MAXPICO2PMB

MAXPICO2PMB Adapter Board

MAX32625NEXPAQ

View Detailed Evaluation Kit Information

The MAX32625NEXPAQ is a rapid development platform designed to accelerate the implementation of nexpaq modules with the MAX32625 ARM^® Cortex^®-M4F microcontroller. It contains all the elements needed to interface to the nexpaq system and provides easy access to the main peripherals inside the microcontroller. This provides an expandable platform for quick proof-of-concepts and early software development to enhance time to market.

The nexpaq platform provides the simplest way to interface hardware to a phone. It utilizes web standards to enable a rich user experience that is fundamentally cross platform.

For details on firmware development and source code examples visit the MAX32625NEXPAQ platform page on the ARM mbed developer site.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

MAX32625 Microcontroller
- ARM Cortex-M4F
- 512KB Flash, 160KB SRAM
- FS-USB, UART, SPI, I²C, 1-Wire^®
nexpaq Compatible
- nexpaq Module Form Factor
- nexpaq Interface Connector
Expansion Connections
- Power: GND, 3.3V, 5V, Battery
- Serial I/O: I²C, SPI, UART, 1-Wire
- Analog Inputs
- PWM Outputs
- RGB Indicator LED
- bed^® HDK DAPLink Connector
- Drag-and-Drop Programming
- CMSIS-DAP Debugger
- Virtual UART Console

MAX32625-EVKIT

View Detailed Evaluation Kit Information

The MAX32625/MAX32626 evaluation kit (EV kit) provides a convenient platform for evaluating the capabilities of the MAX32625/MAX32626 microcontroller. The EV kit also provides a complete, functional system ideal for developing and debugging applications.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

Easily Load and Debug Code Using the Supplied Olimex ARM-USB-TINY-H JTAG Debugger Connected Through a Standard 20-Pin ARM JTAG Header
Selectable Power Sources for PMIC Include USB Power Through the CN1 or CN2 Connector, Optional External Battery Through J2 Connector, or Bench Supply Through Test Points TP8 and TP9
Selectable Power Source for On-Board Peripherals (Switches, LEDs, OLED Display, SPI Flash, Bluetooth® LE Transceiver)
Headers for Accessing the IC’s I/O Pins and Analog Front End (AFE) Input Signals
USB Micro-B Connection to the IC’s USB Device Controller
USB Micro-B Connection to USB-UART Bridge Selectable Between the IC’s Internal UART 0 and UART 1
On-Board Bluetooth 4.0 BLE Transceiver with Chip Antenna
General-Purpose Pushbutton Switches and Indicator LEDs (All Connected to GPIOs) for User I/O
Prototyping Matrix (0.1in Grid) with Integrated Power Rails for Customer Circuitry

Resources

UG-6245: Getting Started with Eclipse

PDF

787.00K

MAX32625MBED

View Detailed Evaluation Kit Information

The MAX32625MBED provides a convenient platform for evaluating the capabilities of the MAX32625 microcontroller. The MAX32625MBED also provides a complete, functional system ideal for developing and debugging applications.

The MAX32625MBED includes a MAX32625 ARM^® Cortex^®-M4 microcontroller with FPU, prototyping area with adjacent access to precision analog front end (AFE) connections, I/O access through Arduino^®-compatible connectors, additional I/O access through 100mil x 100mil headers, USB interface, and other general-purpose I/O devices.

Go to https://developer.mbed.org/platforms/MAX32625MBED/ to get started developing with this board.

How to Setup the MAX32625MBED Board with the Arduino IDE

Using the MAX32625MBED with Rowley CrossStudio

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

Arduino-Compatible Headers and mbed Support Enable Rapid Prototyping of Low-Power Embedded Systems
MAX32625 Microcontroller
- 96MHz ARM Cortex-M4 Microcontroller with FPU
- 512KB Flash Memory
- 160KB SRAM
- 8KB Instruction Cache
- Full-Speed USB 2.0
- Three SPI Masters, One Slave
- Two I²C Masters, One Slave
- Three UARTs
- 1-Wire Master
- 40 GPIOs
- Four Input 10-Bit ADC
Expansion Connections
- Arduino Form-Factor Headers
- MicroSD Card Connector
- Micro-USB Connectors
- Prototyping Area
Integrated Peripherals
- 4x User Indicator LED
- 2x User Pushbutton
Integrated DAPLink Programming Adapter
- Drag-and-Drop Programming
- CMSIS-DAP SWD Debugger
- USB Virtual UART

MAX32625LORAKIT

View Detailed Evaluation Kit Information

The Maxim Darwin LoRaWAN^® starter kit brings all the hardware needed to experience and explore the world of the LoRaWAN low-power, wide area network (LPWAN) technology. It includes a highly customizable IoT button as an example for an end device, a development board equipped with a Maxim FMLR module for quick prototyping, and a FMLR-PICOGW LoRaWAN^® gateway for connectivity with a backend and application server.

Furthermore, the IoT button and FMLR-PICOGW are already registered in Miromico’s Loriot backend and can be observed in their IoT dashboard. To use the development board, it needs to be flashed with functional firmware. A simple join example is publicly available and open-sourced at Miromico’s Gitlab. More information can be found in the Quick Start Guides/data sheets.

Further Details

Visit https://miromico.ch/portfolio/darwin-starterkit/?lang=en for detailed information about the kit and all the documentation.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

MAX32625PICO

View Detailed Evaluation Kit Information

The MAX32625PICO board is a rapid development platform designed to help engineers quickly implement designs with the MAX32625 ARM^® Cortex^®-M4 microcontroller with FPU. The board also includes the MAX14750 PMIC to provide all the needed voltages. The form factor is a small: 0.6in x 1.0in dual-row header footprint that is compatible with breadboards and can also be soldered down SMT to another board. The board includes a 10-pin ARM Cortex debug connector so that it can be used as a DAPLink adapter. Additionally, on board are an RGB indicator LED and pushbutton. This provides a power-optimized flexible platform for quick proofs-ofconcept and early software development to enhance time to market.

The MAX32625PICO board ships with a DAPLink image loaded that provides the USB Mass Storage Device (MSD) drag-and-drop programming, USB Communications Device Class (CDC) virtual serial port, and Human Interface Device (HID) CMSIS-DAP interface used by the mbed site. This allows the board to be connected to another target platform to enable the full mbed experience. The microcontroller is also programmed with a bootloader allowing the DAPLink image to be updated or replaced with your own application code. Get started developing on this board by going to this link: http://developer.mbed.org/platforms/MAX32625PICO.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

Ultra-Compact Development Platform
- 0.6in x 1.0in, 20-Pin DIP Footprint
- Cortex Debug Connector (Host)
- 20 Digital I/O, 4 Analog Inputs
- 3.3V and 1.8V Supplies
MAX326325 Microcontroller Features
- ARM Cortex-M4 Microcontroller with FPU, 96MHz
- 512KB Flash Memory
- 160KB SRAM
- 8KB Instruction Cache
- Full-Speed USB 2.0
- Three SPI Masters, One Slave
- Two I²C Masters, One Slave
- Three UARTs
- 1-Wire Master
- 40 GPIOs
- Four Input 10-Bit ADC
MAX14750 PMIC
- Micro I_Q 3.3V Buck-Boost Regulator
- Micro I_Q 1.8V Buck Regulators
- Micro I_Q 1.2V Linear Regulators
- High-Side Load Switch
Expansion Connections
- Breadboard-Compatible Headers
- SMT-Compatible Footprint
- 10-Pin Cortex Debug Header
- Micro USB Connector
Integrated Peripherals
- RGB Indicator LED
- User Pushbutton
MAXDAP Programming Adapter
- DAPLink Over Cortex Debug Cable
- Drag-and-Drop Programming
- CMSIS-DAP SWD Debugger
- USB Virtual UART

Resources

UG-7256: MAX31343 Shield Software User Guidece

PDF

423.00K

MAX32626-EVKIT

View Detailed Evaluation Kit Information

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

Easily Load and Debug Code Using the Supplied Olimex ARM-USB-TINY-H JTAG Debugger Connected Through a Standard 20-Pin ARM JTAG Header
Selectable Power Sources for PMIC Include USB Power Through the CN1 or CN2 Connector, Optional External Battery Through J2 Connector, or Bench Supply Through Test Points TP8 and TP9
Selectable Power Source for On-Board Peripherals (Switches, LEDs, OLED Display, SPI Flash, Bluetooth® LE Transceiver)
Headers for Accessing the IC’s I/O Pins and Analog Front End (AFE) Input Signals
USB Micro-B Connection to the IC’s USB Device Controller
USB Micro-B Connection to USB-UART Bridge Selectable Between the IC’s Internal UART 0 and UART 1
On-Board Bluetooth 4.0 BLE Transceiver with Chip Antenna
General-Purpose Pushbutton Switches and Indicator LEDs (All Connected to GPIOs) for User I/O
Prototyping Matrix (0.1in Grid) with Integrated Power Rails for Customer Circuitry

Resources

UG-6245: Getting Started with Eclipse

PDF

787.00K

MAXPICO2PMB

View Detailed Evaluation Kit Information

The MAXPICO2PMB adapter board is a fully assembled and tested PCB that provides an I²C interface to quickly interact with an evaluation kit (EV kit) or a demo board connected through the Pmod™ connector.

The adapter board features a rapid development platform - the MAX32625PICO microcontroller, jumpers and a Pmod connector. The user can select on-board pullup resistors on the I²C lines by configuring jumpers. It also features an option to select the pullup voltage for the I²C lines through the power rail jumper. The Pmod connector provides one I²C port and two SPI ports for convenient evaluation.

The MAXPICO2PMB Register Map Tool is a Windows application that interfaces with the MAXPICO2PMB adapter board. The user can import *.regmap files that contain the unique I²C register map information and register field descriptions of an integrated circuit. The application sends commands to the MAX32625PICO microcontroller on the MAXPICO2PMB adapter board over a virtual serial port. The MAX32625PICO microcontroller sends I²C commands to communicate with the EV kit or demo board connected through the Pmod connector.

Applications

Fitness Monitors
Portable Medical Devices
Sensor Hubs
Sports Watches
Wearable Medical Patches

Features & Benefits

USB-Powered Operation
USB to I²C and SPI Interface
Pmod Compatible Form Factor
Flexible Configuration
MAX32625PICO Rapid Development Platform
Drag-and-Drop Programming
Small PCB Area
Windows^® 8/10-Compatible GUI Software
Fully Assembled and Tested

Resources

MAXPICO2PMB ODB Files - Design Files

ZIP

2.14M

Documentation & Resources

Data Sheets

Reliability Data

MAX32625 Reliability Data
1/12/2023

PDF

115K

User Guides

MAXREFDES183# Portable Precision Calibrator Quick Start Guide
8/20/2021

PDF

862K
UG-6350: MAX32625 User's Guide
11/15/2016

PDF

7M
UG-6245: Getting Started with Eclipse
5/24/2016

PDF

787K

Videos

Application Notes

Developing Power-Optimized Applications on the MAX78002
9/28/2022
Developing Power-optimized Applications on the MAX78000
6/3/2021
How to Collect Data from an Embedded System for Use in MATLAB
3/30/2018
How to Interface the MAX30003WING ECG AFE with the MAX32630FTHR
3/9/2018
How to Interface the MAX11301WING PIXI 20-Port, Mixed-Signal I/O with the MAX32630FTHR
3/2/2018
How to Interface the MAX30101WING Pulse Oximeter with the MAX32630FTHR
12/19/2017
How to Interface the MAX30205EVSYS with the MAX32630FTHR
12/19/2017

Design Notes

How to Transmit UART Packets Using a Home Bus System (HBS) Compatible Transceiver
5/18/2020

Technical Articles

Software-Configurable Analog I/O Heralds More Compact and Convenient Calibrators
12/1/2021 Analog Dialogue
Revolutionize Your Electrochemical Sensor System Using a 1V Op Amp
8/16/2021
Transducer Compensation for Ultrasonic Flow Meters
5/30/2019

Tools & Simulations

Software Development

MATLAB support package for Micros, 1.0.0

ZIP

Low Power ARM Micro SDK (Win), 1.2.0

EXE

HIDTerminalSetupV1.0.zip, 1.0.0

ZIP

Pin configuration tool, 0.3.0

HTML

Low Power ARM Micro SDK (Mac), 1.2.0

DMG

Reference Designs (2)

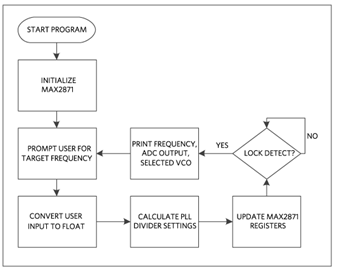

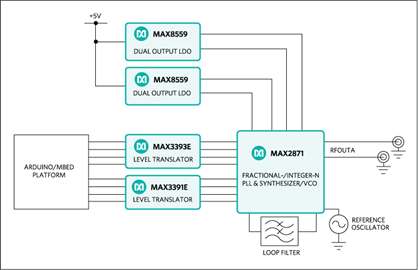

MAXREFDES161

Frequency Synthesizer Shield with the MAX2871

MAXREFDES183

MAXREFDES183# Portable Precision Calibrator

MAXREFDES161

Frequency Synthesizer Shield with the MAX2871

MAXREFDES161

Frequency Synthesizer Shield with the MAX2871

View Detailed Reference Design Information

Features & Benefits

MAX2871 Fractional/Integer-N Synthesizer/VCO
+3.3V and +5V compatible logic
SMA output connectors
On-board 50.0MHz crystal oscillator
Mbed^® library
Arduino shield form factor

Parts Used

Resources

MAXREFDES161 Design Files

ZIP

9.04 M

Product Recommendations

MAX32625 Companion Parts

Recommended Related Parts

MAX32620, MAX32630.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.

Quality And Reliability

Symbols and Footprints

Request Product/Process Change Notifications

Save to myAnalog

Support & Discussions

MAX32625 Discussions

RE: MAX32010/MAX9959 EVKIT IMEAS/VMEAS Measurement

5 week(s) ago in Automated Test Equipment (ATE)

All MAX32625 Discussions

Contact ADI Technical Support »

Ask your question »

Contact ADI Technical Support »

Ask your question »

Sample & Buy

Ordering FAQs

See our Ordering FAQs for answers to questions about online orders, payment options and more.

Buy Now Pricing

(**) Displayed Buy Now Price and Price Range is based on small quantity orders.

List Pricing

(*)The 1Ku list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.

Lead Times

Please see the latest communication from our CCO regarding lead times.

Sampling

Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.

Price Table Help

Evaluation Boards

Pricing displayed is based on 1-piece.

Up to two boards can be purchased through Analog.com. To order more than two, please purchase through one of our listed distributors.

Pricing displayed is based on 1-piece. The USA list pricing shown is for budgetary use only, shown in United States dollars (FOB USA per unit), and is subject to change. International prices may vary due to local duties, taxes, fees and exchange rates.
