MAX2659

PRODUCTION

GPS/GNSS Low-Noise Amplifier

0.8dB Noise Figure, 20dB Gain, GPS Low-Noise Amplifier (LNA) Improves Performance over Your Existing Solution

Data Sheet (Rev. 10) Product Selection Table

Part Models: 4
1ku List Price: Starting From $0.79

Viewing:

Overview

Improves System Performance
- Ultra-Low 0.8dB Noise Figure
- High-Power 20.5dB Gain
- Wide 1.6V to 3.6V Supply Range
Lowers System Cost With Low Bill of Materials and Small Size
- Integrated 50Ω Output Matching Circuit
- Small 1.5mm x 1.0mm Footprint
- Thin 0.75mm Profile
Reduces Power Consumption
- Low 4.1mA Supply Current
- Power-Shutdown Control Mode to Eliminate the Need for External Supply Switch
AEC-Q100 (MAX2659ELT/V+ Only)
±2500V ESD HBM (Human Body Model)

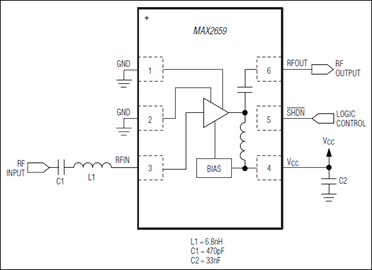

The MAX2659 high-gain, low-noise amplifier (LNA) is designed for GPS, Galileo, and GLONASS applications. Designed in Maxim's advanced SiGe process, the device achieves a 20.5dB gain and an ultra-low-noise figure of 0.8dB while maximizing the input-referred 1dB compression point and the 3rd-order intercept point at -12dBm and -5dBm, respectively.

The MAX2659 operates from a +1.6V to +3.3V single supply and consumes only 4.1mA. The shutdown feature in the device reduces the supply current to be less than 1µA. The MAX2659 is available in a very small, lead-free, RoHS-compliant, 1.5mm x 1.0mm x 0.75mm, 6-pin µDFN package.

Applications

Automotive Navigation
Avionics
Cellular Phones with GPS
Location-Enabled Mobile Devices
Notebook PCs/Ultra-Mobile PCs
Personal Navigation Devices (PND)
Recreational, Marine Navigation
Telematics (Asset Tracking and Management)

Part Models: 4
1ku List Price: Starting From $0.79

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX2659ELT+	Micro Dual Flatpack No Lead	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX2659ELT+T	Micro Dual Flatpack No Lead	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX2659ELT/V+	Micro Dual Flatpack No Lead	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX2659ELT/V+T	Micro Dual Flatpack No Lead	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 14, 2023 - 2275A WAFER FAB
		pcn_2275a
MAX2659ELT+	PRODUCTION
MAX2659ELT+T	PRODUCTION
Sep 4, 2015 - 1568 ASSEMBLY
		pcn_1568
MAX2659ELT+	PRODUCTION
MAX2659ELT+T	PRODUCTION
Aug 15, 2023 - 2275B WAFER FAB
		pcn_2275b
MAX2659ELT/V+	PRODUCTION
MAX2659ELT/V+T	PRODUCTION
Feb 23, 2015 - 1290A_AMENDED WAFER FAB
		pcn_1290a_amended
MAX2659ELT/V+	PRODUCTION
MAX2659ELT/V+T	PRODUCTION
Aug 5, 2014 - 1290A WAFER FAB
		pcn_1290a
MAX2659ELT/V+	PRODUCTION
MAX2659ELT/V+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 2

Evaluation Kits

MAX2659 Evaluation Kit

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX2659 IC
1.6V to 3.3V Single-Supply Operation
RF Input and Output Matched to 50Ω
Jumper Included for Shutdown Setting
Fully Assembled and Tested

Product Details

The MAX2659 evaluation kit (EV kit) simplifies evaluation of the MAX2659 GPS/GNSS low-noise amplifier (LNA). The MAX2659 high-gain, LNA is designed for GPS, Galileo, and GLONASS applications. The EV kit enables testing of the device's performance and requires no additional support circuitry. The MAX2659 EV kit is fully assembled with the MAX2659 IC on-board and incorporates input matching components to optimize performance. The EV kit's signal inputs and outputs use SMA connectors to facilitate the connection of RF test equipment.

Applications

Automotive Navigation
Avionics
Cellular Phones with GPS
Location-Enabled Mobile Devices
Notebook PCs/Ultra-Mobile PCs
Personal Navigation Devices (PND)
Recreational, Marine Navigation
Telematics (Asset Tracking and Management)
