Overview
Features and Benefits
- 3.4GHz to 3.8GHz Frequency Range
- LNA Performance (High/Low-Gain Modes)
- Gain: +14.4dB/-9.7dB
- NF: 2.3dB/15.5dB
- Input IP3: +4dBm/+13dBm
- Supply Current: 9.2mA/2.7mA
- Highly Versatile Application
- Receive Path 1st and 2nd Stage LNA
- Transmit PA Predriver
- LO Buffer
- Adjustable IP3 and Supply Current
- 0.1µA Supply Current in Shutdown Mode
- +3.0V to +5.5V Single-Supply Operation
- 10-Pin µMAX-EP Package (5.0mm x 3.0mm)
Product Details

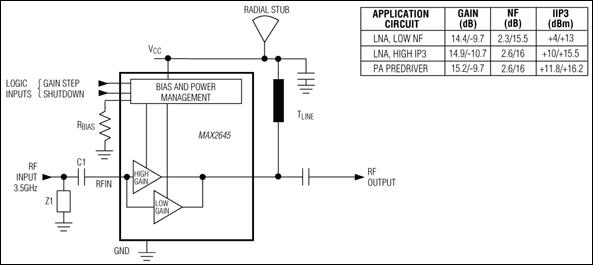

The MAX2645 is a versatile, high-linearity, low-noise amplifier designed for 3.4GHz to 3.8GHz wireless local loop (WLL), wireless broadband access, and digital microwave radio applications. The device features an externally adjustable bias control, set with a single resistor, that allows the user to meet minimum linearity requirements while minimizing current consumption. The amplifier's high-gain, low-noise performance and adjustable input third-order intercept (IP3) allow it to be used as a low-noise amplifier (LNA) in the receive path, a PA predriver in the transmit path, or as an LO buffer.
The MAX2645 features a logic-level gain control that provides a 25dB step reduction in gain, which improves IP3 performance for operation during high input signal level conditions. Supply current is reduced from 9mA in high-gain mode to 3mA in low-gain mode. The device also includes a logic-controlled shutdown mode, which reduces supply current to 0.1µA. The MAX2645 operates from a +3V to +5.5V supply and is offered in the miniature 10-pin µMAX® package (5mm x 3mm) with an exposed paddle. Its performance has been optimized for use with the MAX2683/MAX2684 3.5GHz SiGe mixers to provide a complete high-performance, front-end solution for 3.5GHz applications.
Applications
- Digital Microwave Radios
- Wireless Broadband Access
- Wireless Local Loop (WLL)
