MAX2634
315MHz/433MHz Low-Noise Amplifier for Automotive RKE
Ultra-Low-Current Low-Noise Amplifier for RKE Solutions with Low-Noise Figure and Shutdown Mode
Top
Overview
Features and Benefits
- Optimized for 308MHz, 315MHz, 418MHz, and 433.92MHz
- 2.2V to 5.5V Supply Voltage Range
- Low Operating Supply Current
- 2.5mA (typ), 4mA (max)
- Logic-Controlled 1µA (max) Shutdown
- Typical Performance at 315MHz
- 1.25dB Noise Figure
- -16dBm Input IP3
- 15.5dB Power Gain
- Automotive Temperature Range
- -40°C to +125°C
- ESD Rating of ±2.0kV (HBM) on All Pins
- AEC-Q100 Qualification
Product Details

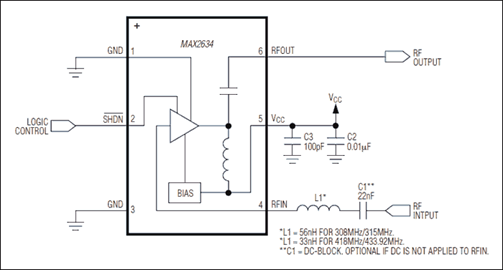

The MAX2634 low-noise amplifier (LNA) with low-power shutdown mode is optimized for 315MHz and 433.92MHz automotive remote keyless entry (RKE) applications. At 315MHz, the LNA achieves 15.5dB power gain and a 1.25dB noise figure while only consuming 2.5mA of supply current from a 2.2V to 5.5V power supply. An integrated logic-controlled low-power shutdown mode reduces power consumption to 0.1µA and replaces the two transistors typically required to implement the shutdown function in discrete-based RKE LNA solutions. The device further reduces component count by integrating the output matching and DC-blocking components, and only requires a single inductor to match the input for best noise figure and input return loss.
The device is available in a small 6-pin (2.0mm x 2.2mm x 0.9mm) lead-free SC70 package for automotive applications that require visual inspection of PCB solder connections.
Applications
- Garage Door Openers
- Remote Keyless Entry (RKE)
- Security
- Telemetry Receivers
- Tire Pressure Monitoring Systems (TPMS)
