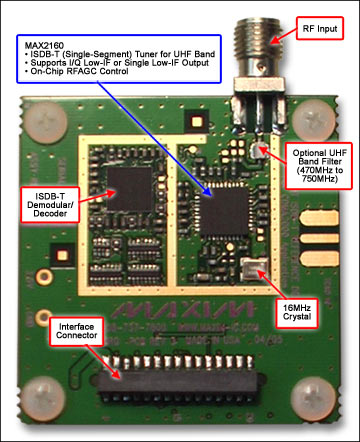

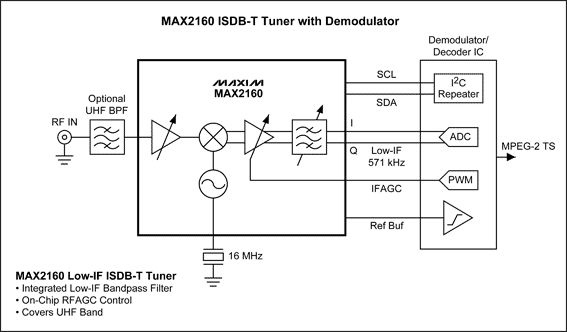

MAX2160

ISDB-T Single-Segment Low-IF Tuners

Data Sheet (Rev. 5)

Viewing:

Part Details

Low Noise Figure: < 4dB Typical
High Dynamic Range: -98dBm to 0dBm
High-Side or Low-Side LO Injection
Integrated VCO and Tank Circuits
Low LO Phase Noise: Typical -88dBc/Hz at 10kHz
Integrated Frequency Synthesizer
Integrated Bandpass Filters
52dB Typical Image Rejection
Single +2.7V to +3.3V Supply Voltage
Three Low-Power Modes
Two-Wire, I²C-Compatible Serial Control Interface
Very Small Lead-Free WLP Package

Documentation

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
CATV Amplifiers 1
MAX2130	PRODUCTION	Broadband, Two-Output, Low-Noise Amplifier for TV Tuner Applications
Product 2
MAX3538		Broadband Variable-Gain Amplifiers
MAX3537		Broadband Variable-Gain Amplifiers

Evaluation Kits

Evaluation Kit for the MAX2160

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX2160

50Ω SMA Connectors

All Critical Peripheral Components Included

Fully Assembled and Tested

PC Control Software (Available at www.maximintegrated.com)

Product Details

The MAX2160 evaluation kit (EV kit) simplifies the testing and evaluation of the MAX2160 single-segment ISDB-T tuner. The evaluation kit is fully assembled and tested at the factory. Standard 50Ω SMA connectors are included on the EV kit for the inputs and outputs to allow quick and easy evaluation on the test bench.

This document provides a list of equipment required to evaluate the device, a straightforward test procedure to verify functionality, a description of the EV kit circuit, the circuit schematic, a bill of materials (BOM) for the kit, and artwork for each layer of the PC board.
