MAX2055
Digitally Controlled, Variable-Gain, Differential ADC Driver/Amplifier
Show MoreIndustry's First Low-Distortion, IF Differential ADC Driver with Digitally Selectable Gain
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- 30MHz to 300MHz Frequency Range
- Single-Ended-to-Differential Conversion
- -3dB to +20dB Variable Gain
- 40dBm Output IP3 (at All Gain States and 70MHz)
- 2nd Harmonic -76dBc
- 3rd Harmonic -69dBc
- Noise Figure: 5.8dB at Maximum Gain
- Digitally Controlled Gain with 1dB Resolution and ±0.2dB Accuracy
- Adjustable Bias Current

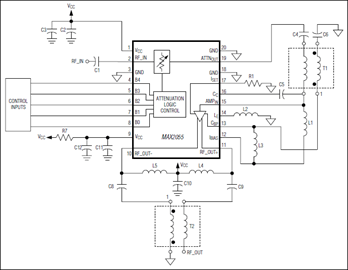

The MAX2055 high-performance, digitally controlled, variable-gain, differential analog-to-digital converter (ADC) driver/amplifier (DVGA) is designed for use from 30MHz to 300MHz in base-station receivers.
The device integrates a digitally controlled attenuator and a high-linearity single-ended-to-differential output amplifier, which can either eliminate an external transformer, or can improve the even-order distortion performance of a transformer-coupled circuit, thus relaxing the requirements of the anti-alias filter preceding an ADC. Targeted for ADC driver applications to adjust gain either dynamically or as a one-time channel gain setting, the MAX2055 is ideal for applications requiring high performance. The attenuator provides 23dB of attenuation range with ±0.2dB accuracy.
The MAX2055 is available in a thermally enhanced 20-pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.
Applications
- Automated Test Equipment (ATE)
- Broadband Systems
- Cell Phone Base Stations
- High-Performance ADC Drivers
- PHS/PAS Infrastructure
- Receiver Gain Control
- Terrestrial Links
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX2055
Documentation
Filters
1 Applied
Data Sheet
3
Reliability Data
1
128.97K
Technical Articles
11
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX2055EUP+D | 20-TSSOP_4.4_EP-4.4_MM |
|
|
MAX2055EUP+TD | 20-TSSOP_4.4_EP-4.4_MM |
|
- MAX2055EUP+D
- Pin/Package Drawing
- 20-TSSOP_4.4_EP-4.4_MM
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX2055EUP+TD
- Pin/Package Drawing
- 20-TSSOP_4.4_EP-4.4_MM
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Software & Part Ecosystem
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
Digital Control VGAs1 |
||||
PRODUCTION |
IF Digitally Controlled Variable-Gain Amplifier |
|||
I/Q Downconverters/Receivers1 |
||||
PRODUCTION |
High-Linearity 1700MHz to 2200MHz Down-Conversion Mixer with LO Buffer/Switch |
|||
Product2 |
||||
|
825MHz to 915MHz, Dual SiGe High-Linearity Active Mixer |
|||
|
825MHz to 915MHz, SiGe High-Linearity Active Mixer |
Evaluation Kits 1
MAX2055EVKIT
Evaluation Kit for the MAX2055
Product Detail
The MAX2055 evaluation kit (EV kit) simplifies the evaluation of the MAX2055 high-linearity, digitally controlled, variable-gain analog-to-digital converter (ADC) driver/amplifier (DVGA). The EV kit is fully assembled and tested at the factory. Standard 50Ω SMA connectors are included on the EV kit for the input and output to allow quick and easy evaluation on the test bench.
This data sheet provides a list of equipment required to evaluate the device, a straightforward test procedure to verify functionality, a circuit schematic for the kit, a bill of materials (BOM) for the kit, and artwork for each layer of the PC board.
Applications
- Automated Test Equipment (ATE)
- Broadband Systems
- Cell Phone Base Stations
- High-Performance ADC Drivers
- PHS/PAS Infrastructure
- Receiver Gain Control
- Terrestrial Links
