MAX2027
IF Digitally Controlled Variable-Gain Amplifier
Show MoreLowest Noise, Highest Linearity, SiGe Integrated DVGA for Base Stations
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- 50MHz to 400MHz Frequency Range
- Variable Gain: -8dB to +15dB
- Output IP3: 35dBm (at All Gain Settings)
- Noise Figure: 4.7dB at Maximum Gain
- Digitally Controlled Gain with 1dB Resolution and ±0.05dB State-to-State Accuracy

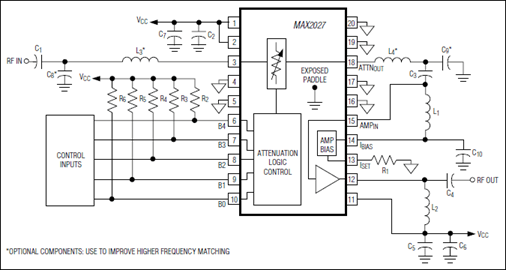

The MAX2027 high-performance, digitally controlled variable-gain amplifier is designed for use from 50MHz to 400MHz.
The device integrates a digitally controlled attenuator and a high-linearity IF amplifier in one package. Targeted for IF signal chains to adjust gain either dynamically or as a one-time channel gain setting, the MAX2027 is ideal for applications requiring high performance. The attenuator provides 23dB of attenuation range with ±0.05dB state-to-state accuracy.
The MAX2027 is available in a thermally enhanced 20- pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.
Applications
- Automated Test Equipment (ATE)
- Broadband Systems
- Cellular Base Stations
- Receiver Gain Control
- Terrestrial Links
- Transmitter Gain Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX2027
Documentation
Filters
1 Applied
Data Sheet
3
Technical Articles
11
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX2027EUP+D | 20-TSSOP_4.4_EP-4.4_MM |
|
|
MAX2027EUP+TD | 20-TSSOP_4.4_EP-4.4_MM |
|
- MAX2027EUP+D
- Pin/Package Drawing
- 20-TSSOP_4.4_EP-4.4_MM
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX2027EUP+TD
- Pin/Package Drawing
- 20-TSSOP_4.4_EP-4.4_MM
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Software & Part Ecosystem
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
I/Q Downconverters/Receivers1 |
||||
PRODUCTION |
High-Linearity 1700MHz to 2200MHz Down-Conversion Mixer with LO Buffer/Switch |
|||
Product4 |
||||
|
+14dBm to +20dBm LO Buffers/Splitters with ±1dB Variation |
|||
|
+14dBm to +20dBm LO Buffers with ±1dB Variation |
|||
|
825MHz to 915MHz, Dual SiGe High-Linearity Active Mixer |
|||
|
825MHz to 915MHz, SiGe High-Linearity Active Mixer |
|||
VCO Buffers and Splitters2 |
||||
LAST TIME BUY |
+14dBm to +20dBm LO Buffers/Splitters with ±1dB Variation |
|||
PRODUCTION |
+14dBm to +20dBm LO Buffers with ±1dB Variation |
Evaluation Kits 1
MAX2027EVKIT
Evaluation Kit for the MAX2027
Product Detail
The MAX2027 evaluation kit (EV kit) simplifies the evaluation of the MAX2027 high-linearity, digitally controlled, variable-gain amplifier. The kit is fully assembled and tested at the factory. Standard 50Ω SMA connectors are included for the input and output to allow quick and easy evaluation on the test bench.
This EV kit provides a list of equipment required to evaluate the device, a straightforward test procedure to verify functionality, a circuit schematic, a bill of materials (BOM), and artwork for each layer of the PC board. Contact MaximDirect sales at 888-629-4642 to check pricing and availability of these kits.
Applications
- Automated Test Equipment (ATE)
- Broadband Systems
- Cell Phone Base Stations
- Receiver Gain Control
- Terrestrial Links
- Transmitter Gain Control
