MAX17506

PRODUCTION

MAX17506

4.5V–60V, 5A, High-Efficiency, Synchronous Step-Down DC-DC Converter with Internal Compensation

Industry's First 60V, 5A Internal FET Synchronous Buck Converter

PRODUCTION

PRODUCTION

MAX17506: Typical Application Circuit for 5V Output slide

MAX17506: Typical Application Circuit for 5V Output

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $4.72

Features

Reduces External Components and Total Cost
- No Schottky-Synchronous Operation
- Internal Compensation for Any Output Voltage
- Built-In Soft-Start
- All-Ceramic Capacitors, Compact Layout
Reduce Number of DC-DC Regulators to Stock
- Wide 4.5V to 60V Input
- Adjustable Output-Voltage Range from 0.9V up to 90% of V_IN
- 100kHz to 2.2MHz Adjustable Switching Frequency with External Synchronization
Reduces Power Dissipation
- Peak Efficiency > 95%
- PFM/DCM Modes Enables Enhanced Light-Load Efficiency
- Auxiliary Bootstrap LDO for Improved Efficiency
- 3.5µA Shutdown Current
Operates Reliably in Adverse Industrial Environments
- Hiccup or Latchoff Mode Overload Protection
- DL to LX Short Detection Feature
- Built-In Output Voltage Monitoring with Active-Low RESET
- Programmable EN/UVLO Threshold
- Monotonic Startup into Prebiased Load
- Overtemperature Protection
- High Industrial -40°C to +125°C Ambient Operating Temperature / -40°C to +150°C Junction Temperature Range

Additional Details

The MAX17506 high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated high-side MOSFET operates over a 4.5V to 60V input. The converter can deliver up to 5A and generates output voltages from 0.9V up to 0.9 x V_IN. The feedback (FB) voltage is accurate to within ±1.4% over -40°C to 125°C.

The MAX17506 uses peak current-mode control. The device can be operated in the pulse-width modulation (PWM), pulse-frequency modulation (PFM), and discontinuous conduction mode (DCM) control schemes.

The device is available in a 20-pin (5mm x 5mm) Thin QFN (TQFN) package. Simulation models are available.

Applications

Base Station Power Supplies
Distributed Supply Regulation
General-Purpose Point-of-Load
High-Voltage Single-Board Systems
Industrial Power Supplies
Wall Transformer Regulation

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $4.72

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 3

MAX17506: 4.5V–60V, 5A, High-Efficiency, Synchronous Step-Down DC-DC Converter with Internal Compensation Data Sheet (Rev.3) 07/13/2018

Show More

MAX17506 Reliability Data 01/12/2023

Show More

UG-5861: EE-SIM Design and Simulation Environment User Guide 05/05/2014

Show More

Reference Materials 2

MIKROE-3100, Click Board, Buck 5 Click

Video

1

Thumbnail Image

Video

2022-10-04

07:46

How to Properly Place Input and Output Capacitors in Your Power Supply Layout

Learn More

Show More

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX17506ATP+	20-LFCSP-5X5X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX17506ATP+T	20-LFCSP-5X5X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX17506ATP+
Pin/Package Drawing
20-LFCSP-5X5X0.75
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX17506ATP+T
Pin/Package Drawing
20-LFCSP-5X5X0.75
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Companion Parts 2

Parts	Product Life Cycle	Description
Internal Power Switch Buck Regulators2
MAX17504	PRODUCTION	4.5V–60V, 3.5A, High-Efficiency, Synchronous Step-Down DC-DC Converter with Internal Compensation
MAX17503	PRODUCTION	4.5V-60V, 2.5A, High-Efficiency, Synchronous Step-Down DC-DC Converter with Internal Compensation

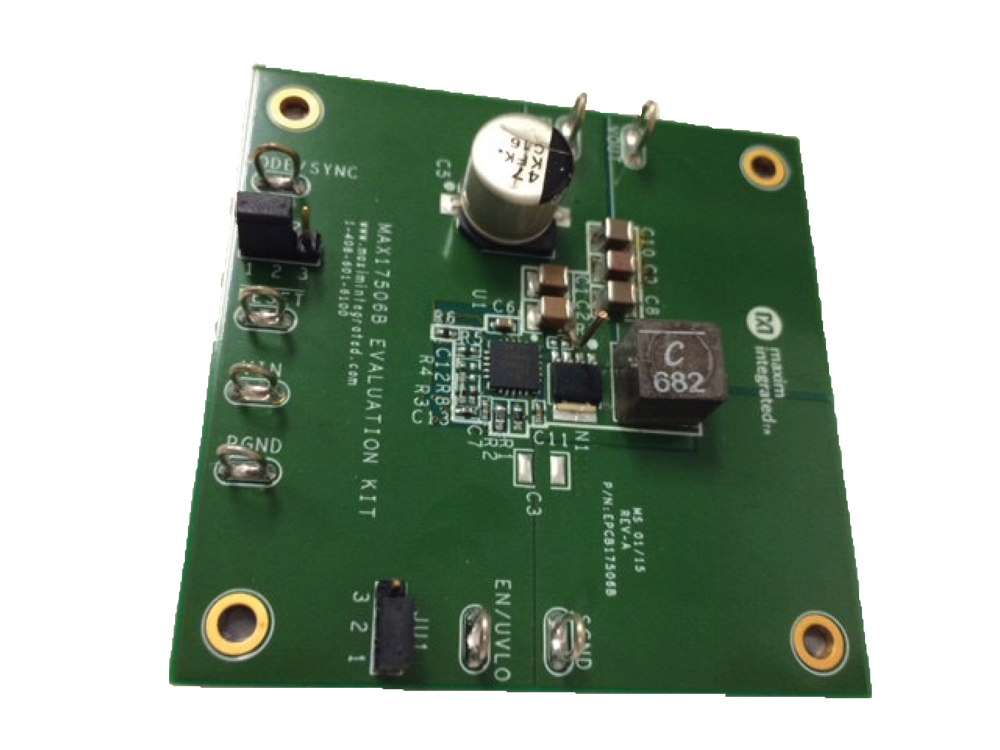

MAX17506EVKITA

Evaluation Kit for the MAX17506 3.3V Output-Voltage Application

MAX17506EVKITA

Evaluation Kit for the MAX17506 3.3V Output-Voltage Application

Features and Benefits

Operates From a 4.5V to 60V Input Supply
3.3V Output Voltage
Up to 5A Output Current
450kHz Switching Frequency
Enable/UVLO Input, Resistor-Programmable UVLO Threshold
Adjustable Soft-Start Time
MODE Pin to Select Among PWM, PFM, or DCM Modes
Open-Drain Active-Low RESET Output
External Frequency Synchronization
Overcurrent and Overtemperature Protection
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17506 3.3V output evaluation kit (EV kit) provides a proven design to evaluate the MAX17506 high-voltage, high-efficiency, synchronous step-down DC-DC converter. The EV kit is preset for 3.3V output at load currents up to 5A and features a 450kHz switching frequency for optimum efficiency and component size. The EV kit features adjustable-input undervoltage lockout, adjustable soft-start, open-drain active-low RESET signal, and external frequency synchronization.

Applications

Base Station Power Supplies
Distributed Supply Regulation
General-Purpose Point-of-Load
High-Voltage Single-Board Systems
Industrial Power Supplies
Wall Transformer Regulation

Resources

ZIP

MAX17506EVKITA ODB File - Design Files

5.29M

Show More

MAX17506EVKITBE

Evaluation Kit for the MAX17506 5V Output-Voltage Application

MAX17506EVKITBE

Evaluation Kit for the MAX17506 5V Output-Voltage Application

Features and Benefits

Operates From a 6.5V to 60V Input Supply
5V Output Voltage
Up to 5A Output Current
450kHz Switching Frequency
Enable/UVLO Input, Resistor-Programmable UVLO Threshold
Adjustable Soft-Start Time
MODE Pin to Select Among PWM, PFM, or DCM Modes
Open-Drain Active-Low RESET Output
External Clock Synchronization
Overcurrent and Overtemperature Protection
Proven PCB Layout
Fully Assembled and Tested
Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions

Buy Now View Details

Product Detail

The MAX17506EVKITBE# (EV kit) provides a proven design to evaluate the MAX17506 high-voltage, highefficiency, synchronous step-down DC-DC converter. The EV kit is preset for a 5V output at load currents up to 5A and features a 450kHz switching frequency for optimum efficiency and component size. The EV kit features adjustable-input, undervoltage-lockout, adjustable soft-start, open-drain active-low RESET signal, and external clock synchronization. The EV kit also provides a good layout example, which is optimized for conducted, radiated EMI and thermal performance. For more details about the IC benefits and features, refer to the MAX17506 data sheet.

Applications

Base Station Power Supplies
Distributed Supply Regulation
General-Purpose Point-of-Load
High-Voltage Single-Board Systems
Industrial Power Supplies
Wall Transformer Regulation

MAX17506EVKITB

Evaluation Kit for the MAX17506 5V Output-Voltage Application

MAX17506EVKITB

Evaluation Kit for the MAX17506 5V Output-Voltage Application

Features and Benefits

Operates From a 6.5V to 60V Input Supply
5V Output Voltage
Up to 5A Output Current
450kHz Switching Frequency
Enable/UVLO Input, Resistor-Programmable UVLO Threshold
Adjustable Soft-Start Time
MODE Pin to Select Among PWM, PFM, or DCM Modes
Open-Drain Active-Low RESET Output
External Frequency Synchronization
Overcurrent and Overtemperature Protection
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

The MAX17506 5V output evaluation kit (EV kit) provides a proven design to evaluate the MAX17506 high-voltage, high-efficiency, synchronous step-down DC-DC converter. The EV kit is preset for a 5V output at load currents up to 5A and features a 450kHz switching frequency for optimum efficiency and component size. The EV kit features adjustable-input, undervoltage-lockout, adjustable soft-start, open-drain active-low RESET signal, and external frequency synchronization.

Applications

Base Station Power Supplies
Distributed Supply Regulation
General-Purpose Point-of-Load
High-Voltage Single-Board Systems
Industrial Power Supplies
Wall Transformer Regulation

Resources

ZIP

MAX17506EVKITB ODB File - Design Files

5.29M

Show More

MAX17506EVKITA

Evaluation Kit for the MAX17506 3.3V Output-Voltage Application

MAX17506EVKITBE

Evaluation Kit for the MAX17506 5V Output-Voltage Application

MAX17506EVKITB

Evaluation Kit for the MAX17506 5V Output-Voltage Application

EE-Sim 1

EE-Sim Power® Tools

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 4

Simulation Model

SIMPLIS Models

MAXREFDES1032 SIMPLIS Schematic

MAXREFDES1032 SIMPLIS Schematic

896.12KB

SIMPLIS Models

MAXREFDES1034 SIMPLIS Schematic

MAXREFDES1034 SIMPLIS Schematic

970.14KB

SIMPLIS Models

MAX17506 SIMPLIS Schematic

MAX17506 SIMPLIS Schematic

440.11KB

SIMPLIS Models

MAXREFDES1054 SIMPLIS Schematic

MAXREFDES1054 SIMPLIS Schematic

799.94KB

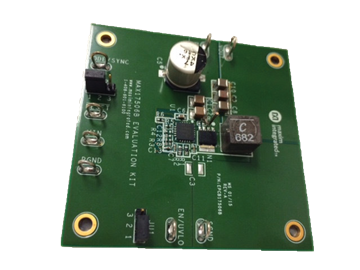

MAXREFDES1032
