MAX1452
Low-Cost Precision Sensor Signal Conditioner
Low-Cost, Precision Sensor Signal Conditioner
Top
Overview
Features and Benefits
- Single-Chip, Integrated Analog Signal Path Reduces Design Time and Saves Space in a Complete Precision Sensor Solution
- Provides Amplification, Calibration, and Temperature Compensation
- Fully Analog Signal Path
- Accommodates Sensor Output Sensitivities from 4mV/V to 60mV/V
- Single-Pin Digital Programming
- No External Trim Components Required
- 16-Bit Offset and Span Calibration Resolution
- Supports Both Current and Voltage Bridge Excitation
- Fast 150µs Step Response
- On-Chip Uncommitted Op Amp
- On-Chip Lookup Table Supports Multipoint Calibration Temperature Correction Improving System Performance
- Secure-Lock™ Prevents Data Corruption
- Low 2mA Current Consumption Simplifies Power-Supply Design in 4–20mA Applications
Product Details
The MAX1452 is a highly integrated analog-sensor signal processor optimized for industrial and process control applications utilizing resistive element sensors. The MAX1452 provides amplification, calibration, and temperature compensation that enables an overall performance approaching the inherent repeatability of the sensor. The fully analog signal path introduces no quantization noise in the output signal while enabling digitally controlled trimming with the integrated 16-bit DACs. Offset and span are calibrated using 16-bit DACs, allowing sensor products to be truly interchangeable.

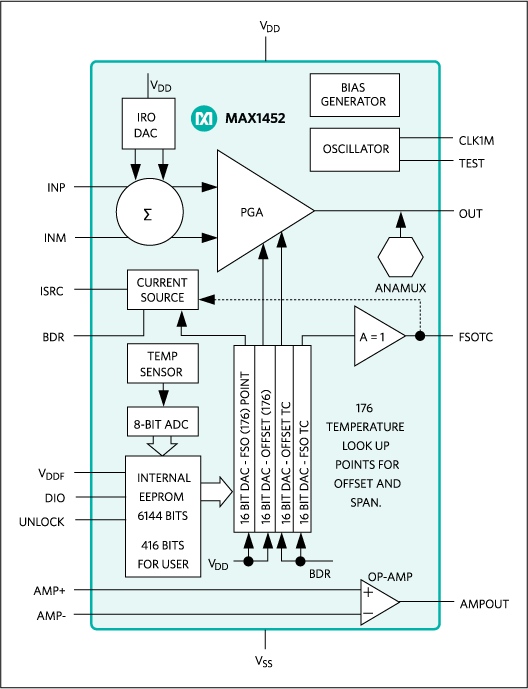

The MAX1452 architecture includes a programmable sensor excitation, a 16-step programmable-gain amplifier (PGA), a 768-byte (6144 bits) internal EEPROM, four 16-bit DACs, an uncommitted op amp, and an on-chip temperature sensor. In addition to offset and span compensation, the MAX1452 provides a unique temperature compensation strategy for offset TC and FSOTC that was developed to provide a remarkable degree of flexibility while minimizing testing costs.
The MAX1452 is packaged for the commercial, industrial, and automotive temperature ranges in 16-pin SSOP/TSSOP and 24-pin TQFN packages.
FAQs: MAX1452/5Applications
- Accelerometers
- Humidity Sensors
- Pressure Calibrators and Controllers
- Pressure Sensors
- Resistive Elements Sensors
- Strain Gauges
- Transducers and Transmitters
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)
Documentation & Resources
-
MAX1452 Reliability Data1/12/2023PDF160K
-
Making the MAX1452/MAX1455 Signal Conditioners Tolerant of Supply Limitations3/26/2008
-
MAX1452 Nonlinearity-Correction Application Circuit3/23/2007
-
Startup Requirements for the MAX1452/MAX1455 Sensor Signal Conditioners3/8/2006
-
Direct Interface of the MAX1452/MAX1455 with the MAX1452/MAX1455 Communication Board7/18/2002
-
Overvoltage Protection in Automotive Systems4/2/2002
-
Adding Diagnostic Capability to MAX14XX Low Cost High Performance Signal-Conditioning Devices6/18/2001
-
New ICs Revolutionize The Sensor Interface1/10/2001
-
Overview of Sensor Signal Paths5/12/2010
-
Introduction to Spirometers and Important Design Considerations for Selecting Electrical Components5/10/2010
-
MAX1452/MAX1455 FAQs12/19/2006
-
Driving Strain-Gauge Bridge Sensors with Signal-Conditioning ICs12/13/2004
-
Calibration of Weight Sensors Using Dead Weights6/15/2004
-
PWM Outputs Enhance Sensor Signal Conditioners1/24/2003
-
Sensor Temperature Compensation Using the Four DAC Signal Conditioning Architecture12/27/2002
-
Step-by-Step Procedure for Performing Temperature Compensation Using MAX1452 and MAX1455 Evaluation Kit Software7/25/2002
-
Design and Manufacture of Automotive Pressure Sensors7/22/2002
-
High-Gain Signal Conditioning Circuit for Thin and Thick Film Sensors5/15/2002
-
Miniature Flow Sensor Has Electronic Temperature Compensation12/13/2001
-
MAX1452 Diagnostic Clip Circuit11/1/2001
