MAX1122

1.8V, 10-Bit, 170Msps Analog-to-Digital Converter with LVDS Outputs for Wideband Applications

Show More showmore-icon

170Msps to 250Msps, 10-Bit High-Speed ADCs are Optimized for High-IF Sampling

Part Details
Features
  • 170Msps Conversion Rate
  • SNR = 57.1dB/56.5dB at fIN = 100MHz/500MHz
  • SFDR = 72dBc/63.5dBc at fIN = 100MHz/500MHz
  • NPR = 53.7dB at fNOTCH = 28.8MHz
  • Single 1.8V Supply
  • 460mW Power Dissipation at 170Msps
  • On-Chip Track-and-Hold and Internal Reference
  • On-Chip Selectable Divide-by-2 Clock Input
  • LVDS Digital Outputs with Data Clock Output
  • Evaluation Kit Available (Order MAX1124EVKIT)
Additional Details
show more Icon

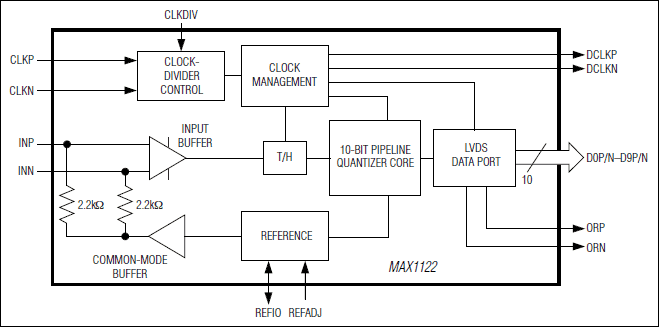

The MAX1122 is a monolithic 10-bit, 170Msps analog-to-digital converter (ADC) optimized for outstanding dynamic performance at high IF frequencies up to 500MHz. The product operates with conversion rates of up to 170Msps while consuming only 460mW.

At 170Msps and an input frequency of 100MHz, the MAX1122 achieves a spurious-free dynamic range (SFDR) of 72dBc. Its excellent signal-to-noise ratio (SNR) of 57.5dB at 10MHz remains flat (within 1dB) for input tones up to 500MHz. This makes the MAX1122 ideal for wideband applications such as digital predistortion in cellular base-station transceiver systems.

The MAX1122 requires a single 1.8V supply. The analog input is designed for either differential or single-ended operation and can be AC- or DC-coupled. The ADC also features a selectable on-chip divide-by-2 clock circuit, which allows the user to apply clock frequencies as high as 340MHz. This helps to reduce the phase noise of the input clock source. A differential LVDS sampling clock is recommended for best performance. The converter's digital outputs are LVDS compatible, and the data format can be selected to be either two's complement or offset binary.

The MAX1122 is available in a 68-pin QFN with exposed pad (EP) and is specified over the industrial (-40°C to +85°C) temperature range.

For pin-compatible, higher speed versions of the MAX1122, refer to the MAX1123 (210Msps) and the MAX1124 (250Msps) data sheets. For a higher speed, pin-compatible 8-bit version of the MAX1122, refer to the MAX1121 data sheet.

See a parametric table of the complete family of pin-compatible, 8-/10-/12-bit high-speed ADCs.

Applications

  • Cable-Head End Systems
  • Communications Test Equipment
  • Digital Predistortion Receivers
  • Radar and Satellite Subsystems Antenna Array Processing
  • Wireless and Wired Broadband Communication

close icon
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

MAX1124_EVKIT

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

zoom

MAX1124_EVKIT

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

Features and Benefits

  • Up to 250Msps Sampling Rate with the MAX1124
  • Low Voltage and Power Operation
  • Fully Differential Signal Input Configuration
  • On-Board Differential Output Drivers
  • Optional On-Board Secondary Transformer
  • Fully Assembled and Tested
  • Also Evaluates the MAX1121 (8-bit), MAX1122 (10-bit), and MAX1123 (10-bit)

Product Detail

The MAX1124 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components for evaluating the MAX1121 (8-bit, 250Msps), MAX1122 (10-bit, 170Msps), MAX1123 (10-bit, 210Msps), and MAX1124 (10-bit, 250Msps) analog-to-digital converters (ADCs). The MAX1121-MAX1124 accept differential analog input signals; however, the EV kit generates these signals from a user-provided single-ended signal source. The digital output produced by the ADCs can be easily captured with a user-provided high-speed logic analyzer or data-acquisition system. The EV kit operates from 1.8V and 3.3V power supplies. It includes circuitry that generates a differential clock signal from a user-provided AC signal. The EV kit comes with the MAX1124 installed. Contact the factory for free samples of the pin-compatible MAX1121/MAX1122/MAX1123 to evaluate these parts.

Applications

  • Cable-Head End Systems
  • Communications Test Equipment
  • Digital Predistortion Receivers
  • Radar and Satellite Subsystems Antenna Array Processing
  • Wireless and Wired Broadband Communication

MAX1124EVKIT

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

zoom

MAX1124EVKIT

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

Evaluation Kit for the MAX1121, MAX1122, MAX1123, and MAX1124

Features and Benefits

  • Up to 250Msps Sampling Rate with the MAX1124
  • Low Voltage and Power Operation
  • Fully Differential Signal Input Configuration
  • On-Board Differential Output Drivers
  • Optional On-Board Secondary Transformer
  • Fully Assembled and Tested
  • Also Evaluates the MAX1121 (8-bit), MAX1122 (10-bit), and MAX1123 (10-bit)

Product Detail

The MAX1124 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components for evaluating the MAX1121 (8-bit, 250Msps), MAX1122 (10-bit, 170Msps), MAX1123 (10-bit, 210Msps), and MAX1124 (10-bit, 250Msps) analog-to-digital converters (ADCs). The MAX1121-MAX1124 accept differential analog input signals; however, the EV kit generates these signals from a user-provided single-ended signal source. The digital output produced by the ADCs can be easily captured with a user-provided high-speed logic analyzer or data-acquisition system. The EV kit operates from 1.8V and 3.3V power supplies. It includes circuitry that generates a differential clock signal from a user-provided AC signal. The EV kit comes with the MAX1124 installed. Contact the factory for free samples of the pin-compatible MAX1121/MAX1122/MAX1123 to evaluate these parts.

Applications

  • Cable-Head End Systems
  • Communications Test Equipment
  • Digital Predistortion Receivers
  • Radar and Satellite Subsystems Antenna Array Processing
  • Wireless and Wired Broadband Communication
