LTM8047

3.1VIN to 32VIN Isolated μModule (Power Module) DC/DC Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 5
1ku List Price Starting From $9.72
Features
  • Complete Switch Mode Power Supply
  • 725VDC Isolation
  • Wide Input Voltage Range: 3.1V to 32V
  • Up to 440mA Output Current (VOUT = 2.5V)
  • 2.5V to 12V Output Voltage
  • Current Mode Control
  • Programmable Soft-Start
  • User Configurable Undervoltage Lockout
  • SnPb or RoHS Compliant Finish
  • Low Profile (11.25mm × 9mm × 4.92mm) Surface Mount BGA Package
Additional Details
show more Icon

The LTM8047 is an isolated flyback μModule DC/DC converter. The LTM8047 has an isolation rating of 725VDC. For a similar product with LDO post regulator, see the LTM8048. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 32V, the LTM8047 supports an output voltage range of 2.5V to 12V, set by a single resistor. Only output, input, and bypass capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.

The LTM8047 is packaged in a thermally enhanced, compact (11.25mm × 9mm × 4.92mm) over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8047 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

  • Industrial Sensors
  • Industrial Switches
  • Ground Loop Mitigation
Part Models 5
1ku List Price Starting From $9.72

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM8047EY#PBF
  • HTML
  • HTML
LTM8047IY
  • HTML
  • HTML
LTM8047IY#PBF
  • HTML
  • HTML
LTM8047MPY
  • HTML
  • HTML
LTM8047MPY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8047EY#PBF

PRODUCTION

LTM8047IY

PRODUCTION

LTM8047IY#PBF

PRODUCTION

LTM8047MPY

PRODUCTION

LTM8047MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8047EY#PBF

PRODUCTION

LTM8047IY

PRODUCTION

LTM8047IY#PBF

PRODUCTION

LTM8047MPY

PRODUCTION

LTM8047MPY#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM8047EY#PBF

PRODUCTION

LTM8047IY

PRODUCTION

LTM8047IY#PBF

PRODUCTION

LTM8047MPY

PRODUCTION

LTM8047MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8047EY#PBF

PRODUCTION

LTM8047IY

PRODUCTION

LTM8047IY#PBF

PRODUCTION

LTM8047MPY

PRODUCTION

LTM8047MPY#PBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC1693A

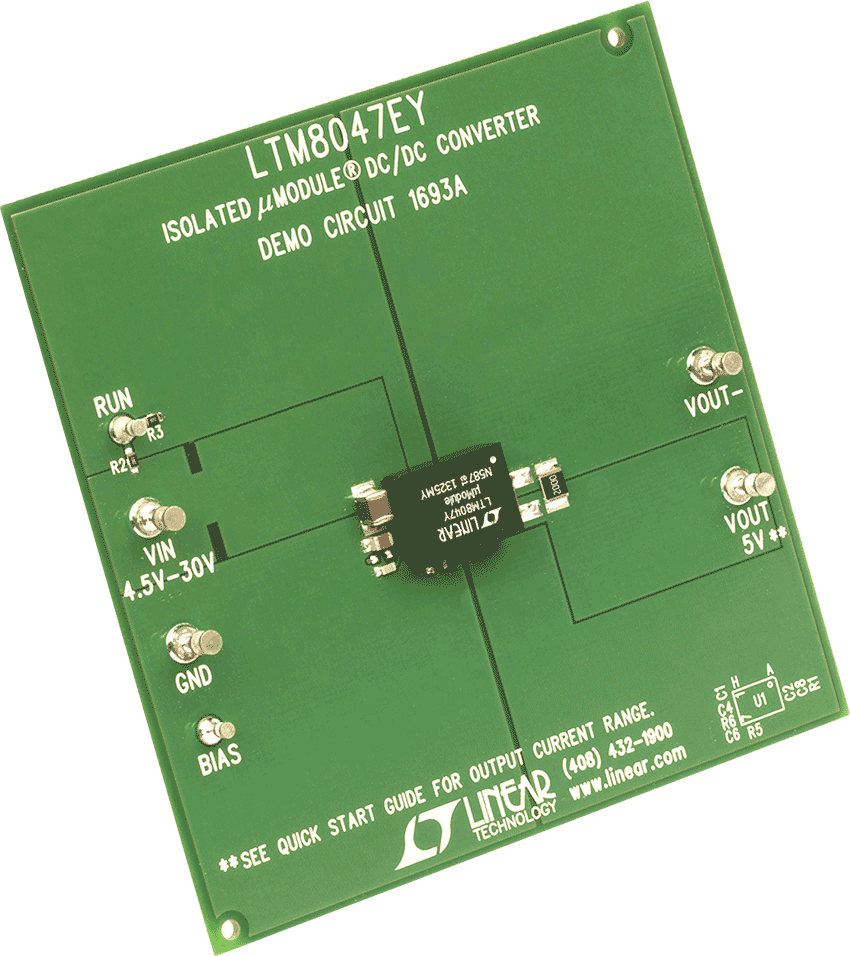

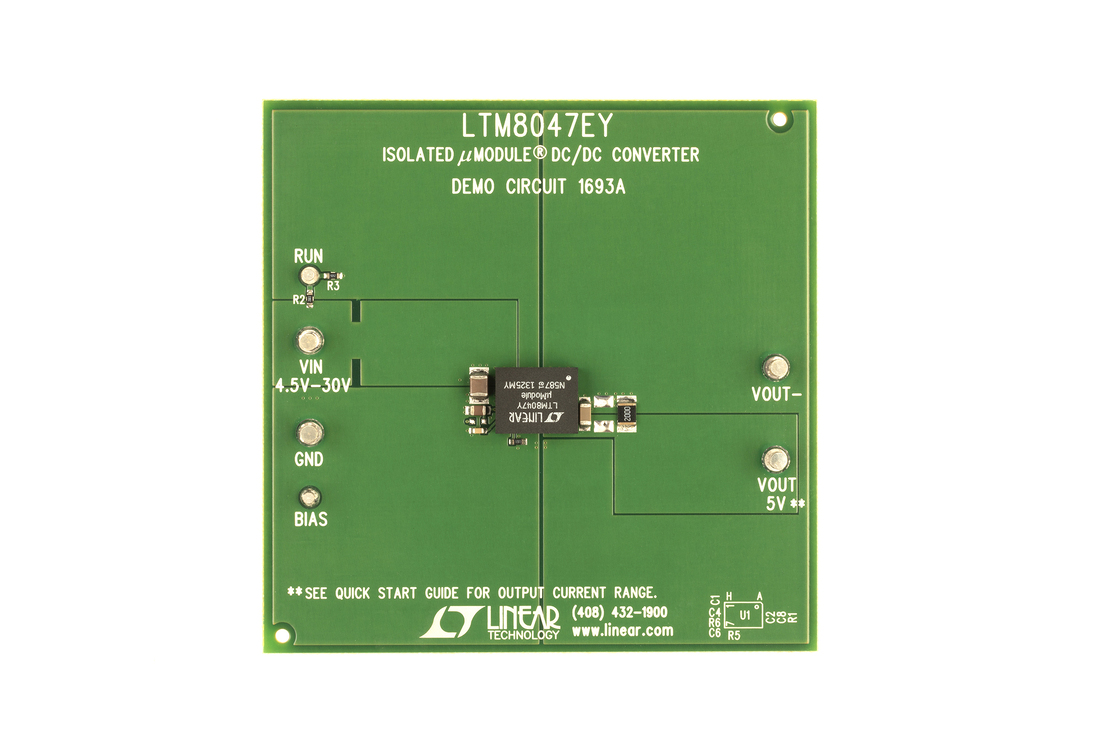

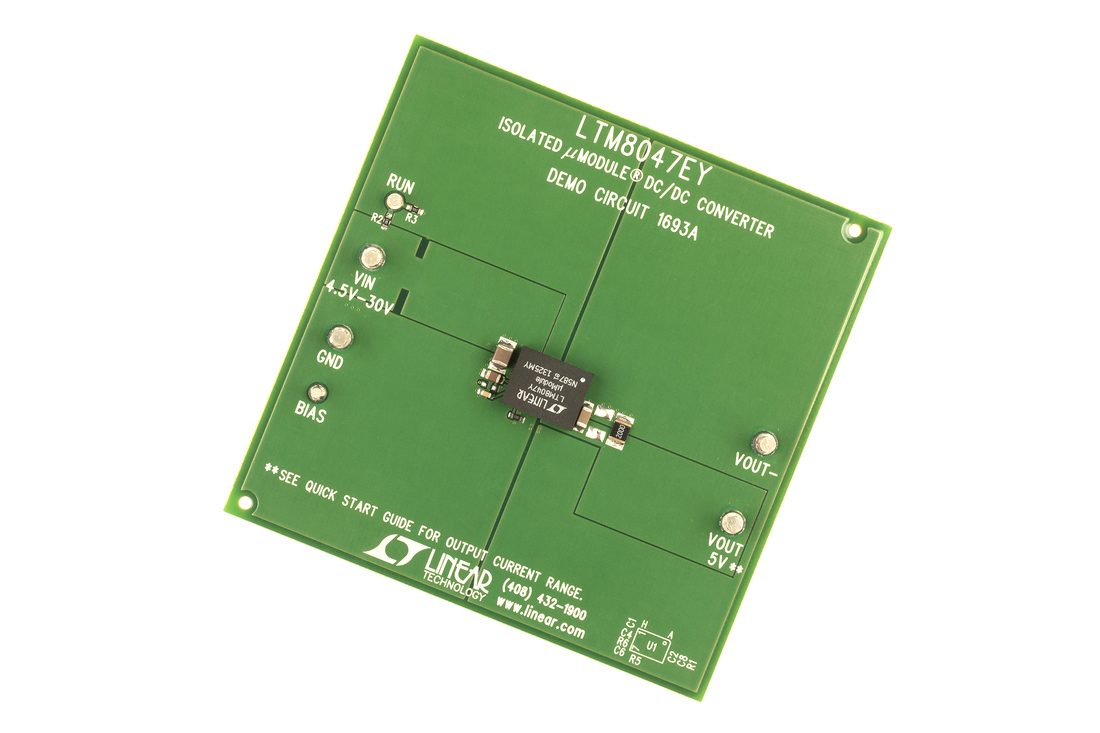

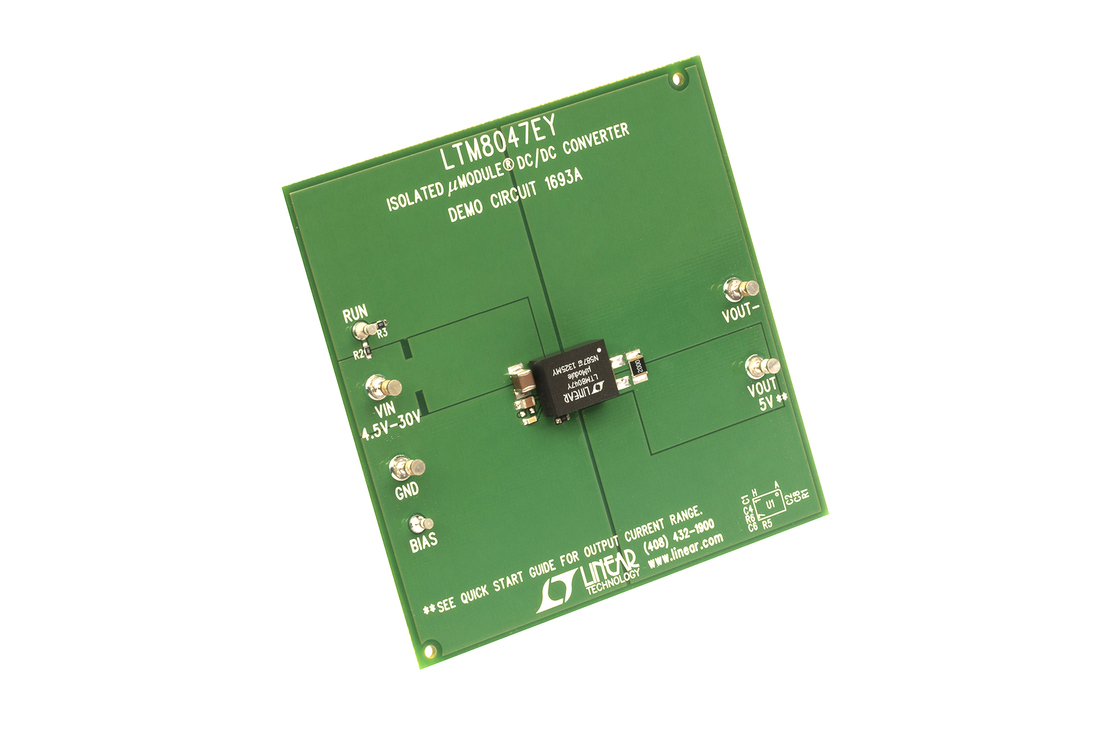

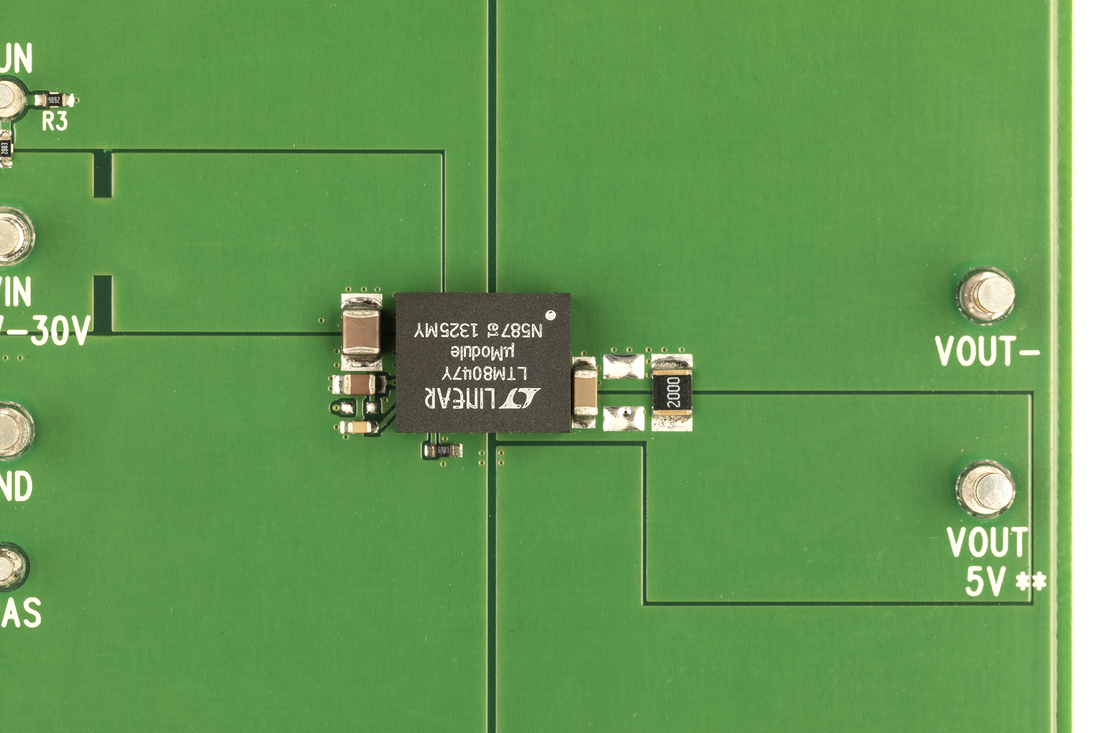

LTM8047 Demo Board | 725VDC Isolated uModule DC/DC Converter; 4.5V ≤ VIN ≤ 30V, VOUT = 5V @ Up to 350mA

zoom

DC1693A

LTM8047 Demo Board | 725VDC Isolated uModule DC/DC Converter; 4.5V ≤ VIN ≤ 30V, VOUT = 5V @ Up to 350mA

LTM8047 Demo Board | 725VDC Isolated uModule DC/DC Converter; 4.5V ≤ VIN ≤ 30V, VOUT = 5V @ Up to 350mA

Product Detail

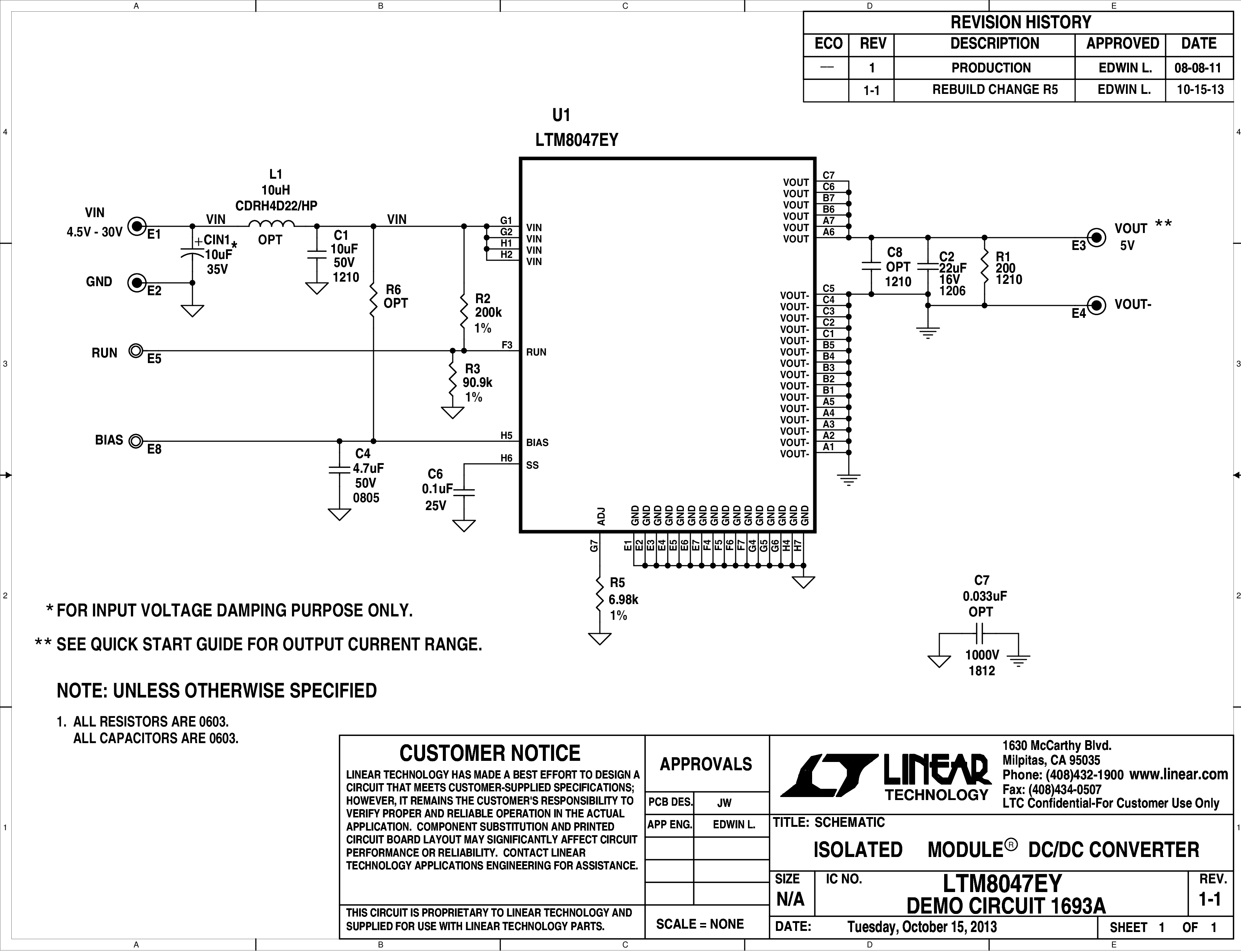

The demo circuit 1693A is an isolated flyback μModule® DC/DC converter featuring the LTM8047. The demo circuit is designed for a 5V output from a 4.5V to 30V input. The typical current capability of the 5V output varies with input voltage from about 110mA at VIN = 4.5V to about 350mA at VIN = 30V.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
