LTM4619

Dual, 26VIN, 4A DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $19.72
Features
  • Complete Standalone Power Supply
  • Wide Input Voltage Range: 4.5V to 26.5V (EXTVCC Available for VIN ≤ 5.5V)
  • Dual 180° Out-of-Phase Outputs with 4A DC Typical, 5A Peak Output Current for Each
  • Dual Outputs with 0.8V to 5V Range
  • Output Voltage Tracking
  • ±1.5% Maximum Total DC Output Error
  • Current Mode Control/Fast Transient Response
  • Power Good
  • Phase-Lockable Fixed Frequency 250kHz to 780kHz
  • On Board Frequency Synchronization
  • Parallel Current Sharing
  • Selectable Burst Mode® Operation
  • Output Overvoltage Protection
  • 15mm × 15mm × 2.82mm LGA Package
Additional Details
show more Icon

The LTM4619 is a complete dual 4A or single 8A stepdown DC/DC μModule® (power module) regulator. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over input voltage ranges of 4.5V to 26.5V, the LTM4619 supports two outputs with voltage ranges of 0.8V to 5V, each set by a single external resistor. Its high efficiency design delivers 4A continuous current (5A peak) for each output.

High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The two outputs are interleaved with 180° phase to minimize the ripple noise and reduce the I/O capacitors. The device supports frequency synchronization and output voltage tracking for supply rail sequencing. Burst Mode operation or pulseskipping mode can be selected for light load operations.

Fault protection features include overvoltage protection, overcurrent protection and foldback current limit for short-circuit protection.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The power module is offered in a 15mm × 15mm × 2.82mm LGA package. The LTM4619 is RoHS compliant with Pb-free finish.

Applications

  • Telecom and Networking Equipment
  • Servers
  • Storage Cards
  • ATCA Cards
  • Industrial Equipment
  • Point of Load Regulation
Part Models 2
1ku List Price Starting From $19.72

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4619EV#PBF
  • HTML
  • HTML
LTM4619IV#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Software & Part Ecosystem

Evaluation Kits 1

reference details image

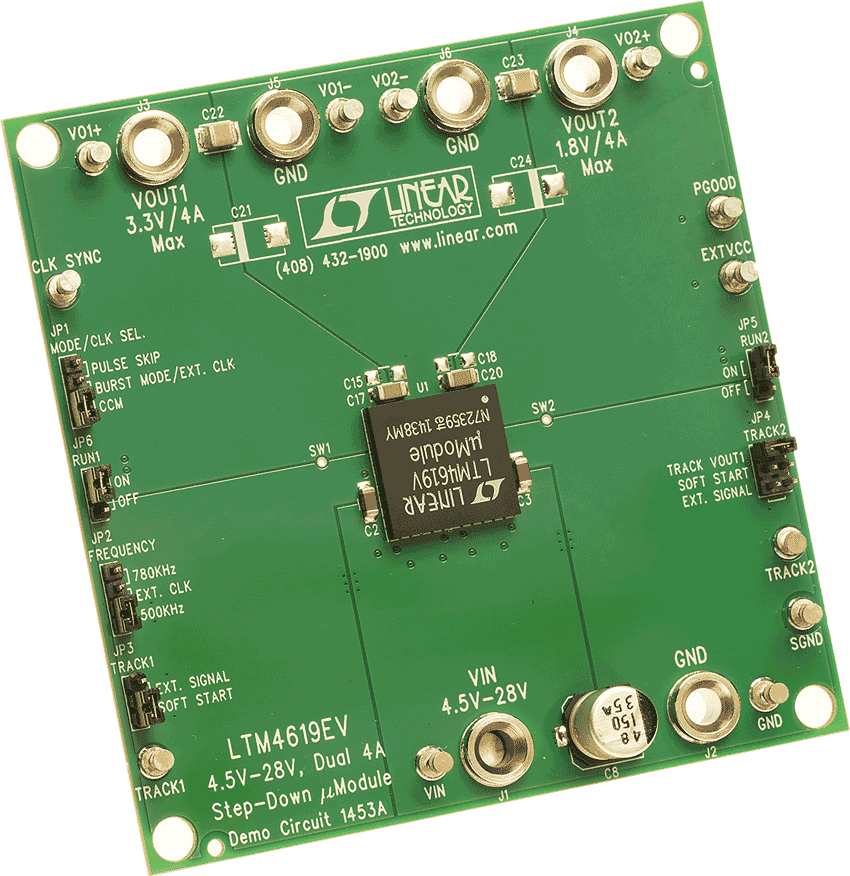

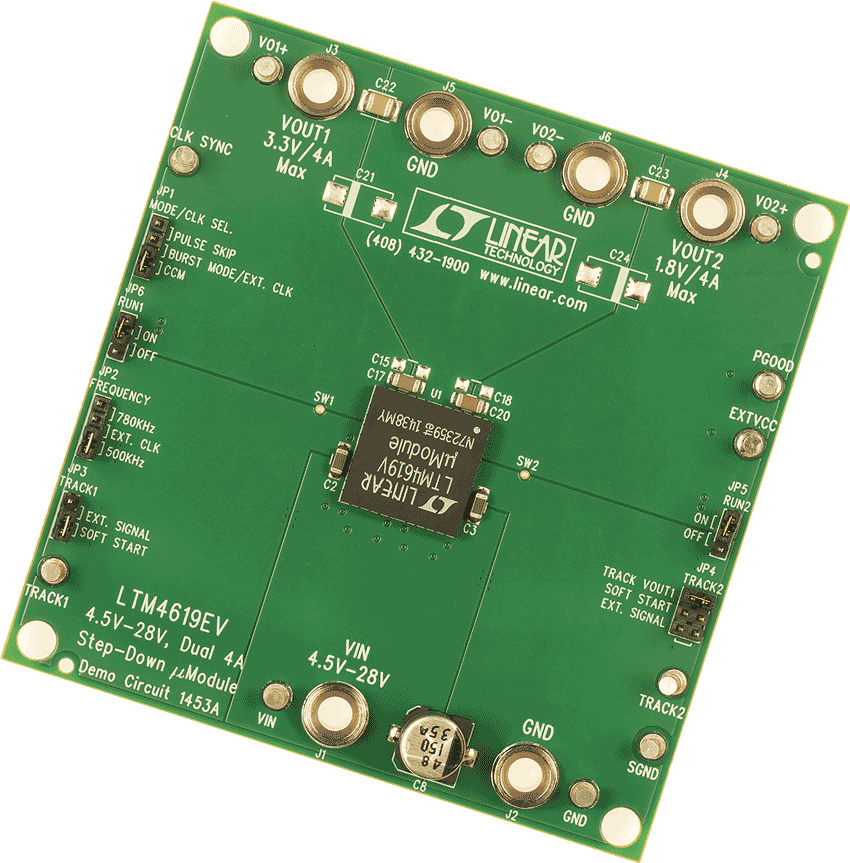

DC1453A

LTM4619EV Demo Board | µModule Regulator with Tracking, 4.5V ≤ VIN ≤ 28V, VOUT1 = 3.3V @ 4A, VOUT2 = 1.8V @ 4A

zoom

DC1453A

LTM4619EV Demo Board | µModule Regulator with Tracking, 4.5V ≤ VIN ≤ 28V, VOUT1 = 3.3V @ 4A, VOUT2 = 1.8V @ 4A

LTM4619EV Demo Board | µModule Regulator with Tracking, 4.5V ≤ VIN ≤ 28V, VOUT1 = 3.3V @ 4A, VOUT2 = 1.8V @ 4A

Product Detail

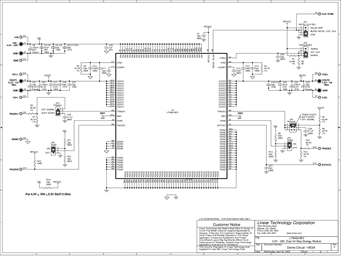

Demonstration circuit 1453A features the LTM4619EV, a 4.5V to 28V input, high efficiency, high density, dual 4A step-down power module with 1.8V and 3.3V output voltages. Derating is necessary for certain VIN, VOUT, and thermal conditions. The two outputs are interleaved with 180° phase to minimize the input ripple and reduce the input capacitors. A minimum design only requires the bulk input and output capacitors and voltage setting resistors. The LTM4619EV features output voltage tracking, power good indicator, RUN pin control, clock synchronization and soft-start programming. Protection features include foldback current limiting and overvoltage protection. Burst Mode® operation or pulse skipping mode can be selected for better light load efficiency.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
