LTM4611

Ultralow VIN, 15A DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $22.90
Features
  • Complete Switch Mode Power Supply
  • Input Voltage Range: 1.5V to 5.5V
  • 15A DC Output
  • Output Voltage Range: 0.8V to 5V
  • ±1.5% Total DC Output Error
  • Differential Remote Sensing for Precision Regulation
  • Current Mode Control/ Fast Transient Response
  • Overcurrent Foldback Protection
  • Parallel Multiple LTM4611s for Current Sharing
  • Frequency Synchronization
  • Selectable Pulse-Skipping or Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Up to 94% Efficiency
  • Output Overvoltage Protection
  • Small 15mm × 15mm × 4.32mm LGA Package
Additional Details
show more Icon

The LTM4611 is a high density 15A output, switch mode DC/DC buck converter power supply capable of operating from very low voltage input supplies. Included in the package are the buck switching controller, power FETs, inductor and loop-compensation components. The LTM4611 delivers up to 15A continuous current at high efficiency from an input voltage of 1.5VIN up to 5.5VIN. The output voltage is set between 0.8V and 5V by a resistor. Only a few input and output capacitors are needed.

High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, multiphase/current sharing operation, Burst Mode operation and output voltage tracking for supply rail sequencing.

The LTM4611 is available in a thermally enhanced 15mm × 15mm × 4.32mm LGA package. The LTM4611 is PB-free and RoHS compliant.

Applications

  • Telecom Servers and Networking Equipment
  • Storage and ATCA Cards
  • General Purpose Point of Load Regulation
Part Models 2
1ku List Price Starting From $22.90

close icon
Documentation

Documentation

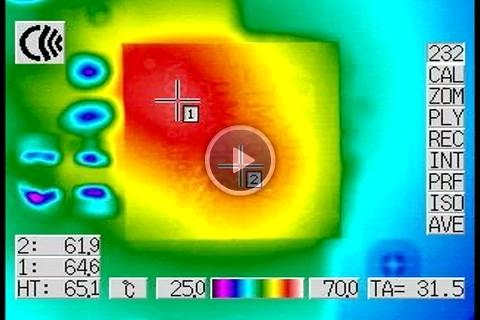

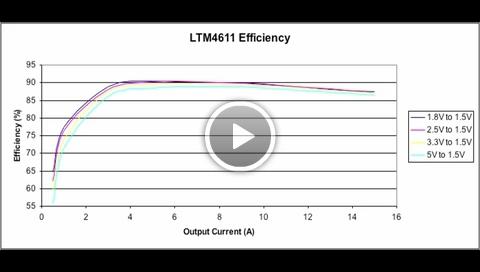

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4611EV#PBF
  • HTML
  • HTML
LTM4611IV#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

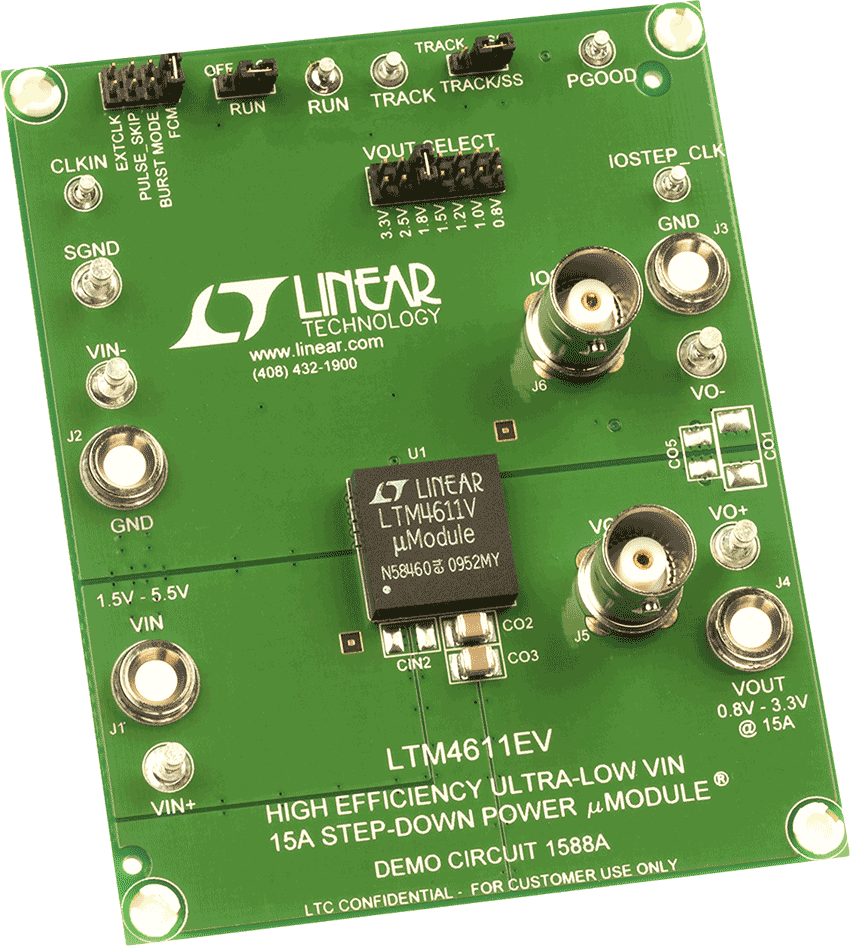

DC1588A

LTM4611EV Demo Board | 1.5V ≤ VIN ≤ 5.5V, VOUT = 0.8V to 5V @ 15A, DC/DC µModule Regulator

zoom

DC1588A

LTM4611EV Demo Board | 1.5V ≤ VIN ≤ 5.5V, VOUT = 0.8V to 5V @ 15A, DC/DC µModule Regulator

LTM4611EV Demo Board | 1.5V ≤ VIN ≤ 5.5V, VOUT = 0.8V to 5V @ 15A, DC/DC µModule Regulator

Product Detail

Demonstration circuit DC1588A features the LTM4611EV, a low input voltage 15A step-down power module. The operating input voltage range is 1.5V to 5.5V with an output voltage range from 0.8V to 5V. DC1588A can support a load current up to 15A, while derating may be necessary for different VIN, VOUT and thermal conditions. The LTM4611EV can operate in pulse-skipping mode or Burst Mode® operation for high efficiency under a light load. The DC1588A has a default programmable switching frequency of 500kHz and may be synchronized to an external clock from 360kHz up to 710kHz.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
