Overview
Features and Benefits
- 50.0dBm OIP3 at 240MHz into a 100Ω Diff Load
- NF = 3.0dB at 240MHz
- 20MHz to 2000MHz Bandwidth
- 15.2dB Gain
- A-Grade 100% OIP3 Tested at 240MHz
- 1.0nV/√Hz Total Input Noise
- S11 < –15dB Up to 1.2GHz
- S22 < –15dB Up to 1.2GHz
- >2.75VP-P Linear Output Swing
- P1dB = 24.0dBm
- Insensitive to VCC Variation
- 100Ω Differential Gain-Block Operation
- Input/Output Internally Matched to 100Ω Diff
- Single 5V Supply
- DC Power = 800mW
- Unconditionally Stable
- 4mm × 4mm, 24-Lead QFN Package
Product Details
The LTC6430-15 is a differential gain block amplifier designed to drive high resolution, high speed ADCs with excellent linearity beyond 1000MHz and with low associated output noise. The LTC6430-15 operates from a single 5V power supply and consumes only 800mW.
In its differential configuration, the LTC6430-15 can directly drive the differential inputs of an ADC. Using 1:2 baluns, the device makes an excellent 50Ω wideband balanced amplifier. While using 1:1.33 baluns, the device makes a high fidelity 50MHz to 1000MHz 75Ω CATV amplifier.
The LTC6430-15 is designed for ease of use, requiring a minimum of support components. The device is internally matched to 100Ω differential source/load impedance. On-chip bias and temperature compensation ensure consistent performance over environmental changes.
The LTC6430-15 uses a high performance SiGe BiCMOS process for excellent repeatability compared with similar GaAs amplifiers. All A-grade LTC6430-15 devices are tested and guaranteed for OIP3 at 240MHz. The LTC6430-15 is housed in a 4mm × 4mm, 24-lead, QFN package with an exposed pad for thermal management and low inductance. For a single-ended 50Ω IF gain block with similar performance, see the related LTC6431-15.
Applications
- Differential ADC Driver
- Differential IF Amplifier
- OFDM Signal Chain Amplifier
- 50Ω Balanced IF Amplifier
- 75Ω CATV Amplifier
- 700MHz to 800MHz LTE Amplifier
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (6)
Documentation & Resources
-
R561 Reliability Data3/23/2018PDF164 K
-

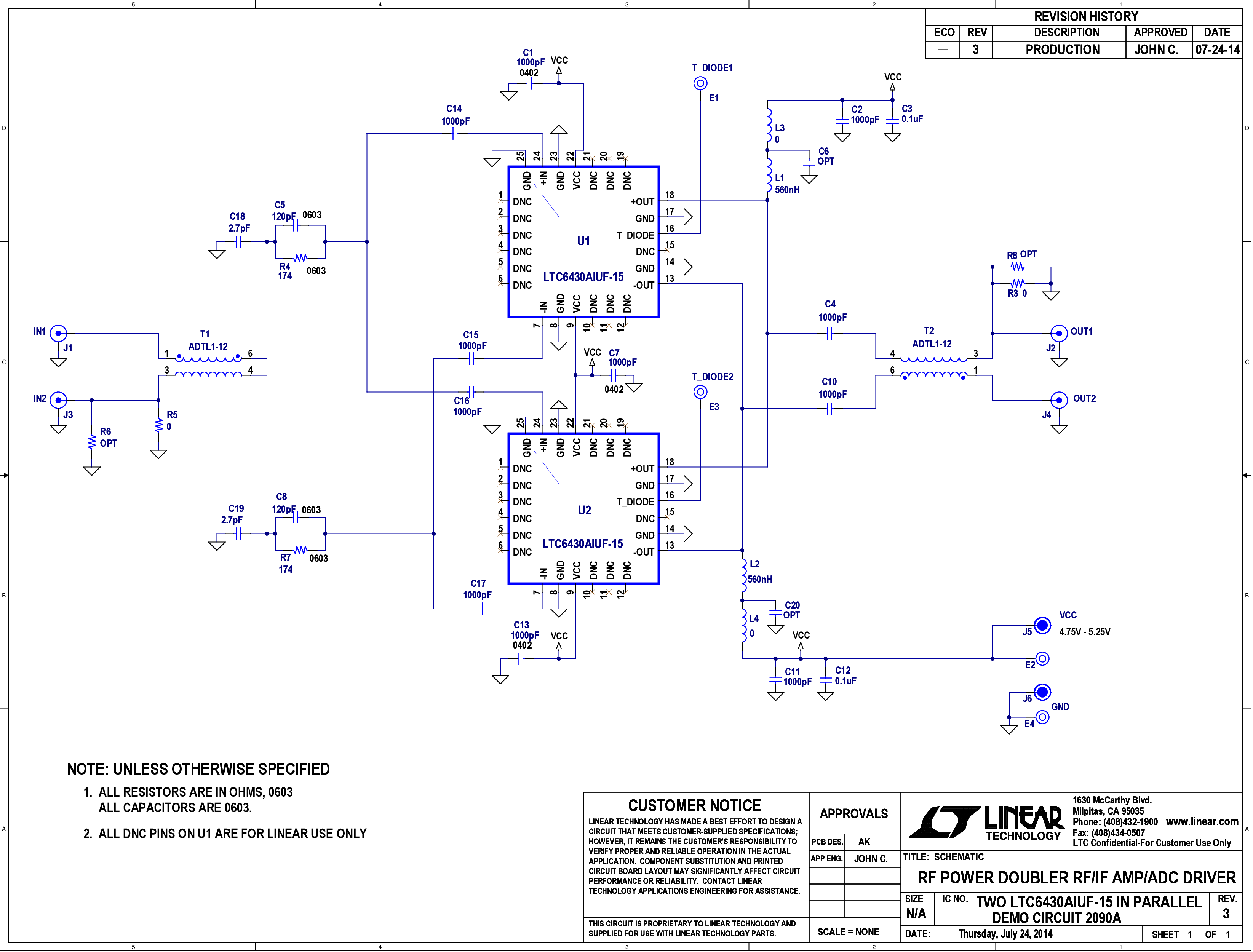

DC2090A - Demo Manual7/28/2014PDF290K
-

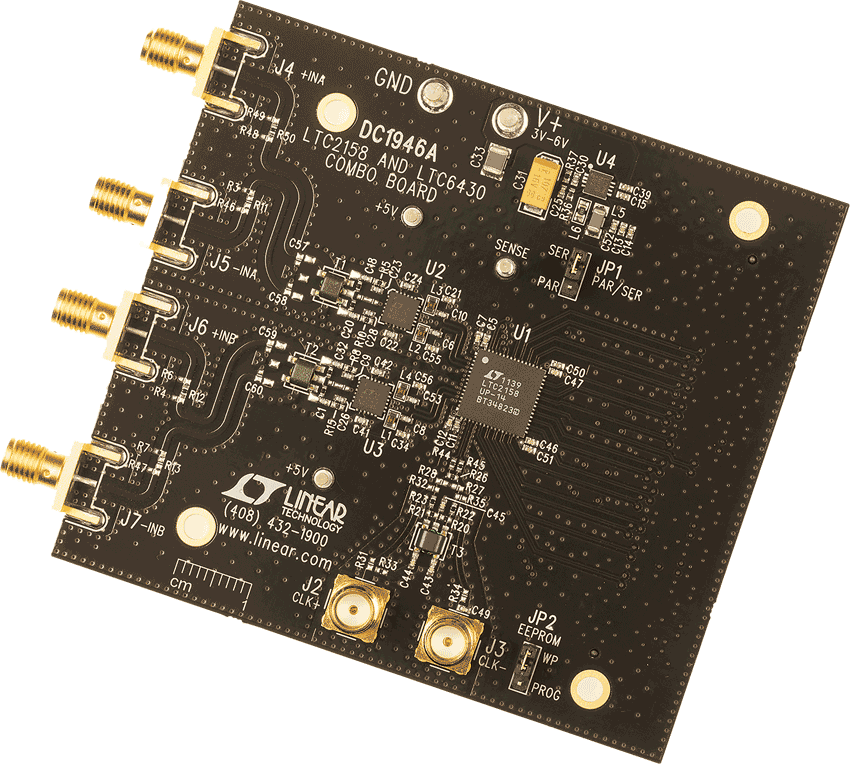

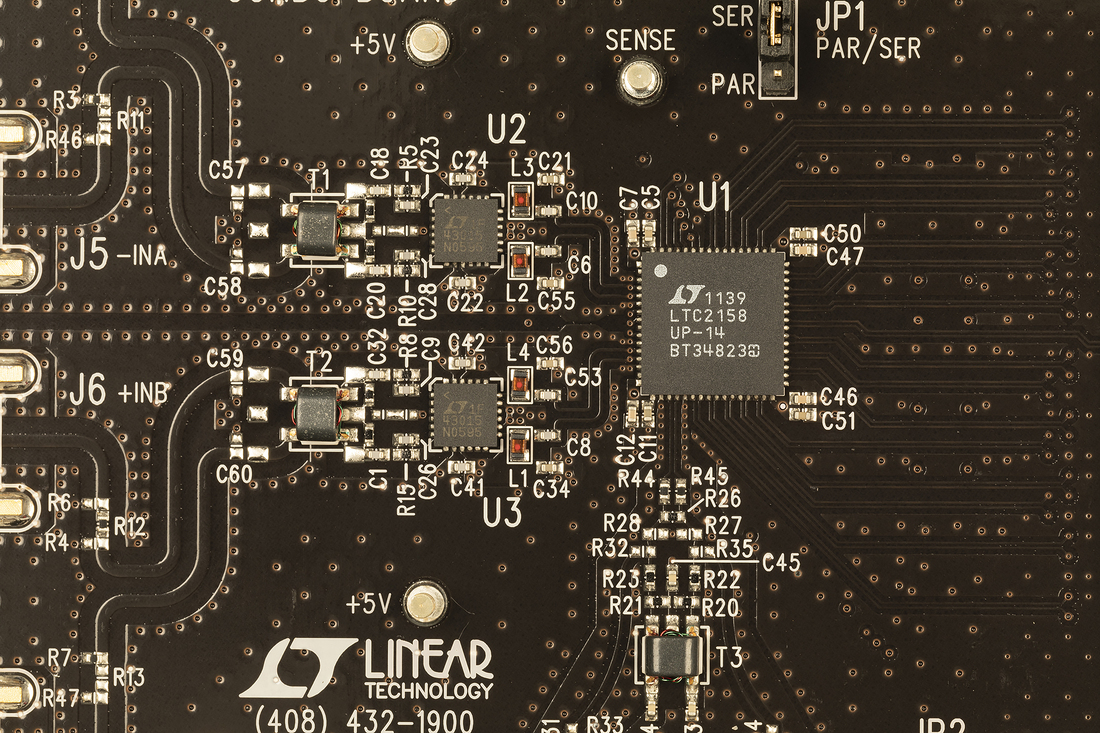

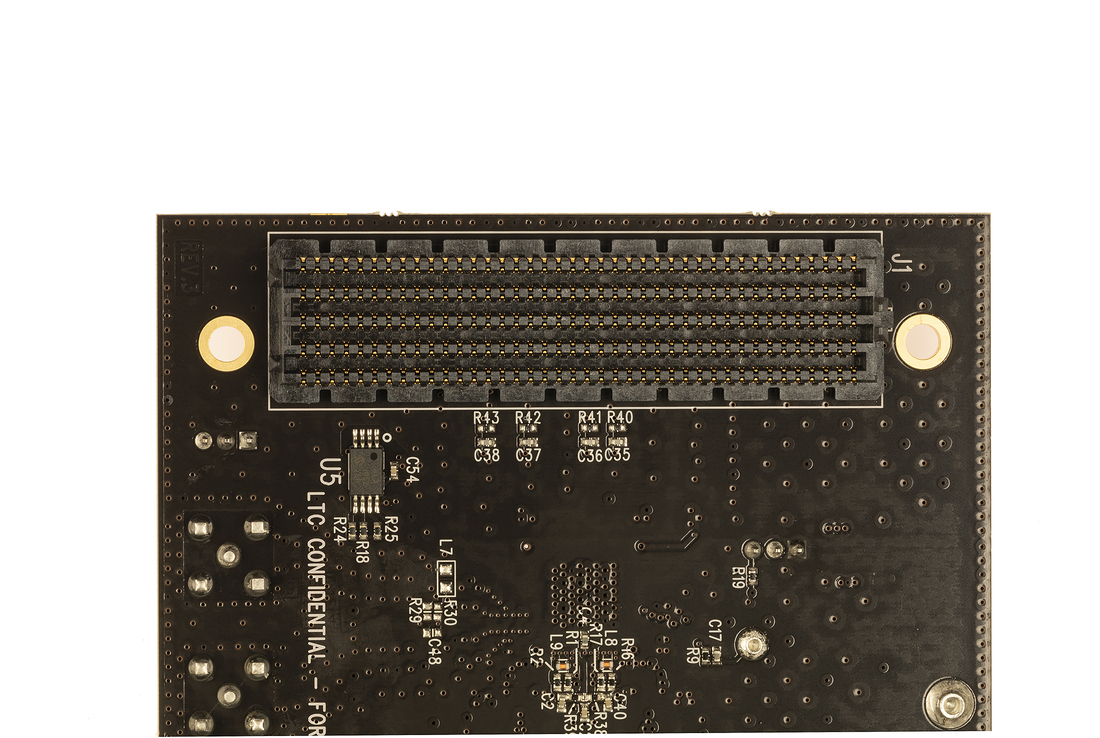

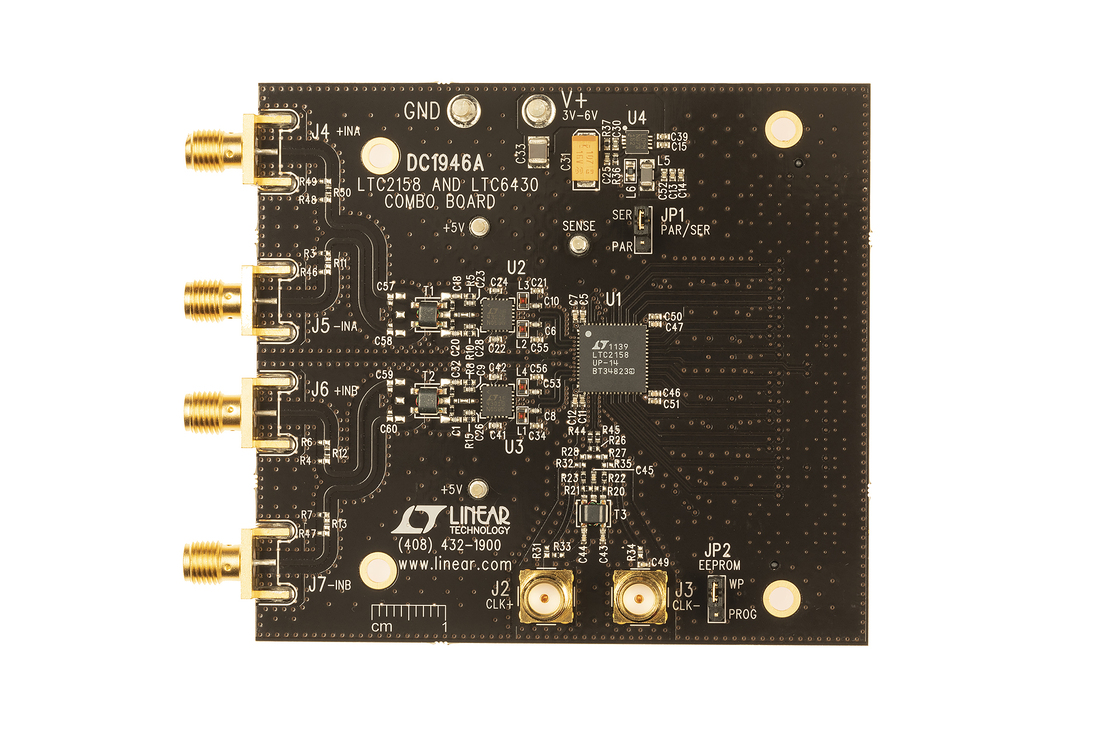

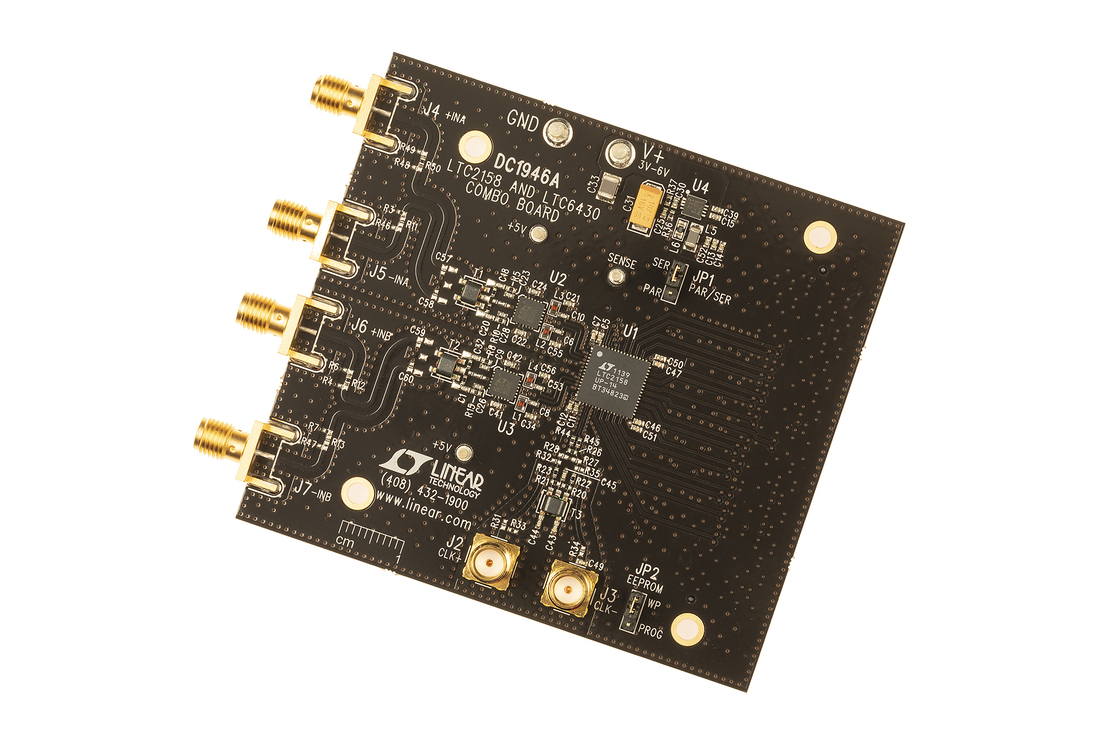

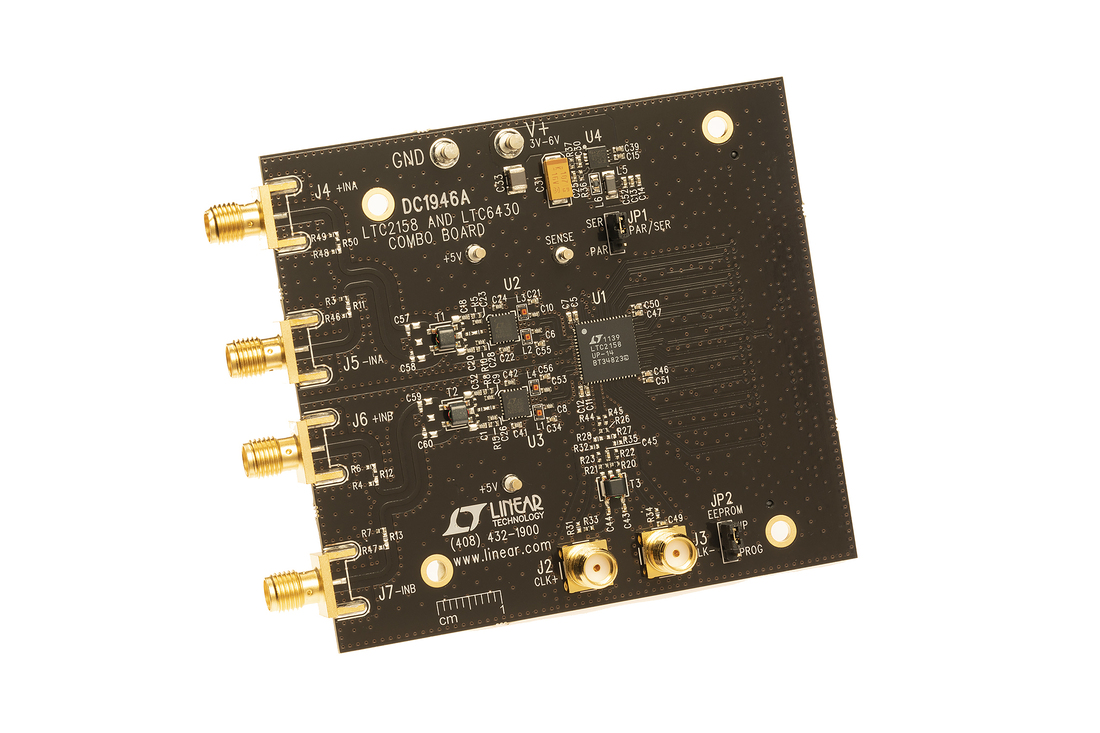

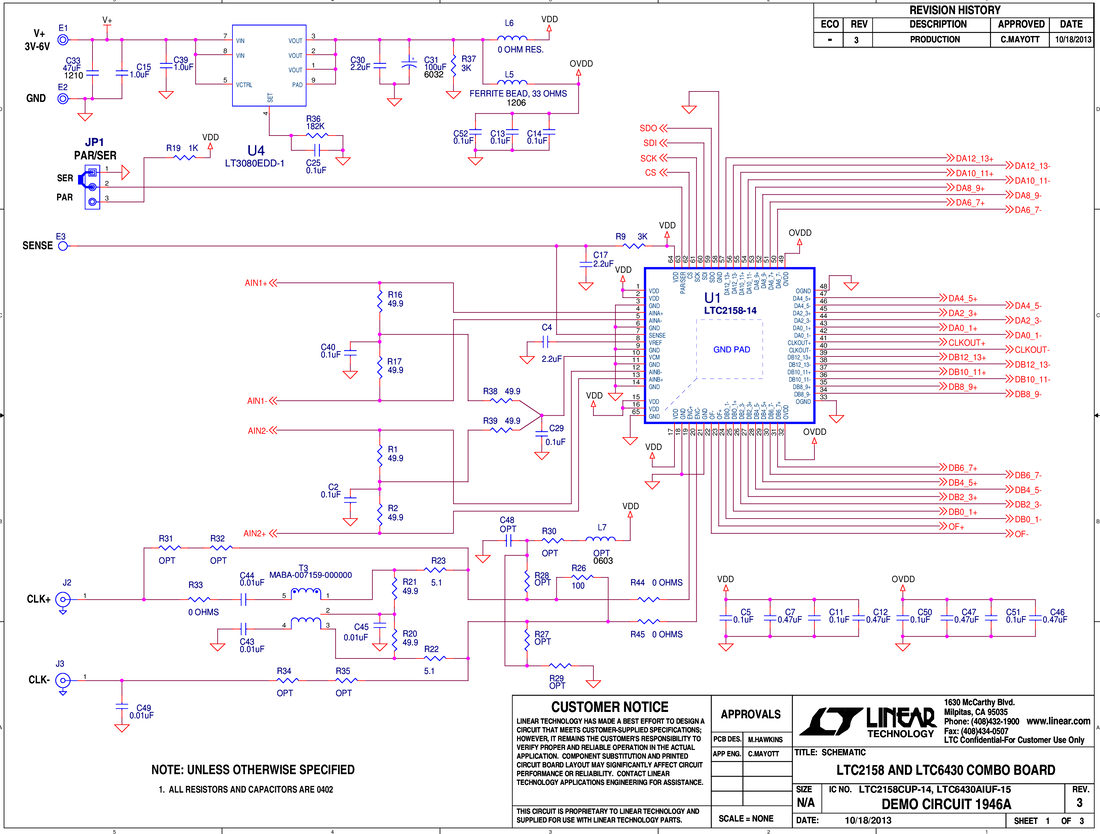

DC1946A - Demo Manual6/5/2014PDF713K
-

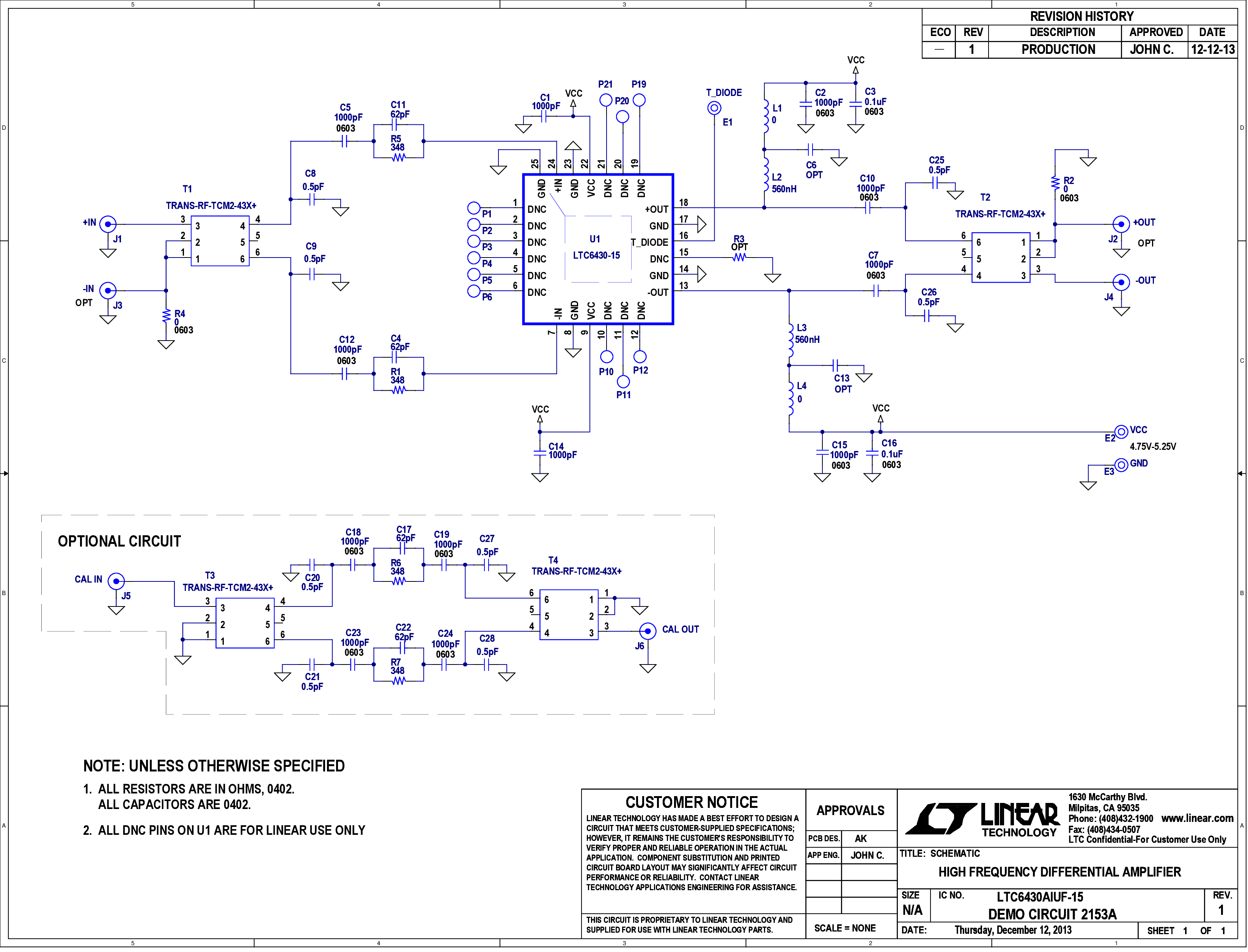

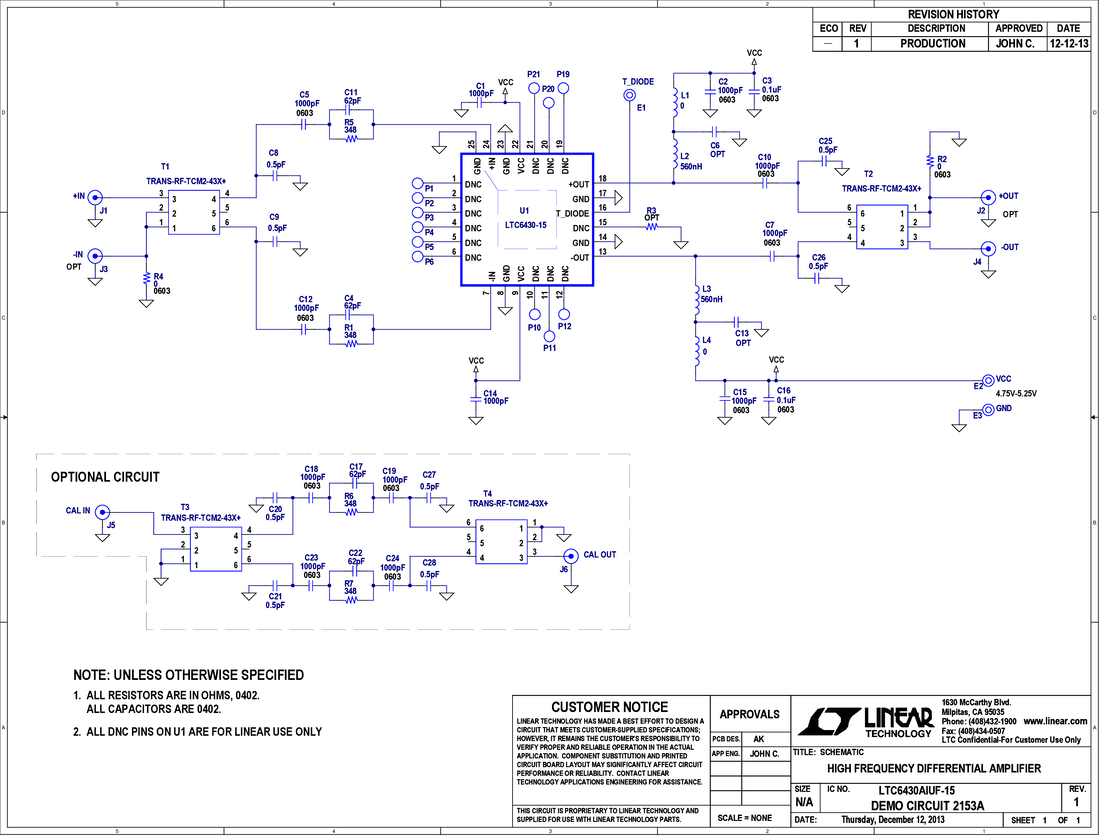

DC2153A - Demo Manual6/4/2014PDF255K
-

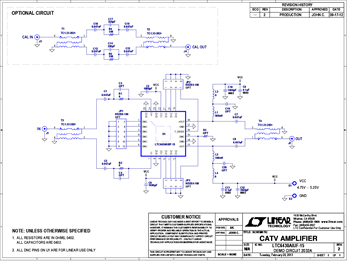

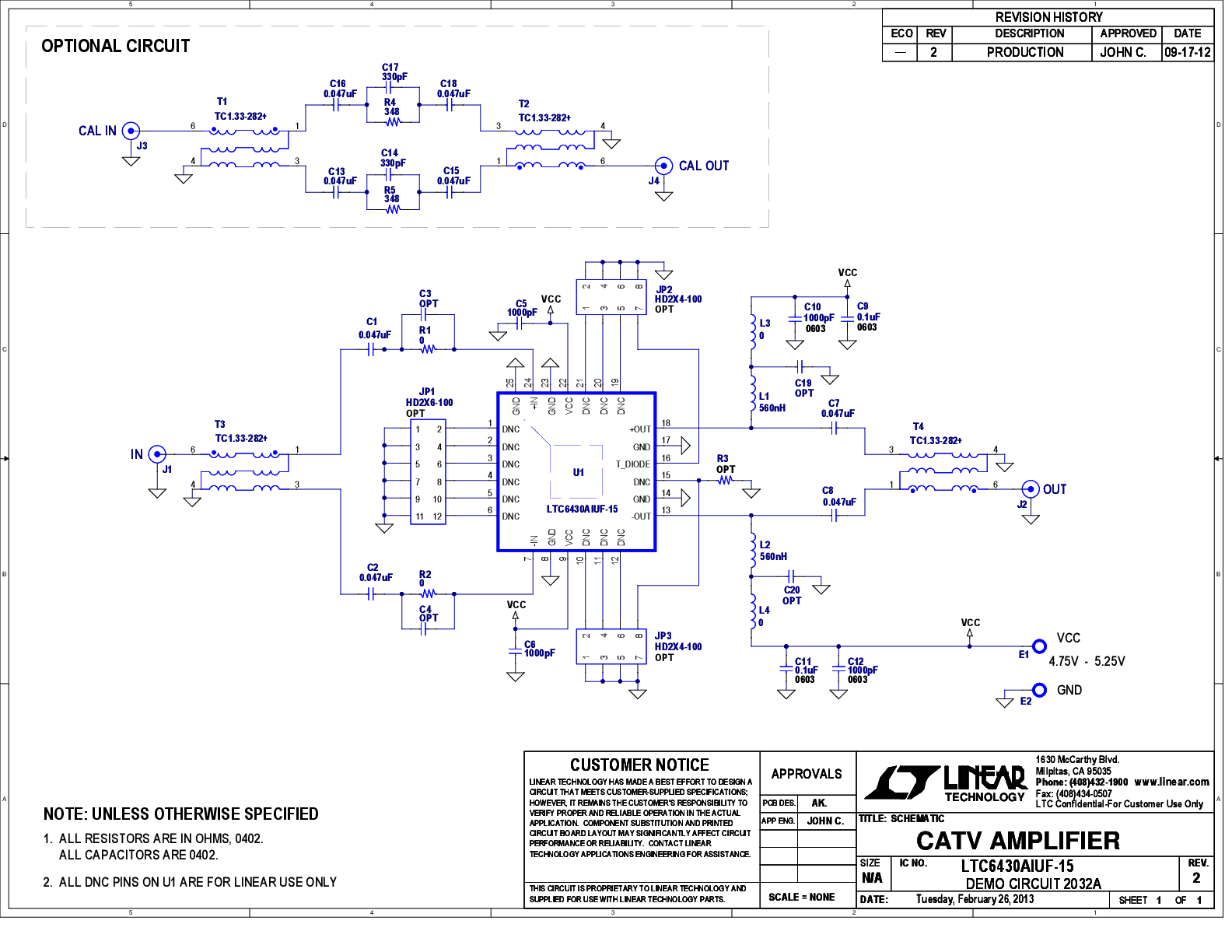

DC2032A - Demo Manual3/21/2013PDF339K
-

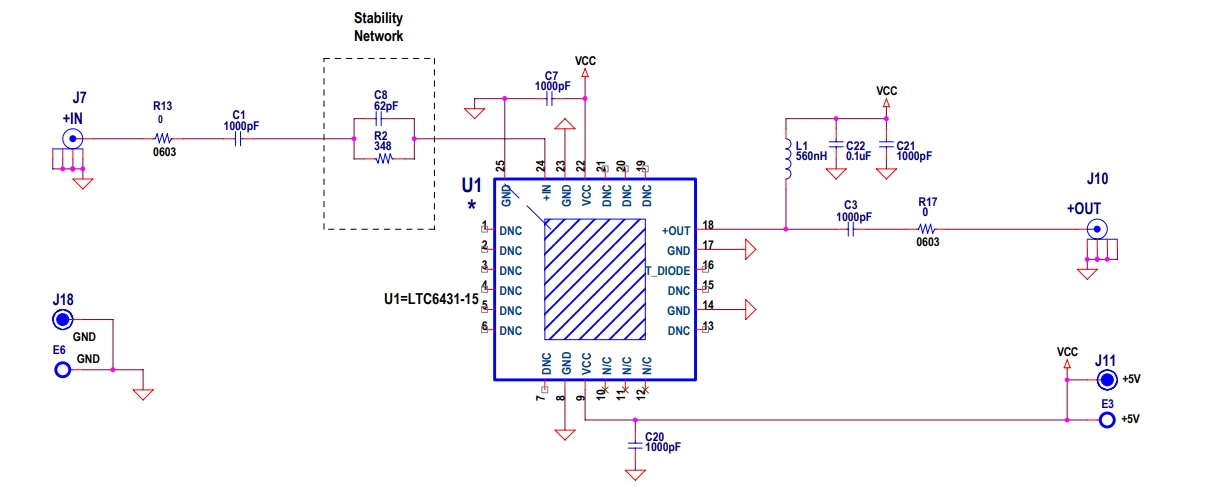

DC1774A-B - Demo Manual2/15/2013PDF1M
-
DC1774A-A - Demo Manual2/5/2013PDF693K
-
High Speed Amplifiers/ADC Drivers4/29/2015PDF152K
-
+50dBm OIP3 at 240MHz2/3/2014PDF1M
Tools & Simulations
Sys-Parameters
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
Design Tools
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
Product Recommendations
LTC6430-15 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|
LTC6430AIUF-15#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
LTC6430AIUF-15#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
LTC6430BIUF-15#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
LTC6430BIUF-15#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
Wafer Fabrication Data | R561 Reliability Data |
