LTC6363

Precision, Low Power Differential Amplifier/ADC Driver Family

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LTC6363 - Differential Amplifiers and ADC Drivers Download 1.04 KB LTspice LTC6363 - Differential Amplifiers and ADC Drivers, LT5401 - Analog Functions Download 1.18 KB
Part Models 24
1ku List Price Starting From $3.20
Features
  • Available with User Settable Gain or Fixed-Gain of 0.5V/V, 1V/V, or 2V/V
  • 2.9nV/√Hz Input-Referred Noise
  • 2mA Maximum Supply Current
  • 45ppm Max Gain Error
  • 0.5ppm/°C Max Gain Error Drift
  • 94dB Min CMRR
  • 100µV Max Offset Voltage
  • 50nA Max Input Offset Current
  • Fast Settling: 720ns to 18-Bit, 8VP-P Output
  • 2.8V (±1.4V) to 11V (±5.5V) Supply Voltage Range
  • Differential Rail-to-Rail Outputs
  • Input Common Mode Range Includes Ground
  • Low Distortion: 118dB SFDR at 2kHz, 18VP-P
  • 500MHz Gain-Bandwidth Product
  • 35MHz –3dB Bandwidth
  • Low Power Shutdown: 20µA (VS = 3V)
  • 8-Lead MSOP, 2mm × 3mm 8-Lead DFN and 3mm × 3mm 16-lead LFCSP Packages
Additional Details
show more Icon

The LTC6363 family consists of four fully differential, low power, low noise amplifiers with rail-to-rail outputs optimized to drive SAR ADCs. The LTC6363 is a standalone differential amplifier, where the gain is typically set using four external resistors. The LTC6363-0.5, LTC6363-1, and LTC6363-2 each have internal matched resistors to create fixed gain blocks with gains of 0.5V/V, 1V/V, and 2V/V respectively. Each of the fixed-gain amplifiers features precision laser trimmed on-chip resistors for accurate, ultrastable gain and excellent CMRR.

Applications

  • 20-Bit, 18-Bit and 16-Bit SAR ADC Drivers
  • Single-Ended-to-Differential Conversion
  • Low Power ADC Drivers
  • Level Shifter
  • Differential Line Drivers
  • Battery-Powered Instrumentation
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LTC6363 - Differential Amplifiers and ADC Drivers Download 1.04 KB LTspice LTC6363 - Differential Amplifiers and ADC Drivers, LT5401 - Analog Functions Download 1.18 KB
Part Models 24
1ku List Price Starting From $3.20
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC6363

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Data Sheet
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/14/2016
English

LTC6363: Precision, Low Power Differential Amplifier/ADC Driver Family Data Sheet (Rev.C)

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 09/13/2016
Japanese

LTC6363: 高精度、低消費電力、レール・トゥ・レール出力の差動オペアンプ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 01/10/2017
English
DC2487A - Demo Manual redirect icon

211.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/10/2015
English

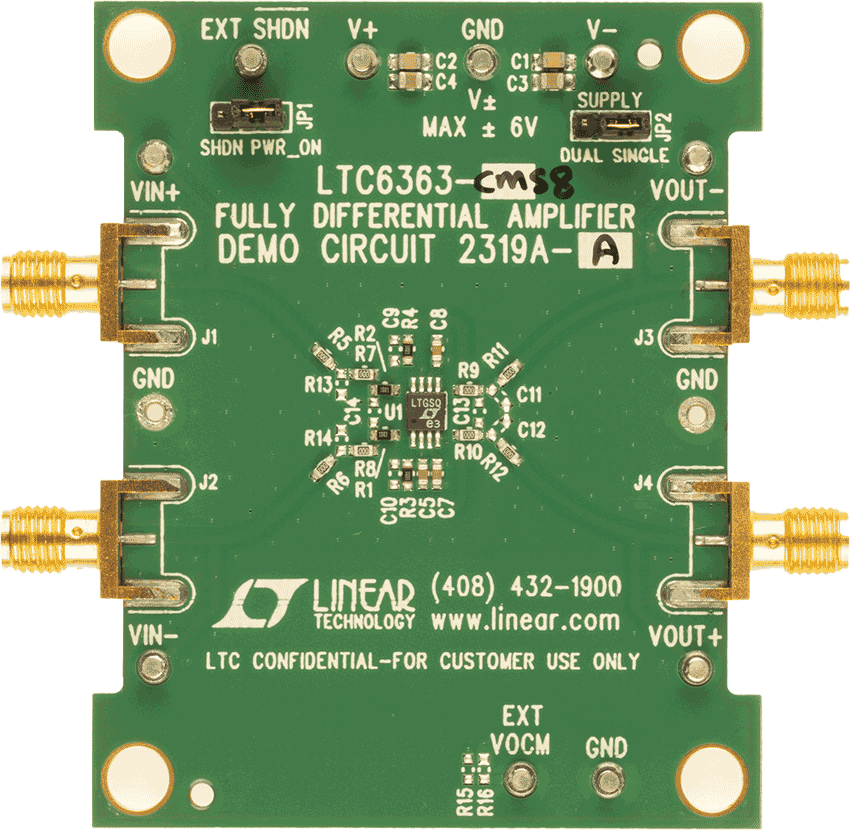

DC2319A - Demo Manual redirect icon
