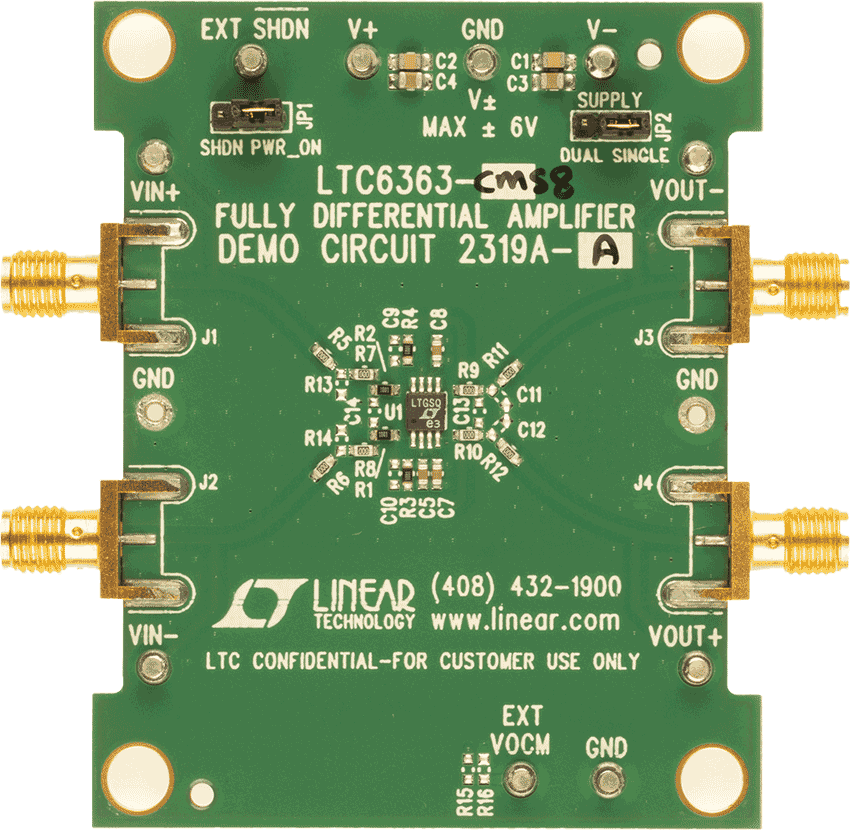

DC2319A-A
LTC6363 Differential Op Amp/ADC Driver Demo Board
Top
Overview
Product Details
The LTC6363 is a low power, low noise differential op amp with rail-to-rail output swing and good DC accuracy. The amplifier may be configured to process a fully differential input signal or to convert a single-ended input signal to a differential output signal. The differential outputs of the DC2319A can be configured with a first order RC network for driving the differential inputs of an ADC.
Markets and Technologies
Applicable Parts
Documentation & Resources
-
DC2319A - Schematic11/10/2015PDF89K
-
DC2319A - Demo Manual11/10/2015PDF447K
-
DC2319A - Design Files11/10/2015ZIP962K
