LTC6078

Micropower Precision, Dual CMOS Rail-to-Rail Input/Output Amplifiers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 16
1ku List Price Starting From $1.83
Features
  • Maximum Offset Voltage of 25μV (25°C)
  • Maximum Offset Drift of 0.7μV/°C
  • Maximum Input Bias:
    • 1pA (25°C)
    • 50pA (≤85°C)
  • Micropower: 54μA per Amp
  • 95dB CMRR (Min)
  • 100dB PSRR (Min)
  • Input Noise Voltage: 16nV/√Hz
  • Rail-to-Rail Inputs and Outputs
  • 2.7V to 5.5V Operation Voltage
  • LTC6078 Available in 8-Lead MSOP and 10-Lead DFN Packages; LTC6079 Available in 16-Lead SSOP and DFN Packages
Additional Details
show more Icon

The LTC6078/LTC6079 are dual/quad, low offset, low noise operational amplifiers with low power consumption and rail-to-rail input/output swing.

Input offset voltage is trimmed to less than 25μV and the CMOS inputs draw less than 50pA of bias current. The low offset drift, excellent CMRR, and high voltage gain make it a good choice for precision signal conditioning.

Each amplifier draws only 54μA current on a 3V supply. The micropower, rail-to-rail operation of the LTC6078/LTC6079 is well suited for portable instruments and single supply applications.

The LTC6078/LTC6079 are specified on power supply voltages of 3V and 5V from -40 to 125°C. The dual amplifier LTC6078 is available in 8-lead MSOP and 10-lead DFN packages. The quad amplifier LTC6079 is available in 16-lead SSOP and DFN packages.

Applications

  • Photodiode Amplifier
  • High Impedance Sensor Amplifier
  • Microvolt Accuracy Threshold Detection
  • Instrumentation Amplifiers
  • Battery Powered Applications
Part Models 16
1ku List Price Starting From $1.83

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6078ACMS8#PBF
  • HTML
  • HTML
LTC6078ACMS8#TRPBF
  • HTML
  • HTML
LTC6078AHMS8#PBF
  • HTML
  • HTML
LTC6078AHMS8#TRPBF
  • HTML
  • HTML
LTC6078AIMS8#PBF
  • HTML
  • HTML
LTC6078AIMS8#TRPBF
  • HTML
  • HTML
LTC6078CDD#PBF
  • HTML
  • HTML
LTC6078CDD#TRPBF
  • HTML
  • HTML
LTC6078CMS8#PBF
  • HTML
  • HTML
LTC6078CMS8#TRPBF
  • HTML
  • HTML
LTC6078HMS8#PBF
  • HTML
  • HTML
LTC6078HMS8#TRPBF
  • HTML
  • HTML
LTC6078IDD#PBF
  • HTML
  • HTML
LTC6078IDD#TRPBF
  • HTML
  • HTML
LTC6078IMS8#PBF
  • HTML
  • HTML
LTC6078IMS8#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC6078ACMS8#PBF

PRODUCTION

LTC6078ACMS8#TRPBF

PRODUCTION

LTC6078AHMS8#PBF

PRODUCTION

LTC6078AHMS8#TRPBF

PRODUCTION

LTC6078AIMS8#PBF

PRODUCTION

LTC6078AIMS8#TRPBF

PRODUCTION

LTC6078CMS8#PBF

PRODUCTION

LTC6078CMS8#TRPBF

PRODUCTION

LTC6078HMS8#PBF

PRODUCTION

LTC6078HMS8#TRPBF

PRODUCTION

LTC6078IMS8#PBF

PRODUCTION

LTC6078IMS8#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC6078ACMS8#PBF

PRODUCTION

LTC6078ACMS8#TRPBF

PRODUCTION

LTC6078AHMS8#PBF

PRODUCTION

LTC6078AHMS8#TRPBF

PRODUCTION

LTC6078AIMS8#PBF

PRODUCTION

LTC6078AIMS8#TRPBF

PRODUCTION

LTC6078CMS8#PBF

PRODUCTION

LTC6078CMS8#TRPBF

PRODUCTION

LTC6078HMS8#PBF

PRODUCTION

LTC6078HMS8#TRPBF

PRODUCTION

LTC6078IMS8#PBF

PRODUCTION

LTC6078IMS8#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC6078ACMS8#PBF

PRODUCTION

LTC6078ACMS8#TRPBF

PRODUCTION

LTC6078AHMS8#PBF

PRODUCTION

LTC6078AHMS8#TRPBF

PRODUCTION

LTC6078AIMS8#PBF

PRODUCTION

LTC6078AIMS8#TRPBF

PRODUCTION

LTC6078CMS8#PBF

PRODUCTION

LTC6078CMS8#TRPBF

PRODUCTION

LTC6078HMS8#PBF

PRODUCTION

LTC6078HMS8#TRPBF

PRODUCTION

LTC6078IMS8#PBF

PRODUCTION

LTC6078IMS8#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LTC6078ACMS8#PBF

PRODUCTION

LTC6078ACMS8#TRPBF

PRODUCTION

LTC6078AHMS8#PBF

PRODUCTION

LTC6078AHMS8#TRPBF

PRODUCTION

LTC6078AIMS8#PBF

PRODUCTION

LTC6078AIMS8#TRPBF

PRODUCTION

LTC6078CMS8#PBF

PRODUCTION

LTC6078CMS8#TRPBF

PRODUCTION

LTC6078HMS8#PBF

PRODUCTION

LTC6078HMS8#TRPBF

PRODUCTION

LTC6078IMS8#PBF

PRODUCTION

LTC6078IMS8#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 1

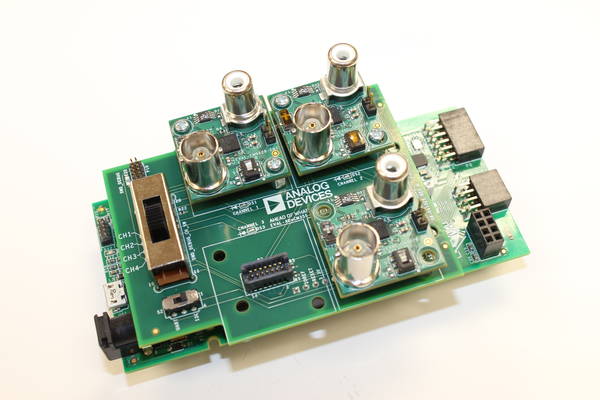

CN0428
