Overview

Features and Benefits

  • Frequency Range: 30MHz to 1300MHz
  • Low Power: 2.7V to 3.6V Supply; 28mA
  • Low LO Carrier Leakage: –51.5dBm at 500MHz
  • Side-Band Suppression: –52.6dBc at 500MHz
  • Output IP3: 20.8dBm at 500MHz
  • Low RF Output Noise Floor: –156dBm/Hz at 6MHz Offset, PRF = 3dBm
  • Sine Wave or Square Wave LO Drive
  • SPI Control:
    • Adjustable Gain: –19dB to 0dB in 1dB Steps Effecting Supply Current from 8mA to 35mA
    • I/Q Offset Adjust: –65dBm LO Carrier Leakage
    • I/Q Gain/Phase Adjust: –60dBc Side-Band Suppressed
  • 24-Lead QFN 4mm × 4mm Package

Product Details

The LTC5599 is a direct conversion I/Q modulator designed for low power wireless applications that enable direct modulation of differential baseband I and Q signals on an RF carrier. Single side-band modulation or side-band suppressed upconversion can be achieved by applying 90° phase-shifted signals to the I and Q inputs. The I/Q baseband input ports can be either AC or DC coupled to a source with a common mode voltage level of about 1.4V. The SPI interface controls the supply current, modulator gain, and allows optimization of the LO carrier feedthrough and side-band suppression, with sine wave or square wave LO drive. A fixed LC network on the LO and RF ports covers a continuous 90MHz to 1300MHz operation. An on-chip thermometer can be activated to compensate for gain-temperature variations. More accurate temperature measurements can be made using an on-chip diode. In addition, a continuous analog gain control (VCTRL) pin can be used for fast power control.

Applications

  • Wireless Microphones
  • Battery Powered Radios
  • Ad-Hoc Wireless Infrastructure Networks
  • “White-Space” Transmitters
  • Software Defined Radios (SDR)
  • Military Radios

Product Categories

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

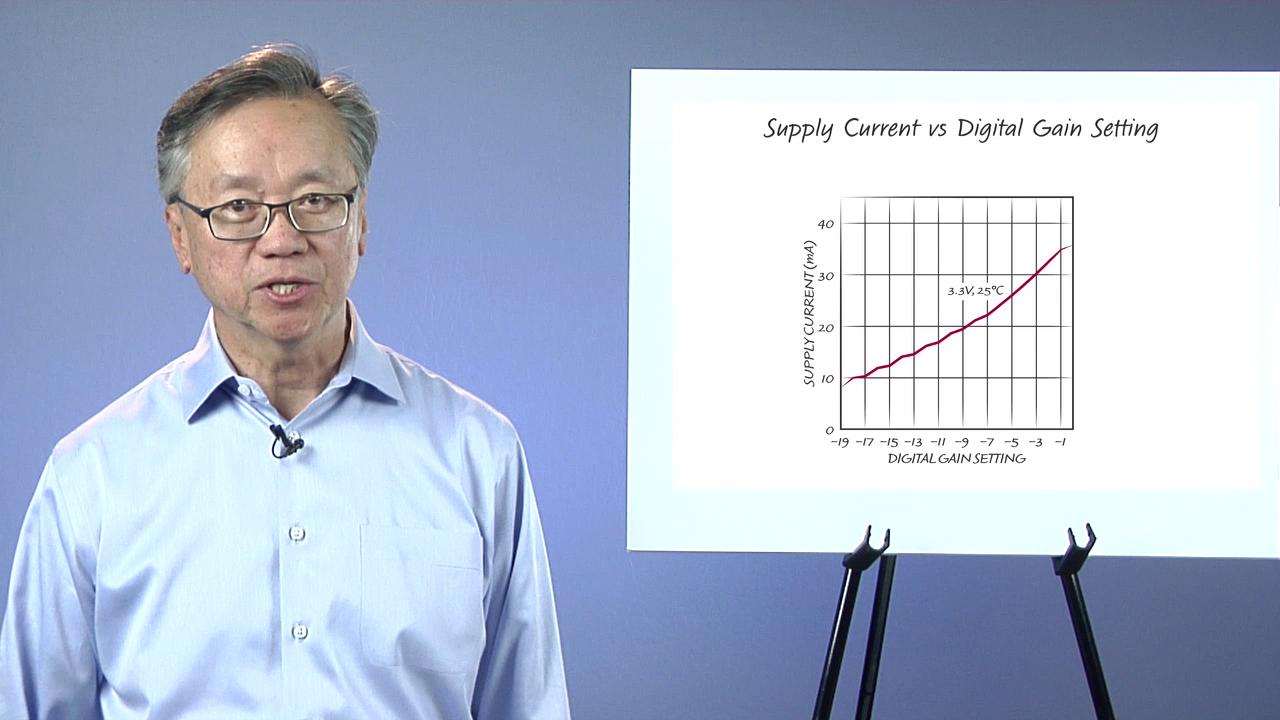

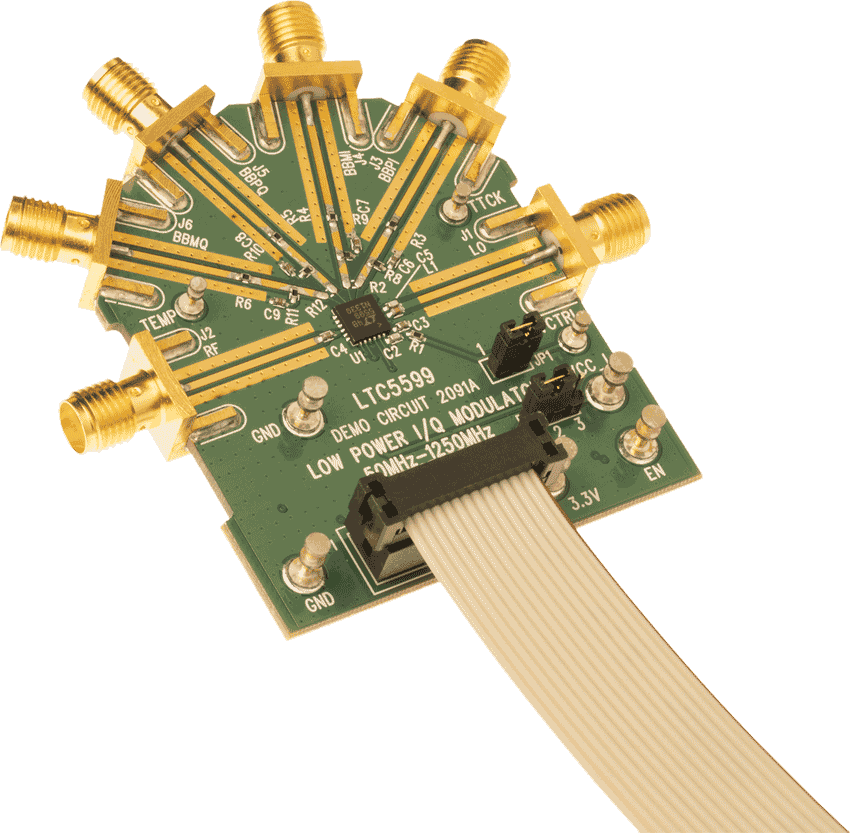

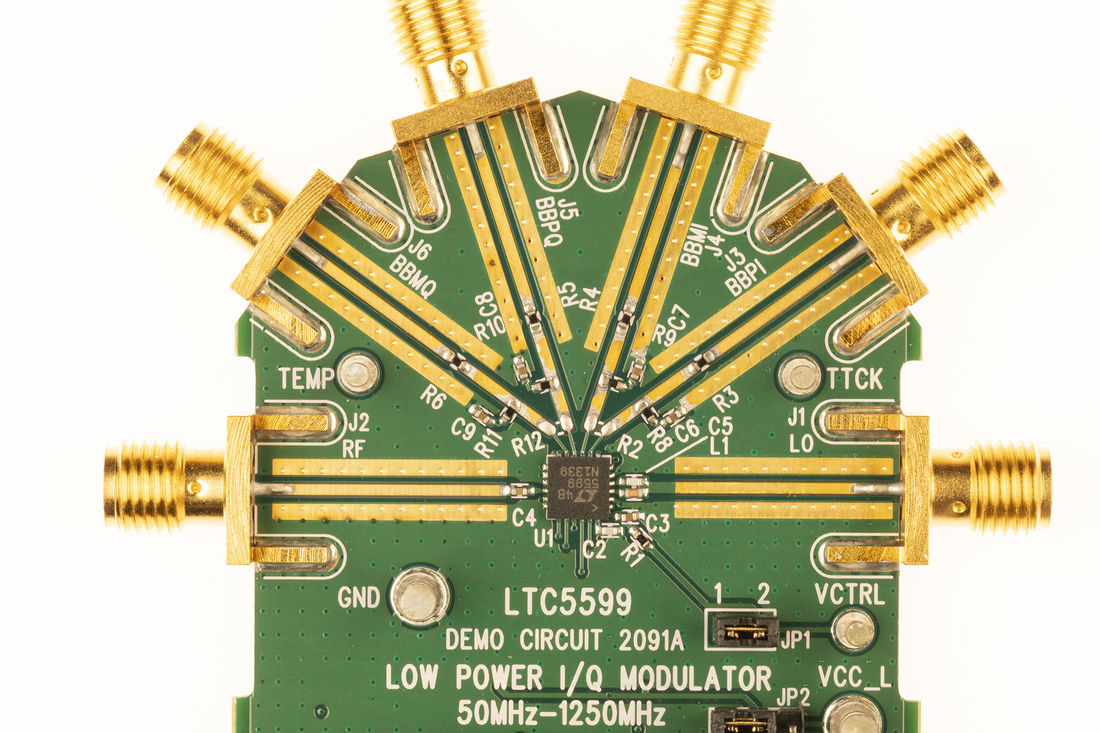

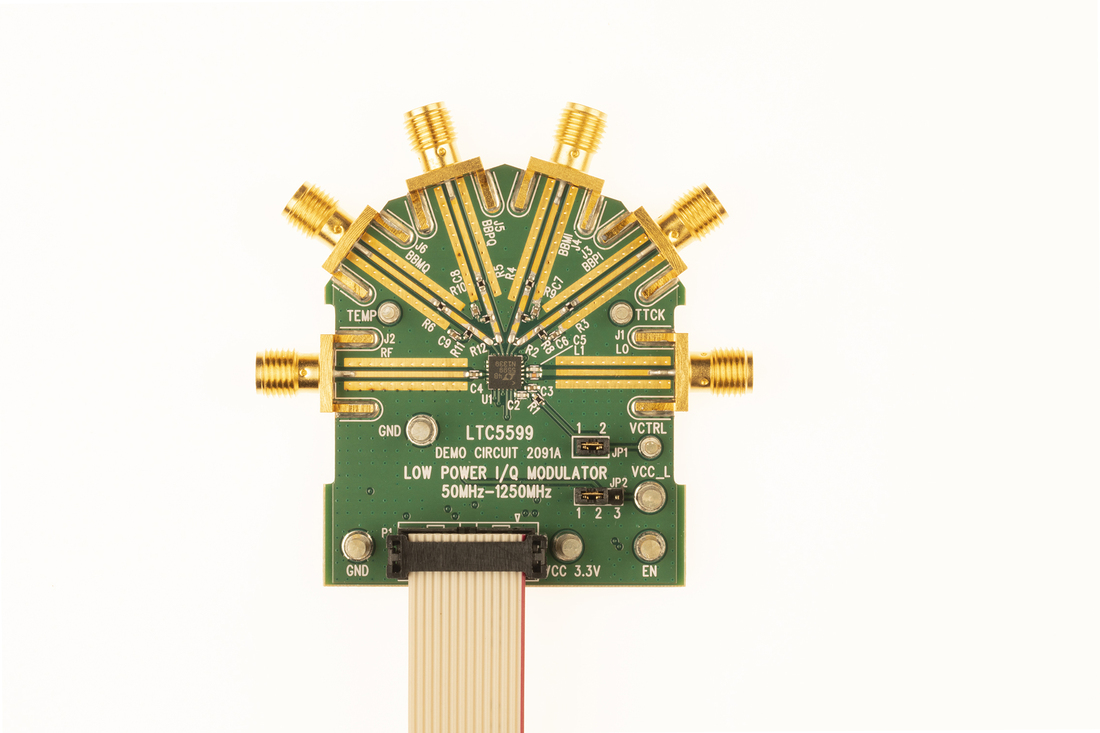

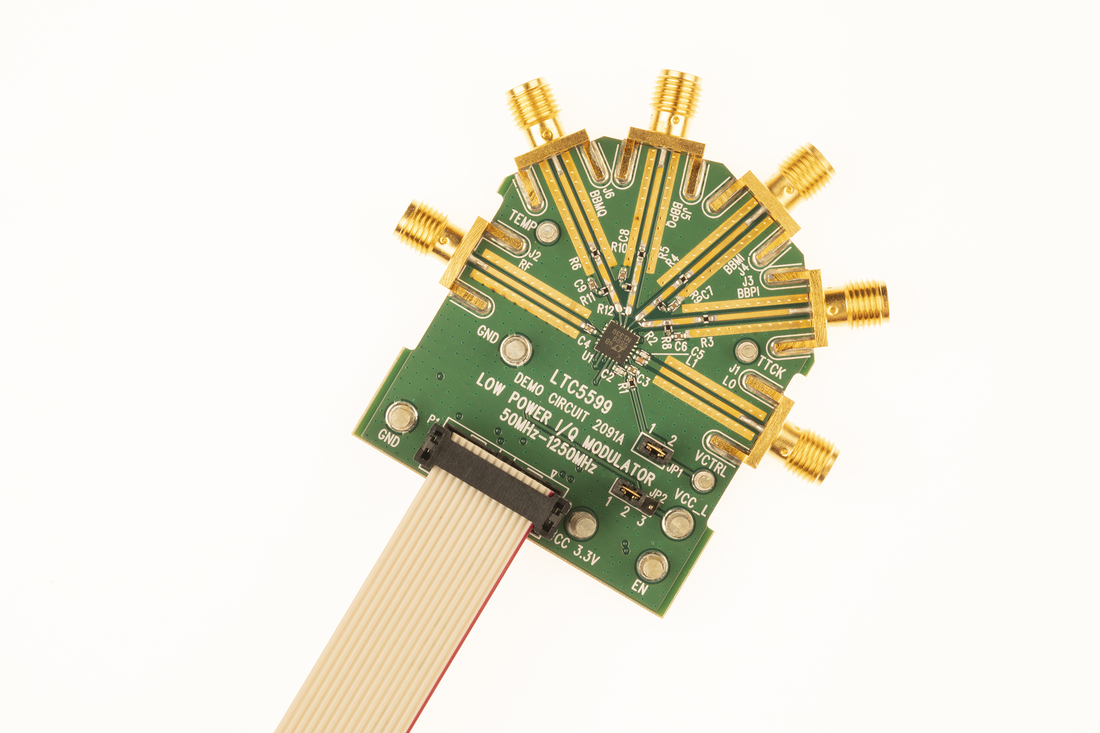

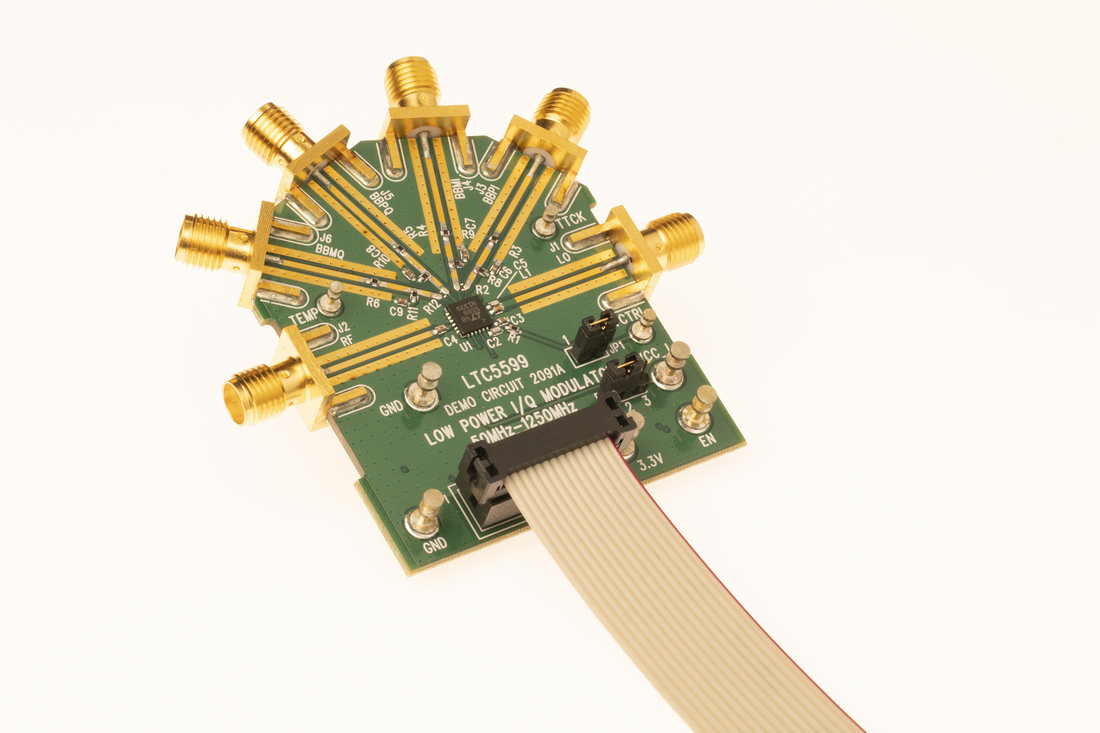

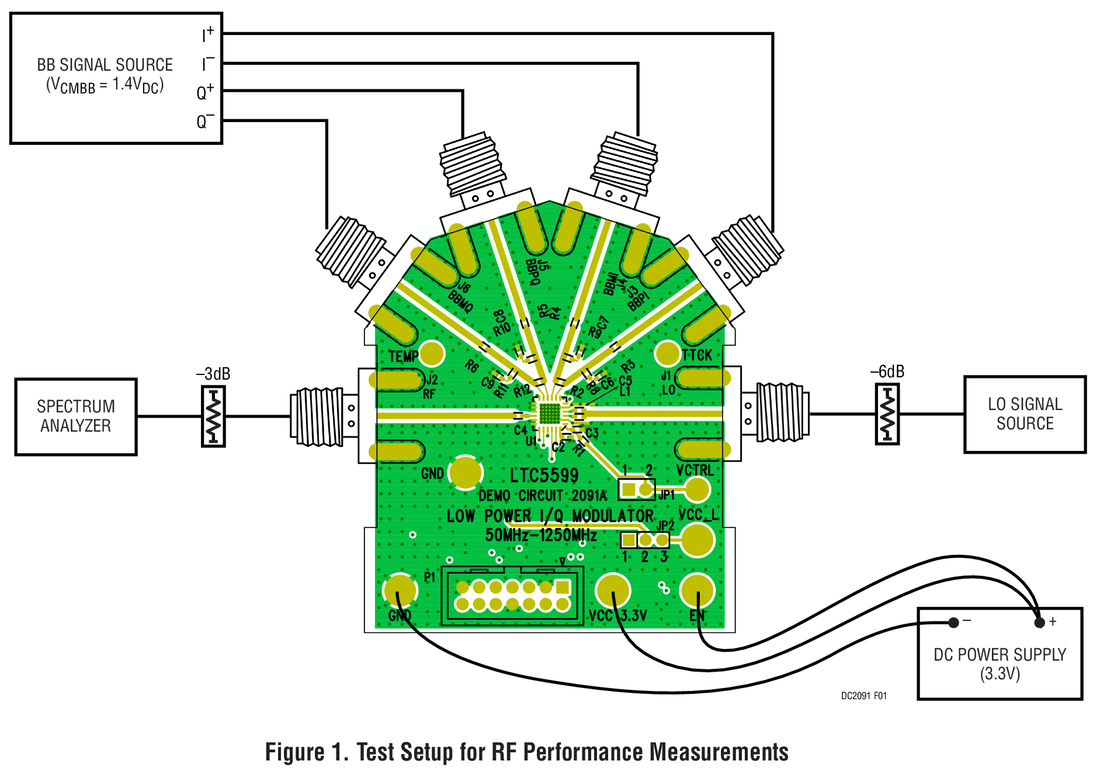

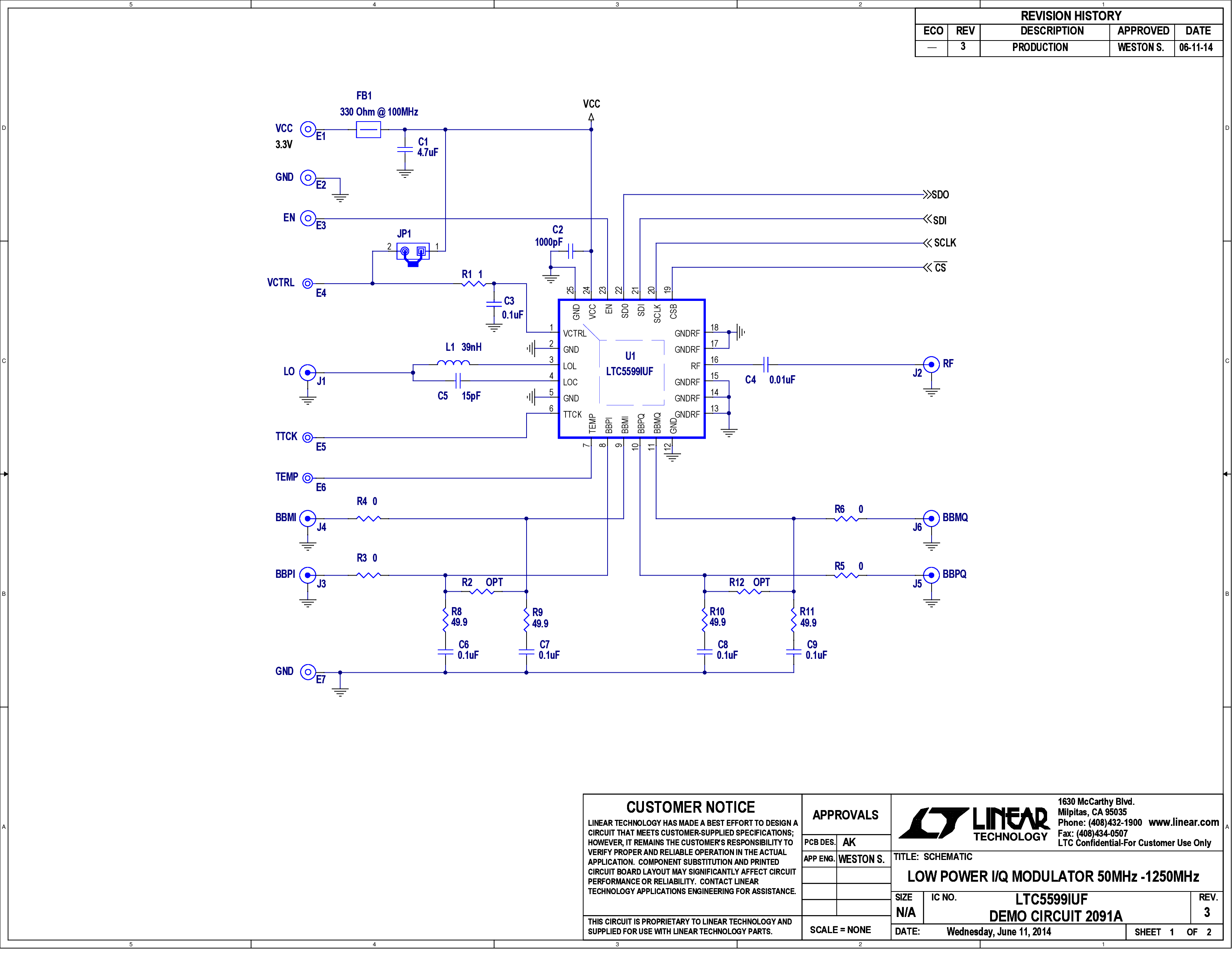

Evaluation Kits (1)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Linduino

Design Tools

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Product Recommendations

LTC5599 Companion Parts

Recommended Output Amplifiers

Recommended Related Parts

Recommended Suggested Oscillator

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LTC5599IUF#PBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LTC5599IUF#TRPBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
Wafer Fabrication Data R550 Reliability Data
