LTC4364
RECOMMENDED FOR NEW DESIGNSSurge Stopper with Ideal Diode
- Part Models
- 52
- 1ku List Price
- Starting From $5.23
Overview
- Wide Operating Voltage Range: 4V to 80V
- Withstands Surges Over 80V with VCC Clamp
- Adjustable Output Clamp Voltage
- Ideal Diode Controller Holds Up Output Voltage During Input Brownouts
- Reverse Input Protection to -40V
- Reverse Output Protection to -20V
- Overcurrent Protection
- Low 10μA Shutdown Current at 12V
- Adjustable Fault Timer
- 0.1% Retry Duty Cycle During Faults (LTC4364-2)
- Available in 4mm x 3mm 14-Lead DFN, 16-Lead MSOP, and 16-Lead SO Packages
- AEC-Q100 Qualified for Automotive Applications
The LTC4364 surge stopper with ideal diode controller protects loads from high voltage transients. It limits and regulates the output during an overvoltage event, such as load dump in automobiles, by controlling the voltage drop across an external N-channel MOSFET pass device. The LTC4364 also includes a timed, current limited circuit breaker. In a fault condition, an adjustable fault timer must expire before the pass device is turned off. The LTC4364-1 latches off the pass device while the LTC4364-2 automatically restarts after a delay. The LTC4364 precisely monitors the input supply for overvoltage (OV) and undervoltage (UV) conditions. The external MOSFET is held off in undervoltage and auto-retry is disabled in overvoltage.
An integrated ideal diode controller drives a second MOSFET to replace a Schottky diode for reverse input protection and output voltage holdup. The LTC4364 controls the forward voltage drop across the MOSFET and minimizes reverse current transients upon power source failure, brownout or input short.
APPLICATIONS
- Automotive/Avionic Surge Protection
- Hot Swap/Live Insertion
- Redundant Supply ORing
- Output Port Protection
Documentation
Data Sheet 1
User Guide 1
Technical Articles 4
Video 2
Product Selector Card 3
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jan 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products |
||
| LTC4364CDE-1#PBF | PRODUCTION | |
| LTC4364CDE-1#TRPBF | PRODUCTION | |
| LTC4364CDE-2#PBF | PRODUCTION | |
| LTC4364CDE-2#TRPBF | PRODUCTION | |
| LTC4364HDE-1#PBF | PRODUCTION | |
| LTC4364HDE-1#TRPBF | PRODUCTION | |
| LTC4364HDE-2#PBF | PRODUCTION | |
| LTC4364HDE-2#TRPBF | PRODUCTION | |
| LTC4364IDE-1#PBF | PRODUCTION | |
| LTC4364IDE-1#TRPBF | PRODUCTION | |
| LTC4364IDE-2#PBF | PRODUCTION | |
| LTC4364IDE-2#TRPBF | PRODUCTION | |
|
Jul 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan) |
||
| LTC4364CDE-1#PBF | PRODUCTION | |
| LTC4364CDE-1#TRPBF | PRODUCTION | |
| LTC4364CDE-2#PBF | PRODUCTION | |
| LTC4364CDE-2#TRPBF | PRODUCTION | |
| LTC4364CMS-1#PBF | PRODUCTION | |
| LTC4364CMS-1#TRPBF | PRODUCTION | |
| LTC4364CMS-2#PBF | PRODUCTION | |
| LTC4364CMS-2#TRPBF | PRODUCTION | |
| LTC4364CS-1#PBF | PRODUCTION | |
| LTC4364CS-1#TRPBF | PRODUCTION | |
| LTC4364CS-2#PBF | PRODUCTION | |
| LTC4364CS-2#TRPBF | PRODUCTION | |
| LTC4364HDE-1#PBF | PRODUCTION | |
| LTC4364HDE-1#TRPBF | PRODUCTION | |
| LTC4364HDE-2#PBF | PRODUCTION | |
| LTC4364HDE-2#TRPBF | PRODUCTION | |
| LTC4364HMS-1#PBF | PRODUCTION | |
| LTC4364HMS-1#TRPBF | PRODUCTION | |
| LTC4364HMS-2#PBF | PRODUCTION | |
| LTC4364HMS-2#TRPBF | PRODUCTION | |
| LTC4364HS-1#PBF | PRODUCTION | |
| LTC4364HS-1#TRPBF | PRODUCTION | |
| LTC4364HS-2#PBF | PRODUCTION | |
| LTC4364HS-2#TRPBF | PRODUCTION | |
| LTC4364IDE-1#PBF | PRODUCTION | |
| LTC4364IDE-1#TRPBF | PRODUCTION | |
| LTC4364IDE-2#PBF | PRODUCTION | |
| LTC4364IDE-2#TRPBF | PRODUCTION | |
| LTC4364IMS-1#PBF | PRODUCTION | |
| LTC4364IMS-1#TRPBF | PRODUCTION | |
| LTC4364IMS-2#PBF | PRODUCTION | |
| LTC4364IMS-2#TRPBF | PRODUCTION | |
| LTC4364IS-1#PBF | PRODUCTION | |
| LTC4364IS-1#TRPBF | PRODUCTION | |
| LTC4364IS-2#PBF | PRODUCTION | |
| LTC4364IS-2#TRPBF | PRODUCTION | |
|
Oct 28, 2019 - 19_0208 LTC4364 Notification of Die Revision Change |
||
| LTC4364CDE-1#PBF | PRODUCTION | |
| LTC4364CDE-1#TRPBF | PRODUCTION | |
| LTC4364CDE-2#PBF | PRODUCTION | |
| LTC4364CDE-2#TRPBF | PRODUCTION | |
| LTC4364CMS-1#PBF | PRODUCTION | |
| LTC4364CMS-1#TRPBF | PRODUCTION | |
| LTC4364CMS-2#PBF | PRODUCTION | |
| LTC4364CMS-2#TRPBF | PRODUCTION | |
| LTC4364CS-1#PBF | PRODUCTION | |
| LTC4364CS-1#TRPBF | PRODUCTION | |
| LTC4364CS-2#PBF | PRODUCTION | |
| LTC4364CS-2#TRPBF | PRODUCTION | |
| LTC4364HDE-1#PBF | PRODUCTION | |
| LTC4364HDE-1#TRPBF | PRODUCTION | |
| LTC4364HDE-2#PBF | PRODUCTION | |
| LTC4364HDE-2#TRPBF | PRODUCTION | |
| LTC4364HMS-1#PBF | PRODUCTION | |
| LTC4364HMS-1#TRPBF | PRODUCTION | |
| LTC4364HMS-2#PBF | PRODUCTION | |
| LTC4364HMS-2#TRPBF | PRODUCTION | |
| LTC4364HS-1#PBF | PRODUCTION | |
| LTC4364HS-1#TRPBF | PRODUCTION | |
| LTC4364HS-2#PBF | PRODUCTION | |
| LTC4364HS-2#TRPBF | PRODUCTION | |
| LTC4364IDE-1#PBF | PRODUCTION | |
| LTC4364IDE-1#TRPBF | PRODUCTION | |
| LTC4364IDE-2#PBF | PRODUCTION | |
| LTC4364IDE-2#TRPBF | PRODUCTION | |
| LTC4364IMS-1#PBF | PRODUCTION | |
| LTC4364IMS-1#TRPBF | PRODUCTION | |
| LTC4364IMS-2#PBF | PRODUCTION | |
| LTC4364IMS-2#TRPBF | PRODUCTION | |
| LTC4364IS-1#PBF | PRODUCTION | |
| LTC4364IS-1#TRPBF | PRODUCTION | |
| LTC4364IS-2#PBF | PRODUCTION | |
| LTC4364IS-2#TRPBF | PRODUCTION | |
|
Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package |
||
| LTC4364CMS-1#PBF | PRODUCTION | |
| LTC4364CMS-1#TRPBF | PRODUCTION | |
| LTC4364HMS-1#PBF | PRODUCTION | |
| LTC4364HMS-1#TRPBF | PRODUCTION | |
| LTC4364IMS-1#PBF | PRODUCTION | |
| LTC4364IMS-1#TRPBF | PRODUCTION | |
|
Feb 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LTC4364CMS-1#PBF | PRODUCTION | |
| LTC4364CMS-1#TRPBF | PRODUCTION | |
| LTC4364CMS-2#PBF | PRODUCTION | |
| LTC4364CMS-2#TRPBF | PRODUCTION | |
| LTC4364HMS-1#PBF | PRODUCTION | |
| LTC4364HMS-1#TRPBF | PRODUCTION | |
| LTC4364HMS-2#PBF | PRODUCTION | |
| LTC4364HMS-2#TRPBF | PRODUCTION | |
| LTC4364IMS-1#PBF | PRODUCTION | |
| LTC4364IMS-1#TRPBF | PRODUCTION | |
| LTC4364IMS-2#PBF | PRODUCTION | |
| LTC4364IMS-2#TRPBF | PRODUCTION | |
|
Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2) |
||
| LTC4364CMS-2#PBF | PRODUCTION | |
| LTC4364CMS-2#TRPBF | PRODUCTION | |
| LTC4364HMS-1#WPBF | PRODUCTION | |
| LTC4364HMS-1#WTRPBF | PRODUCTION | |
| LTC4364HMS-2#PBF | PRODUCTION | |
| LTC4364HMS-2#TRPBF | PRODUCTION | |
| LTC4364HMS-2#WPBF | PRODUCTION | |
| LTC4364HMS-2#WTRPBF | PRODUCTION | |
| LTC4364IMS-1#WPBF | PRODUCTION | |
| LTC4364IMS-1#WTRPBF | PRODUCTION | |
| LTC4364IMS-2#PBF | PRODUCTION | |
| LTC4364IMS-2#TRPBF | PRODUCTION | |
| LTC4364IMS-2#WPBF | PRODUCTION | |
| LTC4364IMS-2#WTRPBF | PRODUCTION | |
|
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package |
||
| LTC4364CS-1#PBF | PRODUCTION | |
| LTC4364CS-1#TRPBF | PRODUCTION | |
| LTC4364CS-2#PBF | PRODUCTION | |
| LTC4364CS-2#TRPBF | PRODUCTION | |
| LTC4364HS-1#PBF | PRODUCTION | |
| LTC4364HS-1#TRPBF | PRODUCTION | |
| LTC4364HS-1#WPBF | PRODUCTION | |
| LTC4364HS-1#WTRPBF | PRODUCTION | |
| LTC4364HS-2#PBF | PRODUCTION | |
| LTC4364HS-2#TRPBF | PRODUCTION | |
| LTC4364HS-2#WPBF | PRODUCTION | |
| LTC4364HS-2#WTRPBF | PRODUCTION | |
| LTC4364IS-1#PBF | PRODUCTION | |
| LTC4364IS-1#TRPBF | PRODUCTION | |
| LTC4364IS-1#WPBF | PRODUCTION | |
| LTC4364IS-1#WTRPBF | PRODUCTION | |
| LTC4364IS-2#PBF | PRODUCTION | |
| LTC4364IS-2#TRPBF | PRODUCTION | |
| LTC4364IS-2#WPBF | PRODUCTION | |
| LTC4364IS-2#WTRPBF | PRODUCTION | |
|
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG] |
||
| LTC4364CS-1#PBF | PRODUCTION | |
| LTC4364CS-1#TRPBF | PRODUCTION | |
| LTC4364CS-2#PBF | PRODUCTION | |
| LTC4364CS-2#TRPBF | PRODUCTION | |
| LTC4364HS-1#PBF | PRODUCTION | |
| LTC4364HS-1#TRPBF | PRODUCTION | |
| LTC4364HS-2#PBF | PRODUCTION | |
| LTC4364HS-2#TRPBF | PRODUCTION | |
| LTC4364IS-1#PBF | PRODUCTION | |
| LTC4364IS-1#TRPBF | PRODUCTION | |
| LTC4364IS-2#PBF | PRODUCTION | |
| LTC4364IS-2#TRPBF | PRODUCTION | |
|
Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices |
||
| LTC4364HMS-1#WPBF | PRODUCTION | |
| LTC4364HMS-1#WTRPBF | PRODUCTION | |
| LTC4364HMS-2#WPBF | PRODUCTION | |
| LTC4364HMS-2#WTRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Ideal Diodes and PowerPath Controllers 1 | ||
| LTC4359 | RECOMMENDED FOR NEW DESIGNS | Ideal Diode Controller with Reverse Input Protection |
Tools & Simulations
LTspice 1
Models for the following parts are available in LTspice:
- LTC4364-1
- LTC4364-2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Evaluation Kits

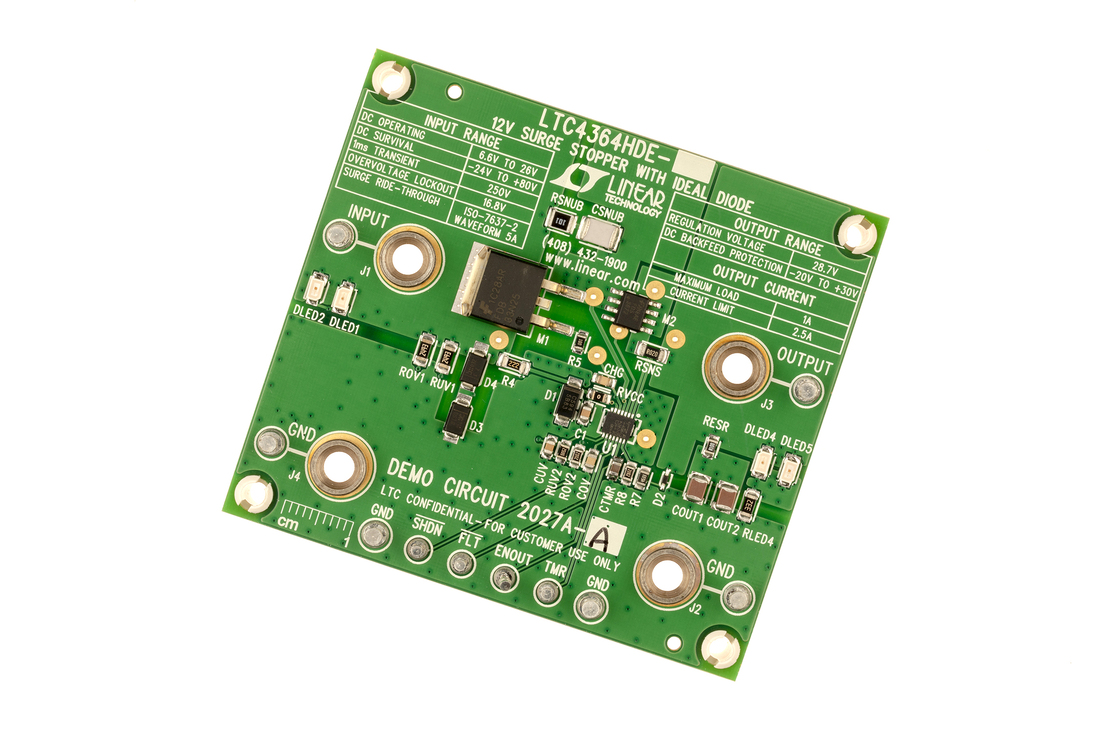

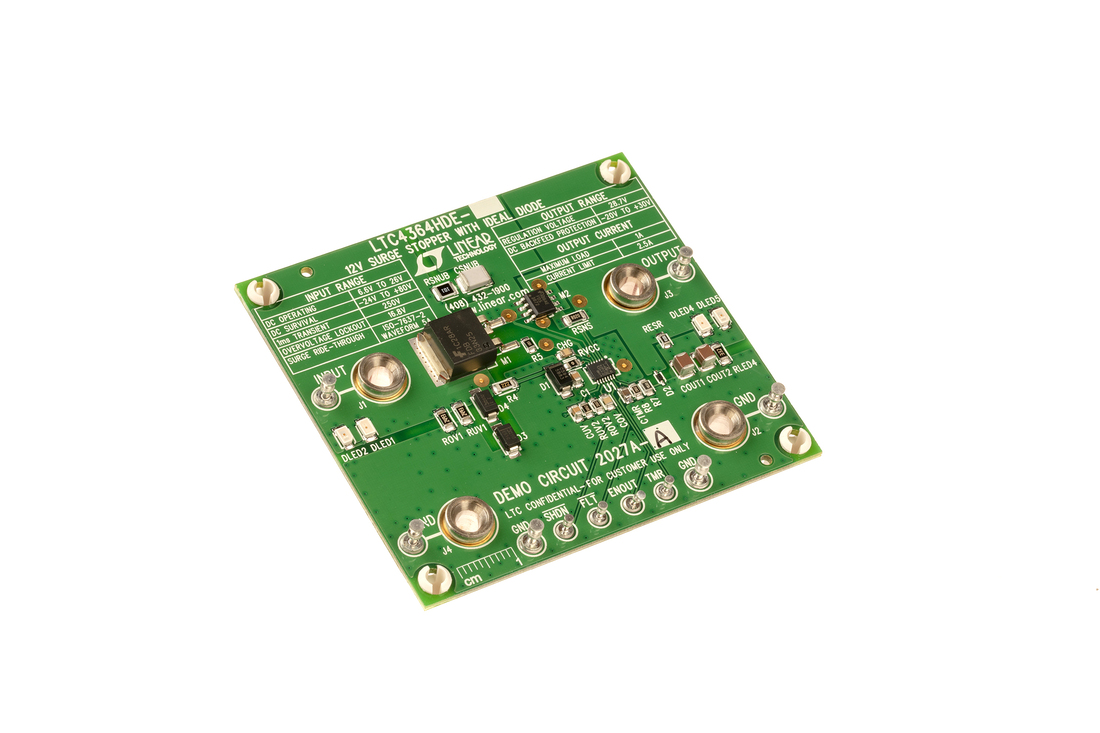

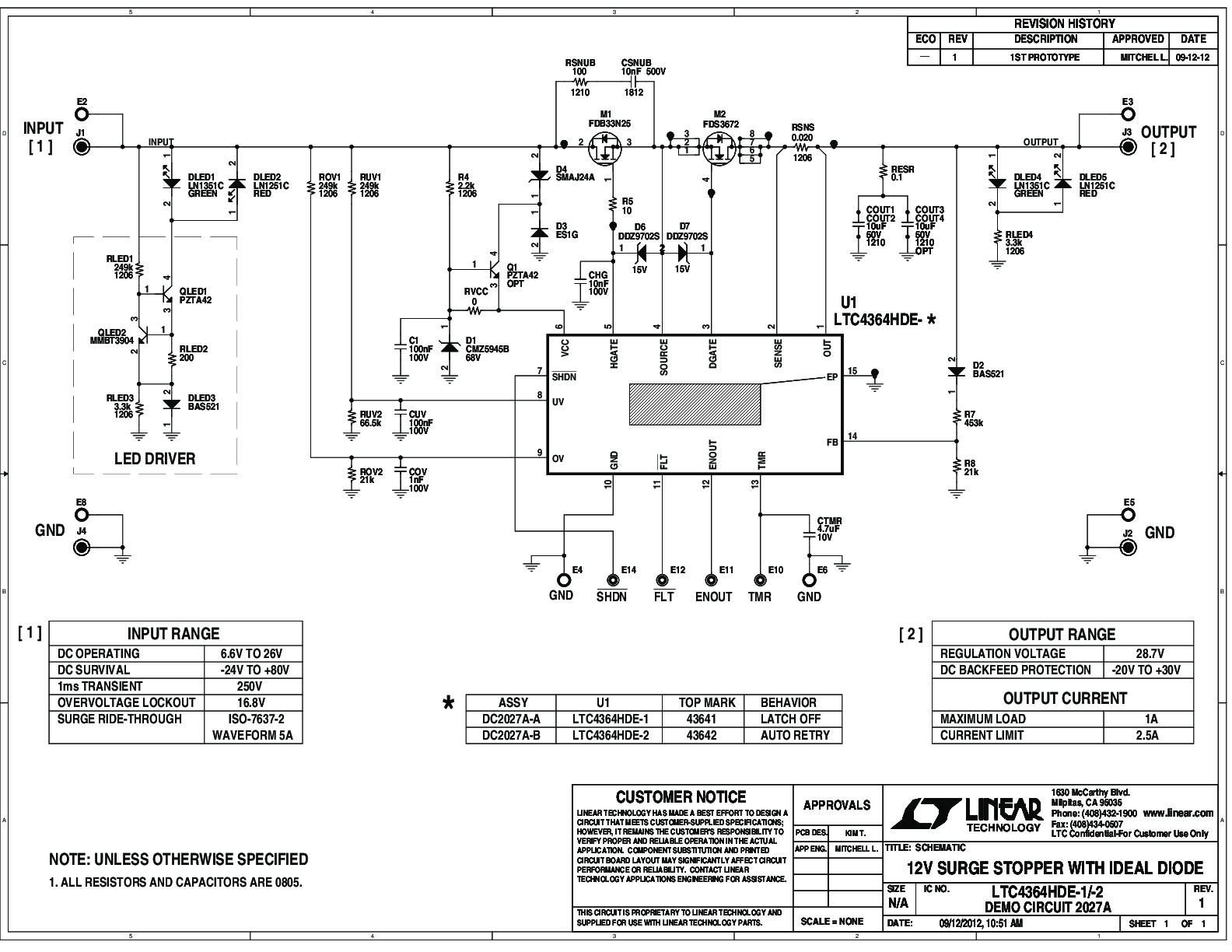

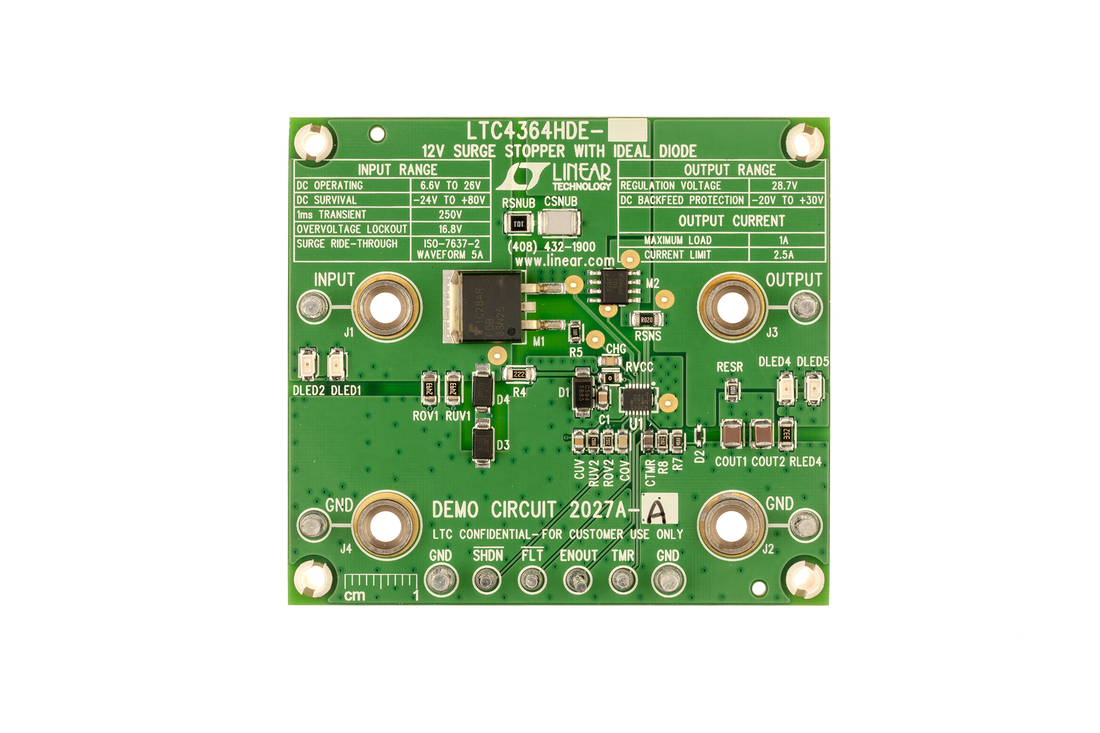

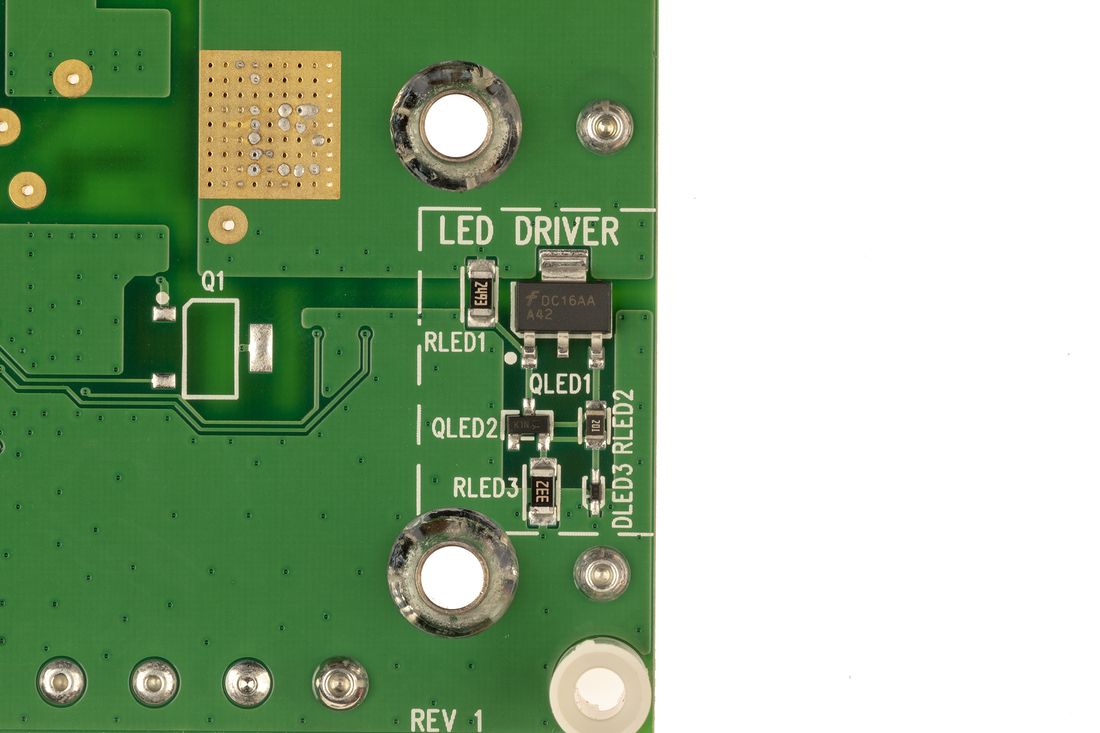

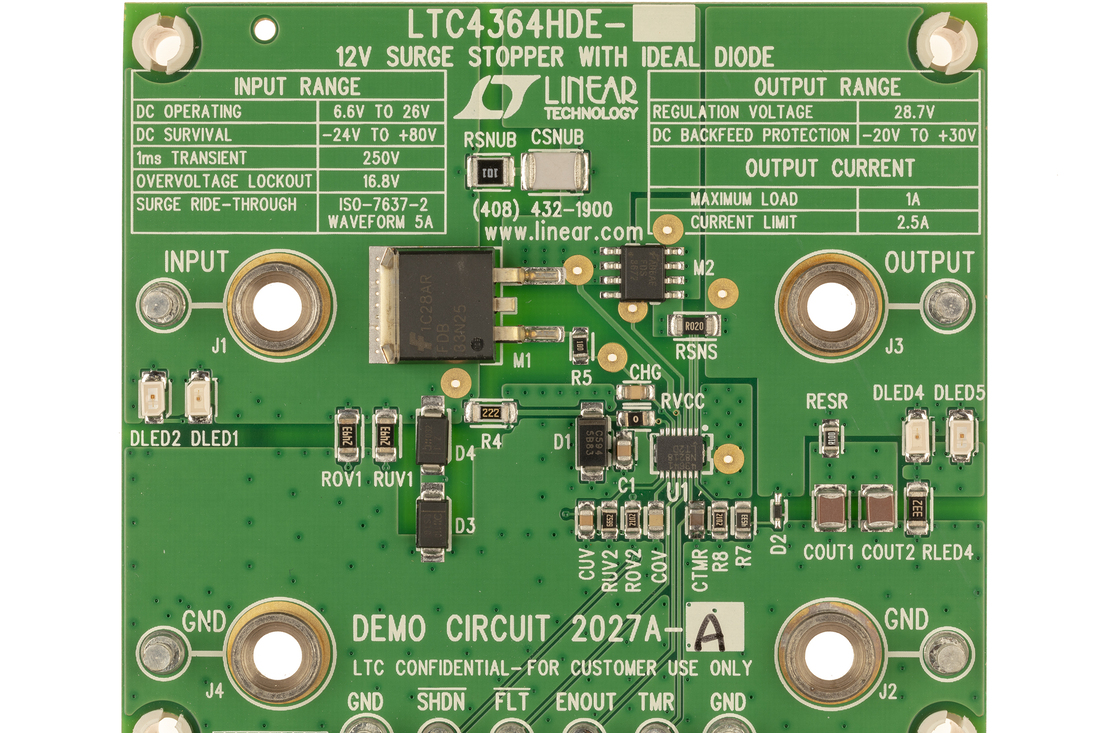

LTC4364DE-1 Demoboard: 12V Surge Stopper with Ideal Diode, Latch Off
Resources
LTC4364DE-1 Demoboard: 12V Surge Stopper with Ideal Diode, Latch Off
Resources

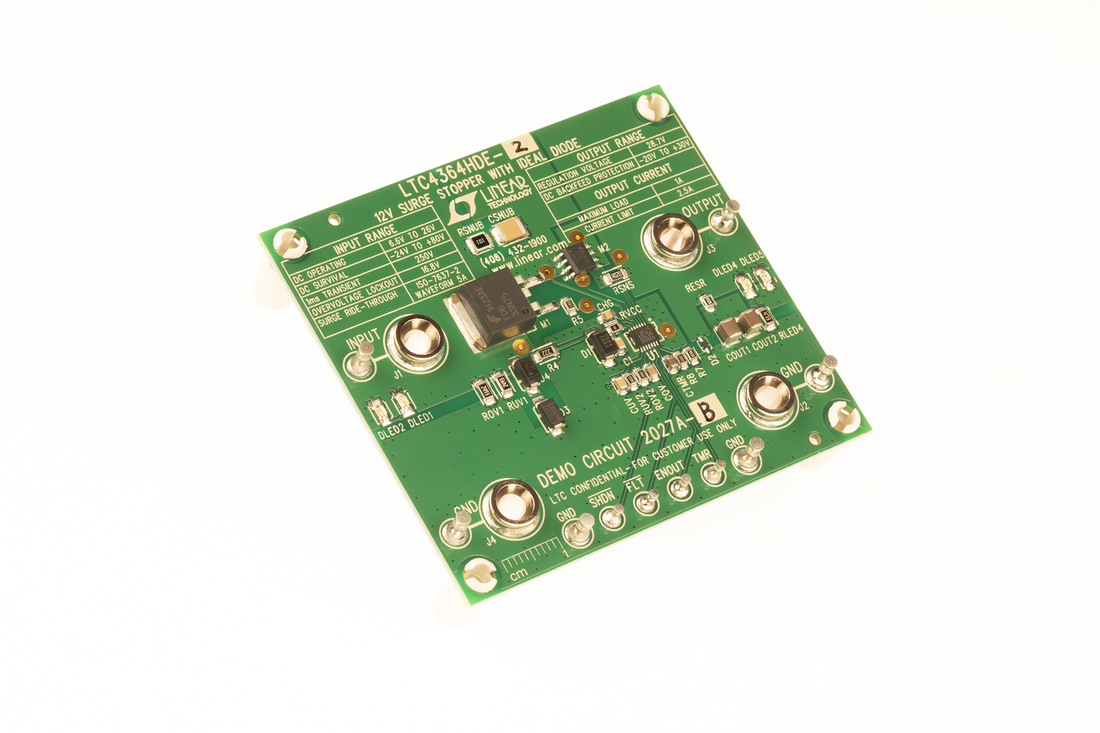

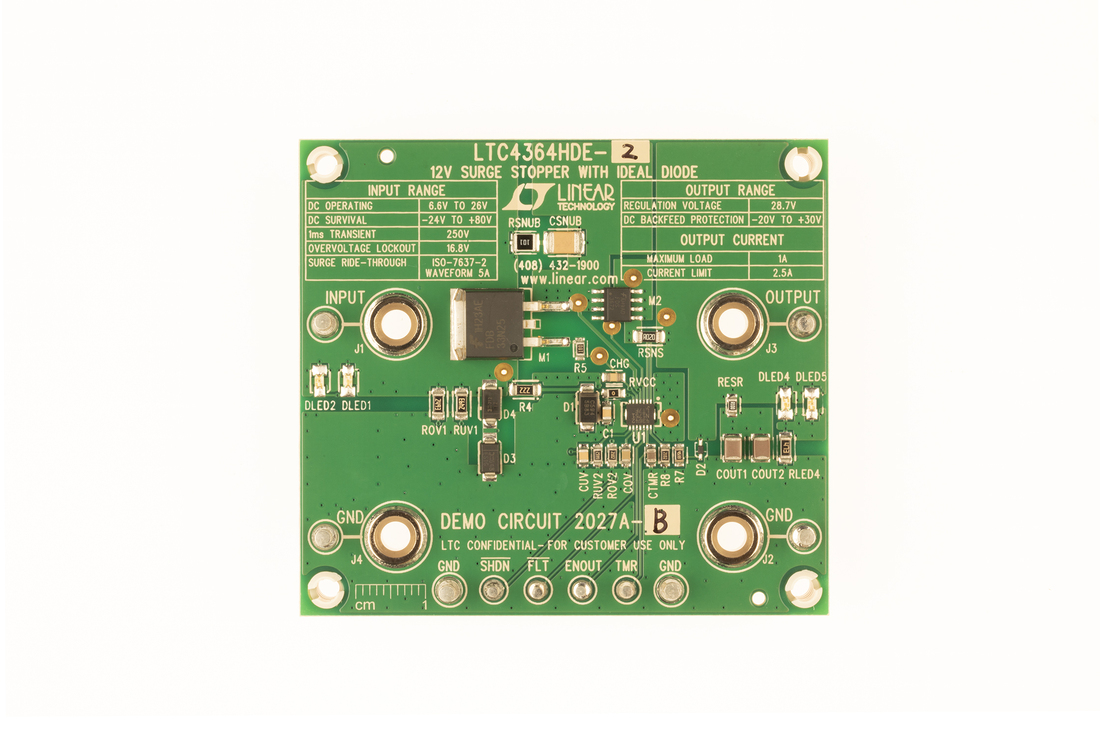

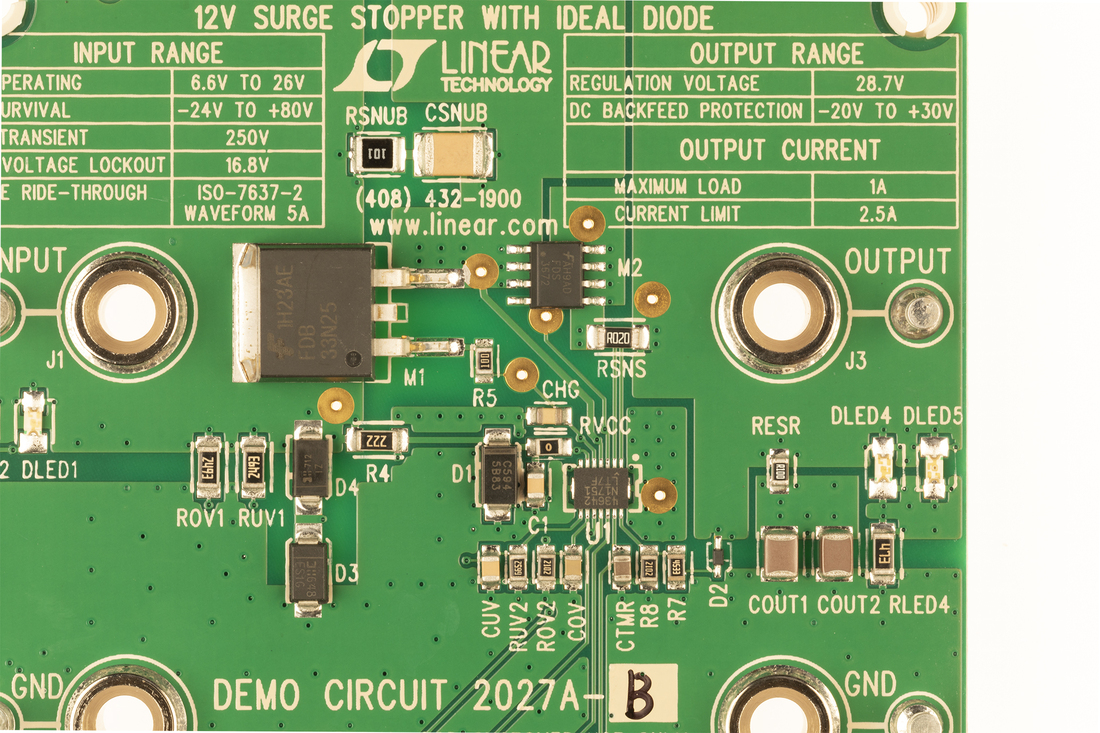

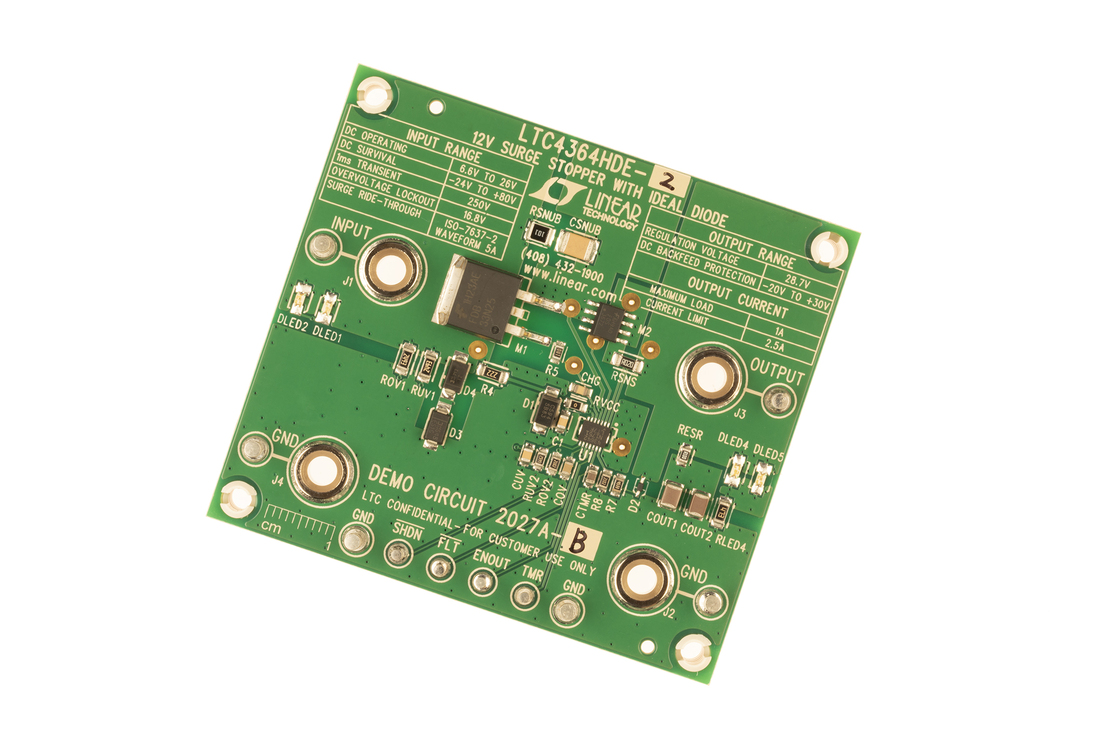

LTC4364DE-2 Demoboard: 12V Surge Stopper with Ideal Diode, Auto Retry
Resources
LTC4364DE-2 Demoboard: 12V Surge Stopper with Ideal Diode, Auto Retry
Resources
Reference Designs
Configurable USB-C Power Sink Solution
