LTC4269-2

IEEE 802.3at High Power PD and Synchronous Forward Controller with AUX Support

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC4269-2 - Power-over-Ethernet (PoE) Interface Controllers Download 5.36 KB
Part Models 4
1ku List Price Starting From $2.71
Features
  • 25.5W IEEE 802.3at Compliant (Type-2) PD
  • PoE+ 2-Event Classification
  • IEEE 802.3at High Power Available Indicator
  • Integrated State-of-the-Art Synchronous Forward Controller
    • – Isolated Power Supply Efficiency >94%
  • Flexible Auxiliary Power Interface
  • Superior EMI Performance
  • Robust 100V 0.7Ω (Typ) Integrated Hot Swap™ MOSFET
  • Integrated Signature Resistor, Programmable Class Current, UVLO, OVLO and Thermal Protection
  • Short-Circuit Protection with Auto-Restart
  • Programmable Switching Frequency from 100kHz to 500kHz
  • Thermally Enhanced 7mm × 4mm DFN Package
Additional Details
show more Icon

The LTC4269-2 is an integrated Powered Device (PD) interface and power supply controller featuring 2-event classification signaling, flexible auxiliary power options, and a power supply controller suitable for synchronously rectified forward supplies. These features make the LTC4269-2 ideally suited for an IEEE802.3at PD application.

The PD controller features a 100V MOSFET that isolates the power supply during detection and classification, and provides 100mA inrush current limit. Also included are power good outputs, an undervoltage/overvoltage lockout and thermal protection. The current mode forward controller allows for synchronous rectification, resulting in an extremely high efficiency, green product. Soft-start for controlled output voltage start-up and fault recovery is included. Programmable frequency over 100kHz to 500kHz allows flexibility in efficiency vs size and low EMI.

Applications

  • IP Phones with Large Color Screens
  • Dual Radio 802.11n Access Points
  • PTZ Security Cameras
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC4269-2 - Power-over-Ethernet (PoE) Interface Controllers Download 5.36 KB
Part Models 4
1ku List Price Starting From $2.71
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4269-2

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/06/2010
English

LTC4269-2: IEEE 802.3at High Power PD and Synchronous Forward Controller with AUX Support Data Sheet

Open PDF File

redirect
388.00K
download

Download PDF

PDF Vector

PDF

UPDATED 06/11/2010
Japanese

LTC4269-2: 補助サポート付きIEEE 802.3at 高電力PDおよび同期整流式フォワード・コントローラ データシート

Open PDF File

redirect
2.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 01/23/2013
English
DC1351B - Demo Manual redirect icon

1.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R535 Reliability Data redirect icon

36.41 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 09/01/2009
English
PD Controller ICs with Integrated Flyback or Forward Controllers Meet Demands of 25.5W PoE+ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selector Card 3

Power over Ethernet Solutions
PoE PD Controllers
PoE+ for the Power Hungry

Video

1

Thumbnail Image

Video

2018-08-20

02:51

Next Generation Power Over Ethernet

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4269CDKD-2#PBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269CDKD-2#TRPBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269IDKD-2#PBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4269IDKD-2#TRPBF 32-Lead DFN (7mm x 4mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

PoE Powered Device (PD)1
LT4275
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

LTPoE++/PoE+/PoE PD Controller

Power Monitors1
LT2940
popup image
Cart

PRODUCTION

Power and Current Monitor

Evaluation Kits 1

reference details image

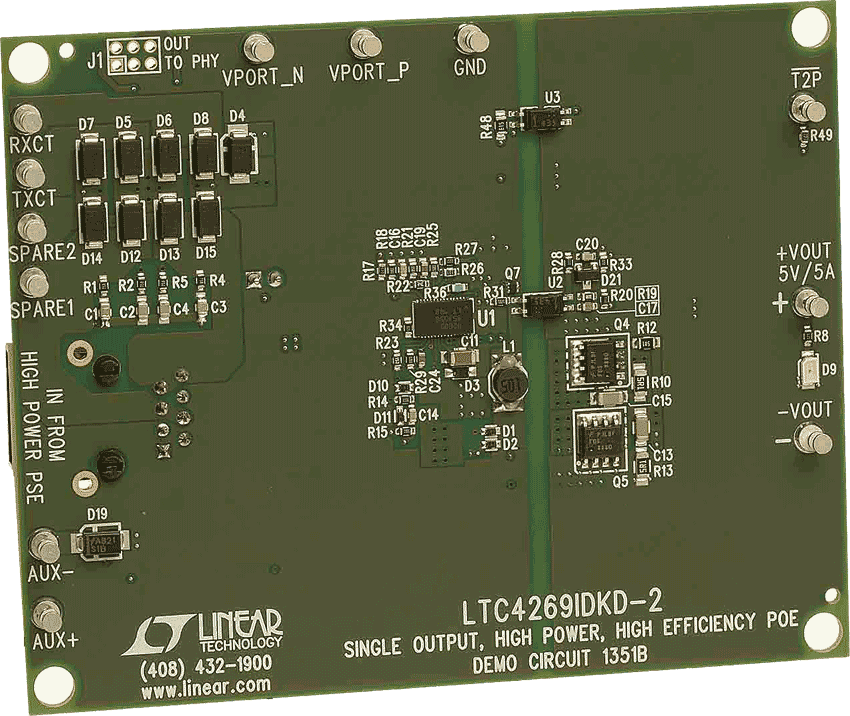

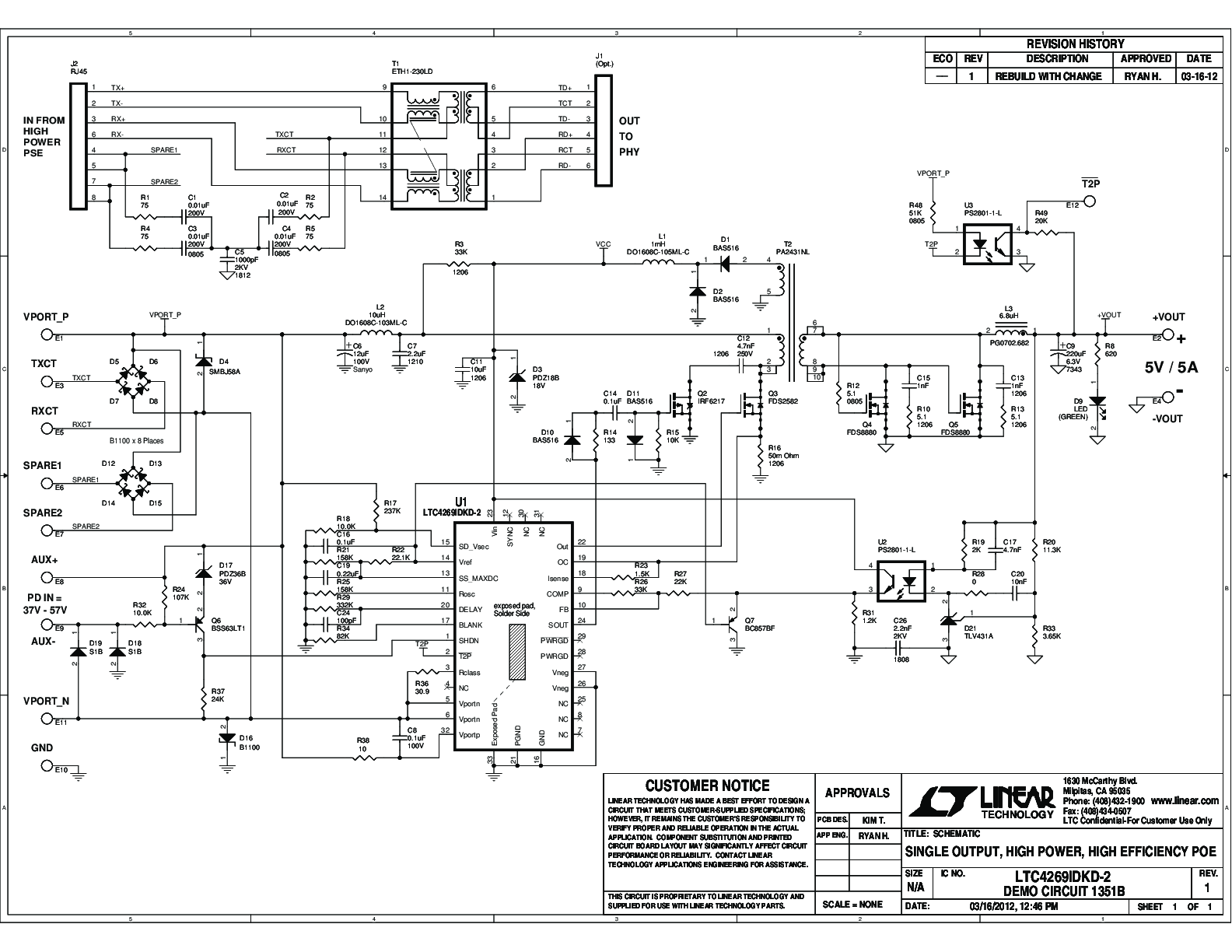

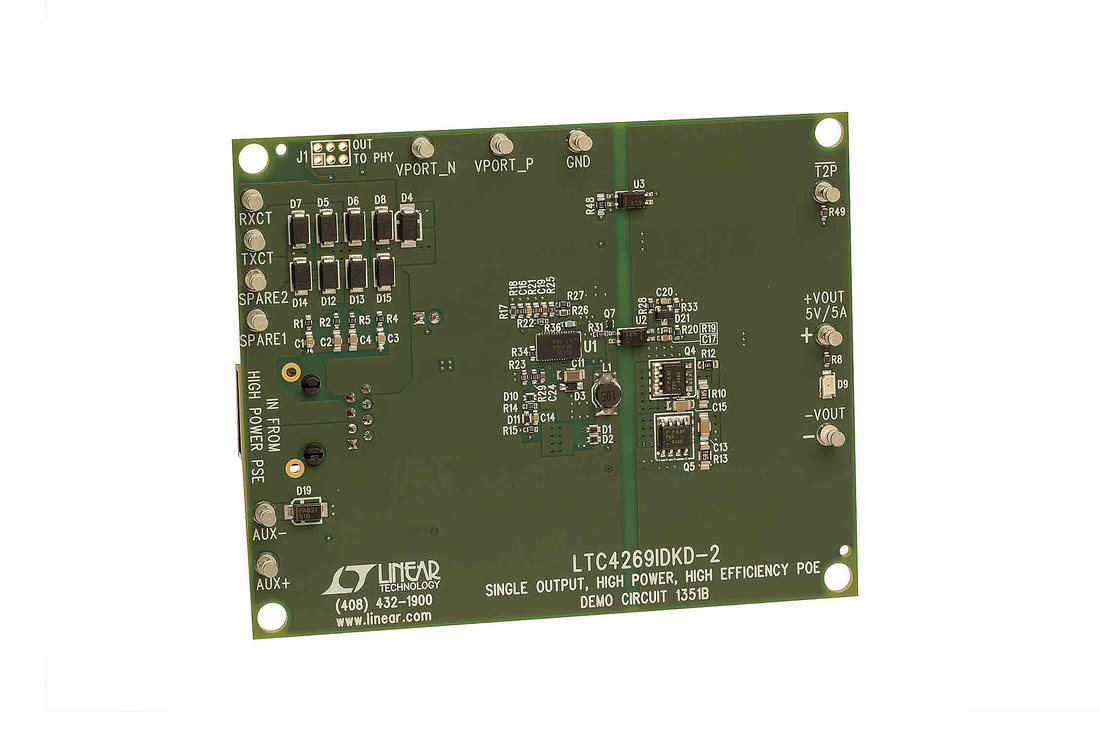

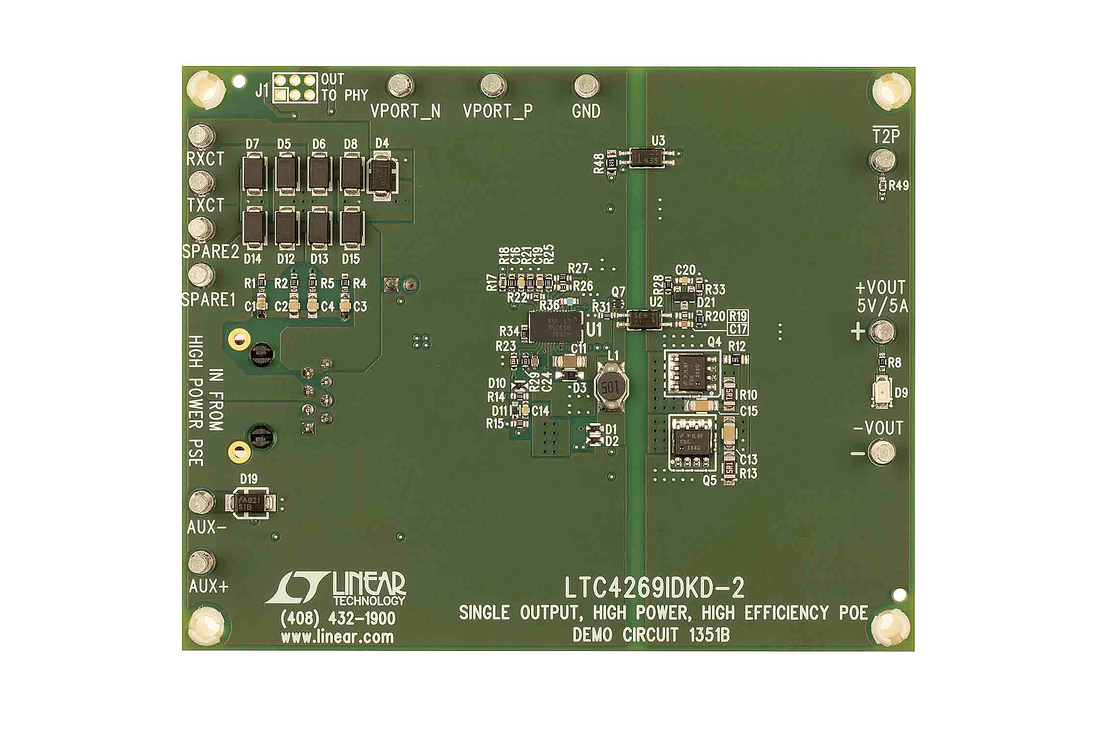

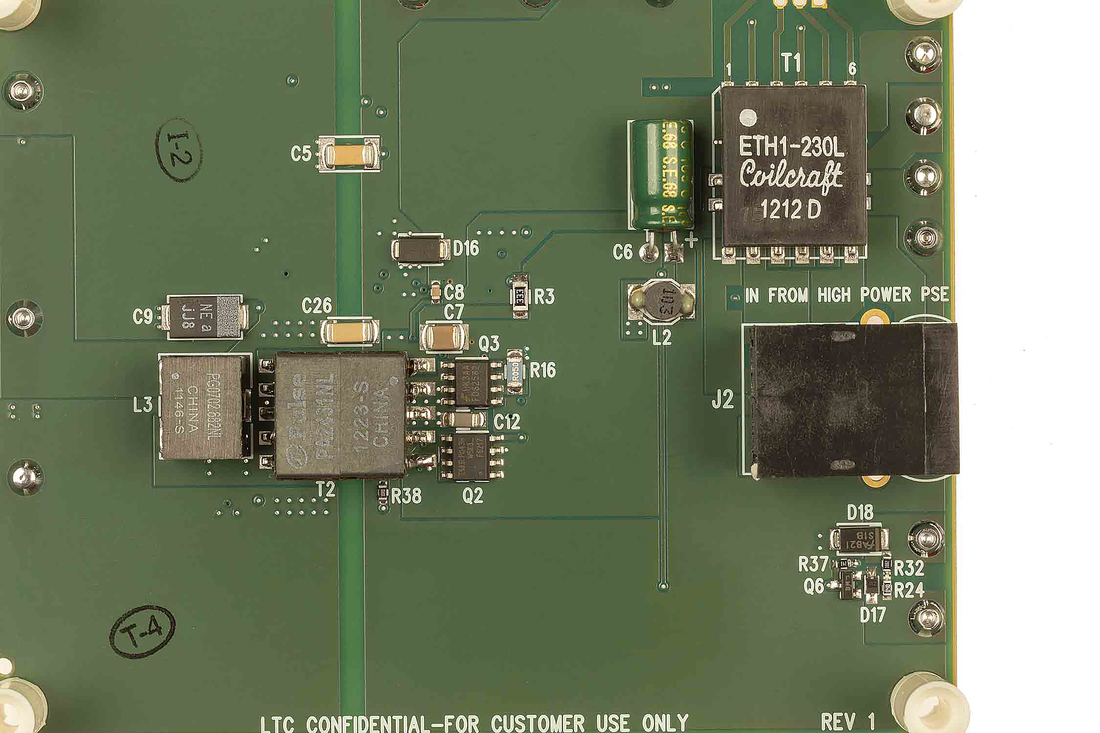

DC1351B

LTC4269-2 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 5V, IOUT = 5A

Evaluation Kits1

evaluation kit item images

DC1351B

LTC4269-2 | PoE Powered Device w/48V Isolated Auxiliary, VOUT = 5V, IOUT = 5A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC4269-2 - Power-over-Ethernet (PoE) Interface Controllers Download
