LTC4013

RECOMMENDED FOR NEW DESIGNS

60V Synchronous Buck Multi-Chemistry Battery Charger

Data Sheet (Rev. B) Product Selection Table

Part Models: 4
1ku List Price: Starting From $4.72

Viewing:

Overview

Wide Input Voltage Range: 4.5V to 60V
Wide Battery Voltage Range: 2.4V to 60V
Built-In Charge Algorithms for Lead-Acid and Li-Ion
±0.5% Float Voltage Accuracy
±5% Charge Current Accuracy

Maximum Power Point Tracking Input Control
NTC Temperature Compensated Float Voltage
Two Open Drain Status Pins
Thermally Enhanced 28-Lead 4mm × 5mm QFN Package

The LTC4013 is a high voltage battery charger that is well suited for charging a wide range of lead-acid batteries including both vented and sealed types. It supports bulk, float, absorption and equalization charging. The LTC4013 also supports termination options for Li-Ion/Polymer and LiFePO₄ batteries.

Charging is performed with a high efficiency synchronous buck (step-down) converter that uses external N-channel MOSFETs. Switching frequency is resistor programmable or can be synchronized to an external clock. Charge current is programmed with an external sense resistor.

The LTC4013 also includes maximum power point tracking input-voltage regulation for limited power sources such as solar panels. Other features include user-programmable absorption and equalization times, temperature-compensated charge voltage and an external N-channel MOSFET isolation control circuit.

APPLICATIONS

Battery Backup for Lighting, UPS Systems, Security Cameras, Computer Control Panels
Portable Medical Equipment
Solar-Powered Systems
Industrial Battery Charging

Part Models: 4
1ku List Price: Starting From $4.72

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4013EUFD#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4013EUFD#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4013IUFD#PBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4013IUFD#TRPBF	28-Lead QFN (4mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 20, 2023 - 22_0301 LTC4013 Die Revision
		PCN22_0301_Form Material_Report Qualification Results Summary
LTC4013EUFD#PBF	PRODUCTION
LTC4013EUFD#TRPBF	PRODUCTION
LTC4013IUFD#PBF	PRODUCTION
LTC4013IUFD#TRPBF	PRODUCTION
Feb 20, 2022 - 21_0269 Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
		PCN21_0269_Form Material_Report Detailed Change Description Qualification Results Summary
LTC4013EUFD#PBF	PRODUCTION
LTC4013EUFD#TRPBF	PRODUCTION
LTC4013IUFD#PBF	PRODUCTION
LTC4013IUFD#TRPBF	PRODUCTION
Jun 8, 2020 - 20_0182 LTC4013 Die Revision and Data Sheet Change
		PCN20_0182_Form Material_Report Datasheet Specification Comparison Qualification Results Summary
LTC4013EUFD#PBF	PRODUCTION
LTC4013EUFD#TRPBF	PRODUCTION
LTC4013IUFD#PBF	PRODUCTION
LTC4013IUFD#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LTC4417	RECOMMENDED FOR NEW DESIGNS	Prioritized PowerPath^™ Controller
LTC4359	RECOMMENDED FOR NEW DESIGNS	Ideal Diode Controller with Reverse Input Protection

Parts	Product Life Cycle	Description
LTC4015	RECOMMENDED FOR NEW DESIGNS	Multichemistry Buck Battery Charger Controller with Digital Telemetry System
LTC4020	RECOMMENDED FOR NEW DESIGNS	55V Buck-Boost Multi-Chemistry Battery Charger

Evaluation Kits

LTC4013 Demo Board | 60V Synchronous Buck Multi-Chemistry Battery Charger, 21.5V ≤ VIN ≤ 35V or Adjustable Down to 5V; VBATT = 12V @ 5A

Buy Now View Details

Product Details

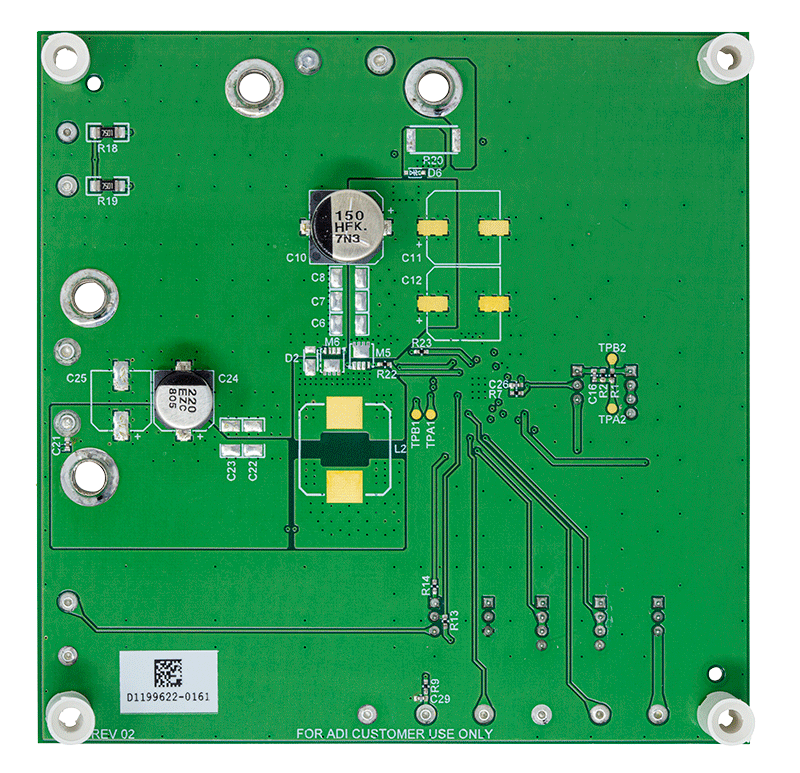

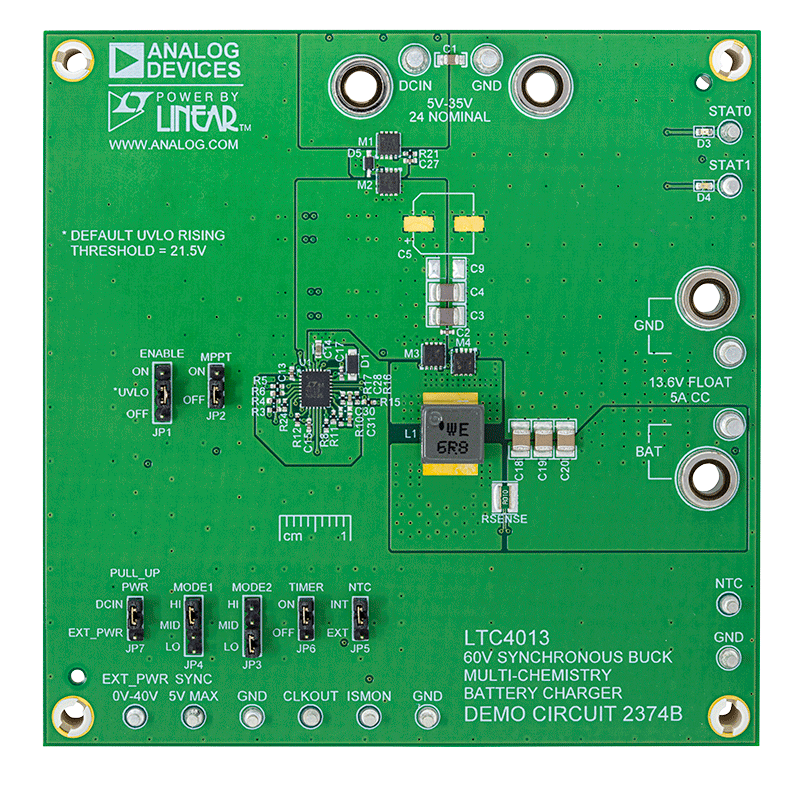

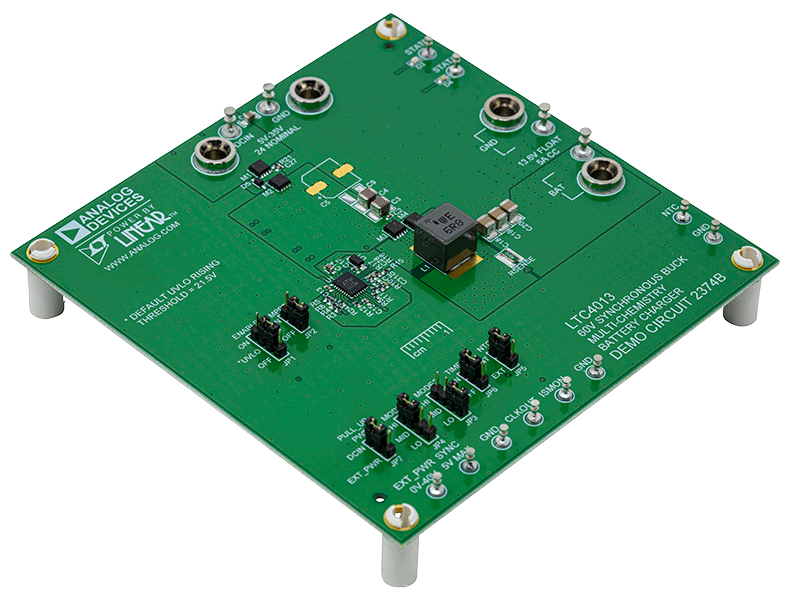

Demonstration circuit 2374A is a multi-chemistry battery charger with optional maximum power point tracking (MPPT) featuring the LTC4013. The LTC4013 has configurable 3 stage and 4 stage lead acid and Li-Ion battery algorithms in addition to 2 stage CC/CV charge cycles.
