LTC4015

Multichemistry Buck Battery Charger Controller with Digital Telemetry System

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.00
Features
  • Multichemistry Li-Ion/Polymer, LiFePO4, or Lead-Acid Battery Charger with Termination
  • High Efficiency Synchronous Buck Battery Charger
  • Digital Telemetry System Monitors VBAT, IBAT, RBAT, NTC Ratio (Battery Temperature), VIN, IIN, VSYSTEM, Die Temperature
  • Coulomb Counter and Integrated 14-Bit ADC
  • Wide Charging Input Voltage Range: 4.5V to 35V
  • Wide Battery Voltage Range: Up to 35V
  • Input Undervoltage Charge Current Limit Loop
  • Maximum Power Point Tracking
  • Optional I2C Serial Port Control
  • Input Current Limit Prioritizes System Load Output
  • Input and Output Ideal Diodes Provide Low Loss PowerPath™ Operation
  • Instant-On Operation with Discharged Battery
Additional Details
show more Icon

The LTC4015 is a complete synchronous buck controller/charger with pin-selectable, chemistry specific charging and termination algorithms.

The LTC4015 can charge Li-Ion/Polymer, LiFePO4, or lead-acid batteries. Battery charge voltage is pin selectable and I2C adjustable. Input current limit and charge current can be accurately programmed with sense resistors and can be individually adjusted via the I2C serial port. A digital telemetry system monitors all system power parameters.

Safety timer and current termination algorithms are supported for lithium chemistry batteries. The LTC4015 also includes automatic recharge, precharge (Li-Ion) and NTC thermistor protection. The LTC4015's I2C port allows user customization of charger algorithms, reading of charger status information, configuration of the maskable and programmable alerts, plus use and configuration of the Coulomb counter.

Available in a 38-Lead 5mm × 7mm QFN package.

Applications

  • Portable Medical Instruments/Military Equipment
  • Industrial Handhelds/Lighting
  • Ruggedized Notebook/Tablet Computers
  • Solar Battery Chargers
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $6.00
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4015

Documentation

10
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Spec Notice
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/24/2017
English

LTC4015: Multichemistry Buck Battery Charger Controller with Digital Telemetry System Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 04/26/2016
Japanese

LTC4015: デジタル遠隔測定システムを内蔵したマルチケミストリ降圧バッテリ・チャージャ・コントローラ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Spec Notice

1

PDF Vector

PDF

UPDATED 08/28/2017
English
Product Errata - LTC4015 redirect icon

163.00K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 04/04/2016
English
DC2039A - Demo Manual (Rev.D) redirect icon

4.75 M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R575 Reliability Data redirect icon

44.01 K

download

Download PDF

Technical Articles

3

PDF Vector

HTML

UPDATED 04/01/2017
English
Multi-Chemistry Battery Charger Supports Maximum Power Point Tracking for Solar Panels redirect icon

PDF Vector

HTML

UPDATED 02/03/2014
English
Techniques to Maximize Solar Panel Power Output redirect icon

PDF Vector

HTML

UPDATED 02/03/2014
Japanese
ソーラー・パネルの電力出力を最大限まで高めるテクニック redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 06/01/2020
English
Reverse Voltage Protection for Battery Chargers redirect icon

PDF Vector

HTML

UPDATED 06/01/2020
Chinese
电池充电器的反向电压保护 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 7
show more Icon

Data Sheet 1

LTC4015: Multichemistry Buck Battery Charger Controller with Digital Telemetry System Data Sheet

Reliability Data 1

R575 Reliability Data

User Guide 1

DC2039A - Demo Manual (Rev.D)

Application Note 1

Reverse Voltage Protection for Battery Chargers

Technical Articles 2

Multi-Chemistry Battery Charger Supports Maximum Power Point Tracking for Solar Panels
Techniques to Maximize Solar Panel Power Output

Spec Notice 1

Product Errata - LTC4015

Book & eBook 1

Power You Can Trust: Achieving Efficient Battery-Powered Solutions

Solutions Bulletin & Brochure 2

Industrial Battery Chargers Overview
35V Buck Battery Charger with Digital Telemetry

Product Selector Card 1

High Voltage Battery Charging and Management Solutions

Analog Dialogue 1

Simple Battery Charger ICs for Any Chemistry

Video

1

Thumbnail Image

Video

2017-09-18

Multi-chemistry Battery Charger Provides Battery Health and Power System Monitoring

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4015EUHF#PBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4015EUHF#TRPBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4015IUHF#PBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4015IUHF#TRPBF 38-Lead QFN (5mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description
LT3652HV
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Power Tracking 2A Battery Charger

LTC4020
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

55V Buck-Boost Multi-Chemistry Battery Charger

Evaluation Kits 1

reference details image

DC2039A

LTC4015EUHF Demo Board | Multichemistry Buck Battery Charger with Digital Telemetry System

zoom

DC2039A

LTC4015EUHF Demo Board | Multichemistry Buck Battery Charger with Digital Telemetry System

download icon

Download

 print icon

Print
DC2039A
LTC4015EUHF Demo Board | Multichemistry Buck Battery Charger with Digital Telemetry System
Buy Now View Details

Product Detail

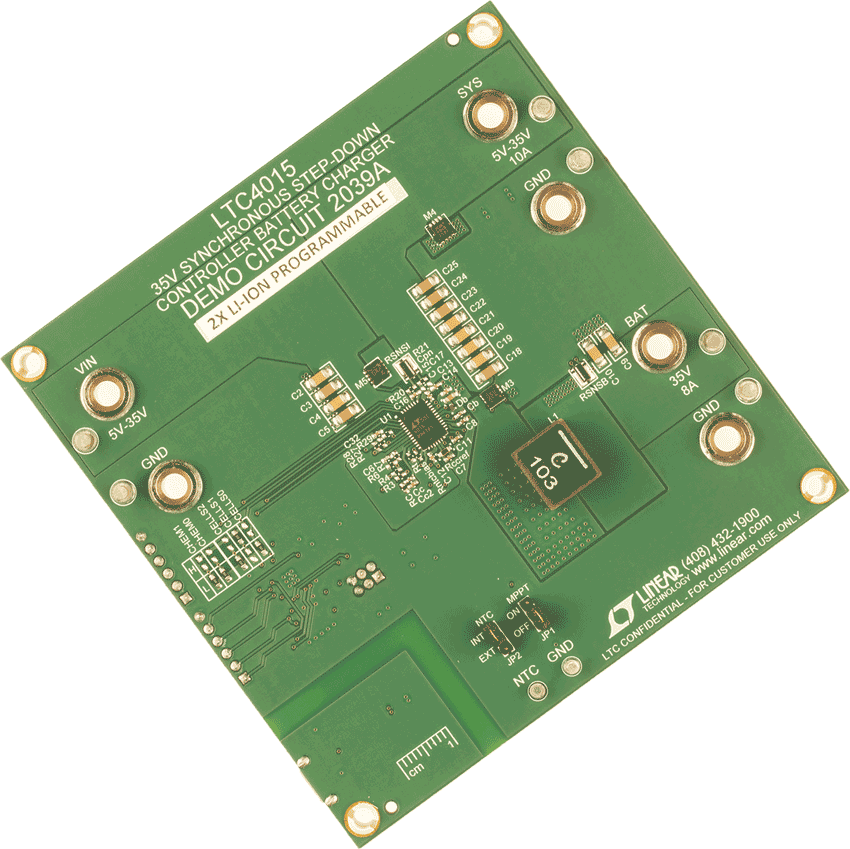

Demonstration Circuit 2039A features the LTC4015EUHF, a Multichemistry Buck Battery Charger with Digital Telemetry System, operating as a 2-cell Li-Ion, 8A battery charger. The DC2039A allows configuring the LTC4015 to support up to 9 cells for Li-Ion and LiFePO4, and 3, 6, or 12 cells for Lead-Acid batteries. Programmable and fully automatic charge algorithms can be chosen for each of the chemistries.
