LTC4000-1

High Voltage High Current Controller for Battery Charging with Maximum Power Point Control

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 8
1ku List Price Starting From $4.72
Features
  • Maximum Power Control: Solar Panel Input Compatible
  • Complete High Performance Battery Charger When Paired with a DC/DC Converter
  • Wide Input and Output Voltage Range: 3V to 60V
  • Input Ideal Diode for Low Loss Reverse Blocking and Load Sharing
  • Output Ideal Diode for Low Loss PowerPath and Load Sharing with the Battery
  • Programmable Charge Current: ±1% Accuracy
  • ±0.25% Accurate Programmable Float Voltage
  • Programmable C/X or Timer Based Charge Termination
  • NTC Input for Temperature Qualified Charging
  • 28-Lead 4mm × 5mm QFN or SSOP Packages
Additional Details
show more Icon

The LTC4000-1 is a high voltage, high performance controller that converts many externally compensated DC/DC power supplies into full-featured battery chargers with maximum power point control. In contrast to the LTC4000, the LTC4000-1 has an input voltage regulation loop instead of the input current regulation loop.

Features of the LTC4000-1’s battery charger include: accurate (±0.25%) programmable float voltage, selectable timer or current termination, temperature qualified charging using an NTC thermistor, automatic recharge, C/10 trickle charge for deeply discharged cells, bad battery detection and status indicator outputs. The battery charger also includes precision current sensing that allows lower sense voltages for high current applications.

The LTC4000-1 supports intelligent PowerPath control. An external PFET provides low loss reverse current protection. Another external PFET provides low loss charging or discharging of the battery. This second PFET also facilitates an instant-on feature that provides immediate downstream system power even when connected to a heavily discharged or shorted battery.

The LTC4000-1 is available in a low profile 28-lead 4mm × 5mm QFN and SSOP packages.




LTC4000 LTC4000-1
Input Voltage Regulation MPPC No Yes
Input Current Monitoring Yes Yes
Input Current Regulation Yes No


Applications

  • Solar Powered Battery Charger Systems
  • Battery Charger with High Impedance Input Source, e.g., Fuel Cell or Wind Turbine
  • Battery Equipped Industrial or Portable Military Equipments
Part Models 8
1ku List Price Starting From $4.72

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4000EGN-1#PBF
  • HTML
  • HTML
LTC4000EGN-1#TRPBF
  • HTML
  • HTML
LTC4000EUFD-1#PBF
  • HTML
  • HTML
LTC4000EUFD-1#TRPBF
  • HTML
  • HTML
LTC4000IGN-1#PBF
  • HTML
  • HTML
LTC4000IGN-1#TRPBF
  • HTML
  • HTML
LTC4000IUFD-1#PBF
  • HTML
  • HTML
LTC4000IUFD-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC4000EGN-1#PBF

PRODUCTION

LTC4000EGN-1#TRPBF

PRODUCTION

LTC4000IGN-1#PBF

PRODUCTION

LTC4000IGN-1#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4000EGN-1#PBF

PRODUCTION

LTC4000EGN-1#TRPBF

PRODUCTION

LTC4000IGN-1#PBF

PRODUCTION

LTC4000IGN-1#TRPBF

PRODUCTION

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC4000EUFD-1#PBF

PRODUCTION

LTC4000EUFD-1#TRPBF

PRODUCTION

LTC4000IUFD-1#PBF

PRODUCTION

LTC4000IUFD-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 3, 2024

- 24_0235

arrow down

(QSOP/SSOP PKG) Migrating Bottom Trace Code Marking to Top Side Laser Marking

LTC4000EGN-1#PBF

PRODUCTION

LTC4000EGN-1#TRPBF

PRODUCTION

LTC4000IGN-1#PBF

PRODUCTION

LTC4000IGN-1#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC4000EGN-1#PBF

PRODUCTION

LTC4000EGN-1#TRPBF

PRODUCTION

LTC4000IGN-1#PBF

PRODUCTION

LTC4000IGN-1#TRPBF

PRODUCTION

Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC4000EUFD-1#PBF

PRODUCTION

LTC4000EUFD-1#TRPBF

PRODUCTION

LTC4000IUFD-1#PBF

PRODUCTION

LTC4000IUFD-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 3

reference details image

DC1830B-D

LTC4000-1 Battery Charger Controller and PowerPath Manager with Maximum Power Point Control

zoom

DC1830B-D

LTC4000-1 Battery Charger Controller and PowerPath Manager with Maximum Power Point Control

LTC4000-1 Battery Charger Controller and PowerPath Manager with Maximum Power Point Control

Product Detail

Demonstration circuit 1830B is a battery charger controller and PowerPath™ manager with maximum power point control (MPPC) featuring the LTC4000-1. MPPC extracts near maximum power from high impedance sources such as solar panels, wind turbines or fuel cells. MPPC is achieved by means of an input voltage regulation control loop. This board should be connected to a front-end DC/DC power supply for a complete charger solution.








reference details image

DC1721B-B

LTC4000-1 Demo Board | 6V ≤ VIN ≤ 36V, Buck-Boost Battery Charger Controller with MPPC and PowerPath Manager, VOUT = 14.6V @ 5A

zoom

DC1721B-B

LTC4000-1 Demo Board | 6V ≤ VIN ≤ 36V, Buck-Boost Battery Charger Controller with MPPC and PowerPath Manager, VOUT = 14.6V @ 5A

LTC4000-1 Demo Board | 6V ≤ VIN ≤ 36V, Buck-Boost Battery Charger Controller with MPPC and PowerPath Manager, VOUT = 14.6V @ 5A

Product Detail

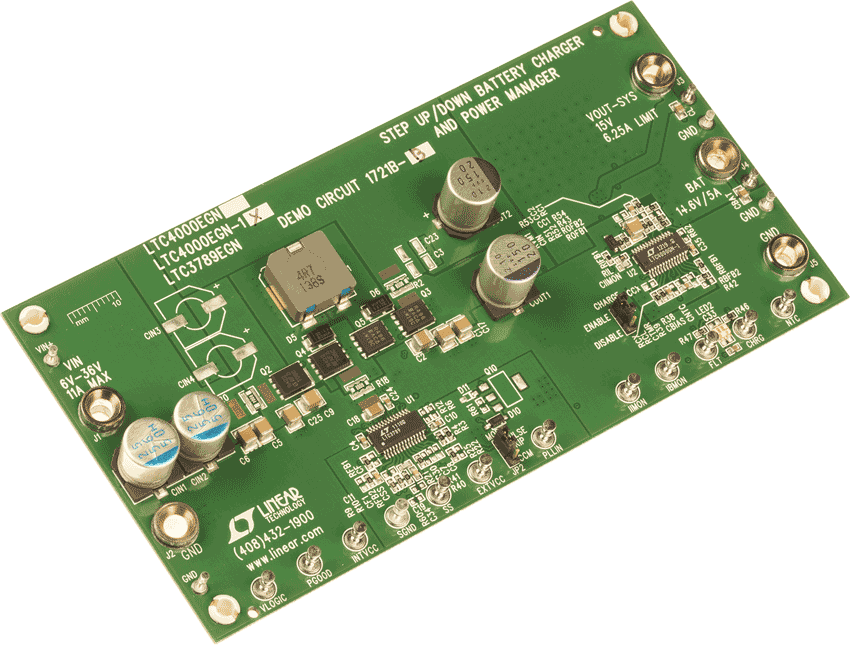

Demonstration circuit 1721B is a 14.6V, 5A battery charger and PowerPath™ manager with 6VIN to 36VIN buck-boost converter featuring the LTC4000-1/LTC3789, targeted at 4-cell LiFePO4 applications. The LTC4000-1 has an input voltage regulation loop for Maximum Power Point Control (MPPC). MPPC extracts near maximum power from high impedance sources such as solar panels, wind turbines, or fuel cells.
