Overview
Features and Benefits
Power Manager
- High Efficiency Switching PowerPath™ Controller with Bat-Track™ Adaptive Output Control
- Programmable USB or Wall Input Current Limit (100mA/500mA/1A)
- Full Featured Li-Ion/Polymer Battery Charger
- Instant-On Operation with Discharged Battery
- 1.5A Maximum Charge Current
- Internal 180mΩ Ideal Diode Plus External Ideal Diode Controller Powers Load in Battery Mode
- Low No-Load IQ when Powered from BAT (<30μA)
1A Buck-Boost DC/DC
- High Efficiency (1A IOUT)
- 2.25MHz Constant Frequency Operation
- Low No-Load Quiescent Current (~13μA)
- Zero Shutdown Current
- Pin Control of All Functions
Product Details
The LTC3566 family are highly integrated power management and battery charger ICs for Li-Ion/Polymer battery applications. They include a high efficiency current limited switching PowerPath manager with automatic load prioritization, a battery charger, an ideal diode, and a high efficiency synchronous buck-boost switching regulator. Designed specifically for USB applications, the LTC3566 family’s switching power manager automatically limits input current to a maximum of either 100mA or 500mA for USB applications or 1A for adapter-powered applications.
The LTC3566 family’s switching input stage transmits nearly all of the 2.5W available from the USB port to the system load with minimal power wasted as heat. This feature allows the LTC3566 family to provide more power to the application and eases the constraint of thermal budgeting in small spaces. The LTC3566-2 automatically reduces charge current to maintain a regulated 3.6V VOUT during low battery conditions; the LTC3566 does not. The synchronous buck-boost DC/DC can provide up to 1A.
The LTC3566 family is available in a low profile 24-lead 4mm × 4mm QFN surface mount package.
Applications
- HDD Based MP3 Players, PDA, GPS, PMP Products
- Other USB Based Handheld Products
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R540 Reliability Data3/26/2018PDF23 K
-

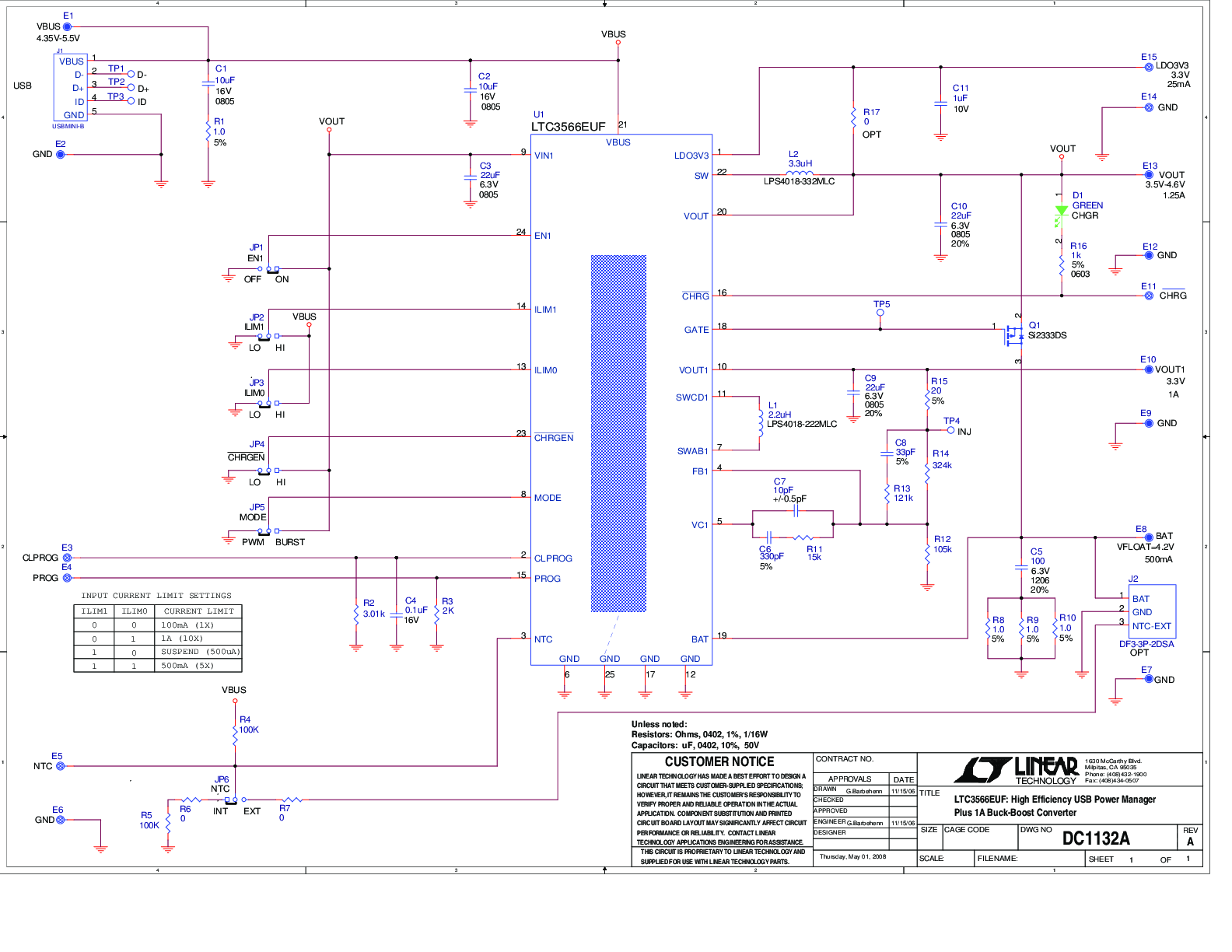

DC1132A - Demo Manual9/24/2009PDF325K
Product Recommendations
LTC3566 Companion Parts
Recommended Related Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC3566EUF#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3566EUF#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3566EUF-2#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3566EUF-2#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R540 Reliability Data |
