LTC3546

Dual Synchronous, 3A/1A or 2A/2A Configurable Step-Down DC/DC Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3546 Demo Circuit - Dual Synchronous Step-Down (2.5-5.5V to 2.5V @ 2A & 1.8V @ 2A) Download 4.00KB LTspice LTC3546 - Step-Down (Buck) Regulators Download 3.33 KB
Part Models 8
1ku List Price Starting From $4.48
Features
  • VIN Range: 2.25V to 5.5V
  • VOUT Range: 0.6V to 5V
  • Programmable Frequency Operation; 2.25MHz, or Adjustable Between 0.75MHz to 4MHz
  • Low RDS(ON) Internal Switches
  • High Efficiency: Up to 96%
  • No Schottky Diodes Required
  • Short-Circuit Protected
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Low Ripple Burst Mode Operation (30mVP-P), IQ = 160μA
  • Ultralow Shutdown Current: IQ < 1μA
  • Low Dropout Operation: 100% Duty Cycle
  • Power Good Output For Each Channel
  • Externally or Internally Programmable Burst Level
  • External or Internal Soft-Start or Supply Tracking
  • Available in Thermally Enhanced 28-Lead (4mm × 5mm) QFN and TSSOP Packages
Additional Details
show more Icon

The LTC3546 is a dual, constant-frequency, synchronous step down DC/DC converter for medium power applications. The design consists of 2A and 1A primary output switches. In addition to the 2A/1A capability, a 1A dependant output switch can be externally connected to either of the primary outputs to produce 3A/1A dual regulator or 2A/2A dual regulator configurations.

Supply operation is from 2.25V to 5.5V. The switching frequency can be set to 2.25MHz, adjustable from 0.75MHz to 4MHz, or synchronized to an external clock. Each output is adjustable from 0.6V to 5V and has output tracking on power-up. Internal synchronous low RDS(ON) power switches provide high efficiency without external Schottky diodes.

User-selectable modes (Burst Mode® operation, pulse skipping and forced continuous) allow a trade-off between ripple noise and power efficiency. Burst Mode operation provides high efficiency at light loads. Pulse-skipping mode provides low ripple noise at light loads.

The device is capable of low dropout configurations and both channels can operate at 100% duty cycle. In shutdown, the device draws <1μA.

Applications

  • Netbooks/Ultra-Mobile PCs
  • PC Cards
  • Wireless and DSL Modems
  • Point of Load DC/DC Conversion
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3546 Demo Circuit - Dual Synchronous Step-Down (2.5-5.5V to 2.5V @ 2A & 1.8V @ 2A) Download 4.00KB LTspice LTC3546 - Step-Down (Buck) Regulators Download 3.33 KB
Part Models 8
1ku List Price Starting From $4.48
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3546

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 03/12/2013
English

LTC3546: Dual Synchronous, 3A/1A or 2A/2A Configurable Step-Down DC/DC Regulator Data Sheet

Open PDF File

redirect
609.82 K
download

Download PDF

PDF Vector

PDF

UPDATED 05/24/2013
Japanese

LTC3546: 3A/1Aまたは2A/2Aに設定可能なデュアル同期整流式降圧DC/DCレギュレータ データシート

Open PDF File

redirect
705.00K
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1086A - Demo Manual redirect icon

2.00M

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1087A - Demo Manual redirect icon

2.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 03/01/2009
English
Design Note 460: Dual Output Buck Regulator with Current Partitioning Optimizes Efficiency in Space-Sensitive Applications redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3546EFE#PBF 28-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546EFE#TRPBF 28-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546EUFD#PBF 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546EUFD#TRPBF 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546IFE#PBF 28-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546IFE#TRPBF 28-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546IUFD#PBF 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3546IUFD#TRPBF 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3546EFE#PBF

PRODUCTION

LTC3546EFE#TRPBF

PRODUCTION

LTC3546IFE#PBF

PRODUCTION

LTC3546IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3546EFE#PBF

PRODUCTION

LTC3546EFE#TRPBF

PRODUCTION

LTC3546IFE#PBF

PRODUCTION

LTC3546IFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Digital Power System Managers1
LTC2974
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Silicon Oscillators1
LTC6909
popup image
Cart

PRODUCTION

1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kits 2

reference details image

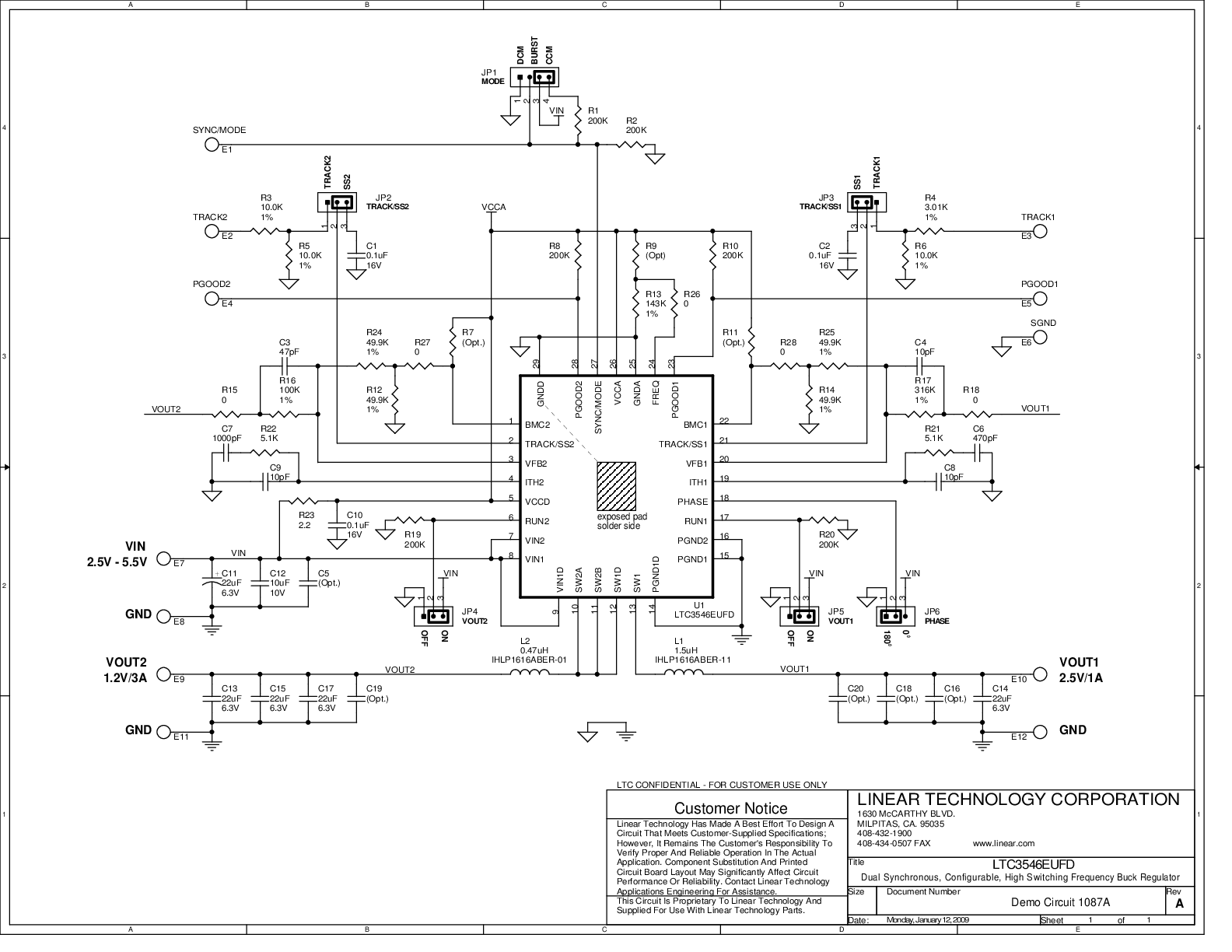

DC1087A

LTC3546UFD Demo Board | Dual Synchronous 3A/1A or 2A/2A, Configurable Step Down DC/DC Regulator

reference details image

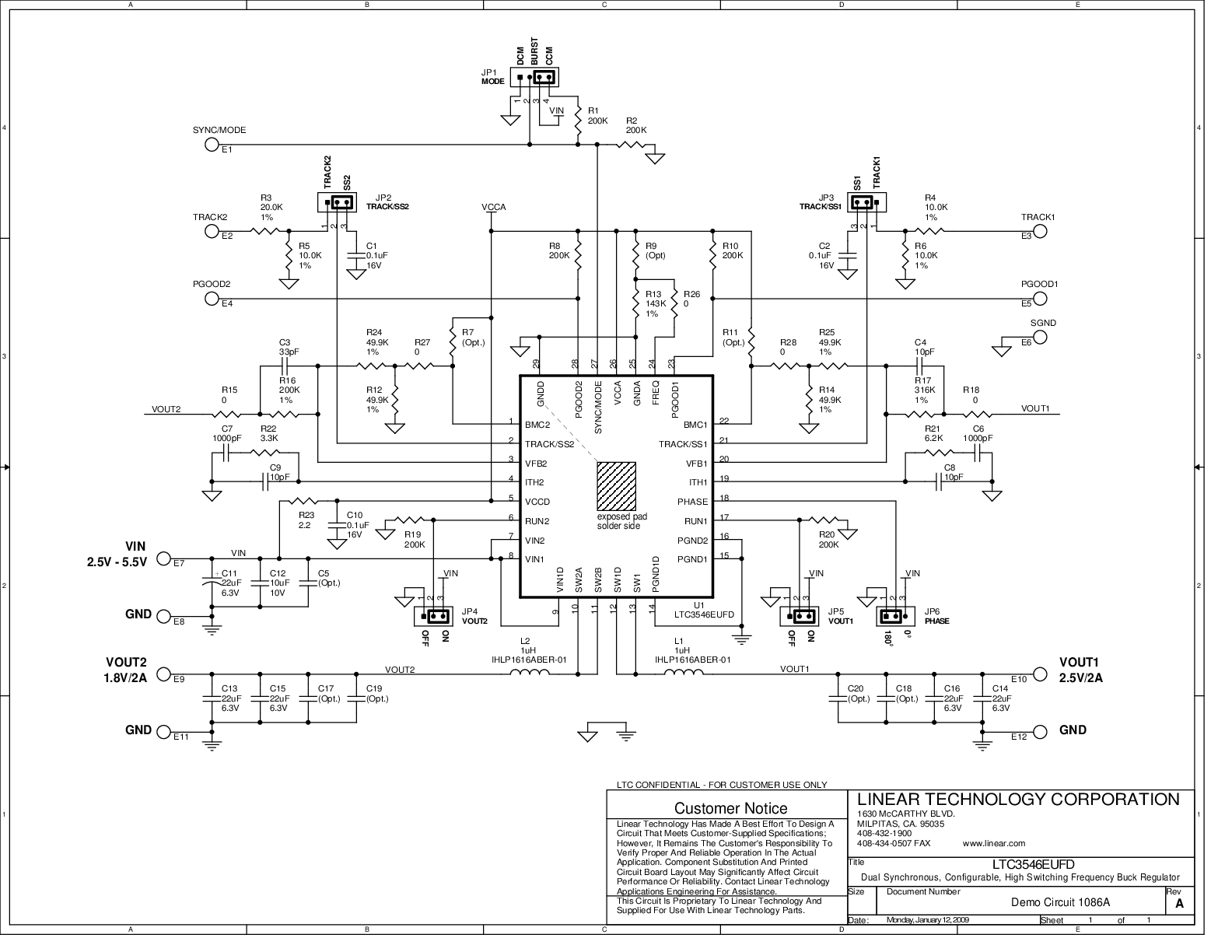

DC1086A
