LTC2662

RECOMMENDED FOR NEW DESIGNS

Five-Channel, 300mA Current-Source-Output 16-/12-Bit SoftSpan DACs

Data Sheet (Rev. B) Product Selection Table

Part Models: 14
1ku List Price: Starting From $15.28

Viewing:

Overview

Per-Channel Programmable Output Ranges:
300mA, 200mA, 100mA, 50mA, 25mA, 12.5mA,6.25mA and 3.125mA
Flexible 2.85V to 33V Supply Voltage
1V Dropout Guaranteed
Separate Voltage Supply per Output Channel
Internal Switches to Optional Negative Supply
Full 16-/12-Bit Resolution at All Ranges

Guaranteed Operation –40°C to 125°C
Precision (10ppm/°C Max) Internal Reference or External Reference Input
Analog Mux Monitors Voltages and Currents
A/B Toggle via SPI or Dedicated Pin
1.8V to 5V SPI Serial Interface

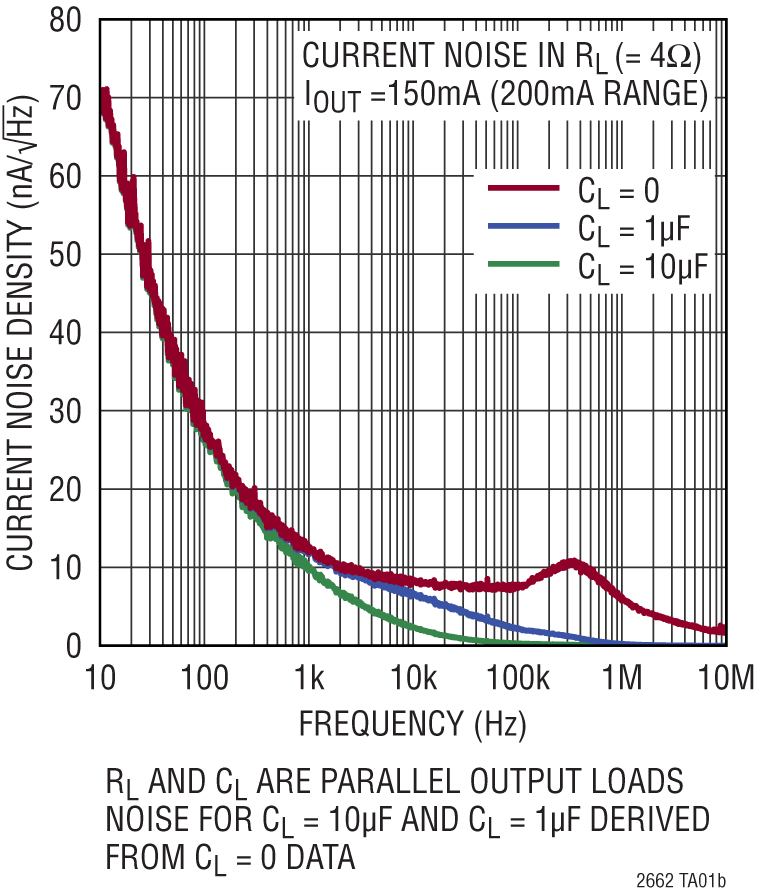

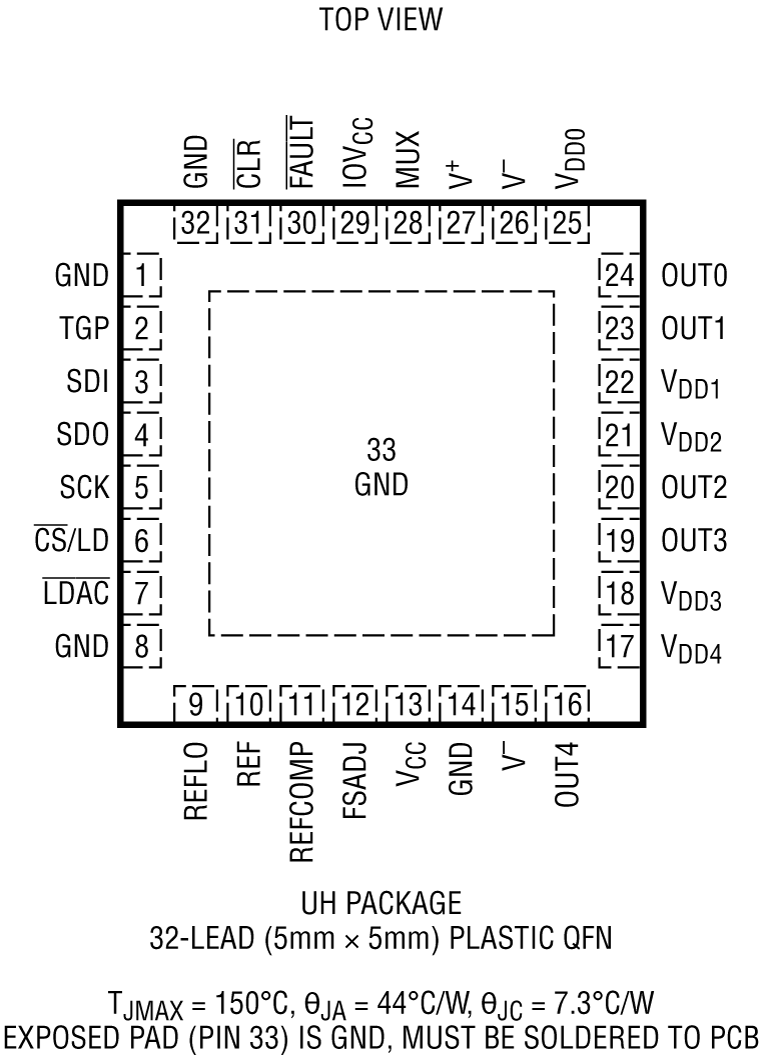

5mm × 5mm 32-Lead QFN Package

The LTC2662 is a family of five-channel, 16-/12-bit current-source digital-to-analog converters, providing five high-compliance current source outputs with guaranteed 1V dropout at 200mA. The part supports load voltages of up to 32V. There are eight current ranges, programmable per channel, with full-scale outputs of up to 300mA; and the channels can be paralleled to allow for ultrafine adjustments of large currents, or for combined outputs of up to 1.5A.

A dedicated supply pin is provided for every output channel. Each can be operated from 2.85V to 33V, and internal switches allow any output to be pulled to the optional negative supply.

The LTC2662 includes a precision integrated 1.25V reference (10ppm/°C maximum), with the option to use an external reference.

The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.

Applications

Tunable Lasers
Semiconductor Optical Amplifiers
Resistive Heaters
Current Mode Biasing
Proportional Solenoid Drive

Part Models: 14
1ku List Price: Starting From $15.28

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

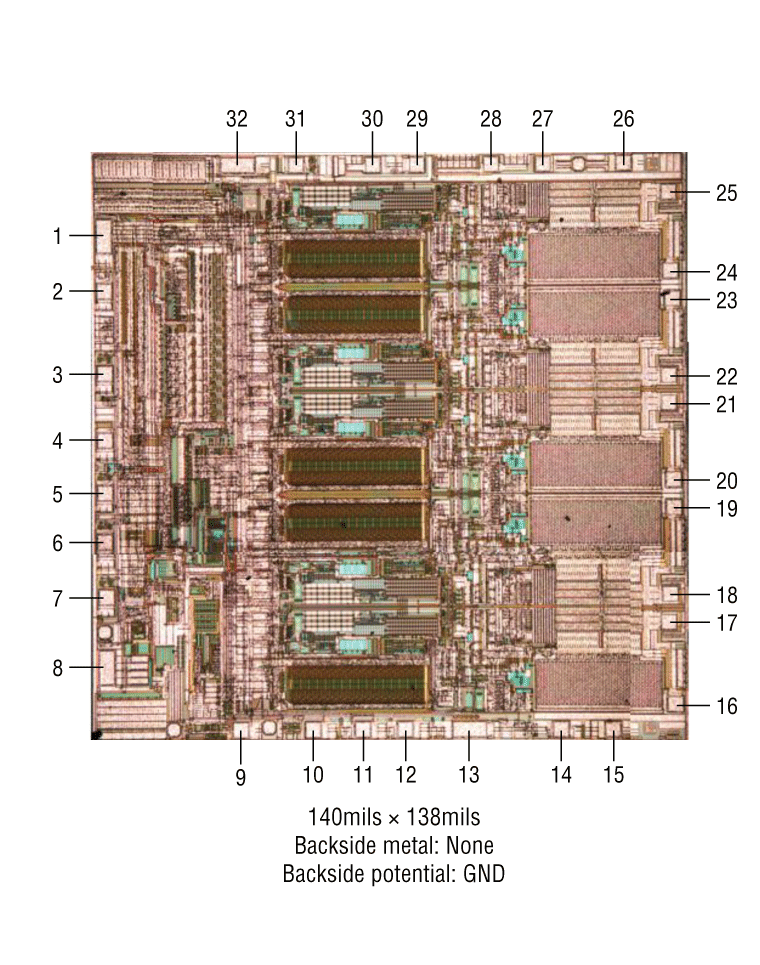

LTC2662-16DICE#6AJ	UNSAWN CHIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662-16DWF#6AJ-ES	DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662CUH-12#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662CUH-12#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662CUH-16#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662CUH-16#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662HUH-12#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662HUH-12#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662HUH-16#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662HUH-16#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662IUH-12#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662IUH-12#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662IUH-16#PBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2662IUH-16#TRPBF	32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 2, 2021 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC2662-16DICE#6AJ	PRODUCTION
Jul 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC2662CUH-12#PBF	PRODUCTION
LTC2662CUH-12#TRPBF	PRODUCTION
LTC2662CUH-16#PBF	PRODUCTION
LTC2662CUH-16#TRPBF	PRODUCTION
LTC2662HUH-12#PBF	PRODUCTION
LTC2662HUH-12#TRPBF	PRODUCTION
LTC2662HUH-16#PBF	PRODUCTION
LTC2662HUH-16#TRPBF	PRODUCTION
LTC2662IUH-12#PBF	PRODUCTION
LTC2662IUH-12#TRPBF	PRODUCTION
LTC2662IUH-16#PBF	PRODUCTION
LTC2662IUH-16#TRPBF	PRODUCTION
Apr 17, 2024 - 24_0052 LTC2662 Data Sheet Revision
		PCN24_0052_Form Material_Report Datasheet Specification Comparison
LTC2662HUH-12#PBF	PRODUCTION
LTC2662HUH-12#TRPBF	PRODUCTION
LTC2662HUH-16#PBF	PRODUCTION
LTC2662HUH-16#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

No-OS Driver Source Code NEW
Python Drivers NEW

Can't find the software or driver you need?

Tools & Simulations

IBIS Model 1

LTC2662 IBIS Model

Evaluation Kits

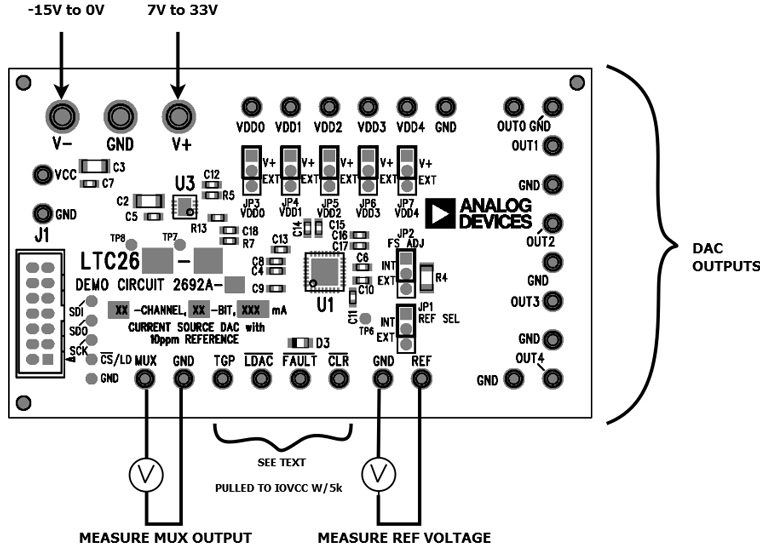

LTC2662 Demo Board | 5-Channel, 16-/12-Bit, 300mA, SoftSpan Current Source DACs

Buy Now View Details

Product Details

Demonstration circuit 2692A-A features the LTC2662, 5-channel, 16-bit, 300mA, current source DACs with 10ppm/°C reference in a 5mm × 5mm QFN package. This device features per-channel SoftSpan^™ configuration of 3.125mA to 300mA, a separate supply for each output, and an internal switch to allow any output pin to be connected to V⁻.

Pin-compatible 12-bit versions are available for lower resolution requirements on the DC2692A-B.

Resources

DC2692A-A Schematics
9/27/2018

DC2692A Demo Manual (Rev.0)
9/27/2018

DC2692A-A Design Files
9/27/2018

Software

DC2903A-X GUI Install Files

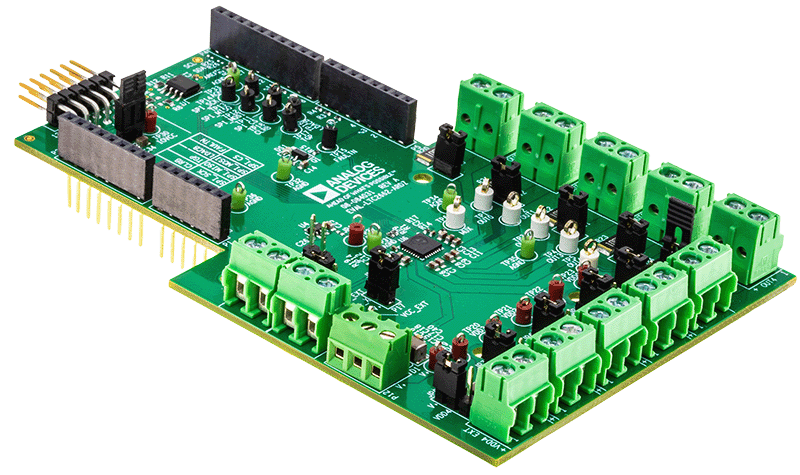

Evaluation Board for the LTC2662-16 5-Channel, 300mA Current-Source-Output 16-Bit SoftSpan DACs

Buy Now View Details

Features and Benefits

Full featured evaluation board for the LTC2662-16
PC control in conjunction with the EVAL-SDP-CK1Z board

Product Details

This user guide explains the operation of the EVAL-LTC2662-ARDZ for the LTC2662 16-bit, 5-channel, current output DAC, enabling quick prototyping and reduced design time. The device features per-channel SoftSpan™ configuration of 3.125mA to 300mA, a separate supply for each output, and an internal switch to allow any output pin to be connected to V−. The LTC2662 operates on 2.8V to 33V VDD supplies and includes a 1.25V internal low noise reference. Refer to the LTC2662 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-LTC2662-ARDZ.

The evaluation board connects to a PC via SDP-K1 board or directly to microcontrollers via a PMOD connection (requiring SDP-K1 disconnection).

Resources

EVAL-LTC2662 User Guide: Evaluation Board for the LTC2662-16 5-Channel, 300mA Current-Source-Output 16-Bit SoftSpan DACs (Rev.0)
12/3/2025

EVAL-LTC2662-ARDZ - Design Files
12/3/2025

EVAL-LTC2662-ARDZ - Schematic
12/3/2025
