Overview

Features and Benefits

  • Integrated Reference 10ppm/°C Max

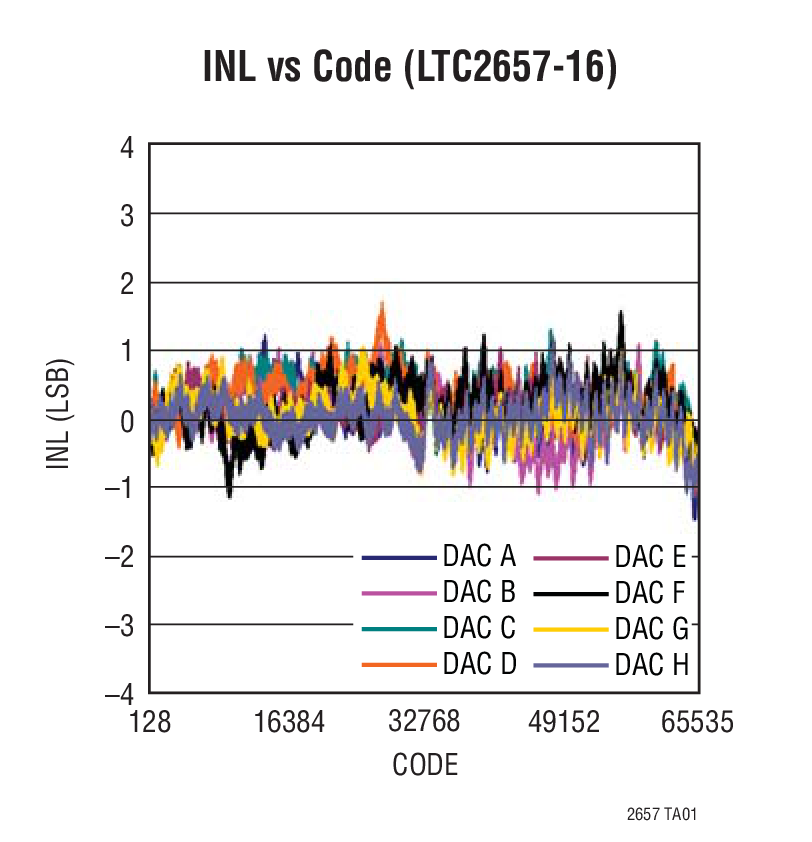

  • Maximum INL Error: ±4LSB
  • Guaranteed Monotonic Over Temperature
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2657-L)
  • Integrated Reference Buffers
  • Ultralow Crosstalk between DACs(0.8nV•s)
  • Power-On-Reset to Zero-Scale/Mid-Scale
  • 400kHz I2C Interface

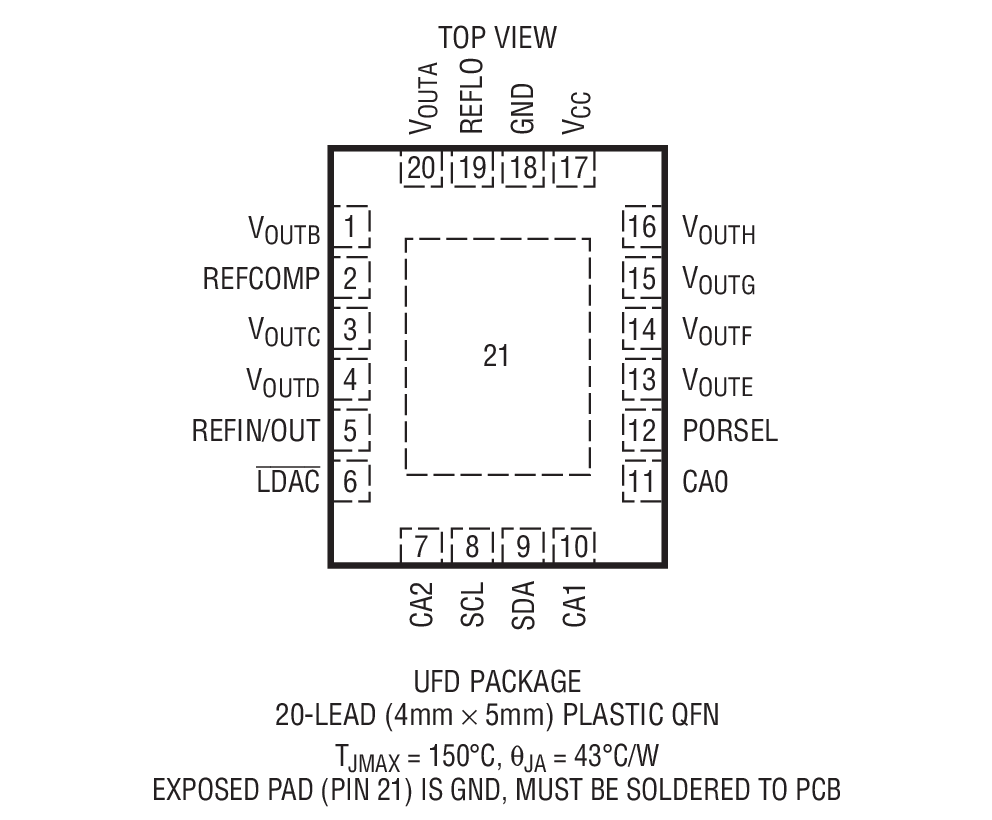

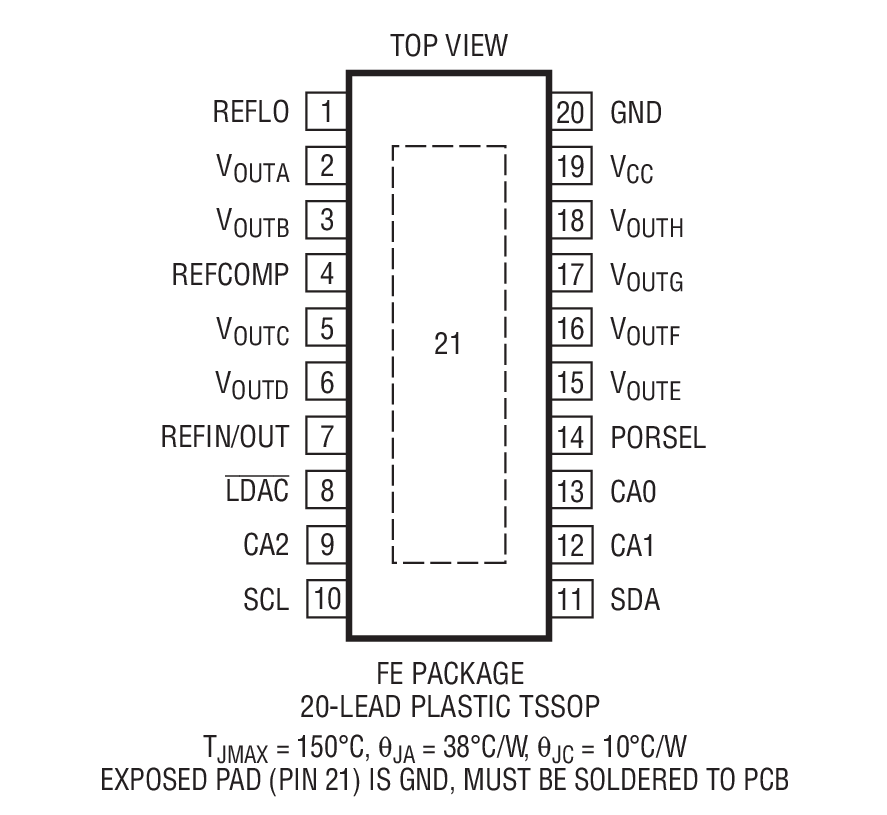

  • Tiny 20-Lead 4mm × 5mm QFN and 20-Lead Thermally enhanced TSSOP Packages

Product Details

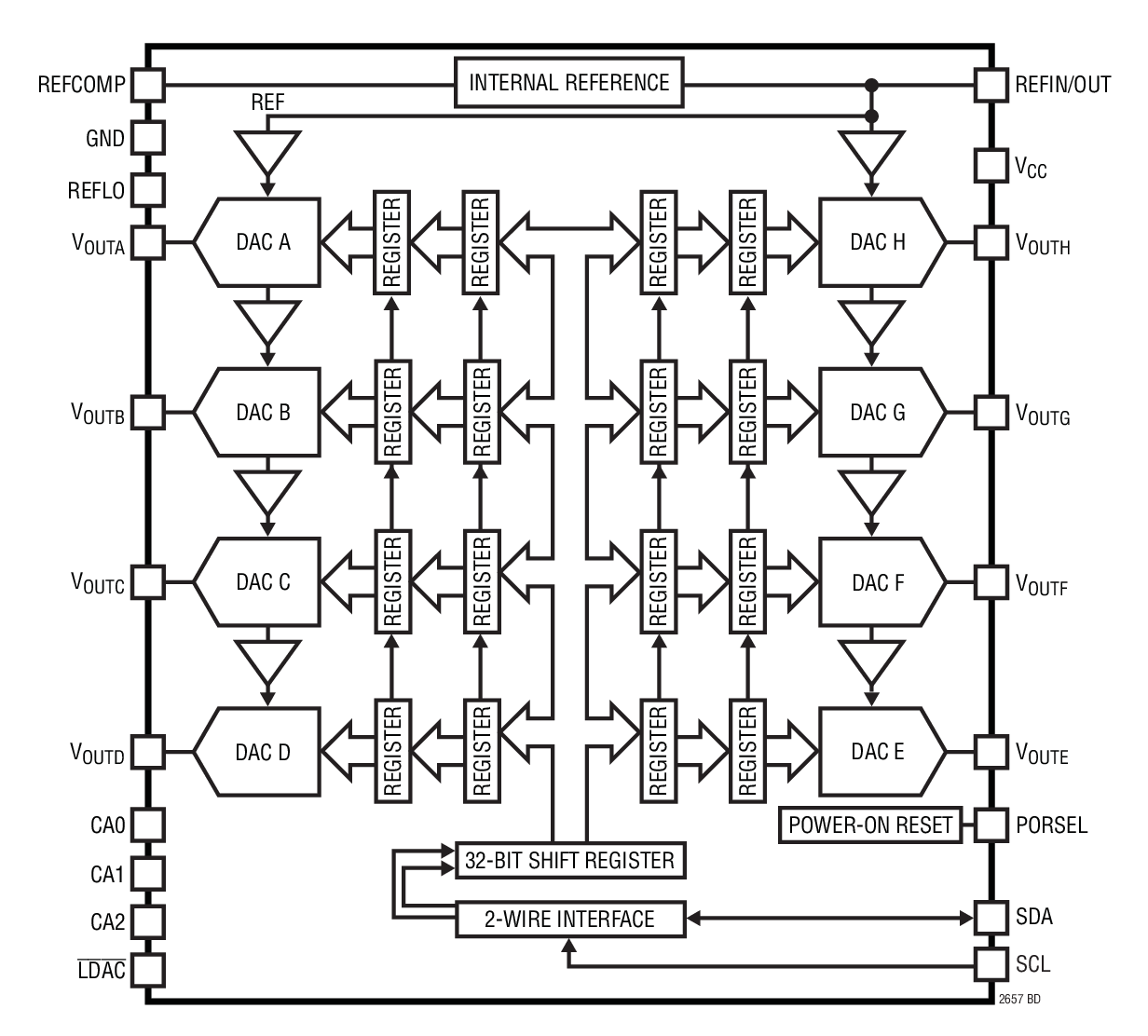

The LTC2657 is a family of octal I2C 16-/12-Bit Rail-to-Rail DACs with Integrated 10ppm/°C Max Reference. The DACs have built-in high performance, rail-to-rail, output buffers and are guaranteed monotonic. The LTC2657-L has a full-scale output of 2.5V with the integrated reference and operates from a single 2.7V to 5.5V supply. The LTC2657-H has a full-scale output of 4.096V with the integrated reference and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the full-scale output to 2 times the external reference voltage.

The parts use a 2-wire I2C compatible serial interface. The LTC2657 operates in both the standard mode (maximum clock rate of 100kHz) and the fast mode (maximum clock rate of 400kHz). The LTC2657 incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs reset to zero-scale at power-up. If PORSEL is tied to VCC, the DACs reset to mid-scale at power-up.

Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment
  • Automotive

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (2)

Documentation & Resources

  • View All (7)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Product Selector Card (3)
  • Video (1)
    • Document Type

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC2657 Linduino .CPP File
    LTC2657 Linduino Header File

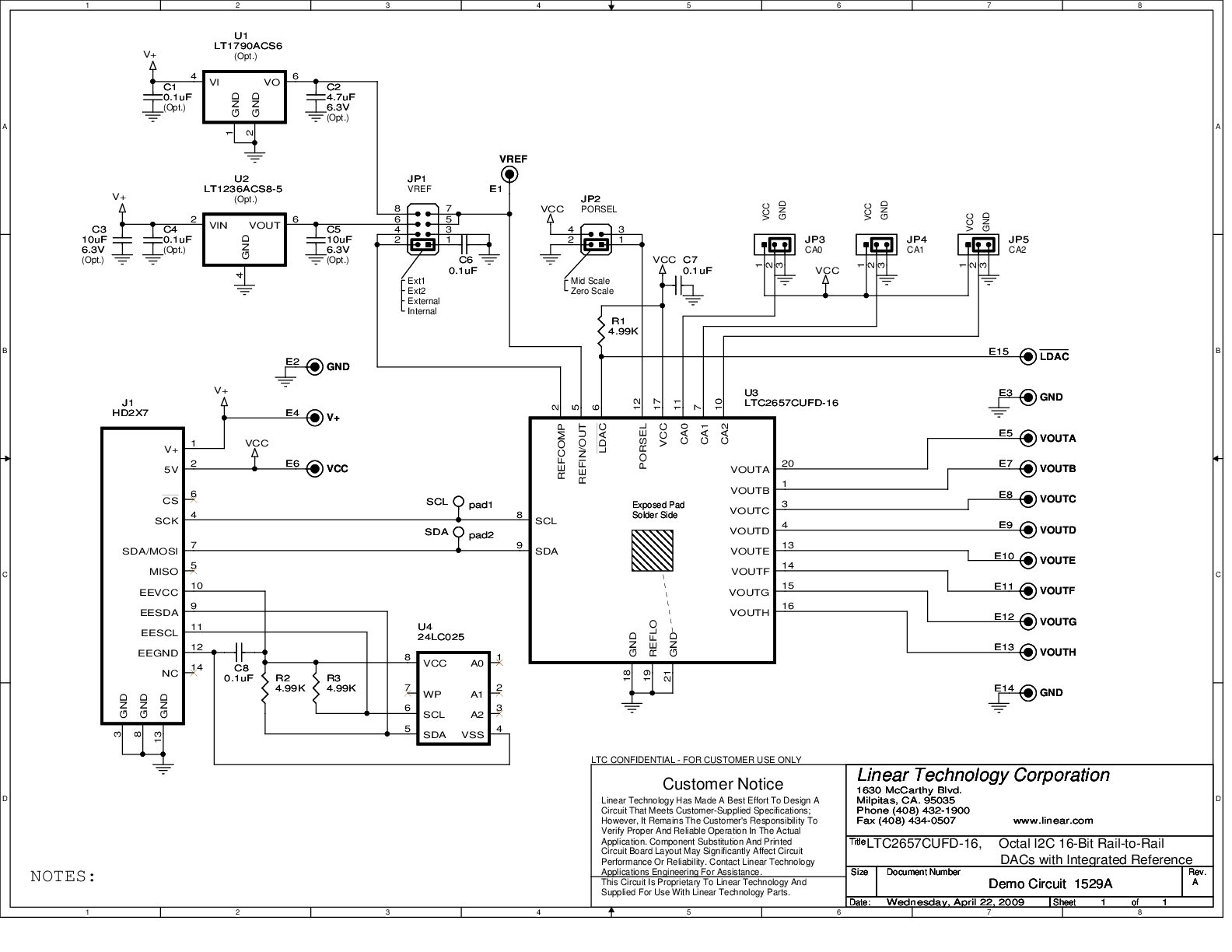

    LTC2657 - DC1529A Linduino .INO File
