LTC2635
Info: : PRODUCTION
searchIcon
cartIcon

LTC2635

Quad 12-/10-/8-Bit I2C VOUT DACs with 10ppm/°C Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 144
1ku List Price Starting From $2.46
Features
  • Integrated Precision Reference
    • 2.5V Full-Scale 10ppm/°C (LTC2635-L)
    • 4.096V Full-Scale 10ppm/°C (LTC2635-H)

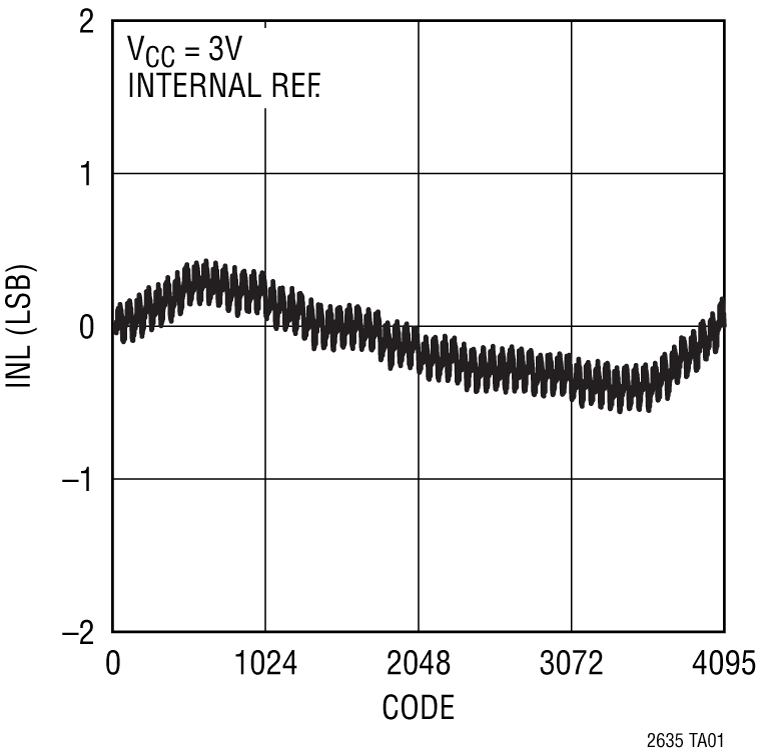

  • Maximum INL Error: ±2.5 LSB (LTC2635-12)
  • Power-On-Reset to Zero-Scale/Mid-Scale/Hi-Z
  • Low Noise: 0.75mVP-P 0.1Hz to 200kHz
  • Guaranteed Monotonic Over –40°C to 125°C Automotive Temperature Range
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2635-L)
  • Ultralow Crosstalk Between DACs (3nV•s)
  • Low Power: 0.6mA at 3V
  • Double-Buffered Data Latches

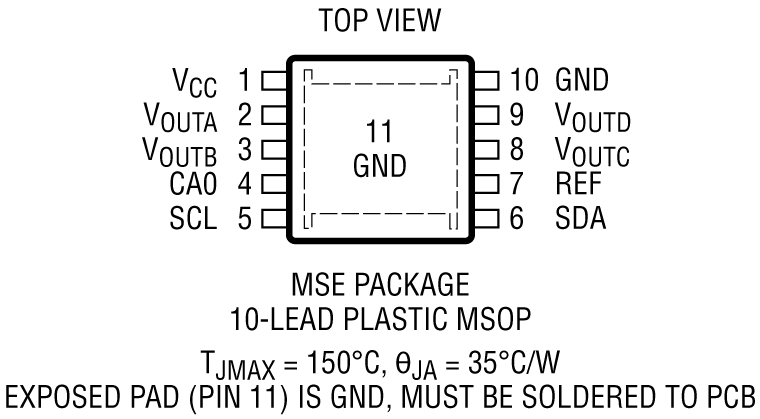

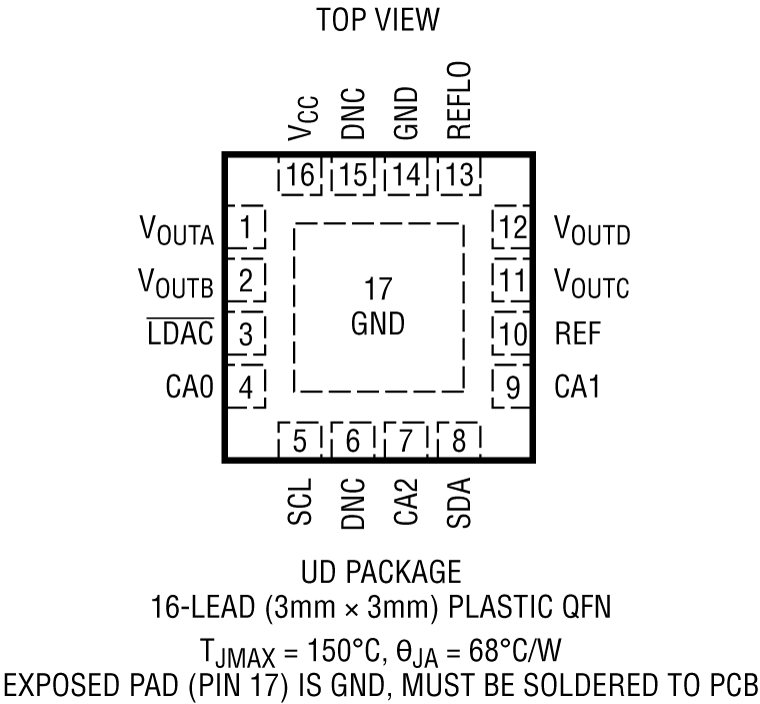

  • Small 16-Pin 3mm × 3mm QFN and 10-Lead MSOP Packages
Additional Details
show more Icon

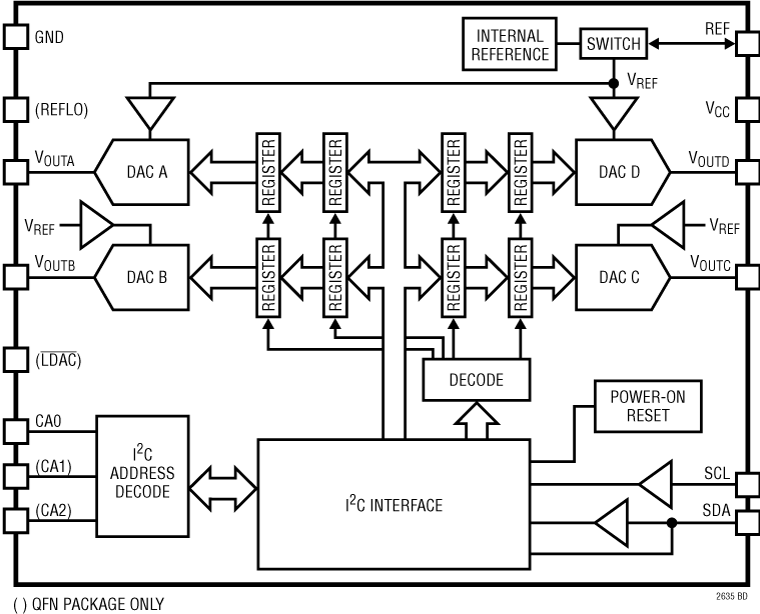

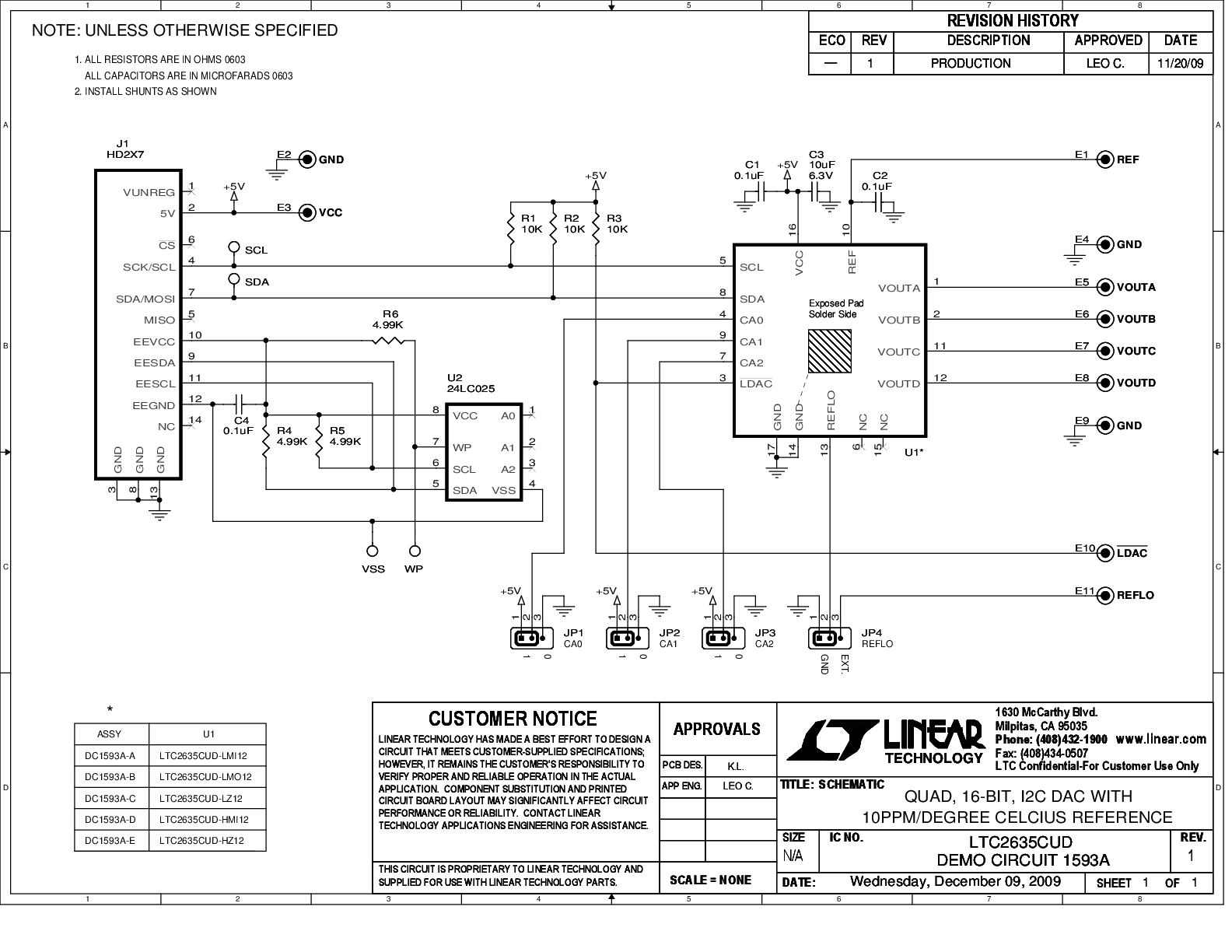

The LTC2635 is a family of quad 12-, 10-, and 8-bit voltage-output DACs with an integrated, high-accuracy, low-drift reference in a 16-pin QFN or a 10-lead MSOP package. It has rail-to-rail output buffers and is guaranteed monotonic. The LTC2635-L has a full-scale output of 2.5V, and operates from a single 2.7V to 5.5V supply. The LTC2635-H has a full-scale output of 4.096V, and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the fullscale output to the external reference voltage.

These DACs communicate via a 2-wire I2C-compatible serial interface. The LTC2635 operates in both the standard mode (clock rate of 100kHz) and the fast mode (clock rate of 400kHz). The LTC2635 incorporates a power-on reset circuit. Options are available for reset to zero-scale, reset to mid-scale in internal reference mode, reset to mid-scale in external reference mode, or reset with all DAC outputs in a high-impedance state after power-up.
