LTC2645

Quad 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/°C Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
Part Models 18
1ku List Price Starting From $3.07
Features
  • No Latency PWM-to-Voltage Conversion
  • Voltage Output Updates and Settles within 8μs
  • 100kHz to 30Hz PWM Input Frequency
  • ±2.5LSB Max INL; ±1LSB Max DNL (LTC2645-12)
  • Guaranteed Monotonic
  • Pin-Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range
  • 1.71V to 5.5V Input Voltage Range
  • Low Power: 4mA at 3V, <1μA Power-Down
  • Guaranteed Operation from –40°C to 125°C

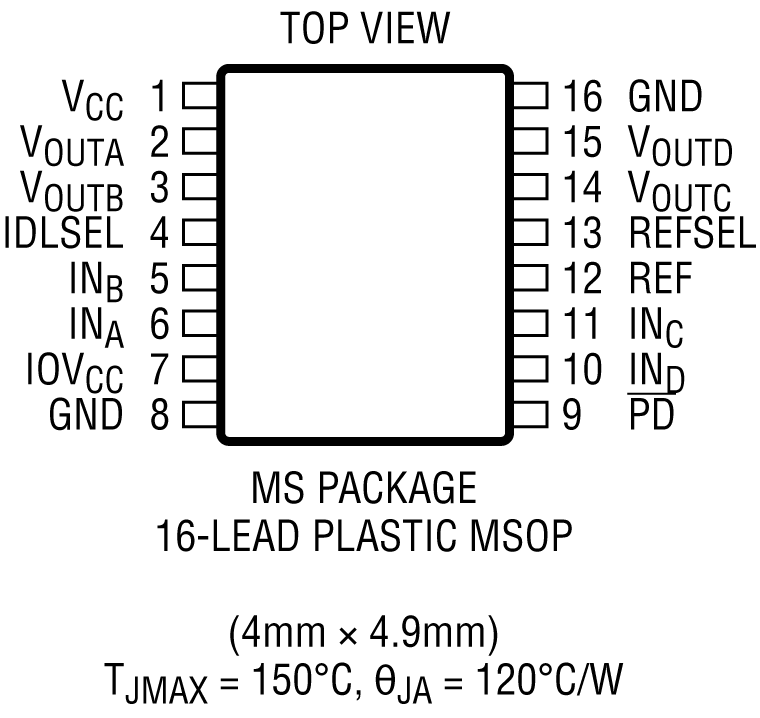

  • 16-Lead MSOP Package
Additional Details
show more Icon

The LTC2645 is a family of quad 12-, 10-, and 8-bit PWM to- voltage output DACs with an integrated high accuracy, low drift, 10ppm/°C reference in a 16-lead MSOP package. It has rail-to-rail output buffers and is guaranteed monotonic.

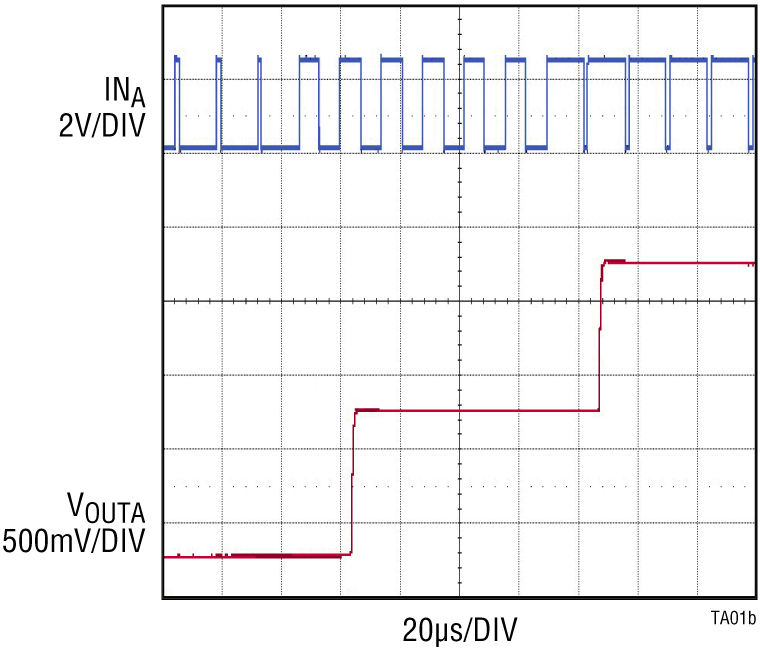

The LTC2645 measures the period and pulse width of the PWM input signals and updates the voltage output DACs after each corresponding PWM input rising edge. The DAC outputs update and settle to 12-bit accuracy within 8μs typically and are capable of sourcing and sinking up to 5mA (3V) or 10mA (5V), eliminating voltage ripple and replacing slow analog filters and buffer amplifiers.

The LTC2645 has a full-scale output of 2.5V using the 10ppm/°C internal reference. It can operate with an external reference, which sets the full-scale output equal to the external reference voltage. Each DAC enters a pin-selectable idle state when the PWM input is held unchanged for more than 60ms. The part operates from a single 2.7V to 5.5V supply and supports PWM input voltages from 1.71V to 5.5V.

Applications

  • Digital Calibration
  • Trimming and Adjustment
  • Level Setting
  • Process Control and Industrial Automation
  • Instrumentation
  • Automotive
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
Part Models 18
1ku List Price Starting From $3.07
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2645

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • Reliability Data
  • Data Sheet
  • User Guide
  • Technical Articles
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/23/2017
English

LTC2645: Quad 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/°C Reference Data Sheet (Rev.B)

Open PDF File

redirect
753.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/01/2014
Japanese

LTC2645: 10ppm/リファレンスを内蔵したPWM入力/電圧出力のクワッド12/10/8ビットD/Aコンバータ データシート (Rev.0)

Open PDF File

redirect
961.00K
download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 03/31/2015
English
DN538 - Accurate, Fast Settling Analog Voltages from Digital PWM Signals redirect icon

186.00K

download

Download PDF

PDF Vector

PDF

UPDATED 04/10/2015
Chinese
DN538 - 从数字 PWM 信号获得准确、快速稳定的模拟电压 redirect icon

373.00K

download

Download PDF

PDF Vector

PDF

UPDATED 05/19/2015
Japanese
DN538 - デジタルPWM 信号からの、高精度、高速セトリングなアナログ電圧生成 redirect icon

198.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/22/2018
English
R461 Reliability Data redirect icon

31.35 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 02/29/2016
English
DC2197A - Demo Manual redirect icon

809.00K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 03/17/2015
English
Accurate, Fast Settling Analog Voltages from Digital PWM Signals redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2645CMS-L10#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645CMS-L10#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645CMS-L12#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645CMS-L12#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645CMS-L8#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645CMS-L8#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L10#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L10#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L12#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L12#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L8#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645HMS-L8#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L10#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L10#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L12#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L12#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L8#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2645IMS-L8#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2645CMS-L10#PBF

PRODUCTION

LTC2645CMS-L10#TRPBF

PRODUCTION

LTC2645CMS-L12#PBF

PRODUCTION

LTC2645CMS-L12#TRPBF

PRODUCTION

LTC2645CMS-L8#PBF

PRODUCTION

LTC2645CMS-L8#TRPBF

PRODUCTION

LTC2645HMS-L10#PBF

PRODUCTION

LTC2645HMS-L10#TRPBF

PRODUCTION

LTC2645HMS-L12#PBF

PRODUCTION

LTC2645HMS-L12#TRPBF

PRODUCTION

LTC2645HMS-L8#PBF

PRODUCTION

LTC2645HMS-L8#TRPBF

PRODUCTION

LTC2645IMS-L10#PBF

PRODUCTION

LTC2645IMS-L10#TRPBF

PRODUCTION

LTC2645IMS-L12#PBF

PRODUCTION

LTC2645IMS-L12#TRPBF

PRODUCTION

LTC2645IMS-L8#PBF

PRODUCTION

LTC2645IMS-L8#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2645CMS-L10#PBF

PRODUCTION

LTC2645CMS-L10#TRPBF

PRODUCTION

LTC2645CMS-L12#PBF

PRODUCTION

LTC2645CMS-L12#TRPBF

PRODUCTION

LTC2645CMS-L8#PBF

PRODUCTION

LTC2645CMS-L8#TRPBF

PRODUCTION

LTC2645HMS-L10#PBF

PRODUCTION

LTC2645HMS-L10#TRPBF

PRODUCTION

LTC2645HMS-L12#PBF

PRODUCTION

LTC2645HMS-L12#TRPBF

PRODUCTION

LTC2645HMS-L8#PBF

PRODUCTION

LTC2645HMS-L8#TRPBF

PRODUCTION

LTC2645IMS-L10#PBF

PRODUCTION

LTC2645IMS-L10#TRPBF

PRODUCTION

LTC2645IMS-L12#PBF

PRODUCTION

LTC2645IMS-L12#TRPBF

PRODUCTION

LTC2645IMS-L8#PBF

PRODUCTION

LTC2645IMS-L8#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

TimerBlox1
LTC6992
popup image
Cart

TimerBlox: Voltage-Controlled Pulse Width Modulator (PWM)

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 1

reference details image

DC2197A-A

LTC2645 Demo Board | Quad 12-/10-/8-BIT PWM to VOUT DACs (requires DC2026)

zoom

DC2197A-A

LTC2645 Demo Board | Quad 12-/10-/8-BIT PWM to VOUT DACs (requires DC2026)

download icon

Download

 print icon

Print
DC2197A-A
LTC2645 Demo Board | Quad 12-/10-/8-BIT PWM to VOUT DACs (requires DC2026)
Buy Now View Details

Product Detail

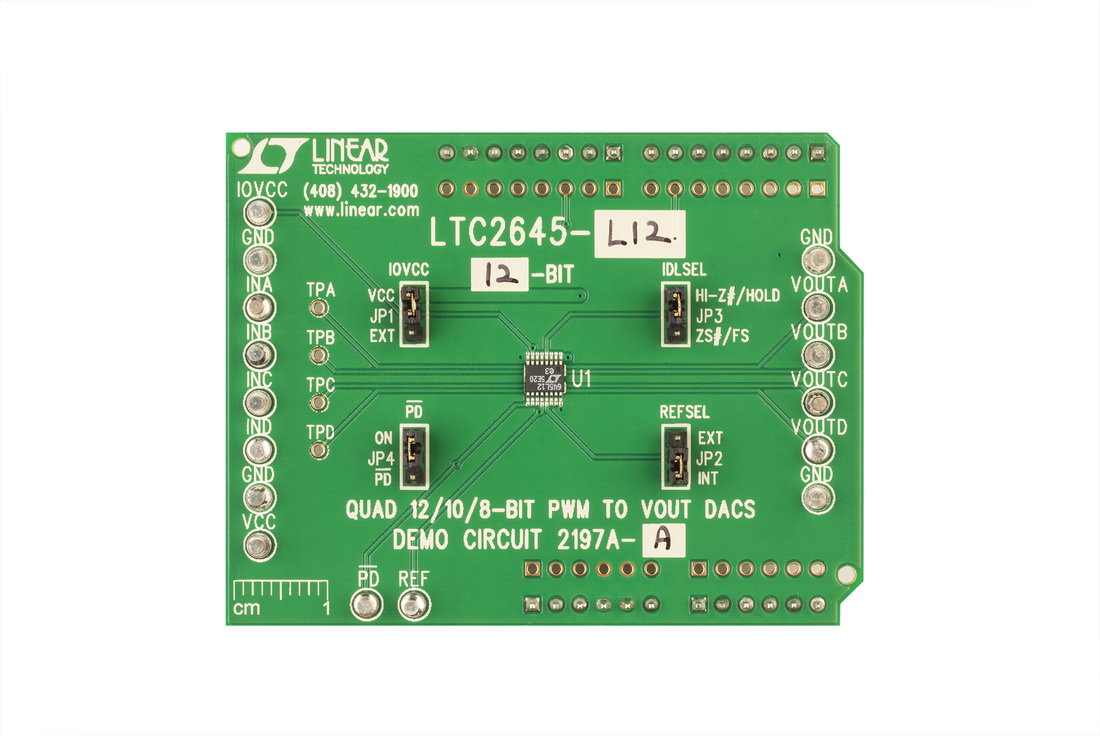

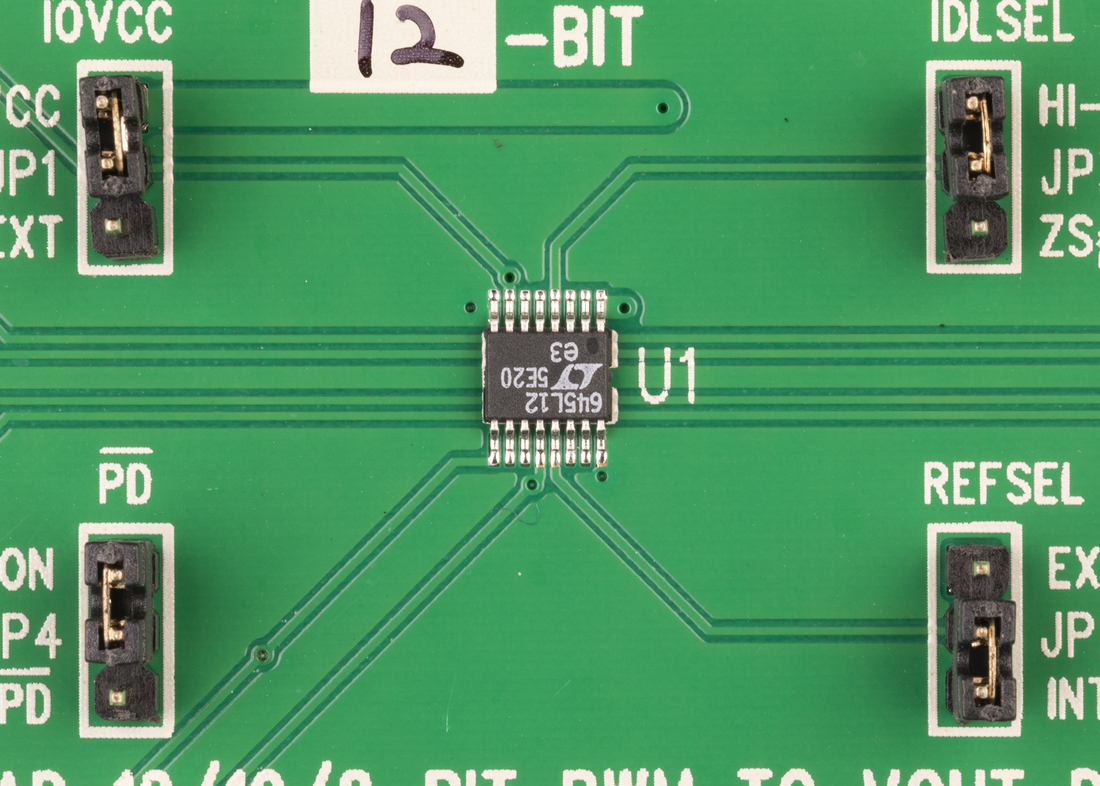

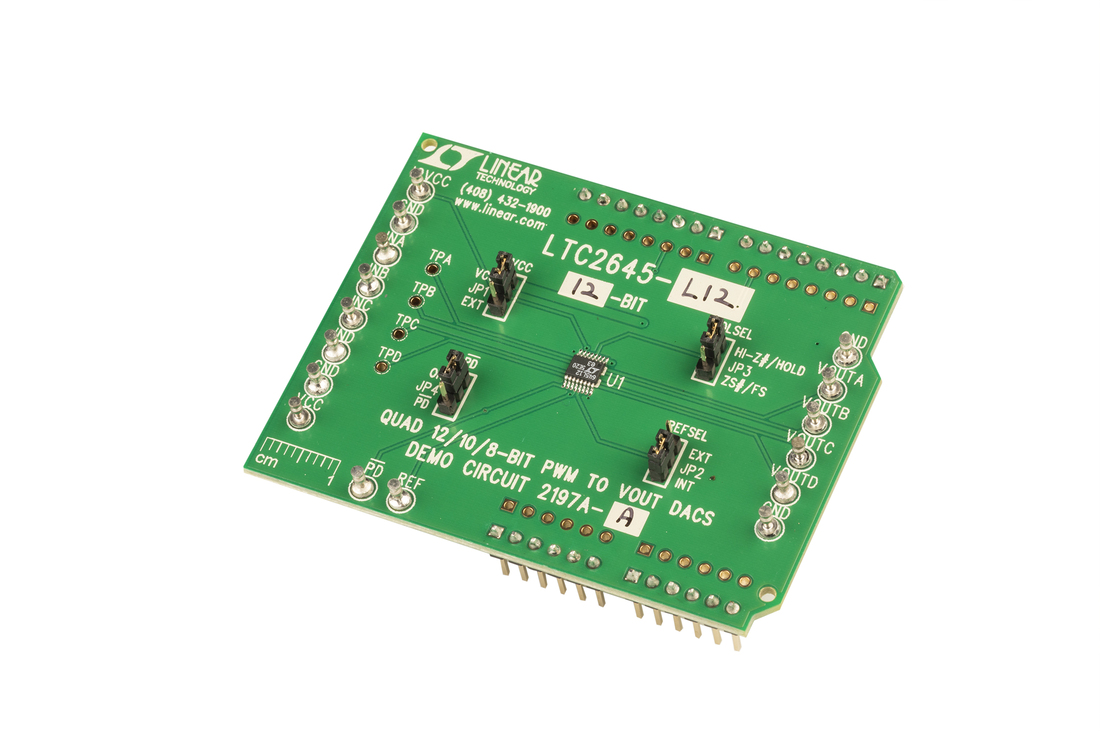

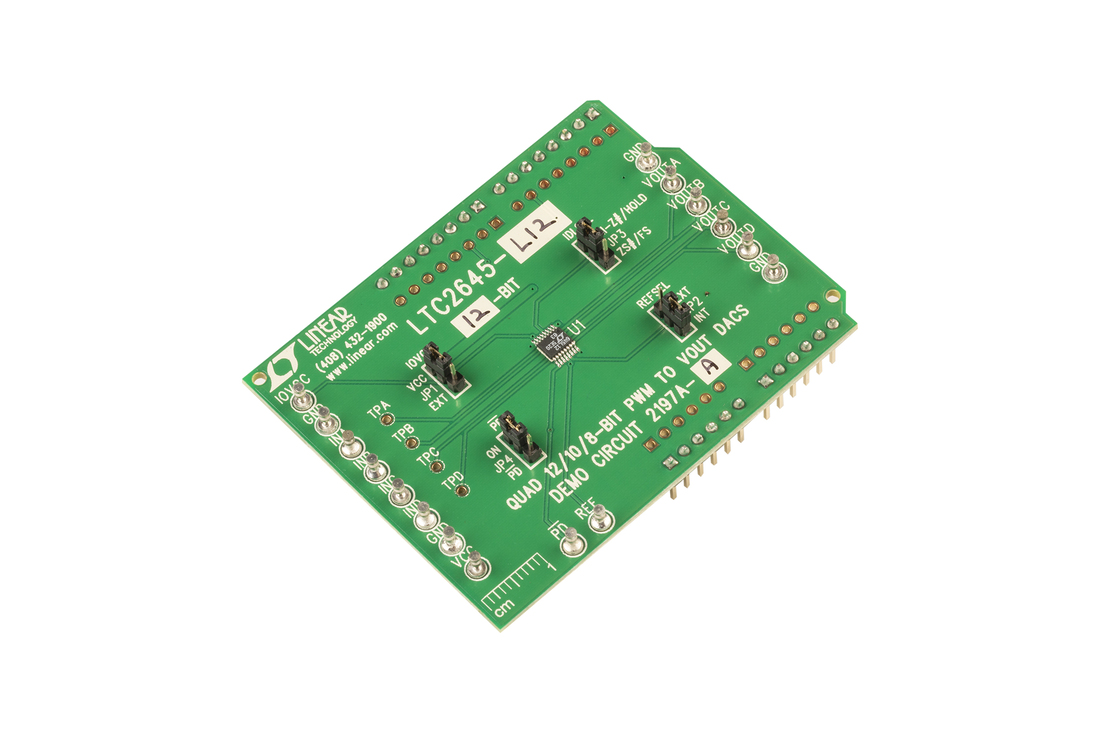

Demonstration circuit 2197A features the LTC2645, Quad 12-/10-/8-Bit PWM to VOUT DACs with 10ppm/°C reference in a tiny 4.9mm × 4mm 16-lead MSOP package. DC2197A-A is populated with the 2.5V, 12-bit version of the LTC2645.

Resources

pdf icon

PDF

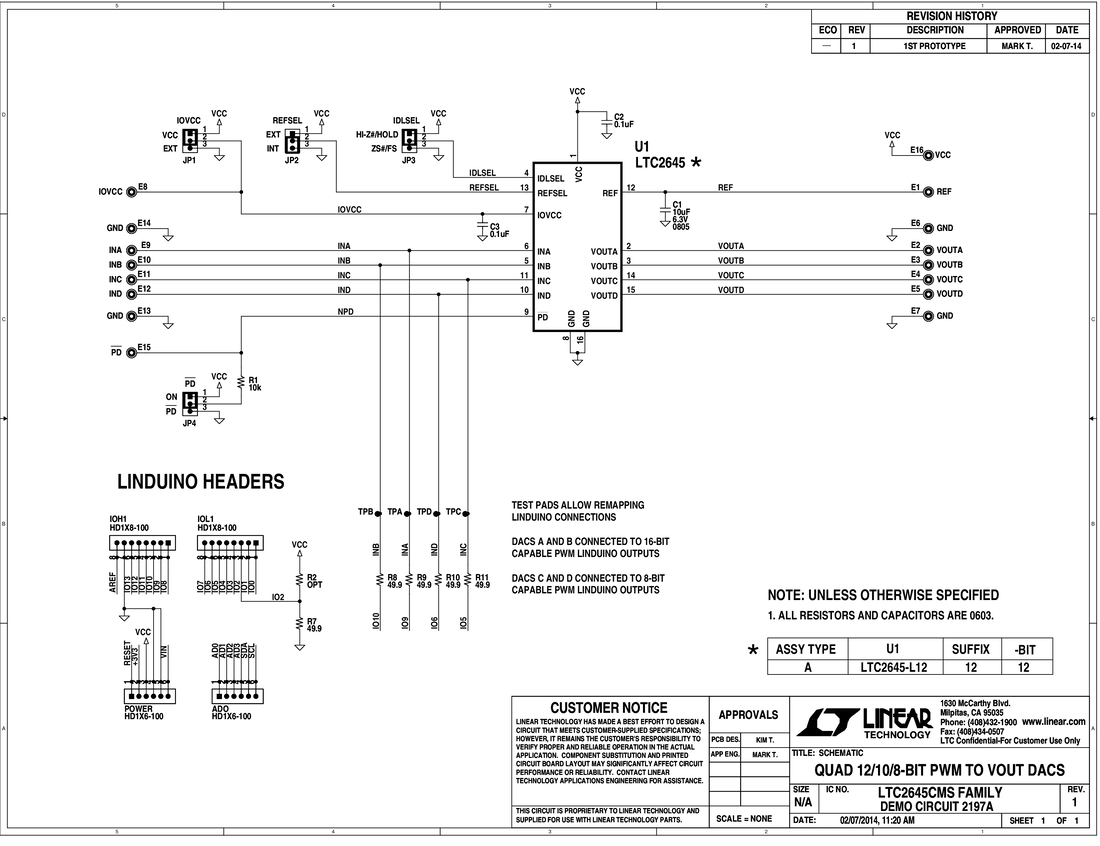

DC2197A - Schematic Download
